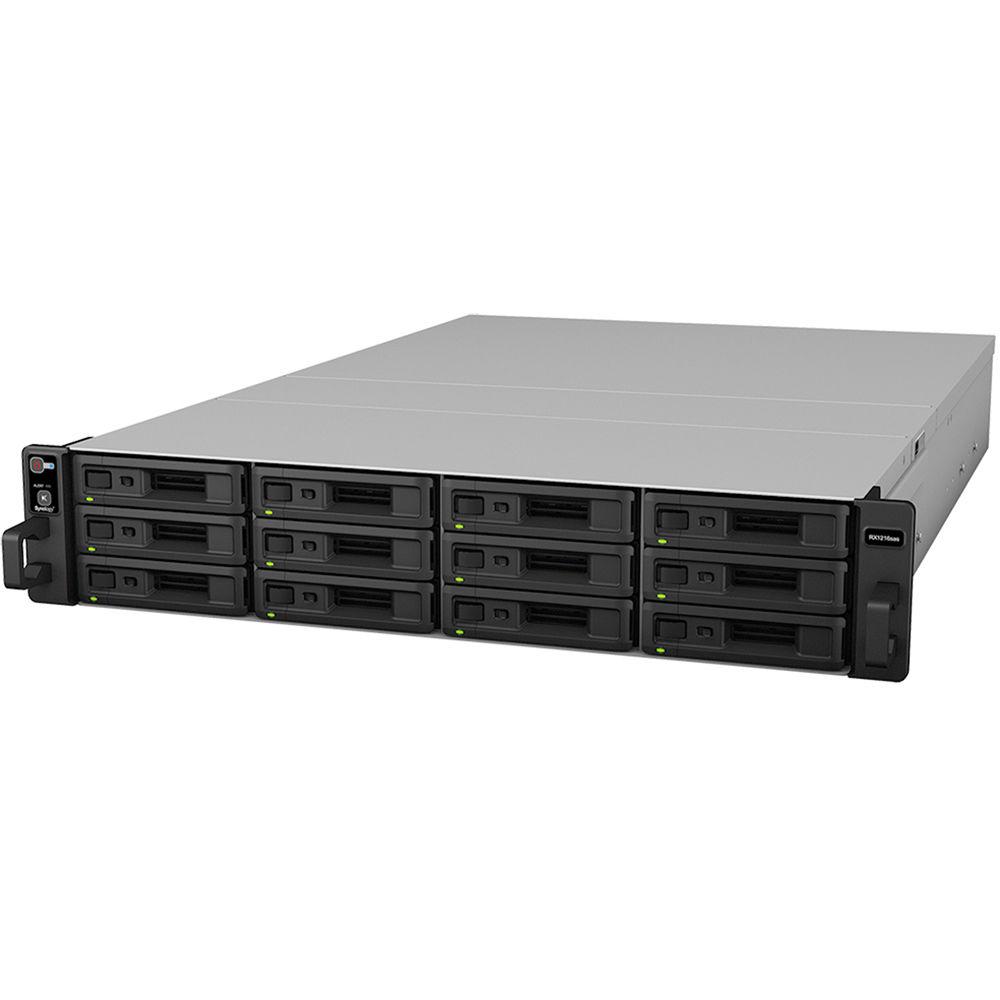

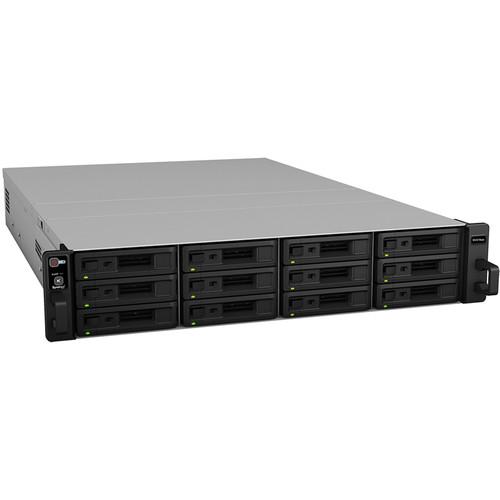

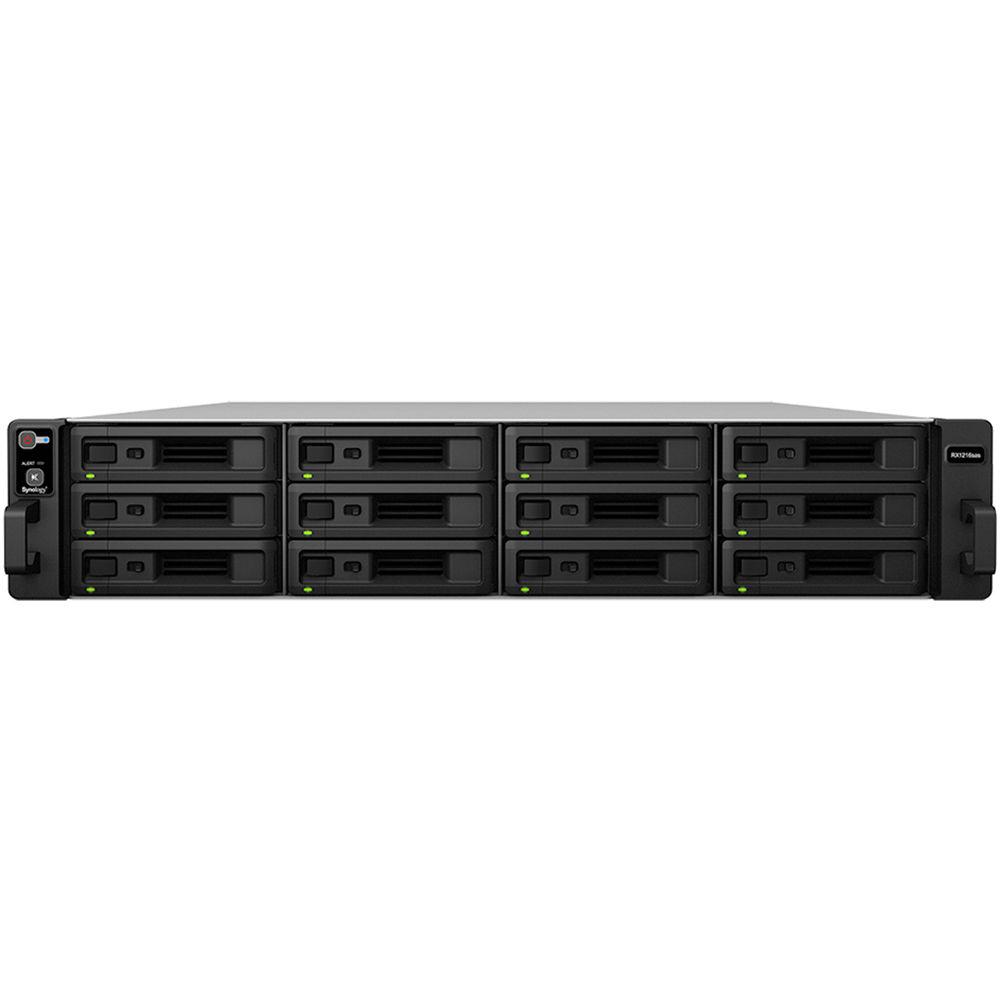

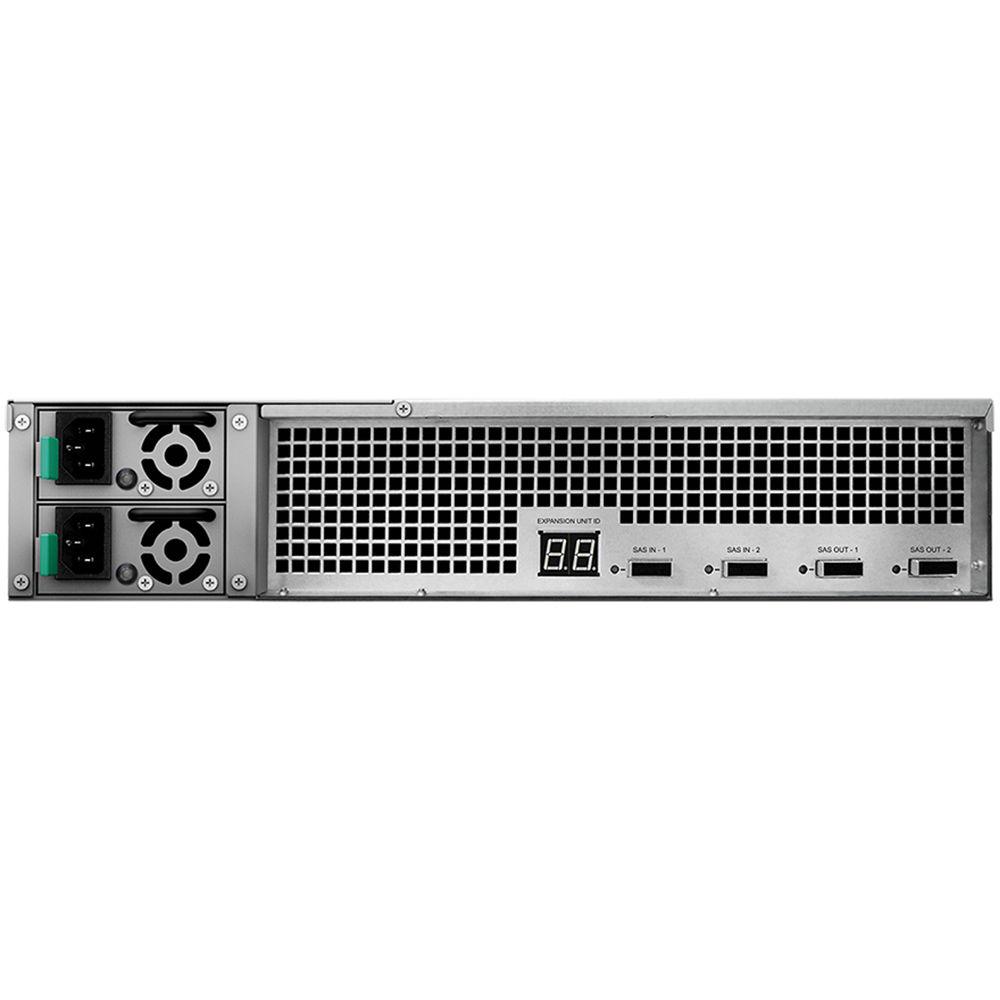

Product description The RX1216sas 12-Bay Storage Expansion Enclosure from Synology is designed to provide storage capacity expansion for the Synology RackStation RS18016xs+. It provides twelve drive bays, each of which is able to natively support 3.5" and 2.5" SATA III 6 Gb/s and SATA II 3 Gb/s hard drives and SSDs, 3.5" and 2.5" SAS hard drives, and 2.5" SAS SSDs. The drives are hot swappable and there is also RAID management through the Synology Disk Station Manager that supports RAID 0, 1, 5, 6, 10, Basic, & JBOD. The RX1216sas is equipped with 2 x Mini-SAS inputs, 2 x Mini-SAS outputs, and dual redundant 500W power supplies. It operates using 100-240 VAC at 50/60 Hz (single phase) and consumes 67.31W upon drive access.
The RX1216sas 12-Bay Storage Expansion Enclosure includes an accessory pack, two AC power cords, and two Mini-SAS expansion cables. It is protected by a limited 5-year warranty. - Plug-n-use design for seamless storage space upgrade
- Redundant data paths & power supplies help ensure service uptime
- SATA and SAS drive compatibility for flexible capacity and balanced performance
- Managed with Synology DiskStation Manager (DSM)
- Backed with Synology's 5-year limited warranty & Synology Replacement Service (SRS)
UPC: 846504002023 In the Box Synology RX1216sas 12-Bay Storage Expansion Enclosure Accessory Pack 2 x AC Power Cords 2 x Mini-SAS Expansion Cables Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RX1216sas 12-Bay Storage Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology RX1216SAS Specs | | | Drive Bays | 12 | | Compatible Drive Types | 3.5" SATA III / SATA II HDD
2.5" SATA III / SATA II HDD
2.5" SATA III / SATA II SSD
3.5" SAS HDD
2.5" SAS HDD
2.5" SAS SSD | | Hot Swappable Drives | Yes | | RAID Management through Synology DSM | Yes | | | | MiniSAS IN-port | 2 | | MiniSAS OUT-port | 2 | | | | Power Recovery | Synchronized with the Synology RackStation | | Power Supply Unit / Adapter | 2 x 500 W | | AC Input Power Voltage | 100 to 240 VAC | | Power Frequency | 50/60 Hz, Single Phase | | Power Consumption | 67.31 W (Access)
34.05 W (HDD Hibernation) | | British Thermal Unit | 229.84 BTU/hr (Access)
116.25 BTU/hr (HDD Hibernation)
Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drives | | Redundant Power Supply | Yes | | | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Relative Humidity | 5 to 95% RH | | | | System Fan | 80 x 80 mm x 4 pcs | | Easy Replacement System Fan | Yes | | Noise Level | 45.1 dBA | | Certification | FCC Class A
CE Class A
BSMI Class A | | Environment | RoHS Compliant | | | | Dimensions | 3.5 x 16.9 x 27.2" / 88.0 x 430.0 x 692.0 mm | | Weight | 29.8 lb / 13.5 kg | | | | Package Weight | 42.4 lb | | Box Dimensions (LxWxH) | 33.0 x 24.0 x 9.0" |
