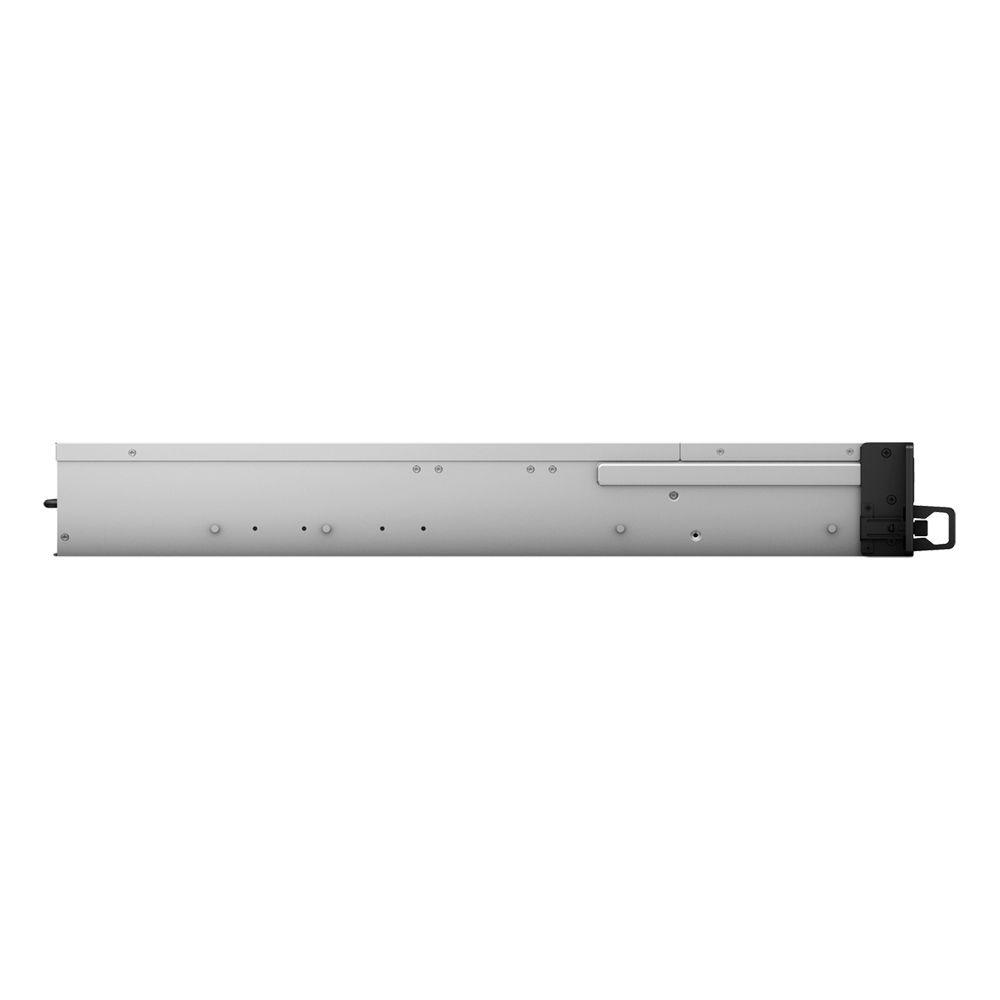

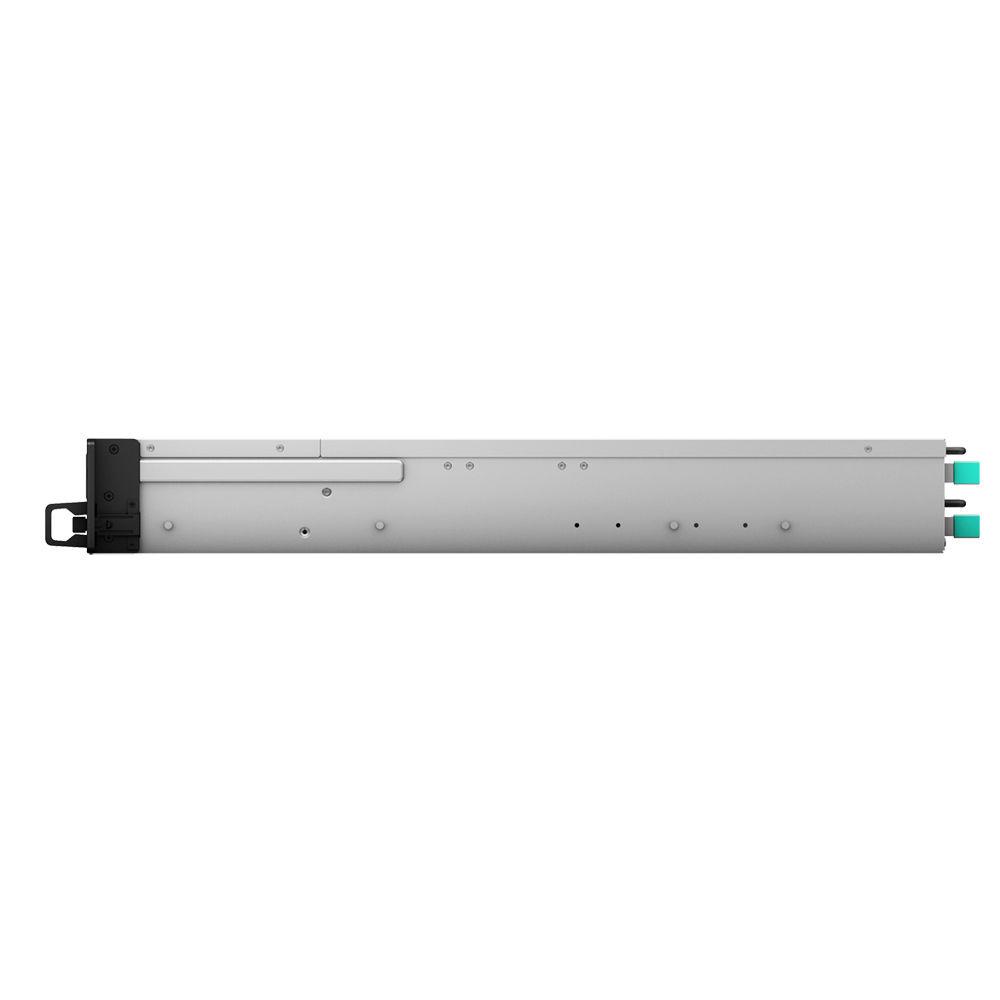

User Manual for Synology RX1217sas 12-Bay 2.5" 3.5" SAS SATA Expansion Chassis for RS18017xs Click to enlarge the picture
Contents of the user manual for the Synology RX1217sas 12-Bay 2.5" 3.5" SAS
- Product category: NAS Enclosures Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology NAS Enclosures
 |
User manual for the Synology RX1217sas 12-Bay 2.5" 3.5" SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

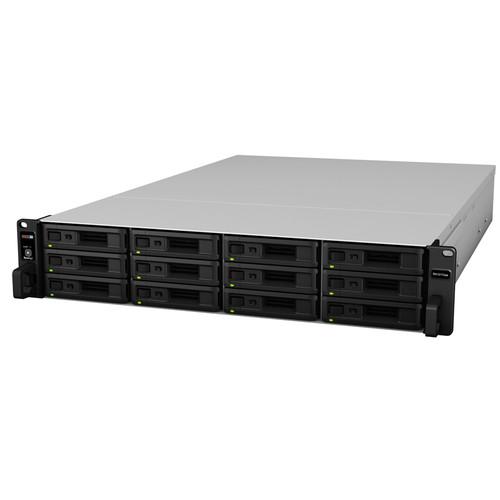

Product description The Synology RX1217sas SAS/SATA Expansion Chassis provides twelve additional drive bays for your RackStation RS18017xs+ NAS enclosure, letting the host system hold more 2.5" and 3.5" storage drives. Each of the bays has a hot-swappable drive tray for quick installation of a user-supplied drive and supports storage drives that feature a SAS or SATA interface. To run your drives reliably, two 500W power supplies and four 60mm fans are on board.
The RX1217sas comes with a SAS input port that connects to a host system's optional FS3017 expansion card; and a SAS output on the RX1217sas is available for accessing a second optional expansion chassis. This two-port design enables you to expand the RackStation RS18017xs+ NAS enclosure's storage capacity with up to seven RX1217sas chassis. Furthermore, Synology includes a miniSAS expansion cable for connecting the RX1217sas to a RS18017xs+. - 12-Bay 3.5"/2.5" SAS/SATA Expansion
- The RX1217sas provides 12 additional drive bays for a Synology FlashStation or RackStation. Supporting both 2.5" and 3.5" SAS/SATA drives, the RX1217sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
- High Availability
- Dual redundant power supplies ensure continuous service uptime. You can easily replace defective drives with hot-swappable drive trays.
UPC: 846504002535 In the Box Synology RX1217sas 12-Bay 2.5"/3.5" SAS/SATA Expansion Chassis for RS18017xs+ Accessory Pack 2 x Power Cord MiniSAS-HD Expansion Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RX1217sas 12-Bay 2.5" 3.5" SAS SATA Expansion Chassis for RS18017xs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology RX1217SAS Specs | Drive Bays | 12 x 2.5"/3.5" SAS or SATA HDDs and SSDs
Hot swap support | | Ports | 1 x SAS input
1 x SAS output | | Cooling | 4 x 60 mm fans | | Noise Level | 60.9 dBA | | Power Supplies | 2 x 500 W | | Voltage Input | 100 to 240 VAC, 50/60 Hz, single phase | | Power Consumption | Access: 132.7 W
Hibernation: 89.3 W | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Relative Humidity | 5 to 95% | | Green Compliance | RoHS | | Certification | FCC, CE, BSMI | | Dimensions (H x W x D) | 3.5 x 19.0 x 28.5" / 88 x 482 x 724 mm | | Weight | 39.7 lb / 18 kg | | | | Package Weight | 51.5 lb | | Box Dimensions (LxWxH) | 33.5 x 24.5 x 9.0" |
