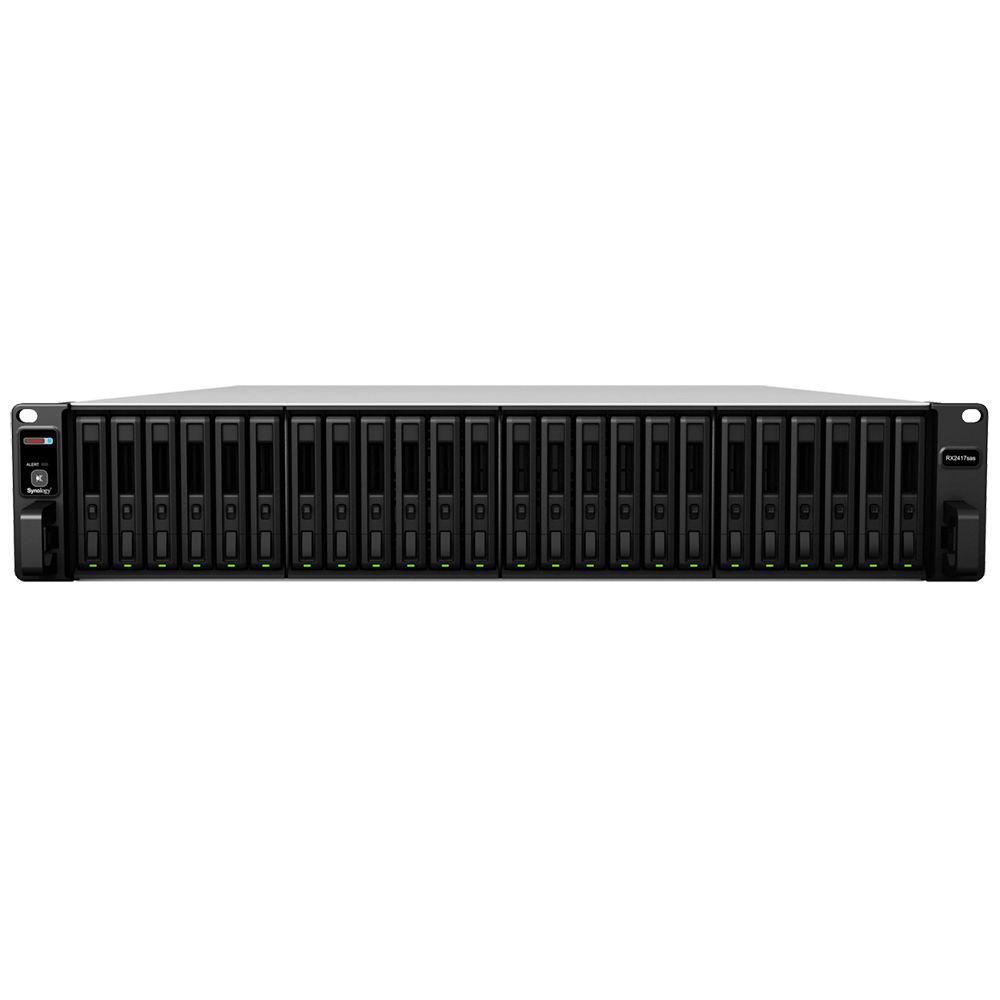

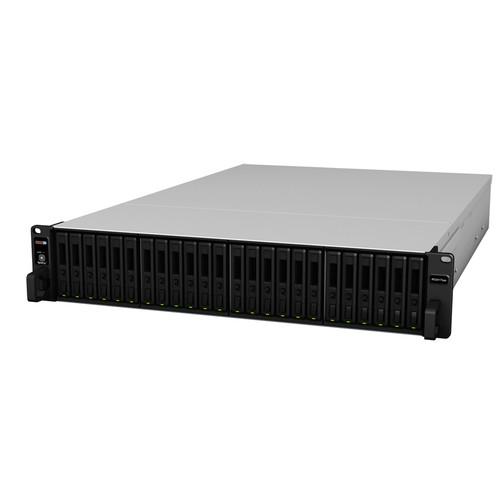

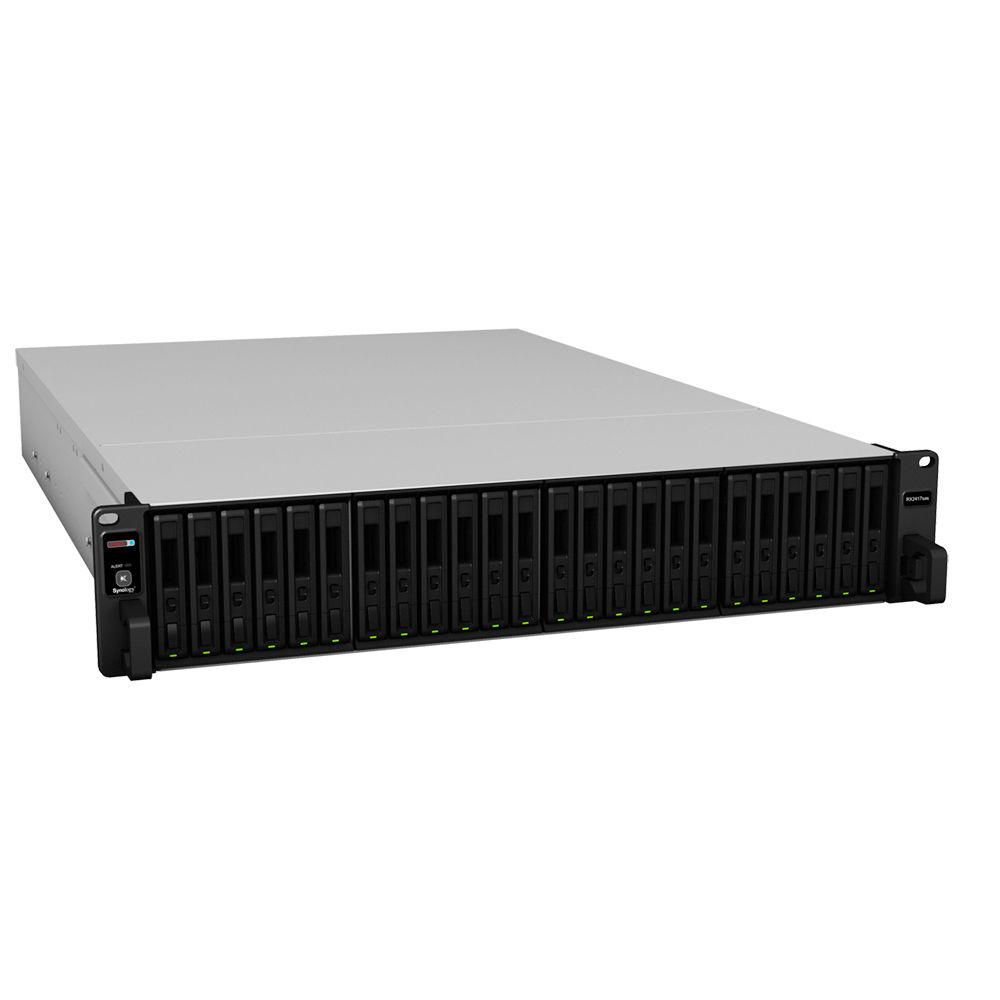

Product description The Synology RX2417sas SAS/SATA Expansion Chassis provides twenty-four additional drive bays for your RackStation RS18017xs+ NAS enclosure, letting the host system hold more 2.5" SSDs or HDDs. Each of the bays has a hot-swappable drive tray for quick installation of a user-supplied drive and supports storage drives that feature a SAS or SATA interface. To run your drives reliably, two 500W power supplies and four 60mm fans are on board.

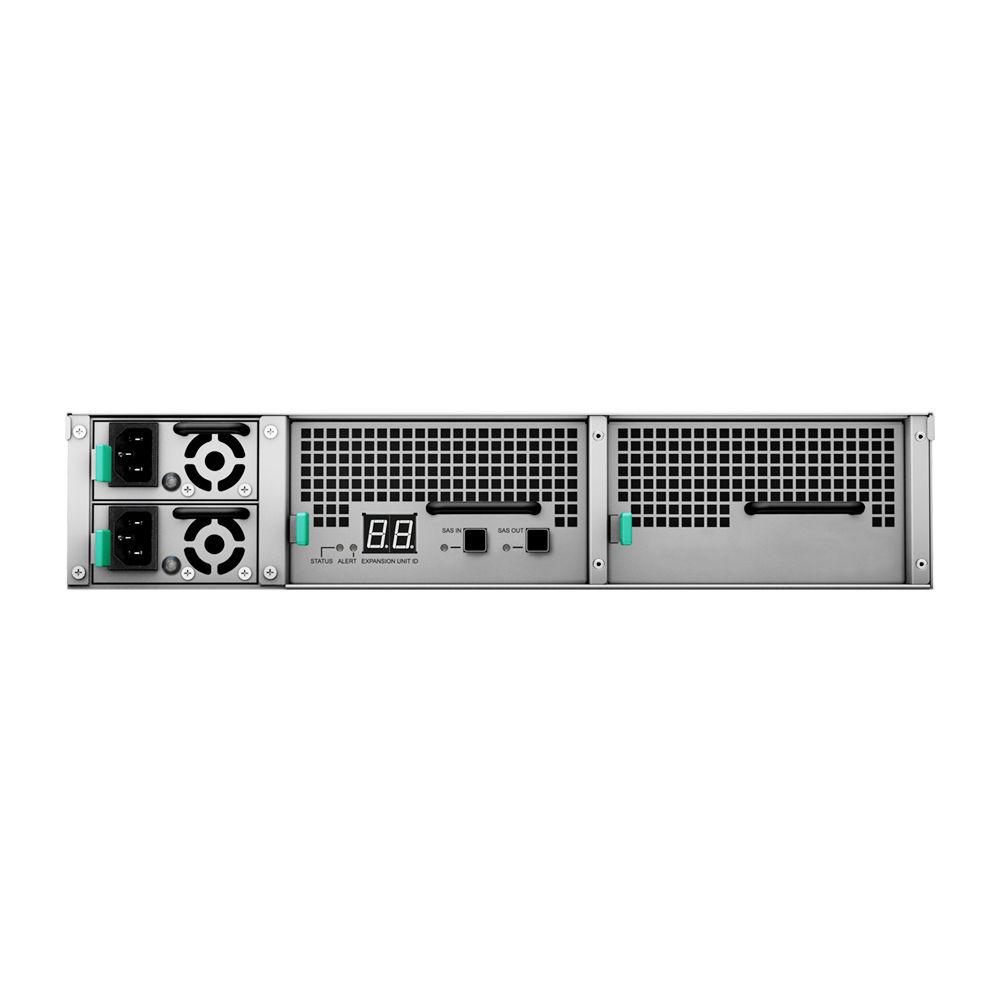

The RX2417sas comes with a SAS input port that connects to a host system's optional FS3017 expansion card; and a SAS output on the RX2417sas is available for accessing a second optional expansion chassis. This two-port design enables you to expand the RackStation RS18017xs+ NAS enclosure's storage capacity with up to seven RX2417sas chassis. Furthermore, Synology includes a miniSAS expansion cable for connecting the RX2417sas to a RS18017xs+. - 24-Bay 2.5" SAS/SATA Expansion
- The RX2417sas provides 24 additional drive bays for a Synology FlashStation or RackStation. Supporting 2.5" SAS/SATA drives, the RX2417sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
- High Availability
- Dual redundant power supplies ensure continuous service uptime. You can easily replace defective drives with hot-swappable drive trays.
UPC: 846504002542 In the Box Synology RX2417sas 24-Bay 2.5" SAS/SATA Expansion Chassis for RS18017xs+ Accessory Pack 2 x Power Cords MiniSAS-HD Expansion Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology RX2417sas 24-Bay 2.5" SAS SATA Expansion Chassis for RS18017xs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology RX2417SAS Specs | Drive Bays | 24 x 2.5" SAS or SATA HDDs and SSDs
Hot swap support | | Ports | 1 x SAS input
1 x SAS output | | Cooling | 4 x 60 mm fans | | Noise Level | 60.8 dBA | | Power Supplies | 2 x 500 W | | Voltage Input | 100 to 240 VAC, 50/60 Hz, single phase | | Power Consumption | Access: 201.6 W
Hibernation: 117.2 W | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Storage Temperature | -5 to 140°F / -21 to 60°C | | Relative Humidity | 5 to 95% | | Green Compliance | RoHS | | Certification | FCC, CE, BSMI | | Dimensions (H x W x D) | 3.5 x 19.0 x 28.5" / 88 x 482 x 724 mm | | Weight | 36.6 lb / 16.6 kg | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 33.5 x 24.2 x 9.5" |
