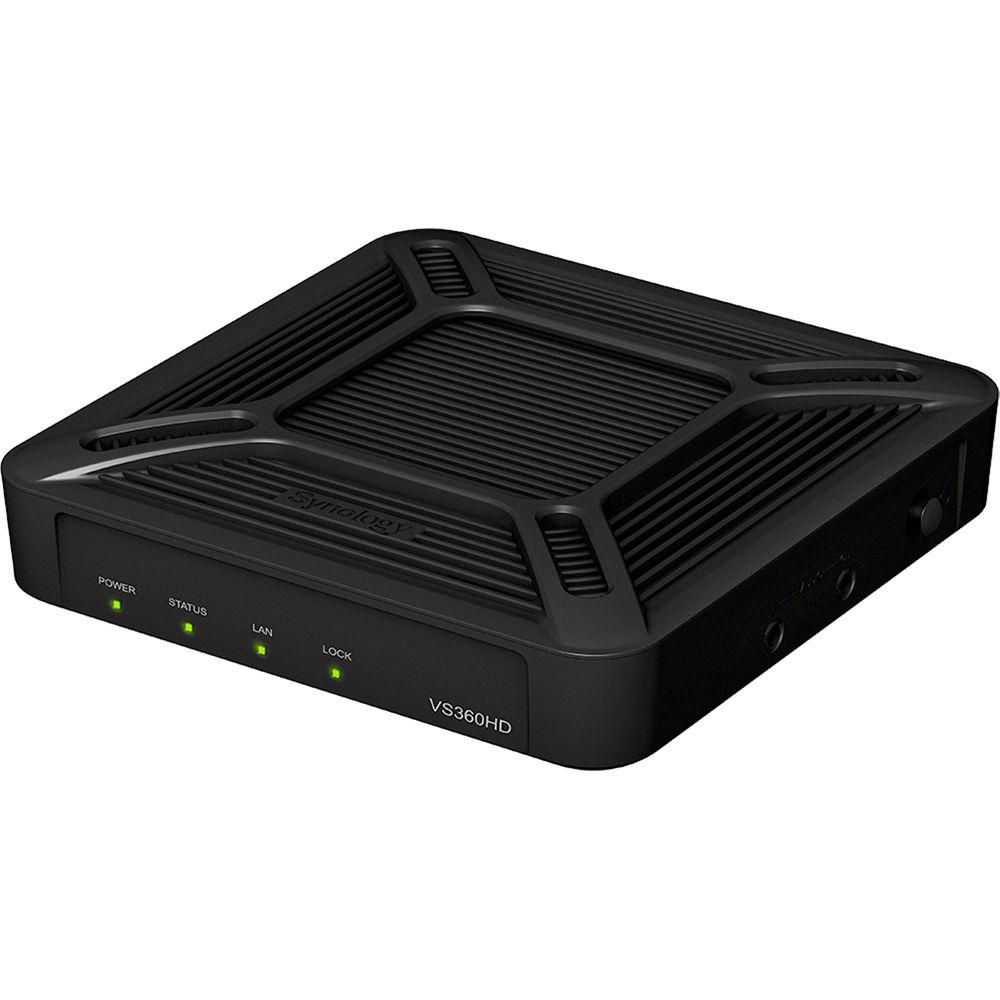

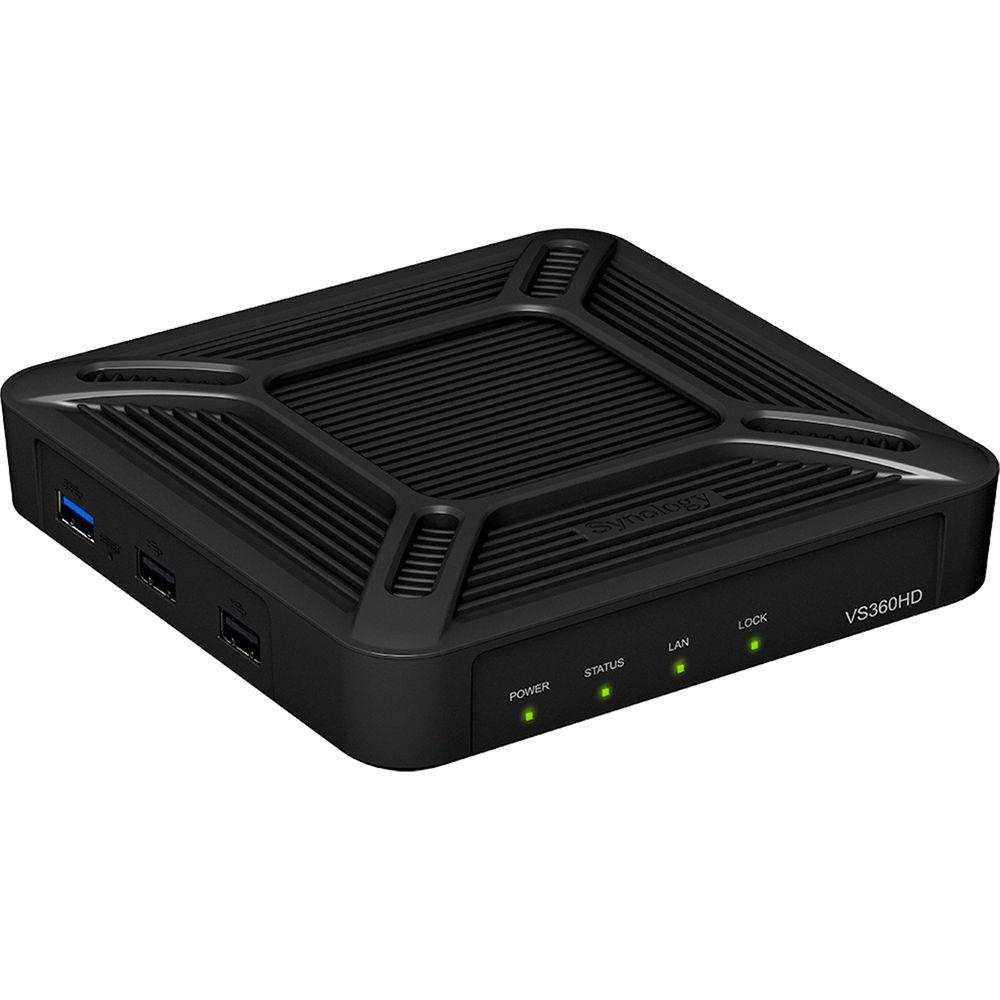

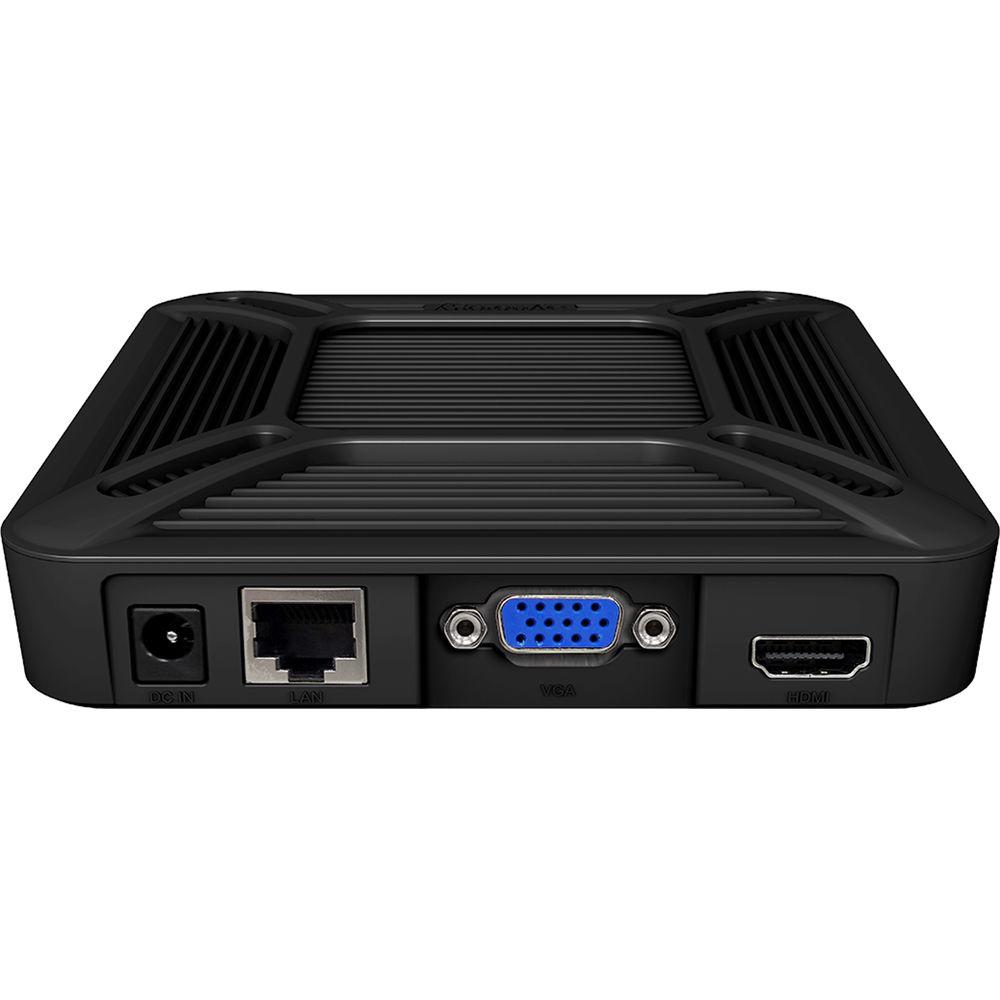

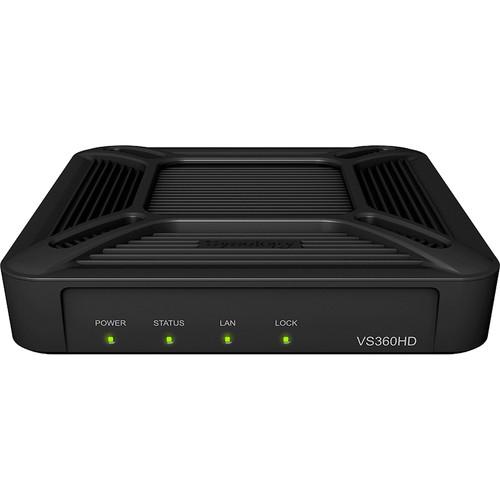

Product description Provided by third party: Easily connect an HDMI or VGA monitor to the VS360HD VisualStation Video Decoder from Synology in order to view live video of up to 36 IP cameras at up 1920 x 1080 resolution. This video decoder connects to a router via its RJ45 Ethernet port and pairs with your Synology NAS running Surveillance Station 7.0 and above and allows you to monitor and control your IP cameras without a computer. Connect a mount, keyboard, or joystick for complete control, including PTZ control. Recordings and snapshots can be stored on a USB drive (available separately).
This video decoder supports H.264, MPEG-4, and MJPEG codecs for high-quality playback and because it features no moving parts, it is less likely to become damaged while in use. It comes with an RJ45 Ethernet cable to connect to your router and a VESA mounting kit to allow convenient mounting onto walls or other compatible devices. - View live view from up to 36 IP cameras
- HDMI and VGA video outputs
- Full PTZ control on-screen or with a USB device such as a mouse, joystick, or keyboard (available separately)
- Supports H.264, MPEG-4, and MJPEG compression
- Requires Synology NAS with Surveillance Station 7.0 or above installed
UPC: 846504001972 In the Box Synology VS360HD VisualStation Video Decoder with Live-View and Playback AC Power Adapter RJ45 Ethernet Cable VESA Mounting Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology VS360HD VisualStation Video Decoder with Live-View and Playback in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

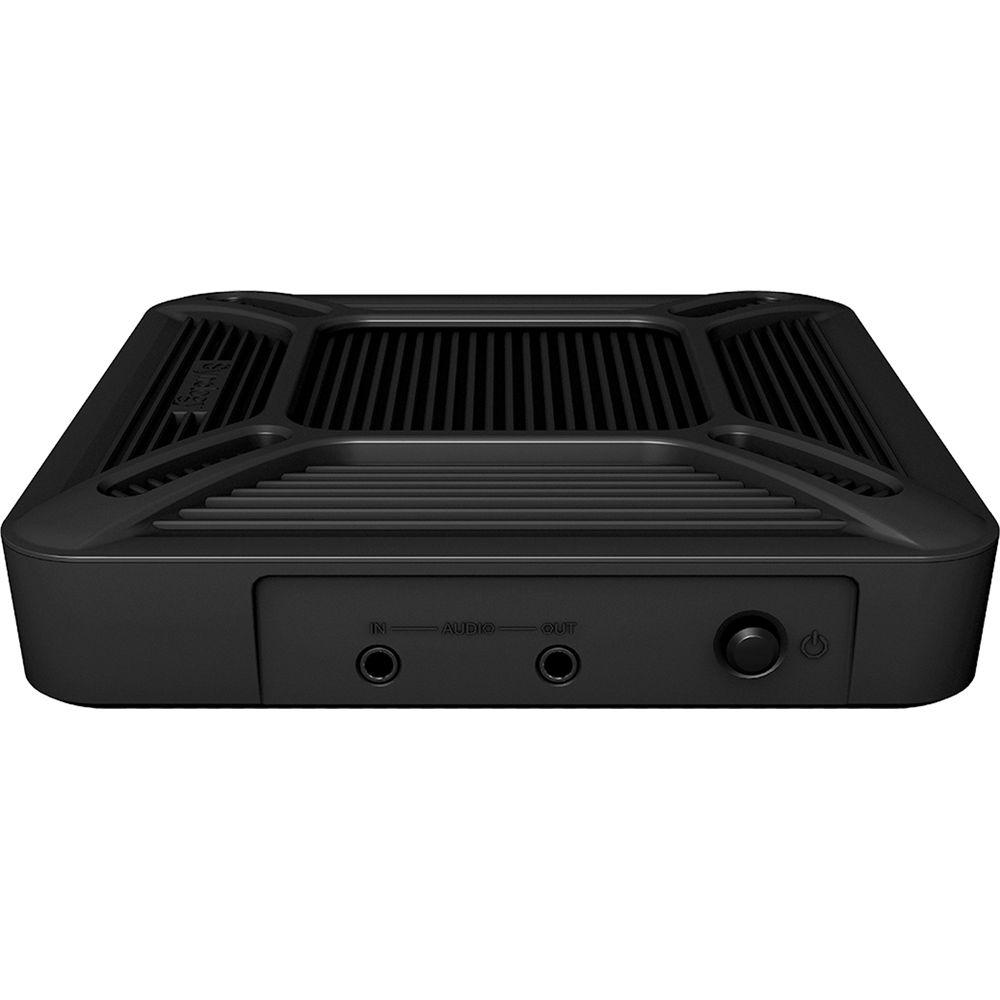

Technical parametersSynology VS360HD Specs | | | Video Outputs | 1 x HDMI, 1 x VGA | | Supported Resolution | 1920 x 1080 @ 60 Hz | | Audio | 1 x 1/8" (3.5 mm) stereo jack in

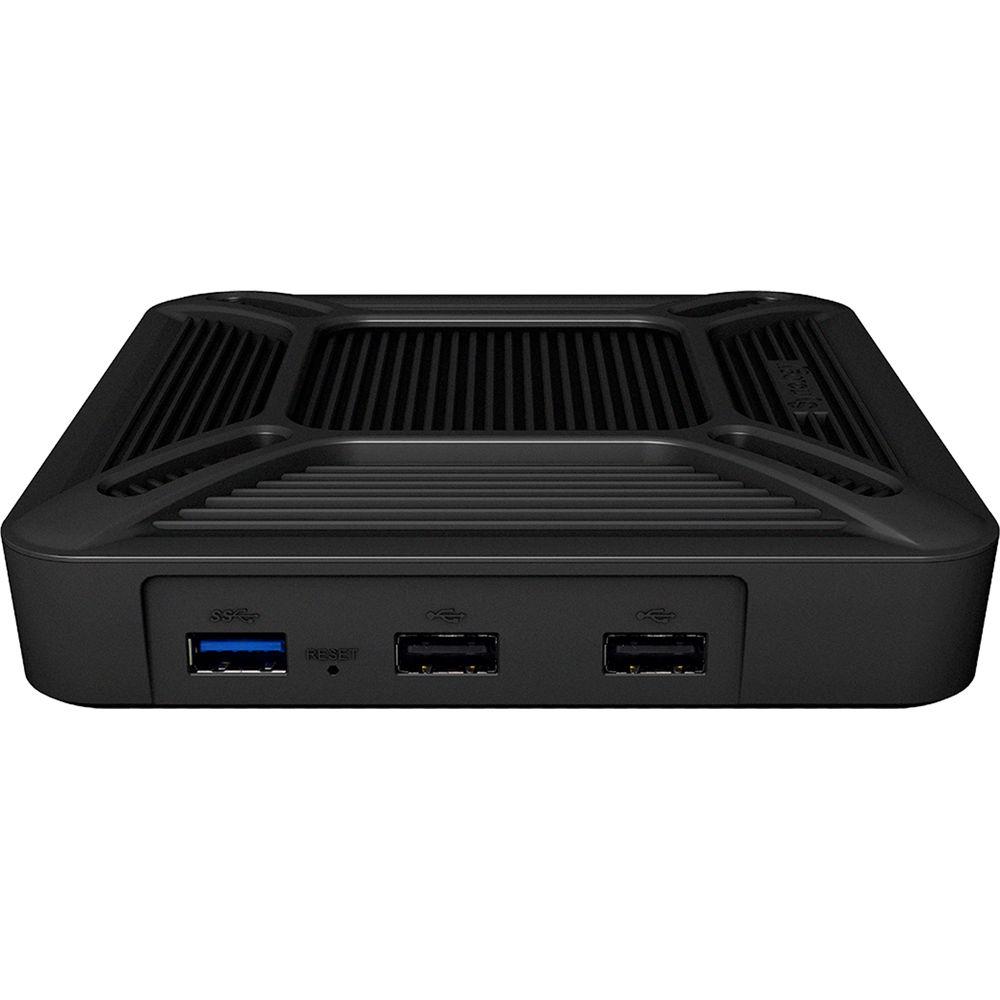

1 x 1/8" (3.5 mm) stereo jack out | | USB Ports | 2 x USB 2.0
1 x USB 3.0 | | Ethernet | 1 x RJ45, Gigabit LAN | | Power Supply | 36 W | | AC Input Power Voltage | 100-240 VAC | | Power Frequency | 50/60 Hz, single phase | | Power Consumption | 4.76 W (36-channel full-load) 3.61 W (power on idle) | | Operating Temperature | Decoder: -4 to 122°F (-20 to 50°C)
Power Adapter: 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 5 to 95% | | Dimensions | 1.26 x 5.12 x 5.12" (32 x 130 x 130 mm) | | Weight | 0.66 lb (0.3 kg) | | | | Video Compression Format | H.264, MPEG-4, and MJPEG | | Supported FPS Modes | H.264:
360 fps @ 720p (1280 x 720), 36 channels
160 fps @ 1080p (1920 × 1080), 16 channels
90 fps @ 3 MP (2048 x 1536), 9 channels
60 fps @ 5 MP (2591 x 1944), 6 channels
MJPEG:
150 fps @ 720p (1280 x 720), 15 channels
40 fps @ 1080p (1920 × 1080), 4 channels
20 fps @ 3 MP (2048 x 1536), 2 channels
10 fps @ 5 MP (2591 x 1944), 1 channel | | Audio Codecs | PCM, ADPCM, G711, G726, AMR, AAC | | | | Package Weight | 1.96 lb | | Box Dimensions (LxWxH) | 10.3 x 7.5 x 1.85" |
