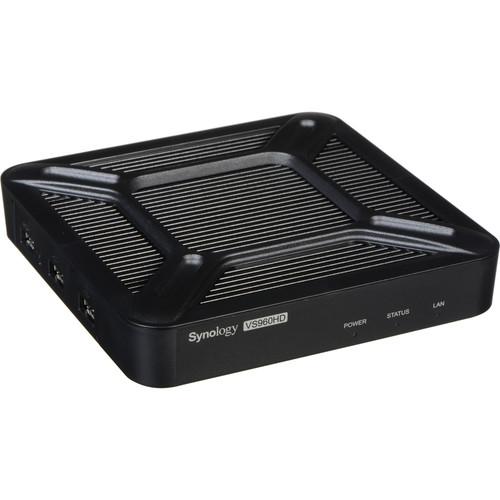

User Manual for Synology VS960HD VisualStation Surveillance Station Click to enlarge the picture
Contents of the user manual for the Synology VS960HD VisualStation Surveillance Station
- Product category: Recording Accessories Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Recording Accessories
 |
User manual for the Synology VS960HD VisualStation Surveillance Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

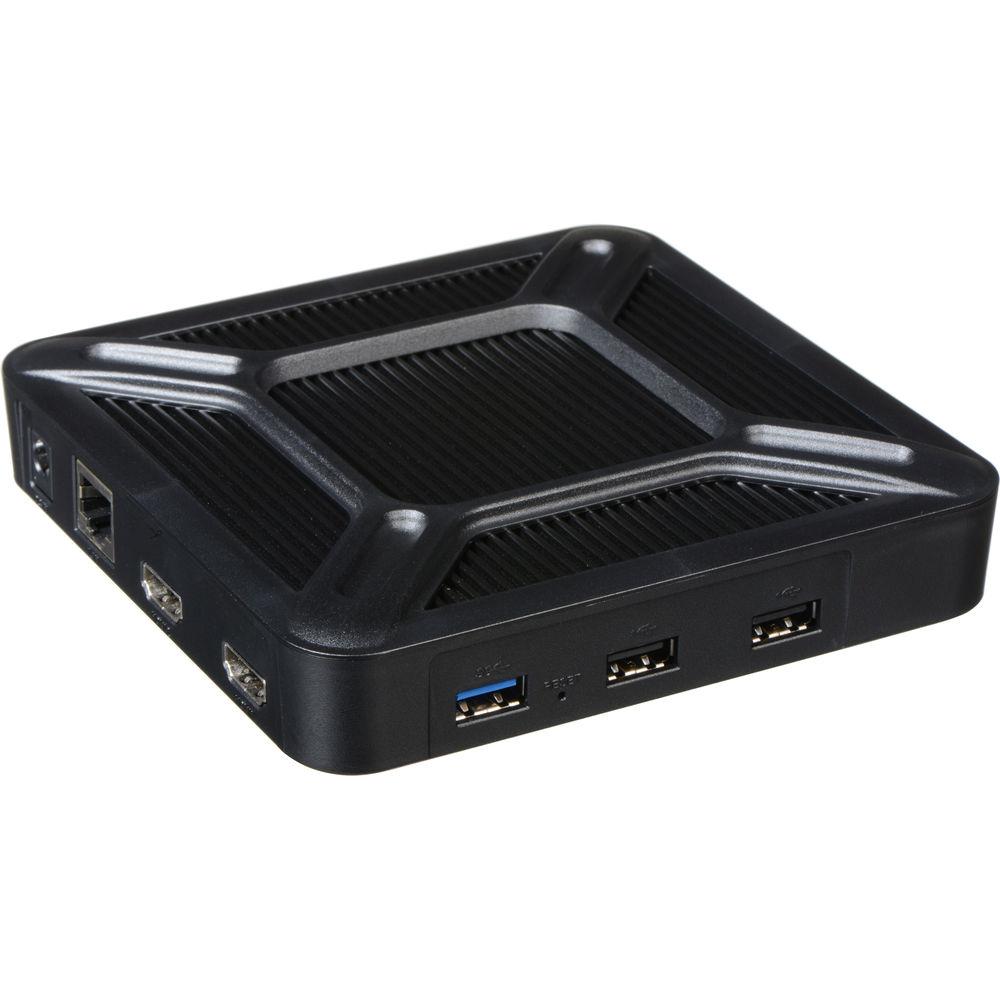

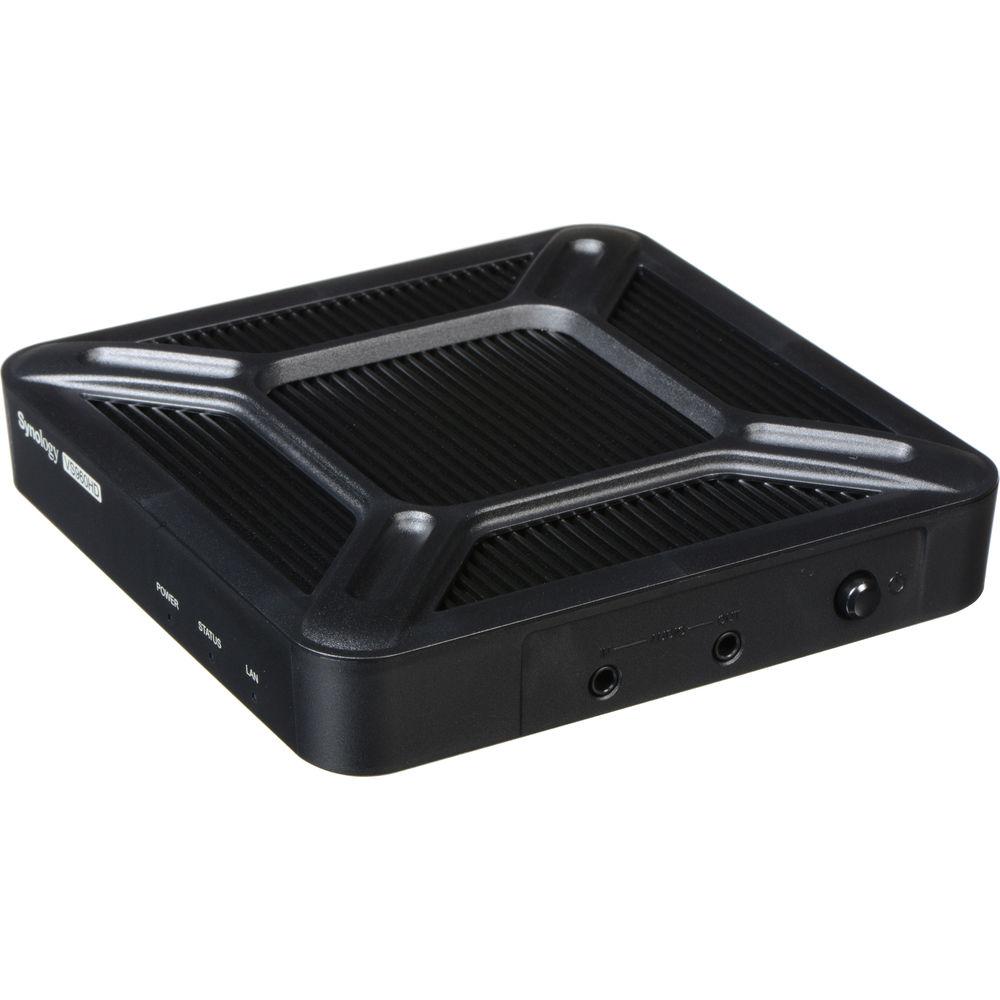

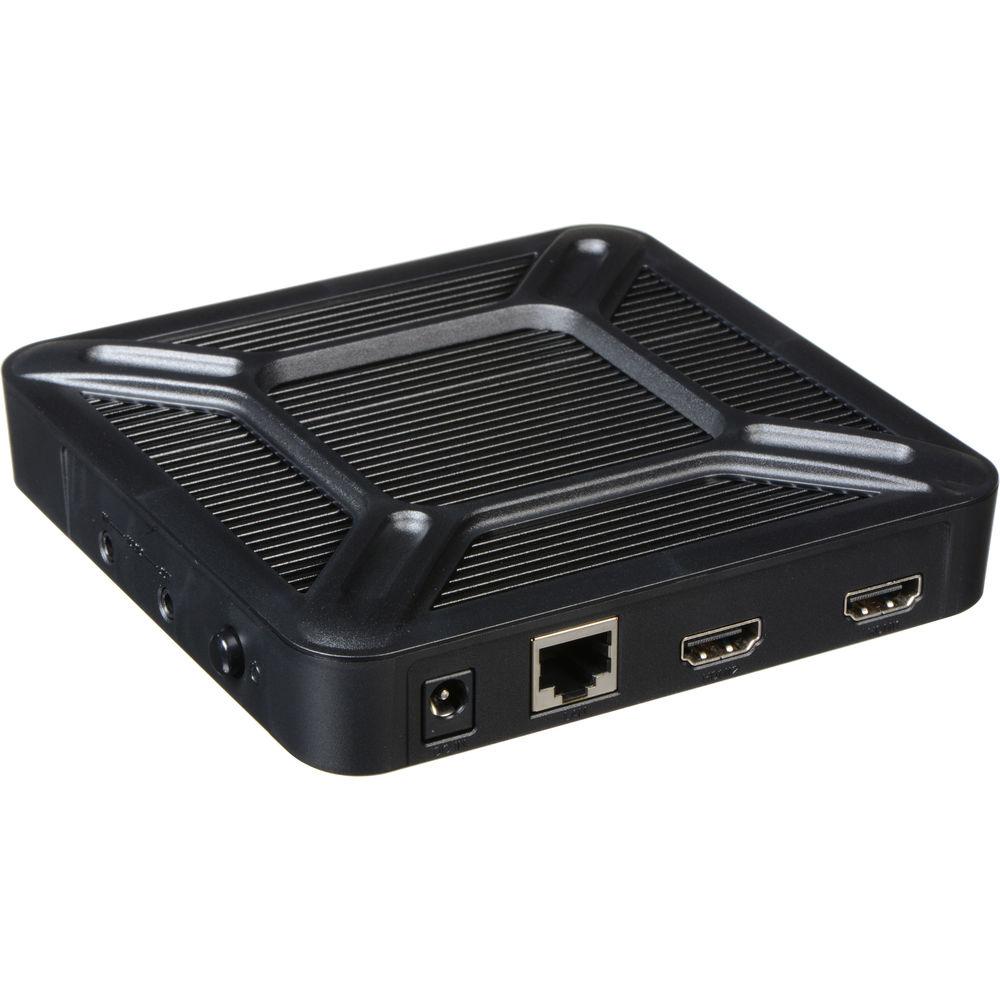

Product description The VS960HD VisualStation Surveillance Station from Synology allows you to connect up to two displays and supports up to 96 IP cameras and 4K UHD resolution. This device connects to a router via its RJ45 Ethernet port, and pairs with your Synology NAS running Surveillance Station 8.0.2 or above, enabling you to monitor and control your IP cameras without a computer. Connect a mouse, keyboard, or joystick to the USB 2.0 ports for complete control, including PTZ control. Via the USB 3.0 port, recordings and snapshots can be stored on a USB drive, which are available for purchase separately.This device supports H.264, H.265, MPEG-4, and MJPEG codecs for high-quality playback. It has no mechanical moving parts, so it is resistant against vibration and hardware failure. It comes with an RJ45 LAN cable to connect to your router and a VESA mounting kit which enables the device to be mounted on a wall or on the back of a screen. - Suitable for TV wall and dual screen display setups
- View live video from up to 96 IP cameras
- Compact, palm-sized enclosure
- Vibration and thermal resistant
- H.264, H.265, MPEG-4, and MJPEG compression
- Energy efficient 7.2W power consumption
UPC: 846504002610 In the Box Synology VS960HD VisualStation Surveillance Station AC Power Adapter RJ45 LAN Cable VESA Mounting Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology VS960HD VisualStation Surveillance Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology VS960HD Specs | | | Video Output | 2 x HDMI | | Supported Video Resolutions | HDMI 1: 4K (3840 x 2160, 30Hz/60Hz)
HDMI 2: 1080p (1920 x 1080, 60Hz)
| | Audio Input | 1 x 1/8" (3.5 mm) stereo audio jack | | Audio Output | 1 x 1/8" (3.5 mm) stereo audio jack | | USB Ports | 2 x USB 2.0, 1 x USB 3.0 | | LAN | 1 x RJ45 Gigabit | | Reset Button | Yes | | | | Max IP Channels | 96 | | Frame Rates Supported | H.264:
960 fps at 720p (1280 x 720), 96 channels
580 fps at 1080p (1920 x 1080), 58 channels
440 fps at 3 MP (2048 x 1536), 44 channels
250 fps at 5 MP (2591 x 1944), 25 channels
140 fps at 4K (3840 x 2160), 14 channels
H.265:
900 fps at 720p (1280 x 720), 90 channels
640 fps at 1080p (1920 x 1080), 64 channels
430 fps at 3 MP (2048 x 1536), 43 channels
250 fps at 5 MP (2591 x 1944), 25 channels
150 fps at 4K (3840 x 2160), 15 channels
MJPEG:
400 fps at 720p (1280 x 720), 40 channels
200 fps at 1080p (1920 x 1080), 20 channels
140 fps at 3 MP (2048 x 1536), 14 channels
80 fps at 5 MP (2591 x 1944), 8 channels | | Video Codec | MJPEG, MPEG-4, H.264, H.265 | | Audio Codec | PCM, G711, G726, AMR, AAC | | Supported | Live view/recording playback
Snapshot support
eMap support
PTZ control/patrol
Log viewer | | | | Power Supply Unit / Adapter | 36 W | | AC Input Power Voltage | 100 to 240 VAC | | Power Frequency | 50/60 Hz, single phase | | Power Consumption | 7.2 W (96-ch full load)
4.9 W (power on idle)
| | Operating Temperature | -4 to 122°F (-20 to 50°C)
Adapter Operating Temperature: 32 to 104°F (0 to 40°C)
| | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 5 to 95% | | Certification | FCC Class B
CE Class B
BSMI Class B
EN50155
EN45545 | | RoHS Compliant | Yes | | Dimensions | 1.3 x 5.1 x 5.1" (32 x 130 x 130 mm) | | Weight | 13.4 oz (380 g) | | | | Package Weight | 2.155 lb | | Box Dimensions (LxWxH) | 10.3 x 7.5 x 1.85" |
