User Manual for Synology Wireless Tri-Band Mesh Router Click to enlarge the picture
Contents of the user manual for the Synology Wireless Tri-Band Mesh Router
- Product category: Whole Home Smart Wi-Fi Synology
- Brand: Synology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Synology Whole Home Smart Wi-Fi
 |
User manual for the Synology Wireless Tri-Band Mesh Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Synology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Synology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Synology product will considerably shorten its lifespan!
|

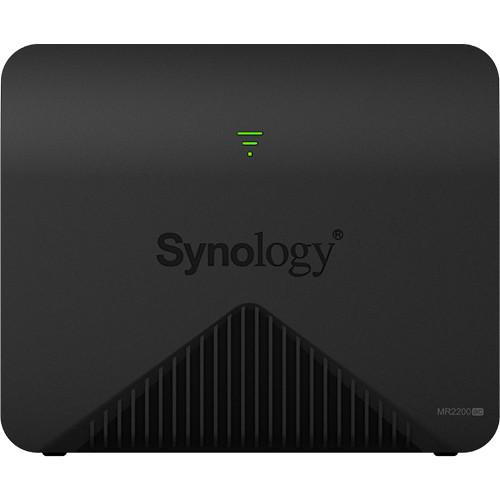

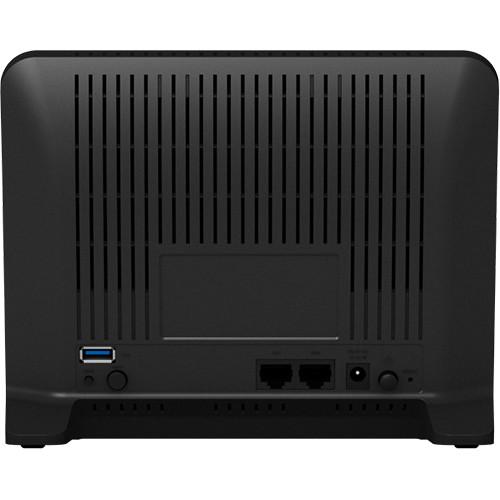

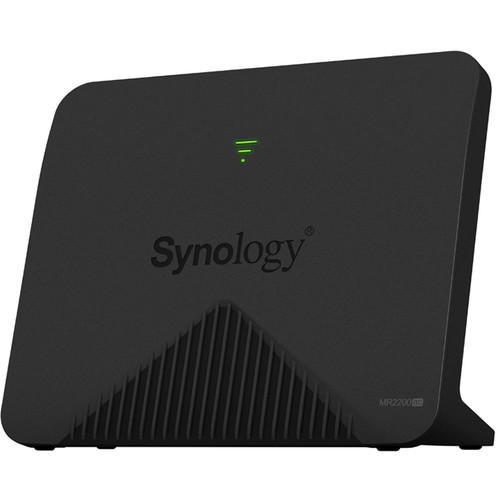

Product description What is Mesh? Read More tzqfuwbzdttx Expand your Wi-Fi network to cover your entire home with the Synology Wireless Tri-Band Mesh Router. With Wi-Fi 5 (802.11ac) connectivity and using one 2.4 GHz (400 Mb/s) and two 5 GHz (867 + 867 Mb/s) bands, the router can reach up to 2.13 Gb/s. You can link several MR2200ac mesh routers together under one SSID name for seamless roaming inside your own home. For temporary visitors, you can set up a guest network with limited, timed access to ensure your personal Wi-Fi network remains safe and prevents unauthorized access. All Wi-Fi connections and devices can be managed via the Synology Router Manager (SRM 1.2). You also have access to features such as user profile creation, detailed traffic management, advanced web filters, and whitelisting features. With the integration of third-party databases, such as Google Safe Browsing and DNS/IP threat intelligence, you can enjoy a secure, yet powerful network management experience. Speaking of security, this router supports WPA3-Personal/Enterprise certified encryption. It also has a WPS button for an automatically configured, secure setup. There are two internal antennas as well as a Gigabit Ethernet RJ45 LAN port and a Gigabit Ethernet RJ45 WAN port. Connect an external hard drive or a printer to the router via USB 3.1 Gen 1 Type-A port for either file sharing or wireless printing, respectively. - Whole-Home Mesh Network
- This router supports whole-home mesh networking. Simply extend an existing RT2600ac Wi-Fi network with an additional MR2200ac or integrate multiple MR2200ac mesh routers. The single SSID name you set allows you to roam from room to room without signal dropping. With one 2.4 GHz and two 5 GHz bands available, this router utilizes MU-MIMO technology to enable simultaneous connections from multiple devices, which helps maximum Wi-Fi speeds and reduces congestion.
- Smart Connect
- Use Smart Connect to ensure devices are automatically connected to the ideal band for optimal connection performance, reducing delays and interruptions.
- Guest Network
- Use Guest Network to provide a secure connection and give public and temporary visitors limited permissions and access. You can also set up a welcome portal for everyone connecting to your Guest Wi-Fi. You will also have access to tools such as scheduling, auto password change, and MAC address filtering to prevent unauthorized access.
- Wi-Fi Protected Setup (WPS)
- There is a dedicated WPS button on the router. Simply press it to allow your Wi-Fi connection to automatically configure and enjoy a hassle-free setup. You can also attach a printer or an external hard drive via the USB 3.1 Gen 1 Type-A port for wireless access and file sharing.
- Synology Router Manager (SRM)
- Synology Router Manager (SRM) provides tools so you can quickly set up, customize, and efficiently troubleshoot issues.
UPC: 846504003211 In the Box Synology Wireless Tri-Band Mesh Router AC Power Adapter RJ-45 LAN Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Synology Wireless Tri-Band Mesh Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSynology MR2200AC Specs | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bands | 2.4 GHz, 5 GHz, 5 GHz | | Data Rate | 400 Mb/s (2.4 GHz) + 867 Mb/s (5 GHz) + 867 Mb/s (5 GHz) | | Antennas | 2 x Internal antennas | | Ports and Connectors | 1 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 LAN
1 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 WAN
1 x USB 3.1 Gen 1 Type-A (female) | | Processor | 717 MHz quad-core | | Memory | 256 MB DDR3 | | Wireless Security | WEP WPA/WPA2-Personal WPA/WPA2-Enterprise Wi-Fi Protected Setup (WPS) 2.0 WPA3-Personal/Enterprise certified Wi-Fi Enhanced Open certified | | Roaming | 802.11k/v/r standard support | | Power | 100-240 VAC, 50 to 60 Hz | | Operating Temperature | 40 - 104°F / 5 - 60°C | | Storage Temperature | -5 - 140°F / -20 - 60°C | | Relative Humidity | 5 - 95% RH | | Dimensions | 7.83 x 6.1 x 2.6" / 199 x 154 x 65 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.75 x 9.25 x 3.1" |
