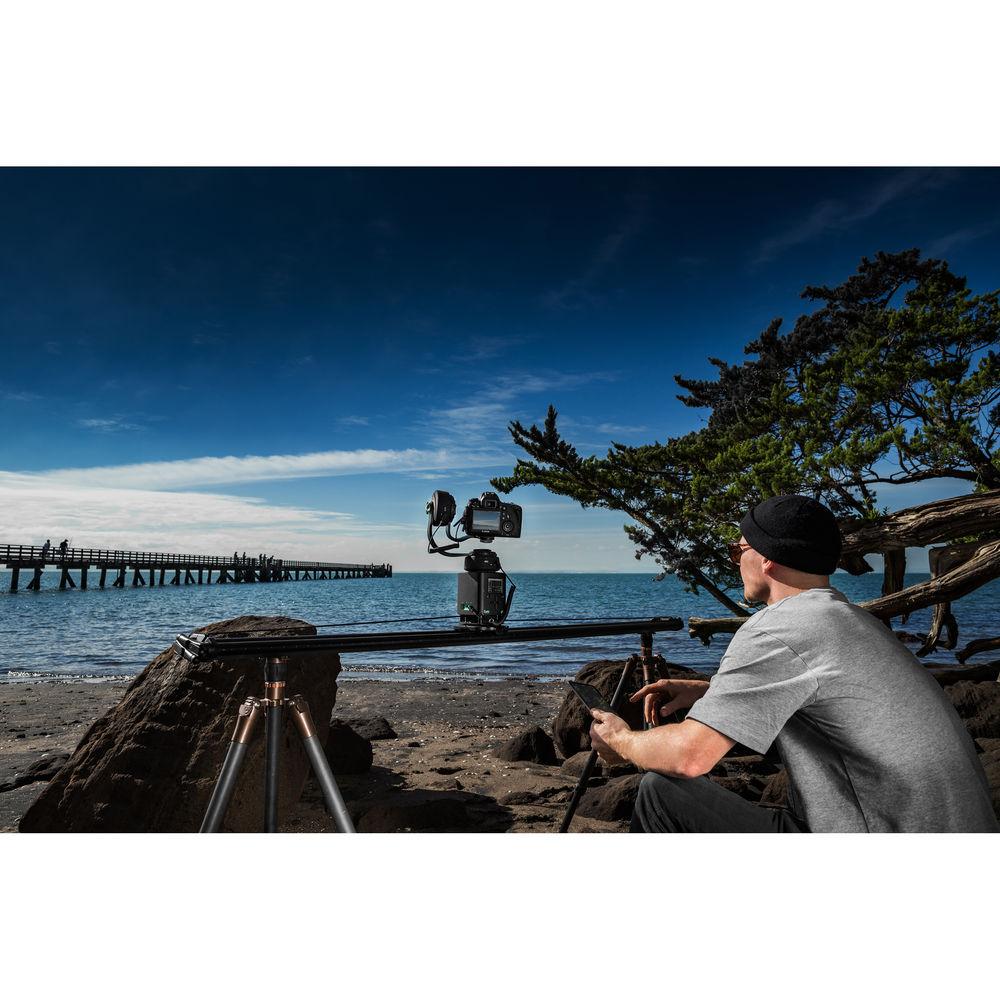

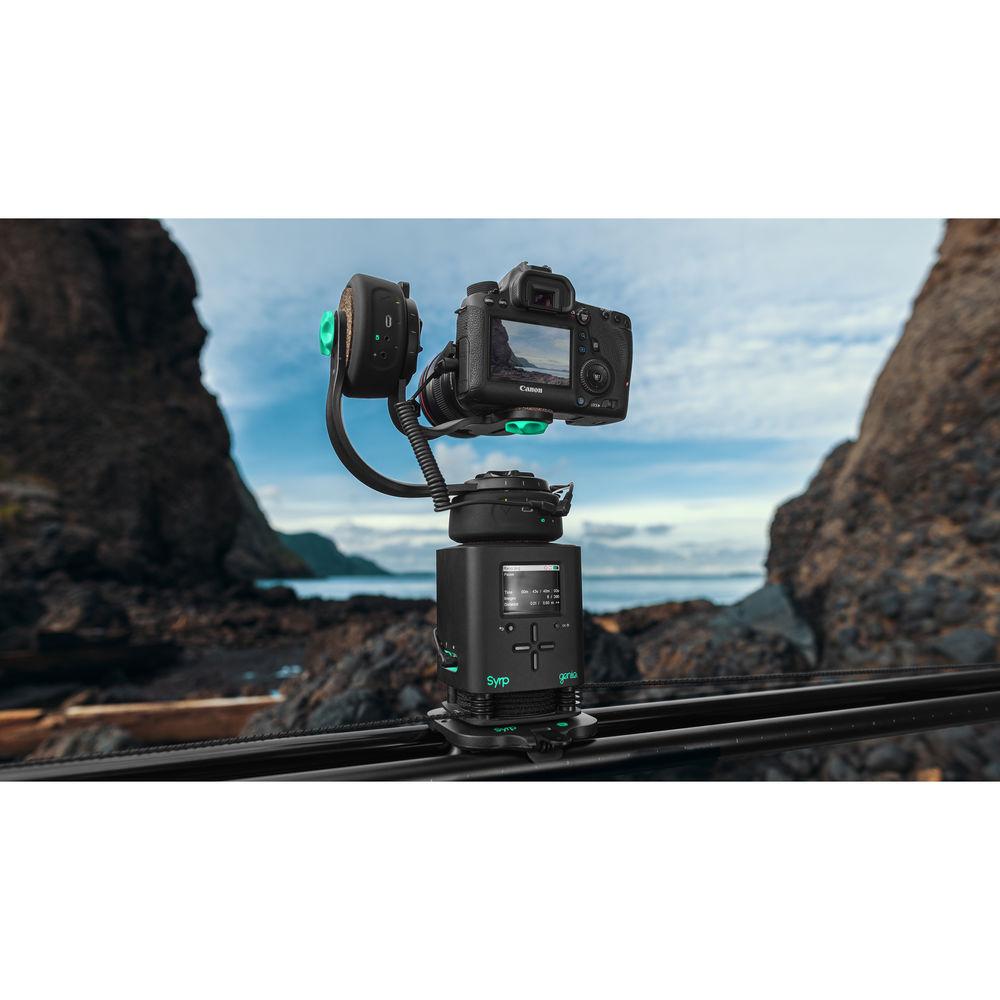

Product description Capture three-axis motorized camera moves with the Syrp Genie 3-Axis Kit from B&H. The kit features a 3.3' medium track Magic Carpet Slider, Genie motion control device, two Genie Mini panning motion units, and a Pan Tilt Bracket. The Genie is the brains behind the operation, with its motor enabling both smooth real-time motion and stepping motion for time-lapse photography. The Genie mounts on the slider carriage and uses an included rope to pull itself along the track.
The two Genie Minis form a tandem unit when configured using the Pan Tilt Bracket, serving as a camera cradle that mounts on the Genie where one of the Genie Minis controls pan axis motion, while the other controls tilt. The Genie Mini supports loads up to 8.8 lb for panning motion, and 6.6 lb for tilt motion. They pair together via Bluetooth for synchronized control, with a sync cable included for connecting one of the paired Genie Minis to the Genie. - Syrp Genie Motion Control Time-Lapse Device
- Syrp Time Lapse System: Hands-On Review
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
The Genie Motion Control Time-Lapse Device from Syrp is your key to the creative world of time-lapse photography or real-time video. The 4" cube takes up very little space in your bag, and at only 3.3 lb it's easy to make it part of your standard rig.The Genie, which allows both panning and linear motion control, attaches to standard gear such as dollies, sliders, jib arms, and tripods. Simply attach it to your tripod or support and mount your optional camera and ball head to the 3/8"-16 stud atop the Genie. The weight of your equipment is rarely a concern since it supports up to 44 lb. An illuminated bubble level is built-in for setting up in low light. The Genie has factory presets such as Stars, People, or Clouds, but you can enter an unlimited amount of user presets into the Genie's memory for custom work. At maximum panning speed, a 360° pan takes five seconds, while 39" of linear movement takes just 23 seconds.Linear time-lapse can be done on a rail or on a linear support system of your own making. While the Genie comes with 9.8' of rope to pull it across the rail, the movement of your time-lapse is only limited by the length of your rope. Kevlar-cored rope with lengths of 328', 164', or 32.8' are available separately. The Genie has been tested successfully on a homemade 60' dual-cable stretched over a lake.Inputs include both USB for firmware and a sensor input. The free firmware upgrade enables bulb ramp-in and ramp-out functions, as well as HDR (High Dynamic Range). Ramping is the process of modifying exposure settings on a camera to maintain a desired exposure value while the camera is in Bulb mode. This is especially valuable for transitional day into night, or night into day time-lapses.The sensor input accepts a motion, light, sound, or other type of sensor to start your program in response to specific stimuli. The Genie ships with both panning and sliding bases, two slider mounts, 9.8' of rope, and a multi-voltage charger for its built-in battery. A three-hour charge gives you about 12 hours of run time, depend on the weight of your camera. The Genie is compatible with approximately 130 cameras from nine major brands. A camera link cable must be purchased separately. - Dual Motion
- Panning and linear motion control with one device.
- Versatile
- Attaches to any existing film equipment such as a dolly, slider, jib arm, etc.
- Sensor Input
- Auto Start function through a timer or sensor or both. Sensor input allows for attachment of a motion sensor, light sensor, sound sensor, and more.
- Preview
- The Preview function allows for revision of recording movement prior to recording.
- Pre-Sets
- Factory pre-sets allow for instant shooting straight out of the box, or storable user-programmable panning and tracking pre-sets.
- Auto Start and Power Saving
- Auto Start enables the user to program camera movements to return to "Home" and repeat again, or continuously run the same movement. It also enables the user to set up time-lapse or camera movement to start on a delay timer. Auto Power Off shuts down the Genie when it's unused for one hour to save battery power.
- Leveling
- Bubble level with light is provided.
- Ramping Firmware
- Bulb ramping is the process of modifying exposure settings on a camera to maintain a desired exposure value while the camera is in Bulb mode. A free firmware upgrade allows for ramp-in/ramp-out function and HDR.
- Compatibility
- If your camera is not listed below, please contact Syrp to check compatibility.
Canon
7D, 70D, 60D, 50D, 40D, 30D, 5D, 20D, 10D, 5D Mark IV, 5D Mark III, 5D Mark II, 1D X, 1D C, 1D Mark IV, EOS M, EOS M2
1D (s) Mark III, 1D (s) Mark II (N), 1200D (T5), 1100D (T3), 1000D (XS), 100D (SL1), 700D (T5i), 650D (T4i)
600D (T3i), 550D (T2i), 500D (T1i),450D (XSi), 400D (XTi), 350D (XT), 300D, 300V, 300, 60Da
50E, 50, 33, 30, 3000, PowerShot G1X Mark II, G1X, G10, G11, G12, G15
Nikon
D810, D800E, D800, D700, D600, D300S, D300, D200, D4, D4S, D3S, D3X, D3, D2, D1X, D1, D1H, D2H, D2HS, D2X, D2XS, D80, D70s, D7100, D7000, D5300, D5200,
D5100, D5000, D3200, D3100, D3000, D90, D610, 1 AW1, 1 J1, 1 J2, 1 J3, 1 J4, 1 S1, 1 S2, 1 V1, 1 V2, 1 V3
Sony
A99, A 77 Mark II, A77V, A900, A850, A700, A580, A550, A500, A450, A350, A300, A200, A100, A77, A65, A58, A55, A35, A33, NEX 5, NEX 5N NEX 5T, NEX 7, NEX 6, Sony a7, a7R, a7s, a6000
Pentax
645D, ist D, ist DL, ist DL2, ist DS, ist DS2, K-30, K-5, K-5 II, K-5 IIs, K3, K-50, K-500, K-7, K-m, K10 Grand Prix, K100D, K100D Super, K10D, K110D, K200D, K20D, MZ-6, MZ-L, ZX-L
Panasonic
FT 2, FZ1000, FZ100, FZ15, FZ150, FZ20, FZ200, FZ30, FZ50, G1, G10, G2, G3, GH4, G5, G6, GF1, GH1, GH2, GH3, GX1, GX7 L1, L10, LC1, TS2
Olympus
E-100 RS, E-30, E-400, E-410, E-420, E-450, E-510, E-520, E-600, E-620, Evolt E-410, Evolt E-510, OM-D E-M1, OM-D E-M10, OM-D E-M5, PEN E-P1, PEN E-P2, PEN E-P3, PEN E-P5, PEN E-PL2, PEN E-PL3, PEN E-PL5, PEN E-PM1, PEN E-PM2, SP-550, SP-560, SP-570, XZ-1, XZ-2, XZ-2 iHS
Fujifilm
S5 Pro, S3 Pro, X-E1
Kodak
DSC-530, DCS Pro 14n
Contax
N Digital NX, N1, 645
Samsung
GX 1L, GX 1S, GX-10, GX-20, NX-10, NX-100, NX-11, NX-5
Hasselblad
H, H3D, H4D-200MS, H4D-31, H4D-40, H4D-50, H4D-50MS, H4D-60
Sigma
SD1, SD1 Merrill, SD15
Minolta
DiMAGE 5, DiMAGE 7, DiMAGE 7Hi, DiMAGE 7i, DiMAGE A1, DiMAGE A2, DiMAGE A200, Dynax 3, Dynax 4, Dynax 5000, Dynax 500si, Dynax 505si, Dynax 5D, Dynax 7, Dynax 7000, Dynax 7D, Dynax 9, Dynax 9000, Dynax Sweets, Maxxum 3, Maxxum 4, Maxxum 5000, Maxxum 500s, Maxxum 505si, Maxxum 5D, Maxxum 600si, Maxxum 7, Maxxum 7000, Maxxum 700si, Maxxum 7D, Maxxum 807si, Maxxum 9, Maxxum 9000
Leica
DigiLux 2, DigiLux 3, V-Lux, V-Lux 2, V-Lux 3 - 2 x Syrp Genie Mini Panning Motion Control System
- Syrp Time Lapse System: Hands-On Review
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
Compact enough to fit into a small carry bag or even your coat pocket; the Syrp Genie Mini is a portable and easy-to-use device for creating smooth panning motion time-lapses or real-time video. It is designed to sit between your camera and tripod and has an internal motor that enables 360° panning motion with cameras weighing up to 8.8 pounds. Control and setup is done wirelessly using a Bluetooth connection and the Syrp Genie App for iOS and Android devices. To accommodation experienced and beginning time-lapse shooters, the app provides a useful set of presets so you can start shooting right away. A lithium-ion battery provides 48+ hours of time-lapse and 5+ hours of smooth continuous panning on a single charge, with a micro-USB cable included for re-charging the battery.
Please note: An optional Link Cable is required for connecting your camera to the Genie Mini. - Camera Compatibility
- The Genie Mini is compatible with hundreds of different cameras, including DSLRs, mirrorless cameras, and video cameras using optional link cables. The link cable connects your camera to the Genie Mini's 2.5mm camera control port.
- New Updates
-
- Panorama mode enables shooting panoramic shots and 360° photos.
- Turntable mode enables using the Genie Mini for product photography for both stills and video.
- Key Features
-
- Supports both incremental time-lapse motion as well as smooth continuous panning motion
- Max Speed: 360° in 33 seconds
- Built-in Bluetooth connectivity for wireless setup and control using the Syrp Genie App for iOS and Android devices
- App presets to help you get started with your time-lapses
- HDR time-lapse mode
- Ease in/out feature lets you ramp your movement at the beginning and ends of your time-lapses or video move
- 1/4"-20 camera mounting screw with 3/8"-16 adapter included
- 3/8"-16 tripod mounting thread
- Lithium-ion battery provides 48+ hours of time-lapse and 5+ hours of smooth continuous panning
- Micro-USB charging cable
- Can be combined with the Syrp Genie for 2-axis motion control (using optional sync cable to connect the systems)
- Syrp Magic Carpet Carriage and End Caps
- Syrp Time Lapse System: Hands-On Review
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
The Magic Carpet Carriage and End Caps from Syrp are designed for use with either the Magic Carpet 2.6' Short Track or 5.2' Long Track. The Carriage easily slides into the end of the track and includes a brake, a bubble level, and a reversible 3/8"16 and 1/4"-20 threaded screw to attach either a camera, ballhead, or tripod head.
The two End Caps slot into the end of the tracks and have adjustable quick release legs which are easily adjusted by pulling out a lever, without the need for additional tools. The End Caps also include Genie rope lock-off hooks which enable the Syrp Genie Motion Control Time Lapse Device to be easily attached and locked off. Additionally, the end caps have a counter balance wheel which allows for vertical slides with heavier cameras. The Genie rope is simply tied off around the carriage and then thread through the counter balance wheel. A weight is used to offset the camera weight. -
- Carriage and End Caps are universal to the Magic Carpet system and fit either the Short Track or Long Track
- Brake and bubble level on Carriage
- Reversible 3/8"-16 and 1/4"-20 threaded screw for attaching camera, ballhead, or tripod head
- End Caps with adjustable quick release legs
- Genie rope lock off hooks for using with Genie Motion Control Time Lapse Device
- Counter balance wheel for vertical slides with heavier cameras
- Syrp Magic Carpet Medium Track (3.3')
- Syrp Time Lapse System: Hands-On Review
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
The 3.3' Magic Carpet Medium Track from Syrp provides a sliding surface for the Magic Carpet slider system. It supports loads up to 15.4 lb and is compatible with the optional Magic Carpet Carriage and End Caps. - Syrp Pan Tilt Bracket for Genie and Genie Mini
- Syrp Time Lapse System: Hands-On Review
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
The Pan Tilt Bracket from Syrp allows you to create dynamic 2-axis and 3-axis time-lapse and real-time videos with varied combinations of Genie and Genie Minis. Two individual brackets are included: one to mount a Genie Mini in a vertical orientation onto a second Genie Mini (or Genie), and one to mount your camera. Used together, the two brackets allow you to use the base Genie/Genie Mini to control pan axis, with the vertically oriented Genie Mini controlling the tilt axis. For 3-axis movements, use with brackets in conjunction with a slider-mounted Genie. - Syrp Sync Cable for Genie and Genie Mini
- Syrp Time Lapse System: Hands-On Review
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App
- How to Setup a 3-Axis Motion Control Timelapse with the Syrp Genie App

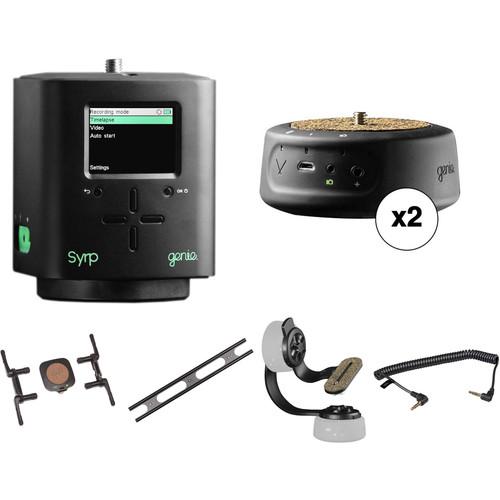

Designed to connect a Genie motion control system to a Genie Mini, the Syrp Sync Cable allows you to combine the two systems together to add 2-axis motorized motion to your time-lapse and real-time videos. In the Box - Genie Motion Control Time-Lapse Device csbwvedxdubs
- Panning Base
- Sliding Base
- Rope for Slider (9.8')
- 2 x Slider Mounts
- Multi-Voltage Charger
- Limited 1-Year Warranty
- 2 x Genie Mini Panning Motion Control System
- Magic Carpet Carriage and End Caps
- Magic Carpet Medium Track (3.3')
- Pan Tilt Bracket for Genie and Genie Mini
- Sync Cable for Genie and Genie Mini
Table of Contents
|
Upload User Manual
Have you got an user manual for the Syrp Genie 3-Axis Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Syrp Genie Motion Control Time-Lapse Device
| Payload | 33 lb / 15 kg | | Rope Length | 9.8' / 3 m | | Maximum Speed | Linear: 39" / 100 cm, in 25 seconds
Panning: 360° in 6 seconds | | Power Supply | Input: 110 to 240 VAC, 50/60 Hz
Output: 15 VDC, 1.5 A | | Battery | Type: 11.1 V lithium-ion
Charging Time: 4 hours
Runtime:
24 hours+ (Time-Lapse mode)
6 hours+ (Video mode)
Note: Need firmware v2.4 or above for specified battery life. Other factors include camera weight and type of movement. | | Connectivity | 1 x USB
1 x Sensor input | | Head to Tripod Mounting Thread | Bottom: 3/8"-16 and 1/4"-20
Top: 3/8"-16 | | Dimensions | 4 x 4 x 4" / 10.2 x 10.2 x 10.2 cm | | Weight | 3.3 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 8.4 x 8.2 x 5.5" | - 2 x Syrp Genie Mini Panning Motion Control System
| Load Capacity | Panning Load: 8.8 lb / 4 kg
Tilting Load: 6.6 lb / 3 kg centered | | Maximum Speed | 360° in 33 seconds | | Minimum Resolution | 0.005° | | Camera Mounting Screw | 1/4"-20 (3/8"-16 bushing included) | | Tripod Mounting Thread | 3/8"-16 | | Bluetooth | Bluetooth 4.0 | | Camera Control Interface | 2.5 mm | | Accessory Port | 3.5 mm | | Battery Runtime | Time-Lapse: 48 hours
Video: 5 hours | | Charging Method | Micro-USB port, 5 VDC, 0.5 A | | Battery Charge Time | 3 hours | | Dimensions | 3.6 x 1.6" / 9.2 x 4.0 cm | | Weight | 8.1 oz / 230 g | | | | Box Dimensions (LxWxH) | 4.252 x 4.252 x 3.071" | - Syrp Magic Carpet Carriage and End Caps
| Compatibility | Magic Carpet 2.6' (80 cm) Short Track or 5.2' (160 cm) Long Track | | Mounting Screw | 3/8"-16 and 1/4"-20 (reversible) | | | | Box Dimensions (LxWxH) | 8.8 x 6.1 x 2.5" | - Syrp Magic Carpet Medium Track (3.3')
| Load Capacity | 2.2 to 15.4 lb (1 to 7 kg) | | Dimensions | Length: 3.3' (100 cm)
Width: 5" (12.5 cm) | | Rail Diameter | 0.98" (2.5 cm) | | Weight | 2.95 lb (1.34 kg) | | | | Box Dimensions (LxWxH) | 41.0 x 6.0 x 2.8" | - Syrp Pan Tilt Bracket for Genie and Genie Mini
| | | Box Dimensions (LxWxH) | 11.1 x 5.7 x 4.9" | - Syrp Sync Cable for Genie and Genie Mini
| | | Box Dimensions (LxWxH) | 8.5 x 2.5 x 0.65" |
