User Manual for Syrp Genie II Motorized Pan Tilt Head Click to enlarge the picture
Contents of the user manual for the Syrp Genie II Motorized Pan Tilt
- Product category: Tripods, Supports & Rigs Syrp
- Brand: Syrp
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Syrp Tripods, Supports & Rigs
 |
User manual for the Syrp Genie II Motorized Pan Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Syrp product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Syrp user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Syrp product will considerably shorten its lifespan!
|
Product description Track and Time-Lapse with the Syrp Genie II Read More - Genie II - 3-Axis Motion Control Video, Time-lapse, Panorama and more.

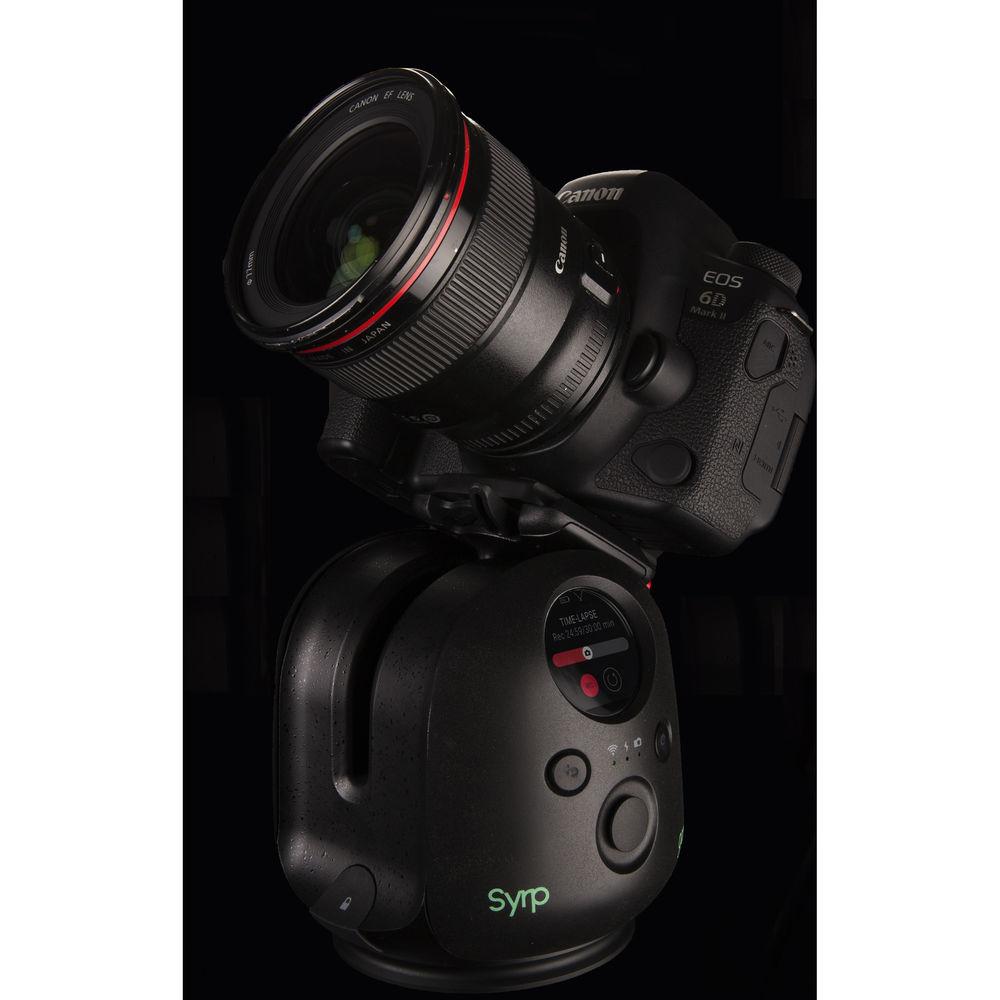

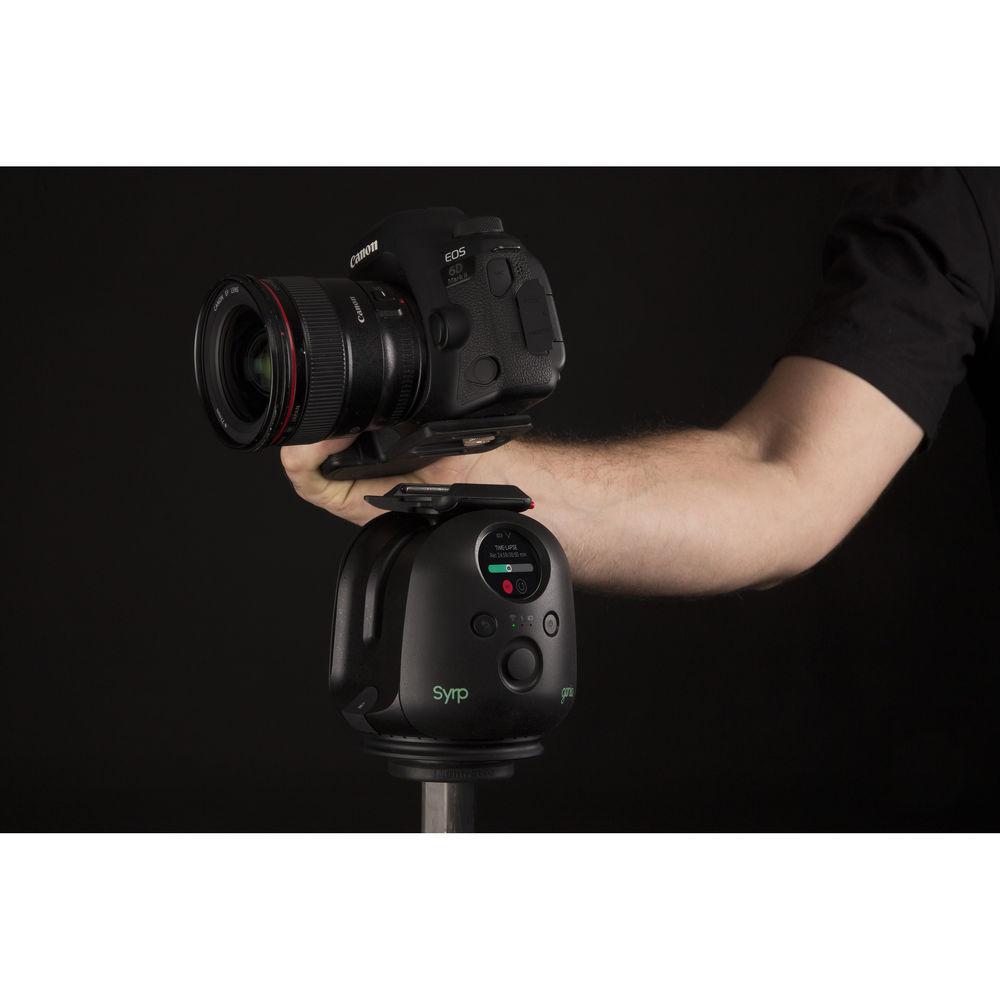

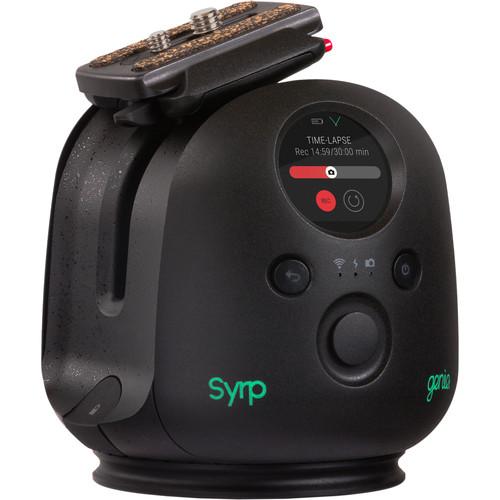

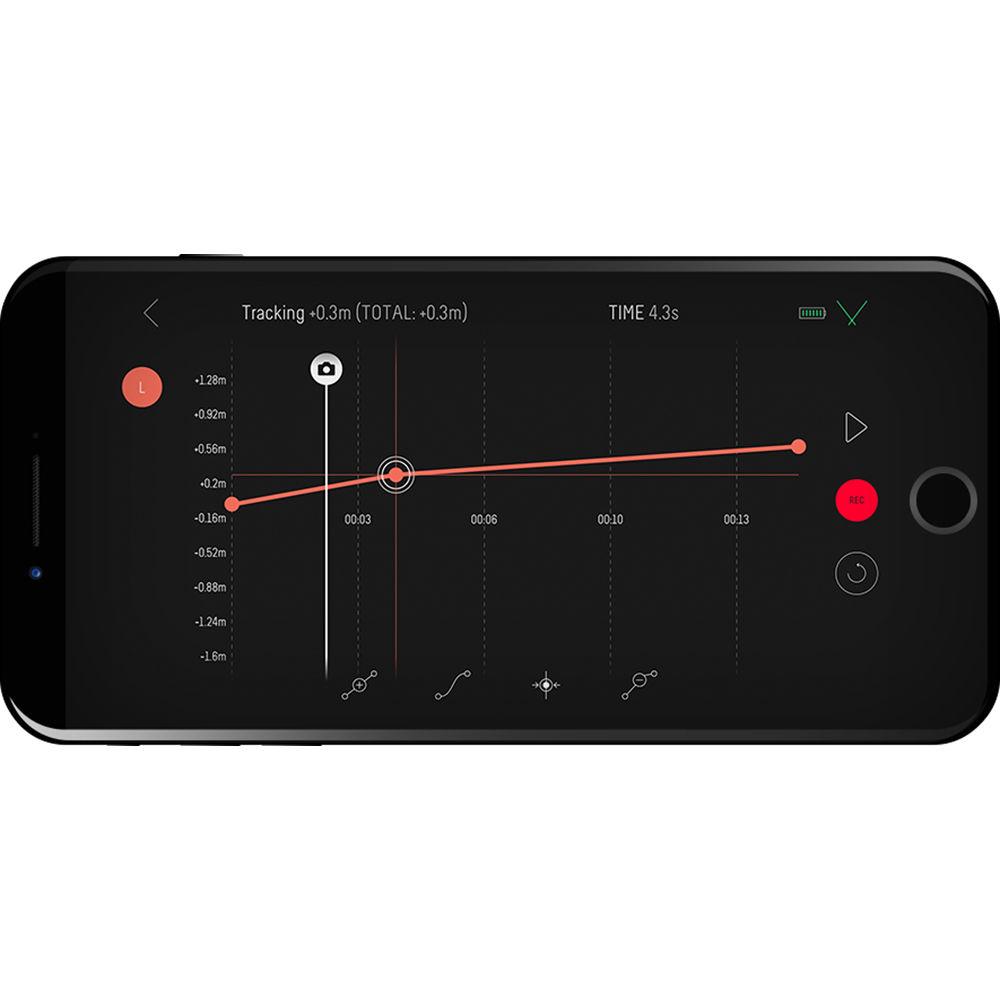

Create sliding shots and time-lapses with dynamic pan and tilt movements using the Syrp Genie II Motorized Pan/Tilt Head. Set up basic shots using head's built-in software or create complex moves with keyframes and more using the redesigned control app on your smartphone. Joystick control is featured on both the head and the app, enabling you to easily set start and end points. Utilizing the full 180° of tilt, the Genie II head can support up to 7.9 pounds, and up to 12.3 pounds if only the middle 90° are being used. Weighing just three pounds, this lightweight head is designed for portability. It snaps easily into the separately available Genie II Linear's integrated quick release system to create a 3-axis motion control head for your slider. Interface features include Bluetooth 4.2 Low Energy, 2.4 GHz Wi-Fi, and a color LCD display window. A USB-C cable adapter is included for plugging in your camera for app-controlled shutter release and a quick release plate is included for securing your camera. A future app update will include functions like Bulb Ramping for day-to-night time-lapse exposure, Simple Setup, Live View, 360° Time-Lapse, Multi-Row Panorama, and more. Note: Includes one USB-C to 2.5mm cable; select cameras may require a separately available Shutter Link Cable for shutter control. - Features
-

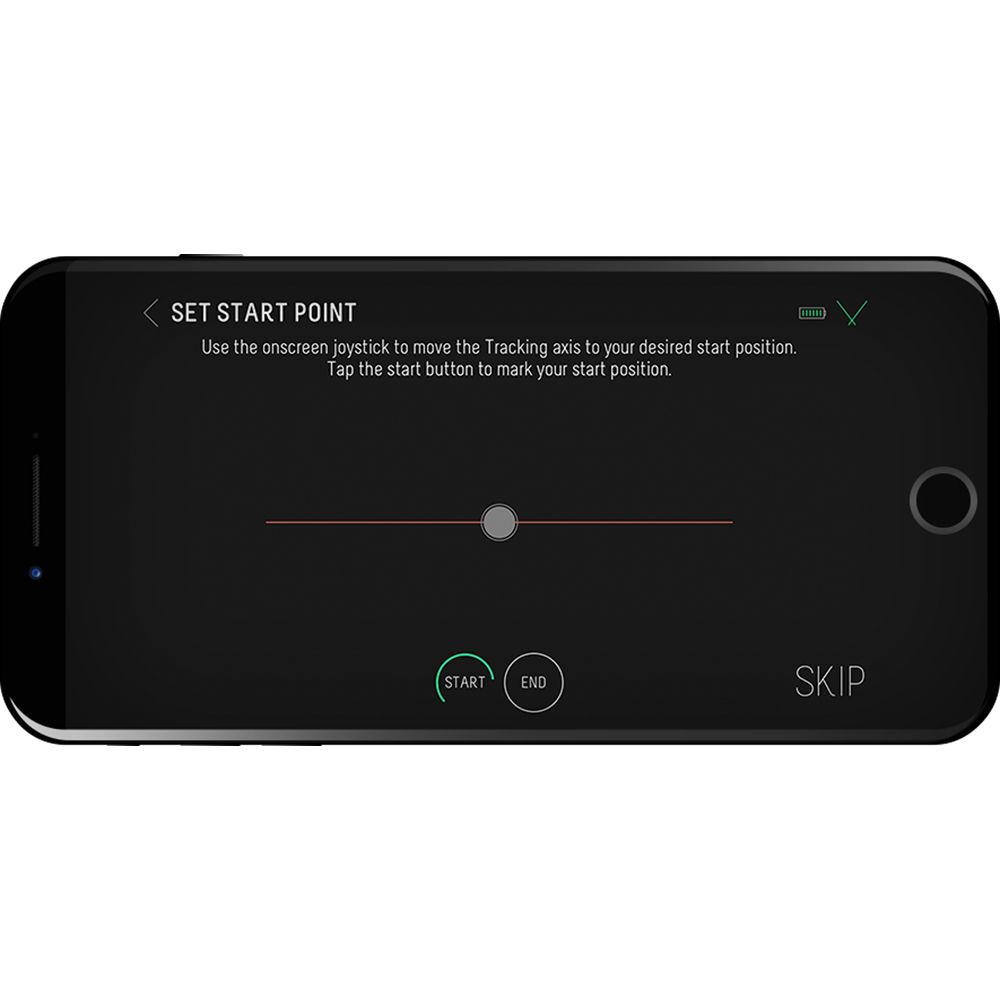

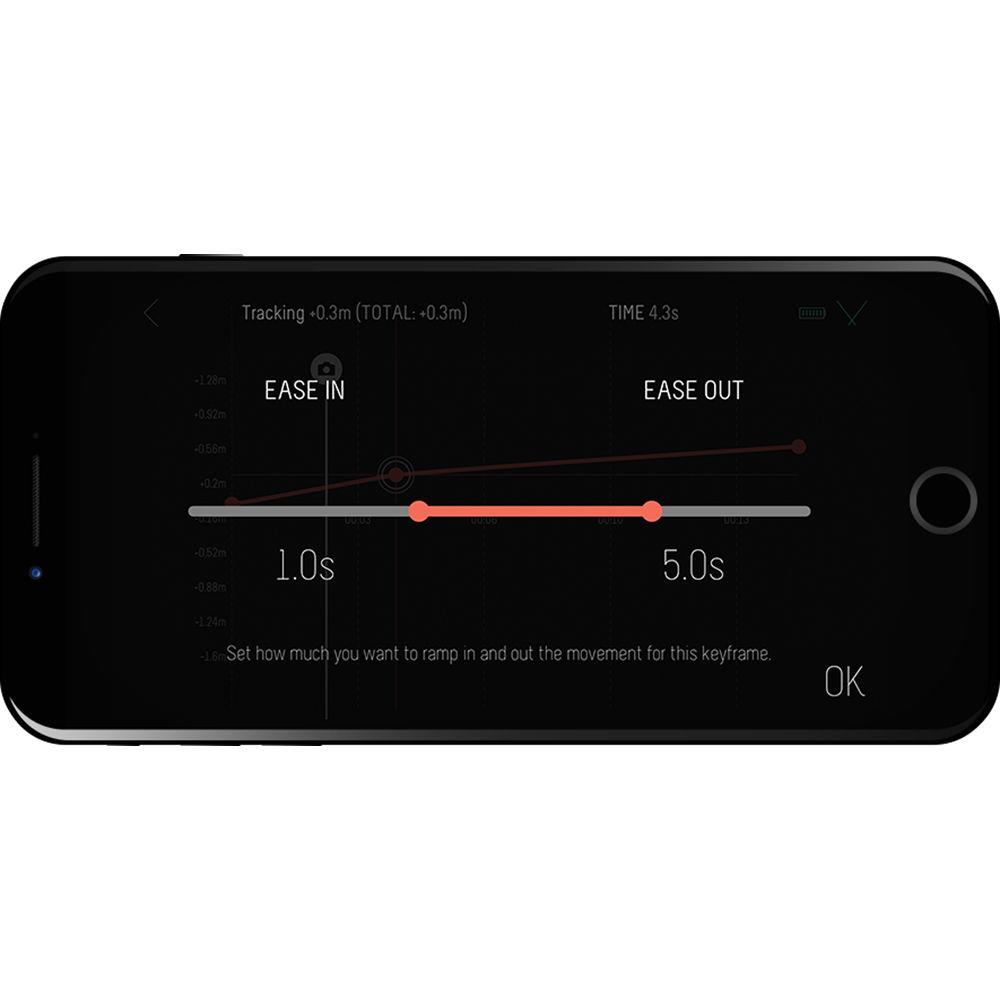

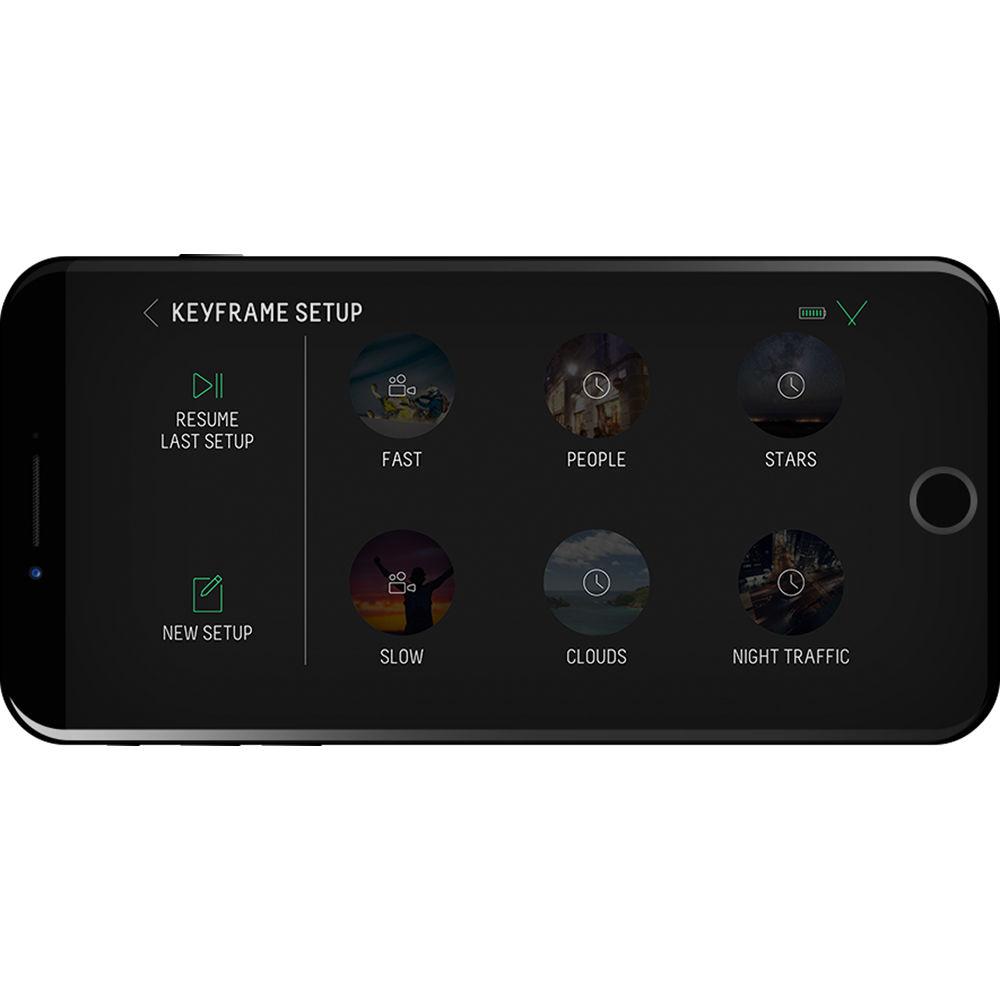

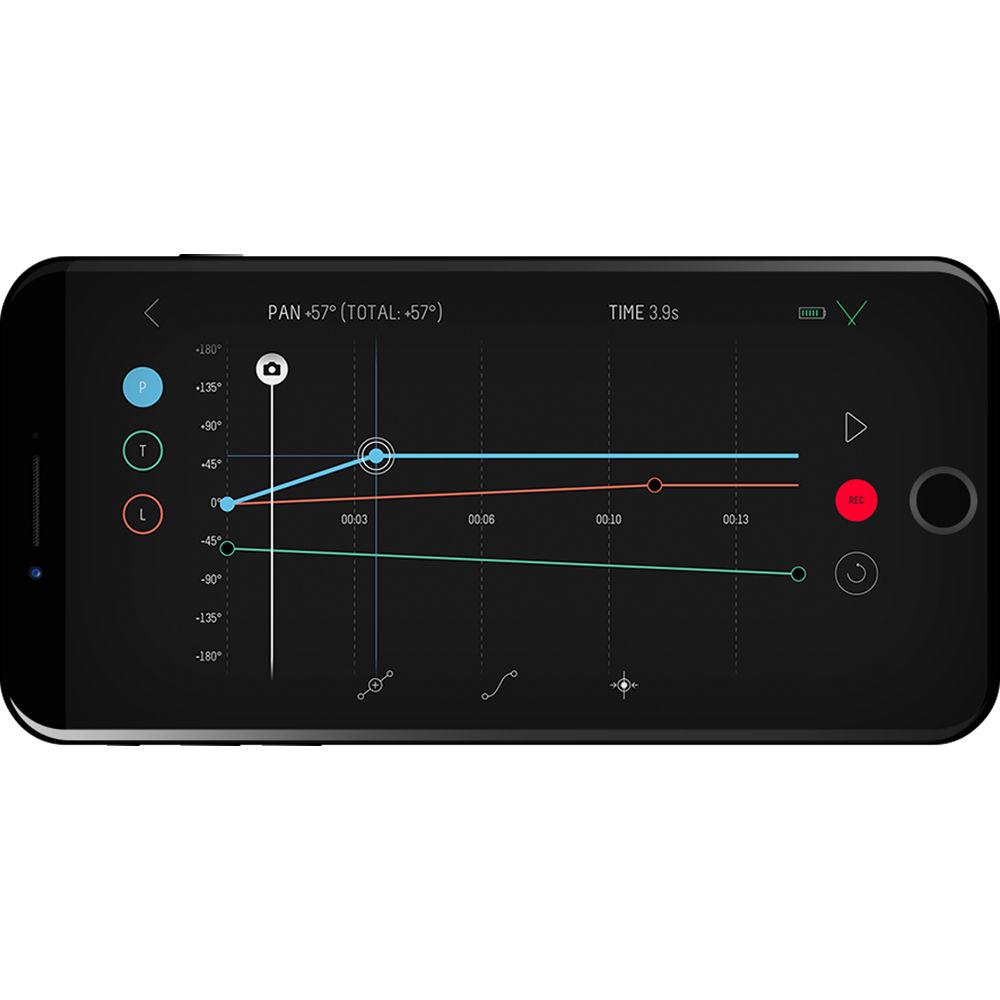

- Control pan and tilt from the head or use the app to add keyframes and more to your moves
- Full 180° of tilt and 360° degrees of pan
- Extremely portable with a weight of only three pounds
- Supports up to 7.9 pounds for 180° tilt, and up to 12.3 pounds for the middle 90° of tilt

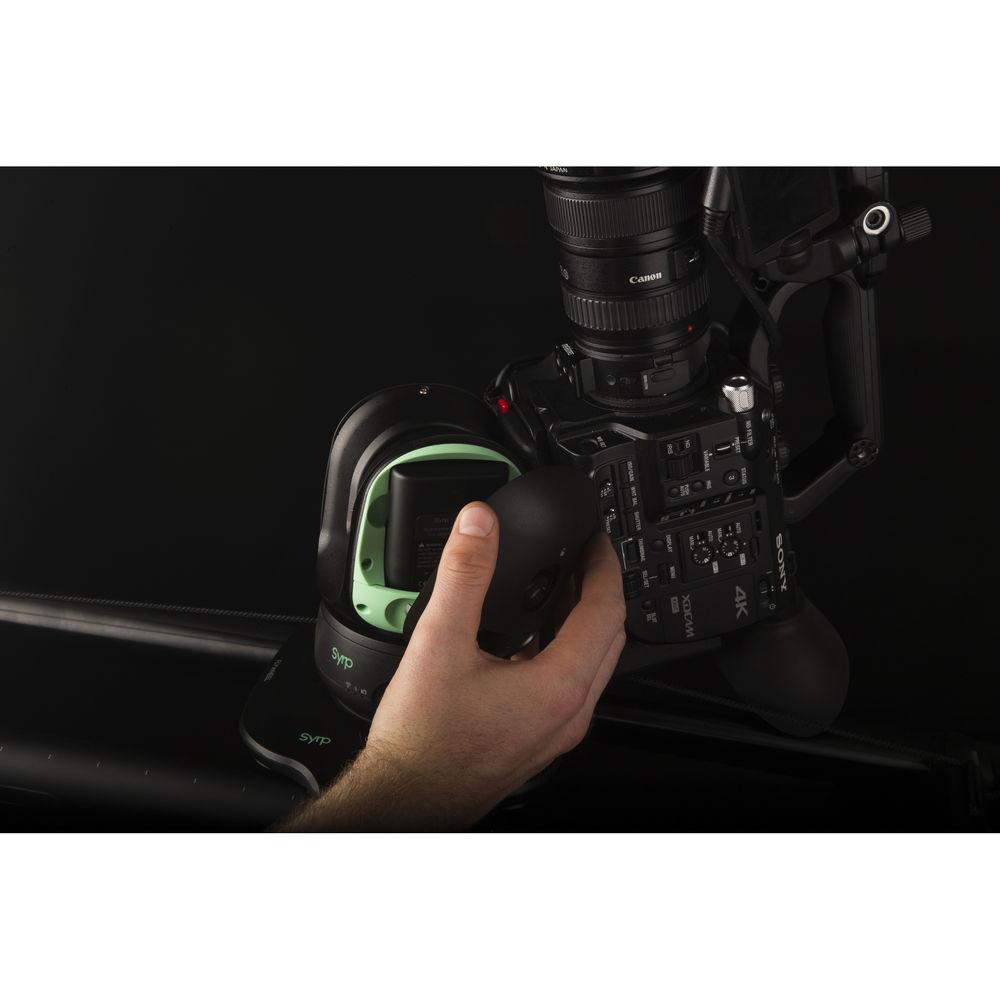

- Snaps easily into the separately available Genie II Linear's integrated quick release system
- Interface features Bluetooth 4.2 Low Energy, 2.4 GHz Wi-Fi, and a color LCD display window
In the Box Syrp Genie II Motorized Pan/Tilt Head USB-C to 2.5mm Link Cable Adapter USB-C Charging Cable USB-C to USB-A Adapter USB-C International Wall Charger 2.6 x 1.8" Quick Release Plate 1/4"-20 and 3/8"-16 Screws 1/4"-20 to 3/8" -16 Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Syrp Genie II Motorized Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSyrp Genie II Specs | Payload | Panning:
13.2 lb / 6 kg
Tilting:
60°: 16 lb / 7.3 kg
90°: 13.2 lb / 6 kg
180°: 7.9 lb / 3.6 kg | | Speed | Pan: 25° per second
Tilt: 15° per second | | Minimum Resolution | Pan: 0.01 °
Tilt: 0.01 ° | | Connections | 3 x USB-C: Charging, camera trigger, camera control | | Wireless | Bluetooth 4.2 LE: Smartphone app connection
2.4 GHz Wi-Fi: Image transfer and processing | | Mount Types | Camera/Ball Head: 1/4"-20, 3/8"-16 screws
Base: 3/8"-16 thread, (includes 1/4"-20 to 3/8"-16 adapter) | | Dimensions | 5.4 x 4.7 x 4.4" / 137 x 120 x 112 mm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 8.8 x 5.8 x 5.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
