User Manual for Syrp Genie Mini Ballhead Kit Click to enlarge the picture
Contents of the user manual for the Syrp Genie Mini Ballhead Kit
- Product category: Tripods, Supports & Rigs Syrp
- Brand: Syrp
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Syrp Tripods, Supports & Rigs
 |
User manual for the Syrp Genie Mini Ballhead Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Syrp product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Syrp user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Syrp product will considerably shorten its lifespan!
|

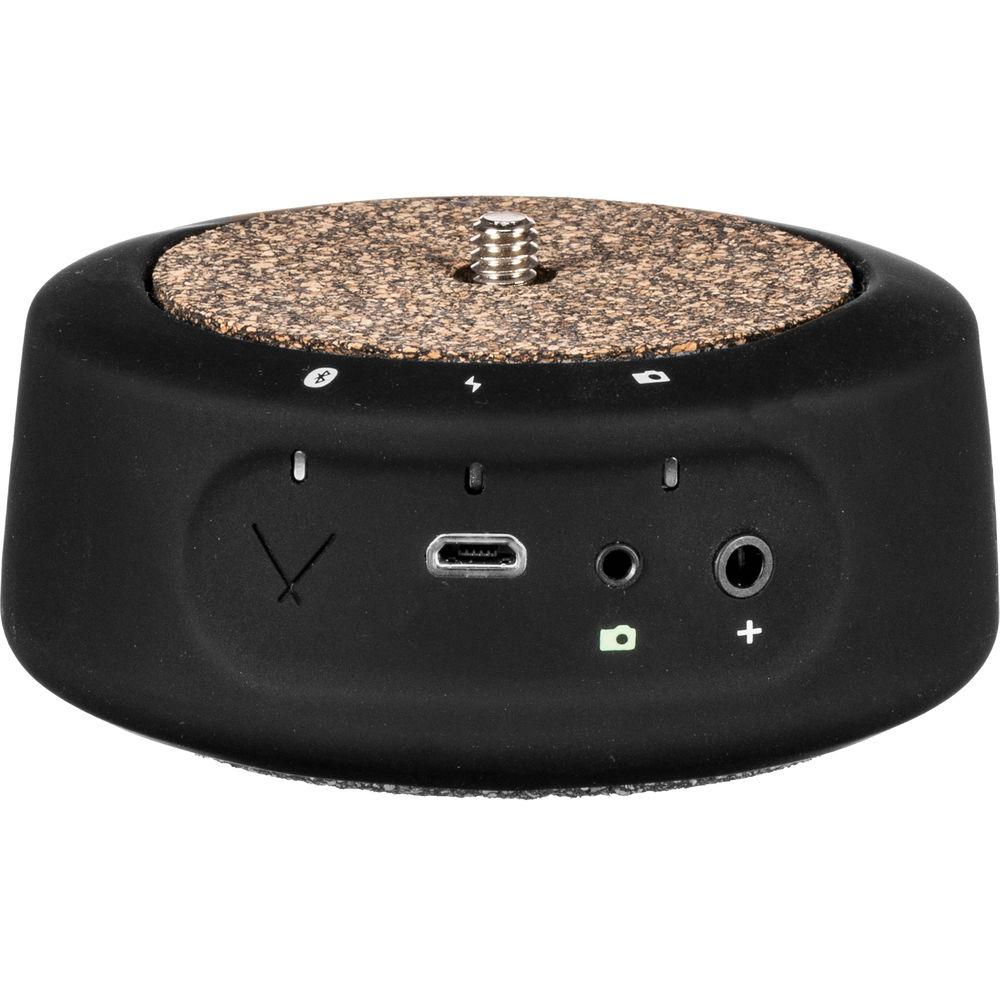

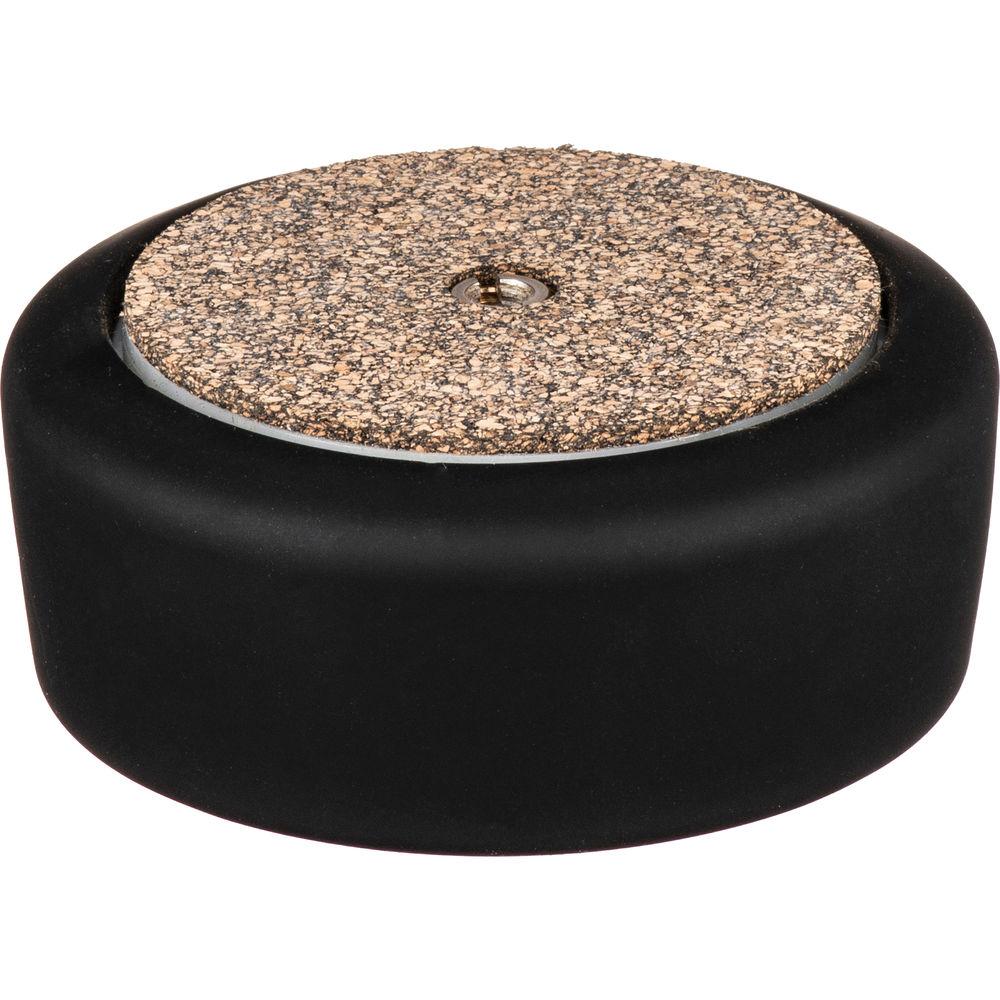

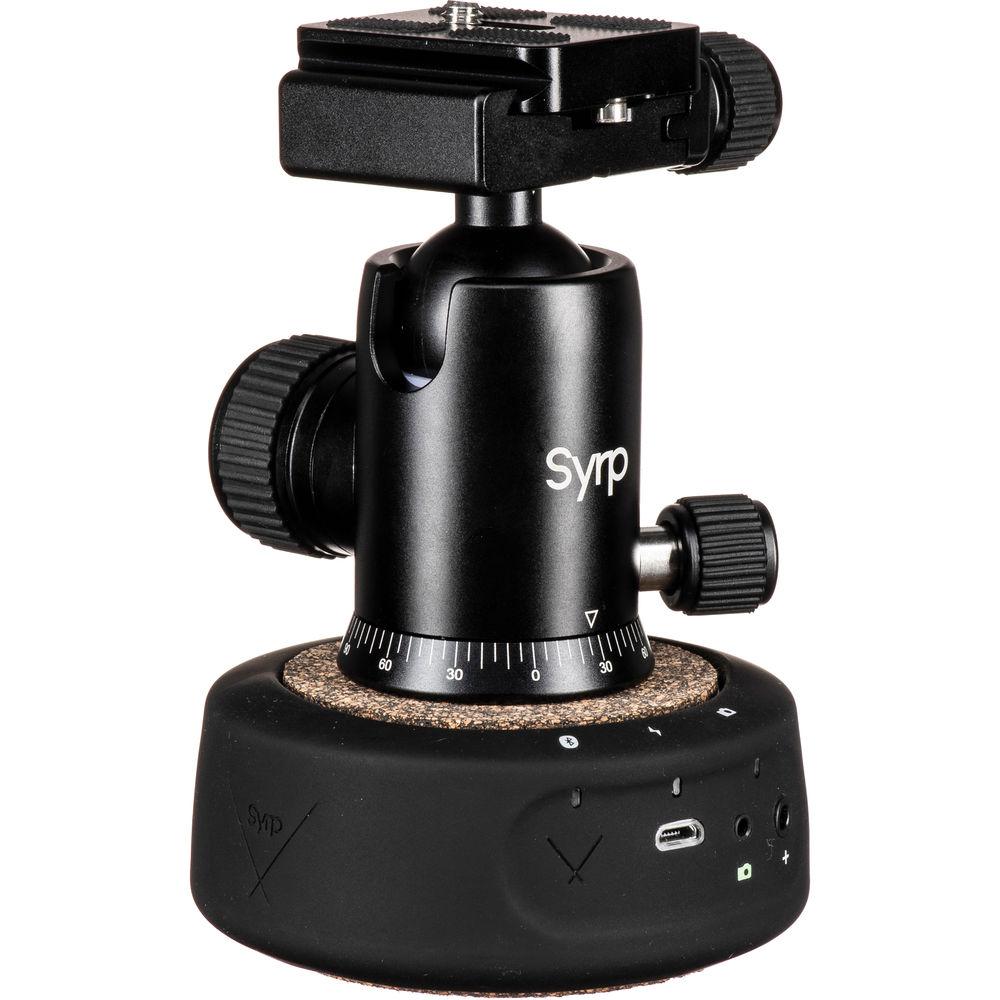

Product description With the Syrp Genie Mini Ballhead Kit combines the simple versatility of the Genie Mini panning motion control system and ballhead. Mount the ballhead onto the Genie Mini and articulate your camera atop the Genie Mini, ensuring correct composition. Additionally, the Arca compatibility of the ballhead lets you quickly lock your camera in place without fiddling with any screws. See below for more information on the items in this kit. - Genie Mini Panning Motion Control System Compact enough to fit into a small carry bag or even your coat pocket; the Syrp Genie Mini is a portable and easy-to-use device for creating smooth panning motion time-lapses or real-time video. It is designed to sit between your camera and tripod and has an internal motor that enables 360° panning motion with cameras weighing up to 8.8 pounds. Control and setup is done wirelessly using a Bluetooth connection and the Syrp Genie App for iOS and Android devices. To accommodation experienced and beginning time-lapse shooters, the app provides a useful set of presets so you can start shooting right away. A lithium-ion battery provides 48+ hours of time-lapse and 5+ hours of smooth continuous panning on a single charge, with a micro-USB cable included for re-charging the battery.
Please note: An optional Link Cable is required for connecting your camera to the Genie Mini. - Camera Compatibility
- The Genie Mini is compatible with hundreds of different cameras, including DSLRs, mirrorless cameras, and video cameras using optional link cables. The link cable connects your camera to the Genie Mini's 2.5mm camera control port.
- New Updates
-
- Panorama mode enables shooting panoramic shots and 360° photos.
- Turntable mode enables using the Genie Mini for product photography for both stills and video.
- Key Features
-
- Supports both incremental time-lapse motion as well as smooth continuous panning motion
- Max Speed: 360° in 33 seconds
- Built-in Bluetooth connectivity for wireless setup and control using the Syrp Genie App for iOS and Android devices
- App presets to help you get started with your time-lapses
- HDR time-lapse mode
- Ease in/out feature lets you ramp your movement at the beginning and ends of your time-lapses or video move
- 1/4"-20 camera mounting screw with 3/8"-16 adapter included
- 3/8"-16 tripod mounting thread
- Lithium-ion battery provides 48+ hours of time-lapse and 5+ hours of smooth continuous panning
- Micro-USB charging cable
- Can be combined with the Syrp Genie for 2-axis motion control (using optional sync cable to connect the systems)

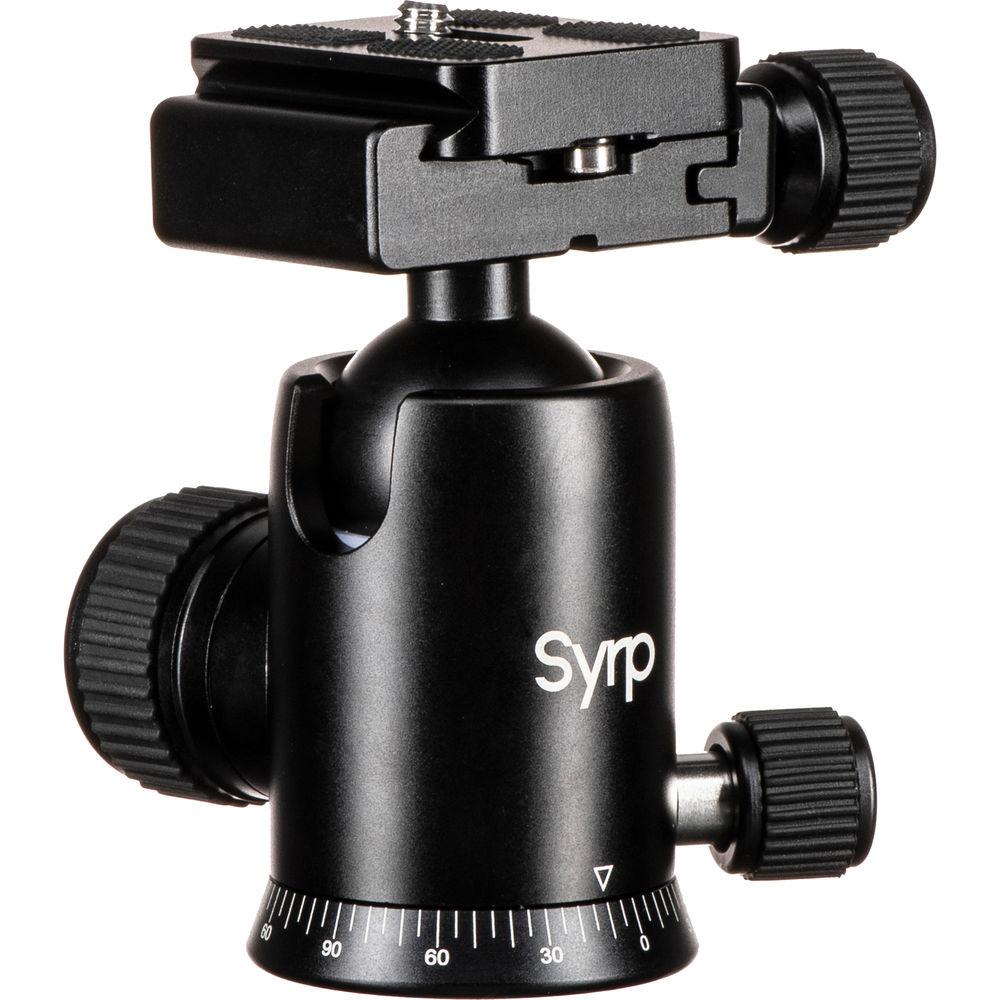

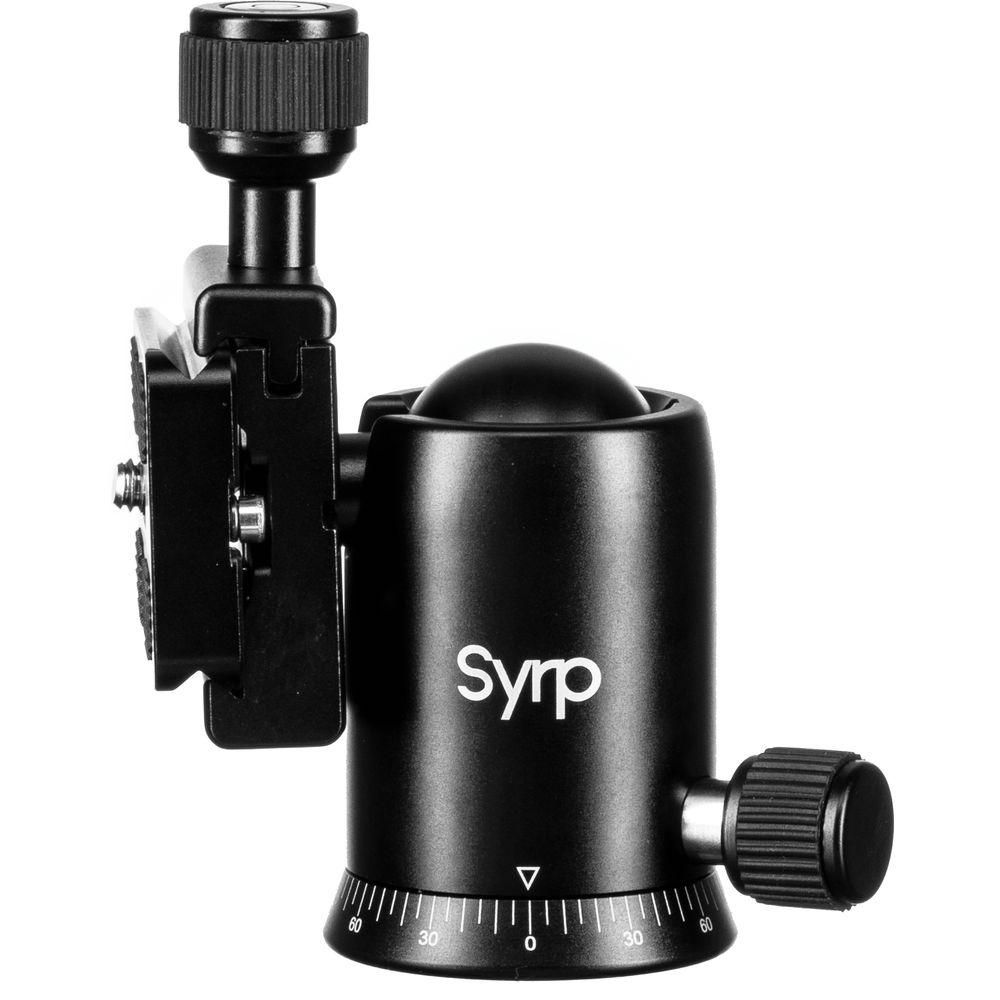

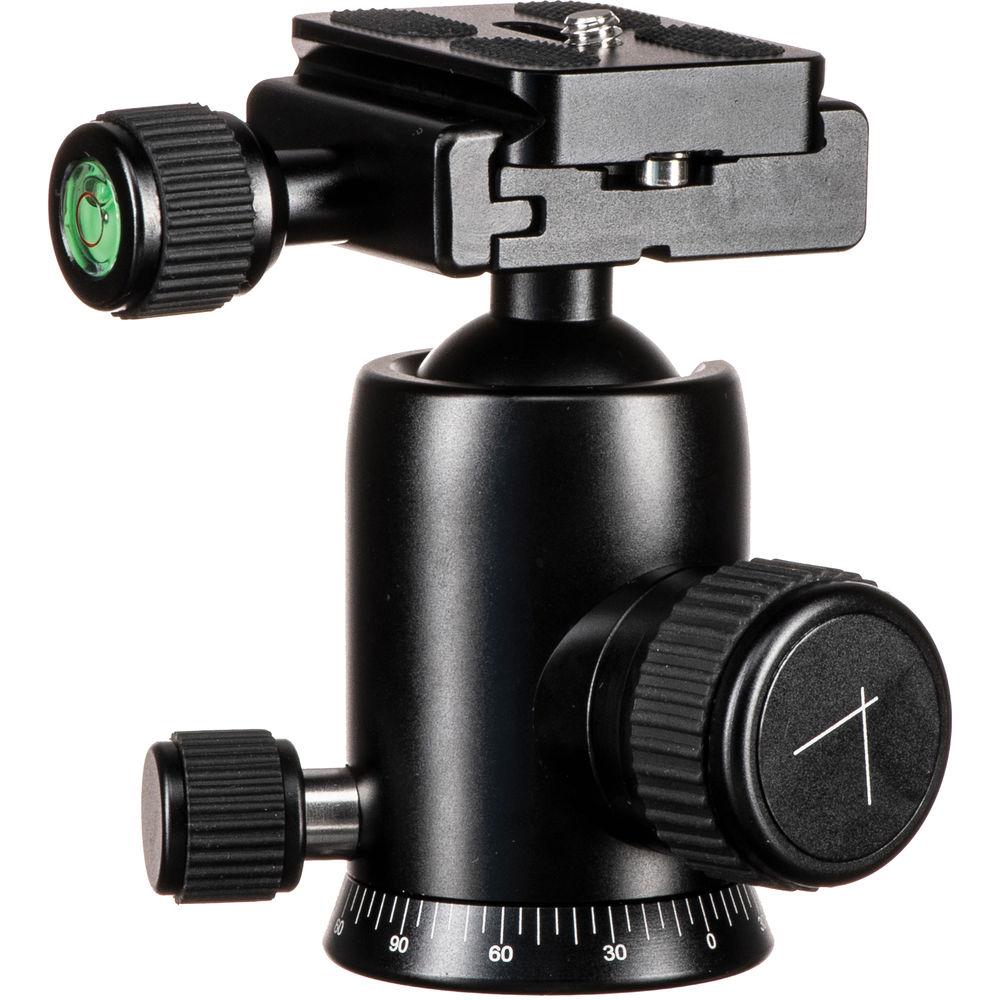

- Ball Head for Genie The Syrp Ball Head is designed to work with the Genie Motion Control Time-Lapse Device, but can also be used with most tripods or monopods. It has an Arca-type quick release plate with a locking knob to secure your camera in place. It can hold up to 26.5 lb and weighs less than a pound at only 12 oz. The ball head has separate locking knobs for tilting and 360º panning. Cameras attach to the plate with a 1/4"-20 male thread and the ball head attaches to the Genie or other support with a 3/8"-16 female thread.

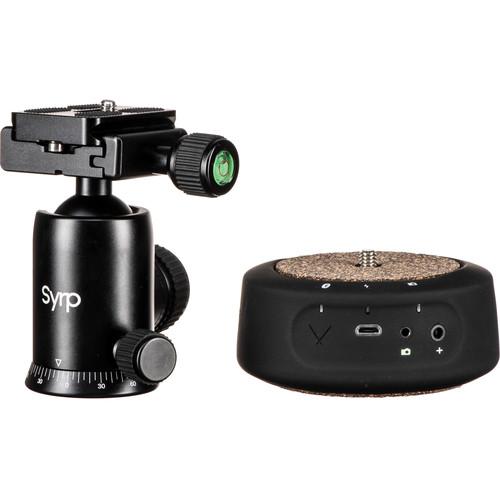

In the Box Bundle Items Genie Mini Panning Motion Control System - 1/4"-20 to 3/8"-16 Thread Adapter
Ball Head for Genie wzubbuesrwrbwevwqut Table of Contents
|
Upload User Manual
Have you got an user manual for the Syrp Genie Mini Ballhead Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Genie Mini Panning Motion Control System
| Load Capacity | Panning Load: 8.8 lb / 4 kg
Tilting Load: 6.6 lb / 3 kg centered | | Maximum Speed | 360° in 33 seconds | | Minimum Resolution | 0.005° | | Camera Mounting Screw | 1/4"-20 (3/8"-16 bushing included) | | Tripod Mounting Thread | 3/8"-16 | | Bluetooth | Bluetooth 4.0 | | Camera Control Interface | 2.5 mm | | Accessory Port | 3.5 mm | | Battery Runtime | Time-Lapse: 48 hours
Video: 5 hours | | Charging Method | Micro-USB port, 5 VDC, 0.5 A | | Battery Charge Time | 3 hours | | Dimensions | 3.6 x 1.6" / 9.2 x 4.0 cm | | Weight | 8.1 oz / 230 g | | | | Box Dimensions (LxWxH) | 4.252 x 4.252 x 3.071" | - Ball Head for Genie
| Load Capacity | 26.5 lb / 12.0 kg | | Ball Sphere Diameter | 1.26" / 3.2 cm | | Base Diameter | 1.9" / 4.7 cm | | Quick Release | Arca-Type Sliding Plate | | Panning Range | 360° | | Tripod Mount Thread Size | 3/8"-16 Female | | Camera Screw | 1/4"-20 Male | | Height | 3.8" / 9.6 cm | | Weight | 12 oz / 340 g | | | | Box Dimensions (LxWxH) | 4.9 x 4.0 x 3.3" |
