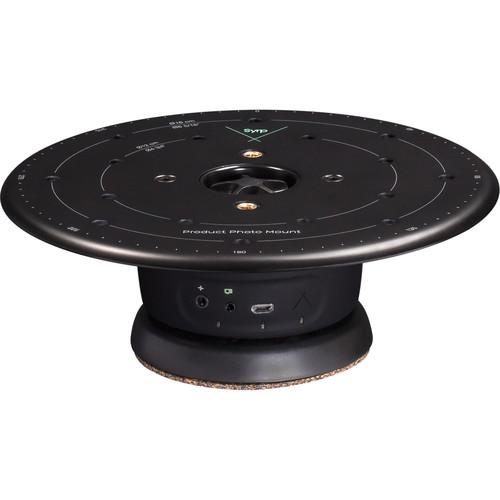

User Manual for Syrp Genie Mini Panning Motion Control with 8" Aluminum Turntable Platform Kit Click to enlarge the picture
Contents of the user manual for the Syrp Genie Mini Panning Motion Control
- Product category: Tripods, Supports & Rigs Syrp
- Brand: Syrp
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Syrp Tripods, Supports & Rigs
|
User manual for the Syrp Genie Mini Panning Motion Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Syrp product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Syrp user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Syrp product will considerably shorten its lifespan!
|
Product description The Genie Mini Panning Motion Control with 8" Aluminum Turntable Platform Kit from Syrp is used in combination to create time-lapse or real-time video. Therefore, both devices rotate a full 360° to achieve this type of videos. - Syrp Genie Mini Panning Motion Control System
- Genie Mini - Time-lapse, Video, Panorama, Product Turntable.
Compact enough to fit into a small carry bag or even your coat pocket; the Syrp Genie Mini is a portable and easy-to-use device for creating smooth panning motion time-lapses or real-time video. It is designed to sit between your camera and tripod and has an internal motor that enables 360° panning motion with cameras weighing up to 8.8 pounds. Control and setup is done wirelessly using a Bluetooth connection and the Syrp Genie App for iOS and Android devices. To accommodation experienced and beginning time-lapse shooters, the app provides a useful set of presets so you can start shooting right away. A lithium-ion battery provides 48+ hours of time-lapse and 5+ hours of smooth continuous panning on a single charge, with a micro-USB cable included for re-charging the battery.
Please note: An optional Link Cable is required for connecting your camera to the Genie Mini. - Camera Compatibility
- The Genie Mini is compatible with hundreds of different cameras, including DSLRs, mirrorless cameras, and video cameras using optional link cables. The link cable connects your camera to the Genie Mini's 2.5mm camera control port.
- New Updates
-
- Panorama mode enables shooting panoramic shots and 360° photos.
- Turntable mode enables using the Genie Mini for product photography for both stills and video.
- Key Features
-
- Supports both incremental time-lapse motion as well as smooth continuous panning motion
- Max Speed: 360° in 33 seconds
- Built-in Bluetooth connectivity for wireless setup and control using the Syrp Genie App for iOS and Android devices
- App presets to help you get started with your time-lapses
- HDR time-lapse mode
- Ease in/out feature lets you ramp your movement at the beginning and ends of your time-lapses or video move
- 1/4"-20 camera mounting screw with 3/8"-16 adapter included
- 3/8"-16 tripod mounting thread
- Lithium-ion battery provides 48+ hours of time-lapse and 5+ hours of smooth continuous panning
- Micro-USB charging cable
- Can be combined with the Syrp Genie for 2-axis motion control (using optional sync cable to connect the systems)
- Syrp 8" Aluminum Turntable Platform
- Genie Mini - Time-lapse, Video, Panorama, Product Turntable.
Meant to be used with the Genie Mini time-lapse rotator, the 8" Aluminum Turntable Platform from Syrp has a cheese-plate design with several 1/4"-20 taps in its surface for securing products weighing up to 8.8 lb. Thanks to the taps, you can use the Genie/Turntable combination upside down or mounted to the wall. Mounted to the Genie Mini, the turntable will make a 360-degree rotation in 33 seconds. The Turntable Platform ships with a white and a black cardboard background disk. A downloadable template is available on Syrp's website for do-it-yourself mounting setups. In the Box - Genie Mini Panning Motion Control System
- Micro-USB Charging Cable
- 1/4"-20 to 3/8"-16 Thread Adapter
- Lens Cloth
- Limited 1-Year Warranty
- 8" Aluminum Turntable Platform
Table of Contents
|
Upload User Manual
Have you got an user manual for the Syrp Genie Mini Panning Motion Control with 8" Aluminum Turntable Platform Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Syrp Genie Mini Panning Motion Control System
| Load Capacity | Panning Load: 8.8 lb / 4 kg
Tilting Load: 6.6 lb / 3 kg centered | | Maximum Speed | 360° in 33 seconds | | Minimum Resolution | 0.005° | | Camera Mounting Screw | 1/4"-20 (3/8"-16 bushing included) | | Tripod Mounting Thread | 3/8"-16 | | Bluetooth | Bluetooth 4.0 | | Camera Control Interface | 2.5 mm | | Accessory Port | 3.5 mm | | Battery Runtime | Time-Lapse: 48 hours
Video: 5 hours | | Charging Method | Micro-USB port, 5 VDC, 0.5 A | | Battery Charge Time | 3 hours | | Dimensions | 3.6 x 1.6" / 9.2 x 4.0 cm | | Weight | 8.1 oz / 230 g | | | | Box Dimensions (LxWxH) | 4.252 x 4.252 x 3.071" | - Syrp 8" Aluminum Turntable Platform
| Load Capacity | 8.8 lb (4.0 kg) | | Dimensions | Diameter: 8.0" (20.3 cm) | | Mounting | 1/4"-20 female threads | | Movement | 360° rotation when used with Genie mini | | Material of Construction | Aluminum | | | | Box Dimensions (LxWxH) | 8.1 x 8.0 x 1.8" |
