User Manual for Tactical Fiber Systems CamLinkPro All-in-One 500' Cable Converter Reel Click to enlarge the picture
Contents of the user manual for the Tactical Fiber Systems CamLinkPro All-in-One 500'
- Product category: Studio Systems Tactical Fiber Systems
- Brand: Tactical Fiber Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tactical Fiber Systems Studio Systems
 |
User manual for the Tactical Fiber Systems CamLinkPro All-in-One 500' contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tactical Fiber Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tactical Fiber Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tactical Fiber Systems product will considerably shorten its lifespan!
|

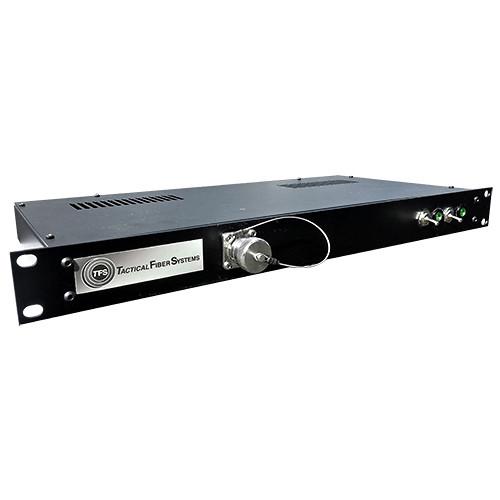

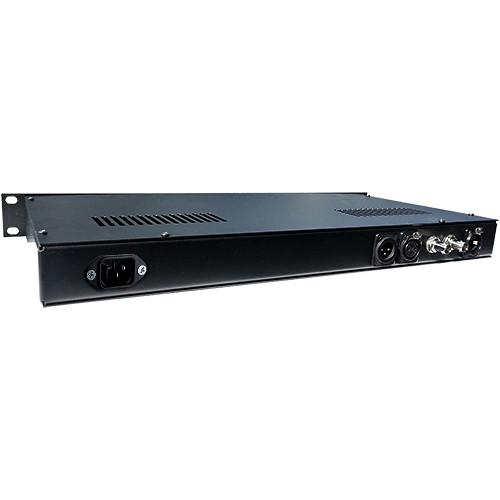

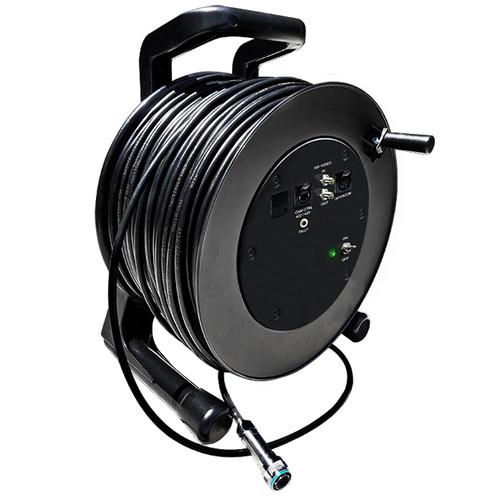

Product description The CamLinkPro All-in-One 500' Cable/Converter Reel with built-in converter & 1 RU base station from Tactical Fiber Systems is a fiber-based transmission system that sends and receives 3G-HD/SD-SDI video and ClearCom signals, RS-422/425 data for remote camera control, and tally function over TFS hybrid fiber cables up to 2000'. This system includes a 500' cable reel with built-in fiber converters and 1 RU rackmount base unit. The converter transmits 3G-HD/SD-SDI video signals from the camera to the base unit and also transmits/receives bidirectional ClearCom intercom signals. It also receives RS-422/425 data signals for remote camera control and GPI signal for tally function transmitted by the base station. The converter is self-powered via the TFS hybrid fiber cable (it does not power the camera or attached accessories). The 19" rackmount base unit outputs the 3G HD/SD-SDI video signals received from the converter via 2 BNC outputs. It connects to the ClearCom intercom system via an XLR input and has an XLR loop out connector. Intercom signals require a ClearCom beltpack/headset (available separately). In the Box Tactical Fiber Systems CamLinkPro All-in-One 500' Cable/Converter Reel (RS-422/425 Control) CamlinkPro Base Unit (1 RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tactical Fiber Systems CamLinkPro All-in-One 500' Cable Converter Reel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTactical Fiber Systems CLPRO-RL-DT Specs | | | Video | Transmits 3G-HD/SD-SDI video with 1 x BNC loop out and 1 x BNC input | | Intercom | XLR connector for ClearCom beltpack (not included) | | Camera Control | RS-422/425 serial data via RJ45 Socket (cable not included) | | Tally | Tally Light/Signal Connector: 1/8" socket (cable not included) | | Power | Self-powered via TFS hybrid fiber cable | | Transmission Distance | 2000' / 610 m | | Cable Length | 500.0' / 152.4 m | | Dimensions | 17.0 x 15.0 x 11.0" / 43.1 x 38.1 x 27.9 cm | | Weight | 48.0 lb / 21.7 kg | | | | Video | Receives 3G HD/SD-SDI video with 2 x identical outputs on BNC connectors | | Intercom | Connects to ClearCom Base Station via 1 x XLR input with 1 x XLR loop out | | Camera Control | RS-422/425 serial data via RJ45 connector (cable not included) | | Fiber Connector | TFS Magnum Hybrid: 2 single mode fiber / 3 copper | | Tally | External Tally Control: 1/8" socket | | Power Supply | Universal 120 / 240 VAC, 60 / 50 Hz (via standard 3-prong US plug) | | Dimensions | 1.75 x 19.00 x 10.00" / 4.45 x 48.26 x 25.40 cm (fits 1 RU rack space) | | Weight | 15.0 lb / 6.8 kg |
