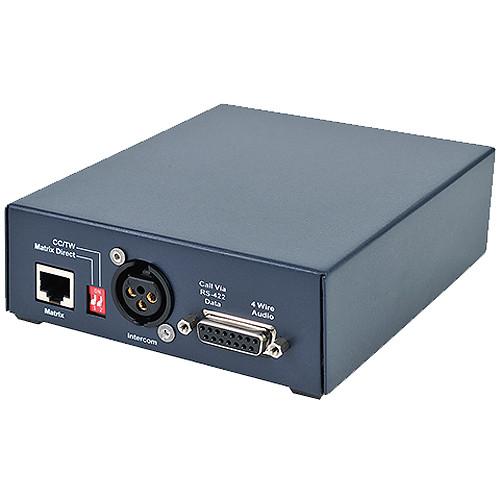

User Manual for Tactical Fiber Systems CCRT241 TFS ClearCom Interface for ATEM Studio 1 Click to enlarge the picture
Contents of the user manual for the Tactical Fiber Systems CCRT241 TFS ClearCom
- Product category: Studio & EFP Camera Accessories Tactical Fiber Systems
- Brand: Tactical Fiber Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tactical Fiber Systems Studio & EFP Camera Accessories
|
User manual for the Tactical Fiber Systems CCRT241 TFS ClearCom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tactical Fiber Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tactical Fiber Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tactical Fiber Systems product will considerably shorten its lifespan!
|
Product description The CCRT241 TFS ClearCom Interface from Tactical Fiber Systems links the Blackmagic-Design ATEM Studio Converter 1 or a single camera converter system to a wired ClearCom party line system. It includes a patch cable with a 9-pin connector at one end, and two 1/8" plugs on the other. The cable connects to the headset / microphone inputs of either a studio converter (when used with multi-fiber links) or a camera converter (when used with single fiber links). A standard 3-pin XLR cable connects it to any standard ClearCom 3-pin XLR Base Station or Belt-Pak connector. It is powered by the ClearCom connection and does not require additional external power. Note: To null the interface, plug ear set into the 1/8" jack to the right of the interface and adjust the RLC trim pots for minimum noise. Then unplug the ear set. You must unplug the ear set after nulling the interface before using it. - Enables communication with your camera crew on both fiber and wired ClearCom party line systems using a single headset
UPC: 815915021053 In the Box Tactical Fiber Systems CCRT241 TFS ClearCom Interface for ATEM Studio 1 9-Pin to 2 x 1/8" ClearCom Interface Patch Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tactical Fiber Systems CCRT241 TFS ClearCom Interface for ATEM Studio 1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTactical Fiber Systems 2BMCCRT241 Specs | Compatibility | ATEM Studio 1 | | Connectors | 1 x 1/8" phone jack female, ear set connector
1 x 3-pin XLR, ClearCom connector
1 x 9-pin connector, interface | | Cable Connector A | 1 x 9-pin connector | | Cable Connector B | 2 x 1/8" phone jack | | Dimensions | 6 x 4 x 2" (15.2 x 10.2 x 5.1 cm) | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.3 x 5.9 x 3.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
