Product description - TFS DuraTAC Tactical Fiber Optic Cables
- TFS Fiber Connectors

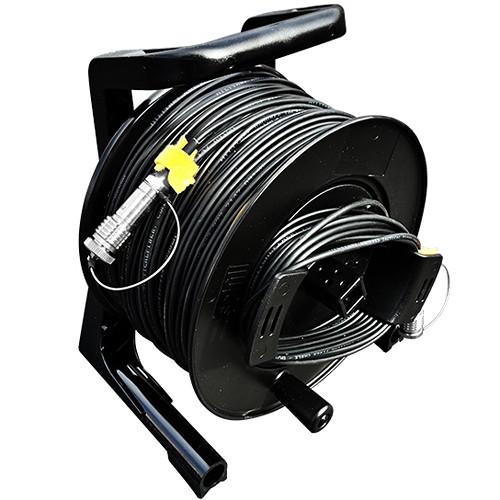

This 4-fiber, single-mode Tactical Fiber Systems Cable & Reel, 1000 ft in length, features TFS's DuraTAC stainless steel armored inner core and TFS Magnum stainless steel female connectors.
DuraTAC is TFS's solution to wear and tear that ultimately cuts through the Kevlar that surrounds the fiber cores in tactical cables. DuraTAC comprises a stainless steel armored inner core underneath the Kevlar, providing protection against stepping, cutting, and rodents. Other than being stronger, DuraTAC cables are also about half as thin and half as light, so you get more cable on your reel.
TFS Magnum connectors are ideal for remote video production and field deployment. They're designed to provide strength, durability, and protection against dirt and damage during remote productions, and to prevent damage and contamination to the internal fibers. Each has screw-on waterproof dust caps on the ends.
The DuraTAC and Magnum stainless steel combination provides for reliable repeat outdoor deployment and retrieval in harsh conditions across a wide variety of applications. - Fiber and Reel Features
-
- DuraTAC stainless steel armored tactical fiber is up to 10 times stronger than ordinary fiber cables without compromising flexibility
- Highly flexible construction allows for multiple deployments
- High impact and crush resistance
- Durable in high-traffic areas
- Performance in wide temperature range
- Storage Drum extensions for breakout and easy access
- Adjustable Cam-lock drag brake
- Direct Crank Rewind
- Handle permanently attached to disc
- Applications
-
- Remote video production and broadcasting
- Field deployment in abusive environments
- Temporary installation of critical communications lines where quick retrieval and reuse is necessary
- High-traffic areas
- Security and sensing applications
- Installations in harsh environments available
UPC: 815915020117 In the Box Tactical Fiber Systems DuraTAC Armored Cable & Reel with Magnum Connectors (4-Fibers, Single Mode, 1000 ft) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tactical Fiber Systems DuraTAC Armored Cable & Reel with Magnum Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTactical Fiber Systems 4MG1000TFR Specs | Length | 1000 ft (305 m) | | Core Diameter | 9.2 ±0.4 μm at 1310 nm
10.4 ±0.8 μm at 1550 nm | | Cladding Diameter | 125 ±1 μm | | Maximum Attenuation | 0.4 dB/km at 1310 nm
0.3 dB/km at 1550 nm | | Outer Diameter Cable Sheathing | 4 mm | | Allowable Bending Radius | 20D mm (dynamic)
10D mm (static) | | Allowable Tensile | 400 N (long term)
700 N (short term) | | Crush Resistance | 655 N/cm (long term)
825 N/cm (short term) | | Inside Material | Kevlar reinforced
Stainless steel armored tubing | | Material | SS304 | | Stainless Steel Diameter | 3 mm | | Operating Temperature | -68.8 to 185°F (-56 to 85°C) | | Installation Temperature | -4 to 185°F (-20 to 85°C) |
