Product description - TFS DuraTAC Tactical Fiber Optic Cables
- TFS Fiber Connectors

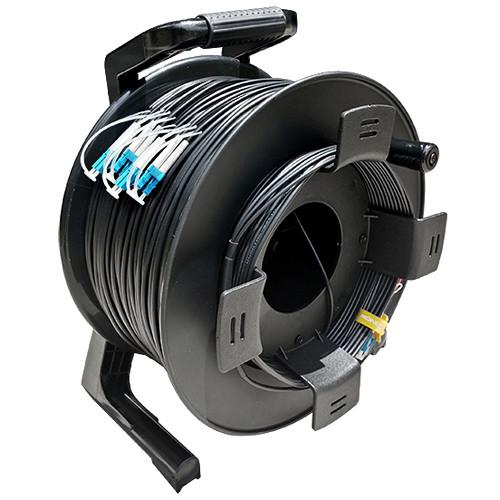

This DuraTAC Armored SM Tactical Fiber Cable & Reel from Tactical Fiber Systems runs 2000' long and features 8 LC connectors on each end and small 3.0mm diameter breakouts. It is a DuraTAC stainless steel armored cable which is up to ten times stronger than ordinary tactical cables, without any compromise in flexibility. - Fiber and Reel Features
-
- TFS DuraTAC stainless steel armored tactical fiber is up to 10 times stronger than ordinary fiber cables without compromising flexibility
- Highly flexible construction allows for multiple deployments
- High impact and crush resistance
- Durable in high-traffic areas
- Performance in wide temperature range
- Storage Drum extensions for breakout and easy access
- Adjustable cam-lock drag brake
- Direct crank rewind
- Handle permanently attached to disc
- Applications
-
- Remote video production and broadcasting
- Field deployment in abusive environments
- Temporary installation of critical communication lines where quick retrieval and reuse is necessary
- High-traffic areas
- Security and sensing applications
- Installations in harsh environments available
In the Box Tactical Fiber Systems DuraTAC Armored SM Tactical Fiber Cable & Reel with 8 LC Connectors (2000') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tactical Fiber Systems DuraTAC Armored SM Tactical Fiber Cable & Reel with 8 LC Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTactical Fiber Systems 8LC2000TFR Specs | Connectors | 8 x LC on each end | | Length | 2000 ft (610 m) | | Core Diameter | 9.2±0.4 Um at 1310 nm
10.4±0.8 Um at 1550 nm | | Cladding Diameter | 125±1 Um | | Maximum Attenuation | 0.4 dB/km at 1310 nm
0.3 dB/km at 1550 nm | | Outer Diameter Cable Sheathing | 5.5 mm | | Allowable Bending Radius | 20D mm (dynamic)
10D mm (static) | | Allowable Tensile | 400 N (long term)
700 N (short term) | | Crush Resistance | 655 N/cm (long term)
825 N/cm (short term) | | Inside Material | Kevlar reinforced
Stainless steel armored tubing | | Material | SS304 | | Stainless Steel Diameter | 4.5 mm | | Operating Temperature | -68.8 to 185°F (-56 to 85°C) |
