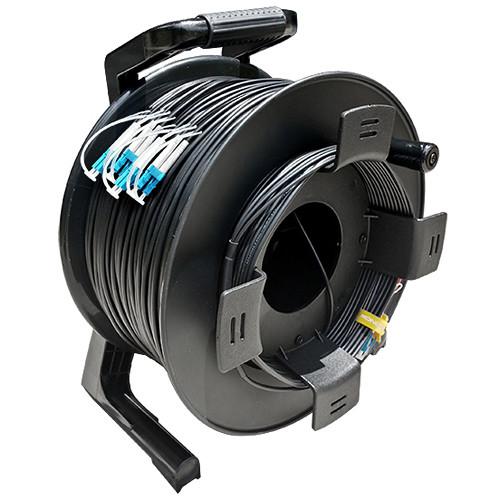

User Manual for Tactical Fiber Systems DuraTAC Armored SM Tactical Fiber Cable & Reel with 8 LC Connectors Click to enlarge the picture
Contents of the user manual for the Tactical Fiber Systems DuraTAC Armored SM
- Product category: Fiber Optic Cables Tactical Fiber Systems
- Brand: Tactical Fiber Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tactical Fiber Systems Fiber Optic Cables
|
User manual for the Tactical Fiber Systems DuraTAC Armored SM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tactical Fiber Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tactical Fiber Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tactical Fiber Systems product will considerably shorten its lifespan!
|
Product description - TFS DuraTAC Tactical Fiber Optic Cables
- TFS Fiber Connectors
This DuraTAC Armored SM Tactical Fiber Cable & Reel from Tactical Fiber Systems runs 1250' long and features 8 LC connectors on each end and small 3.0mm diameter breakouts. It is a DuraTAC stainless steel armored cable which is up to ten times stronger than ordinary tactical cables, without any compromise in flexibility. - Fiber and Reel Features
-
- TFS DuraTAC stainless steel armored tactical fiber is up to 10 times stronger than ordinary fiber cables without compromising flexibility
- Highly flexible construction allows for multiple deployments
- High impact and crush resistance
- Durable in high-traffic areas
- Performance in wide temperature range
- Storage Drum extensions for breakout and easy access
- Adjustable cam-lock drag brake
- Direct crank rewind
- Handle permanently attached to disc
- Applications
-
- Remote video production and broadcasting
- Field deployment in abusive environments
- Temporary installation of critical communication lines where quick retrieval and reuse is necessary
- High-traffic areas
- Security and sensing applications
- Installations in harsh environments available
In the Box Tactical Fiber Systems DuraTAC Armored SM Tactical Fiber Cable & Reel with 8 LC Connectors (1250') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tactical Fiber Systems DuraTAC Armored SM Tactical Fiber Cable & Reel with 8 LC Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTactical Fiber Systems 8LC1250TFR Specs | Connectors | 8 x LC on each end | | Length | 1250 ft (381 m) | | Core Diameter | 9.2±0.4 Um at 1310 nm
10.4±0.8 Um at 1550 nm | | Cladding Diameter | 125±1 Um | | Maximum Attenuation | 0.4 dB/km at 1310 nm
0.3 dB/km at 1550 nm | | Outer Diameter Cable Sheathing | 5.5 mm | | Allowable Bending Radius | 20D mm (dynamic)
10D mm (static) | | Allowable Tensile | 400 N (long term)
700 N (short term) | | Crush Resistance | 655 N/cm (long term)
825 N/cm (short term) | | Inside Material | Kevlar reinforced
Stainless steel armored tubing | | Material | SS304 | | Stainless Steel Diameter | 4.5 mm | | Operating Temperature | -68.8 to 185°F (-56 to 85°C) |
