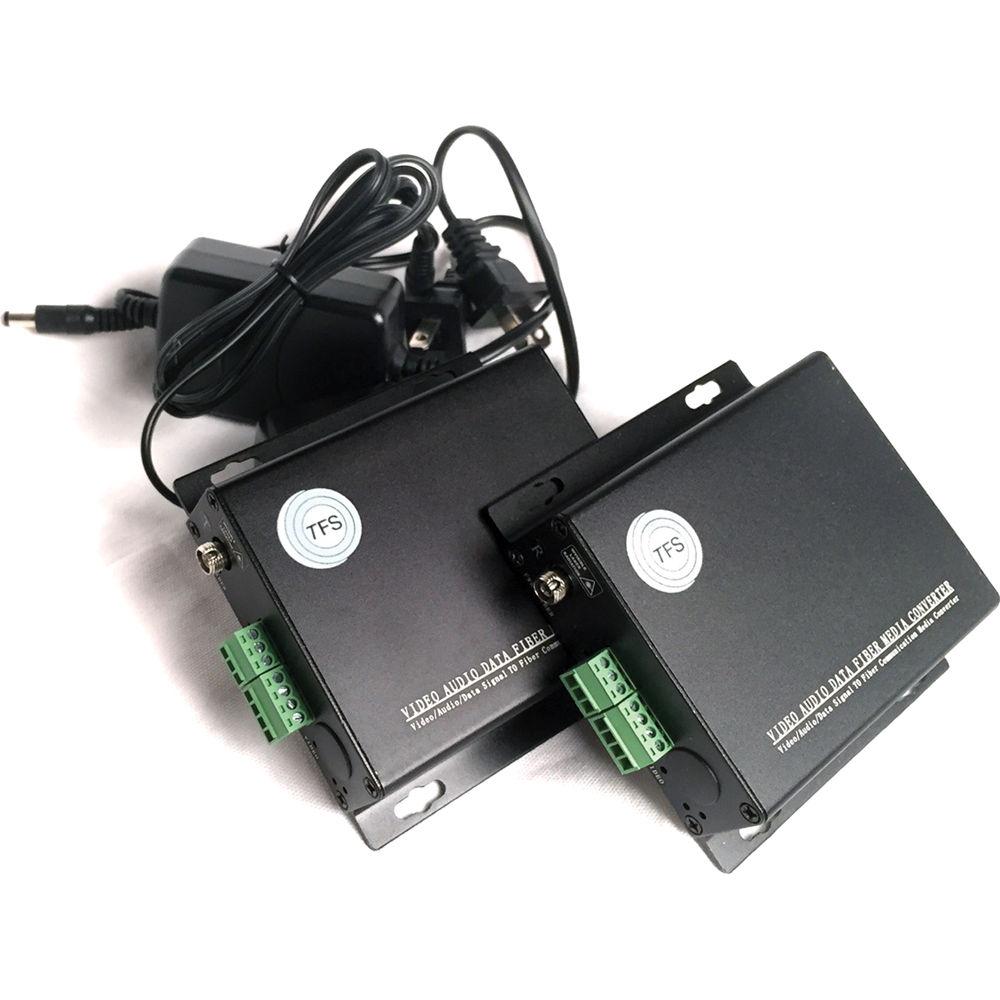

Product description The Fiber Converter Receiver/Transmitter Set from Tactical Fiber Systems provides camera shading/control plus the ability to turn on camera or stand-alone tally lights controlled by conventional switchers (Panasonic, FOR-A, Grass Valley, ROSS, and more) using only one single mode fiber. The converter requires a Tactical Fiber Systems' four-fiber cable (not included) when used with the Blackmagic ATEM Studio/Camera Converter system or other fiber based video converter such as the AJA FIDO system; two of the cable's four fibers are required for connection to the ATEM Camera Converter/Studio TX/RX and one for connection between the TFS camera control & tally converter transmitter/receiver (one dark fiber of the four-fiber cable remains unused). Note: This item requires purchase and installation of additional cables by user. - TX Module
-
- Used near switcher/remote camera controls
- Transmits/receives RS485/422 data signal to/from your camera remote controller
- Transmits tally signal from conventional switcher to camera
- Connects to conventional tally outputs on most switchers including Panasonic, Grass Valley, Ross, Sony, and JVC with open collector tally outputs
- RX Module
-
- Used near camera
- Connects to camera and receives RS485/RS422 data signal from remote camera controller
- Receives tally signal from switcher and activates contact closure relay which is used to trigger on-board or stand-alone tally light on camera
- Can be battery-powered using included power cable (battery not included)

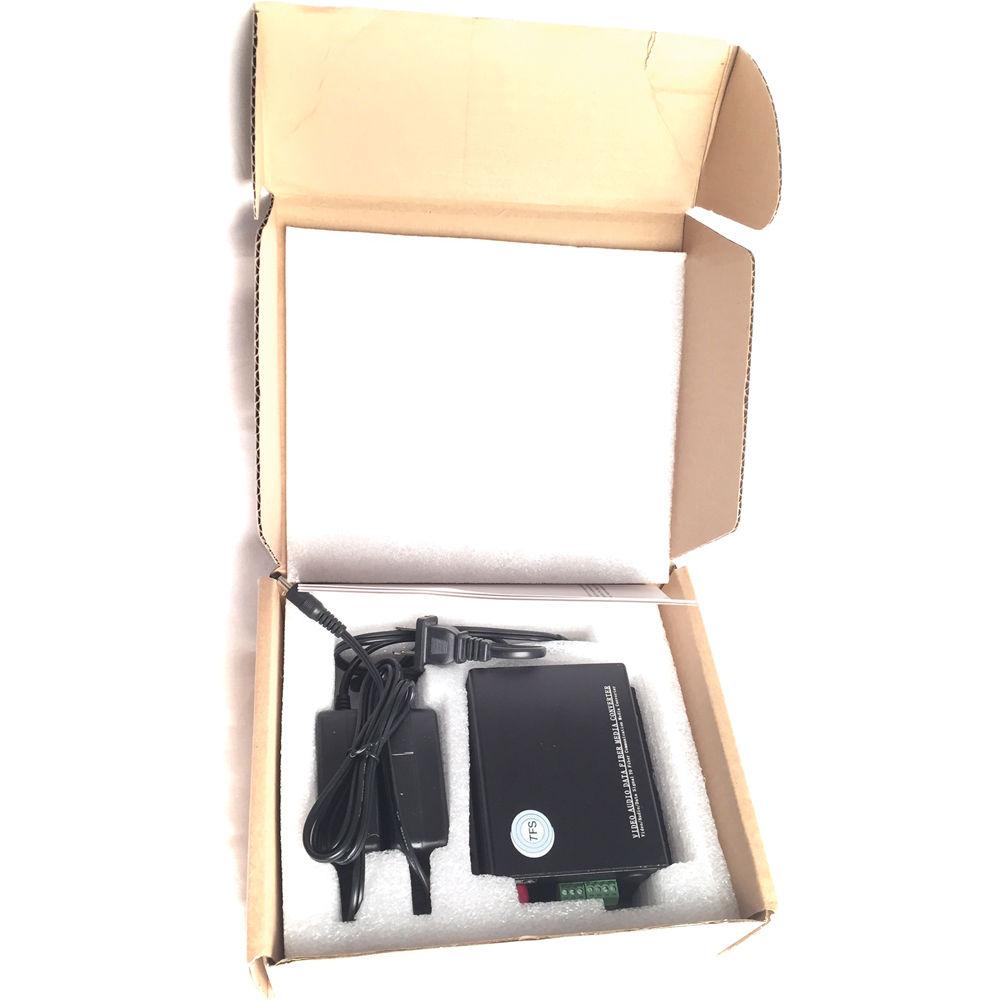

1 Please Note: Camera must accept RS485/422 data signals for shading/control close UPC: 815915021411 In the Box Tactical Fiber Systems Fiber Converter Receiver/Transmitter Set 2 x 12 VDC Power Supplies Power Cable with DC Plug for RX Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tactical Fiber Systems Fiber Converter Receiver Transmitter Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTactical Fiber Systems 2BMCCRCTY Specs | Connectors | On Each Unit:
1 x LC fiber
1 x Block, tally control
1 x Block, shading control | | Protocols | RS-485, RS-422 | | Power | 12 VDC | | Dimensions | 4 x 2 x 1" (10.2 x 5.1 x 2.5 cm) per unit | | Weight | < 1 lb (0.5 kg) per unit |
