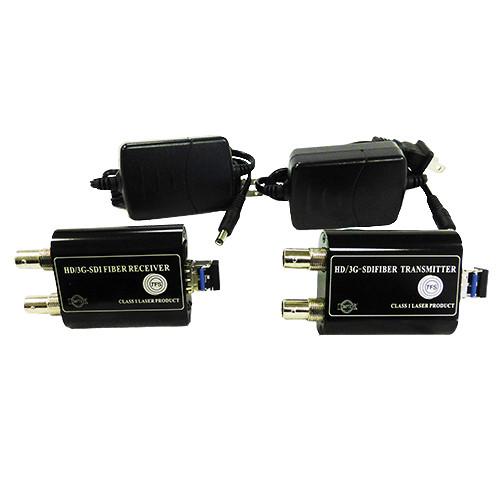

User Manual for Tactical Fiber Systems SDI Bullet Fiber Video Converter Click to enlarge the picture
Contents of the user manual for the Tactical Fiber Systems SDI Bullet Fiber
- Product category: Video Extenders & Repeaters Tactical Fiber Systems
- Brand: Tactical Fiber Systems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tactical Fiber Systems Video Extenders & Repeaters
|
User manual for the Tactical Fiber Systems SDI Bullet Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tactical Fiber Systems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tactical Fiber Systems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tactical Fiber Systems product will considerably shorten its lifespan!
|
Product description The SDI Bullet Fiber Video Converter, from Tactical Fiber Systems, is a transmitter/receiver solution for broadcasting and surveillance applications. It receives an HD-SDI video input and converts it to a single mode optical signal for transmission over a fiber optic cable. It supports video at rates up to 3Gbps / 1080p60. Both the transmitter and receiver provide equalizing and re-clocking at inputs to re-construct the signal for consistent quality. - Key Features
-
- 1-Ch HD/SD-SDI video and embedded audio transmission over optical fiber
- Automatic cable equalization to ensure signal integrity
- Automatic re-clocking 270Mbps, 1.48Gbps, 3Gbps
- Supported signal types: 270Mbps, 3Gbps according to SMPTE 424/292M/259M standards, DVB-ASI
- Transmission capability of over 6.2 miles
- Simplex LC single mode optical fiber cable connection
UPC: 815915021404 In the Box Tactical Fiber Systems SDI Bullet Fiber Video Converter 3G/HD/SD-SDI Fiber Transmitter 3G/HD/SD-SDI Fiber Receiver 2 x 120VAC - 12VDC Wall Wart Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tactical Fiber Systems SDI Bullet Fiber Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTactical Fiber Systems 1BULLETSDI Specs | Signal Type | SDI: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI | | Data Rates | 270 Mbps, 1.48 Gbps, 3 Gbps | | Transmission Distance | 6.2 miles (10 km) | | Cable Equalization | Automatic Cable EQ | | Video Connectors | BNC 75 ohm | | Fiber Connectors | Single LC, Single Mode | | Input Power | 12 VDC | | Power Consumption | Transmitter: 1.8 W; Receiver: 1.5 W | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Weight | Approx. 1.5 lb (0.7 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.0 x 7.0 x 3.0" |
