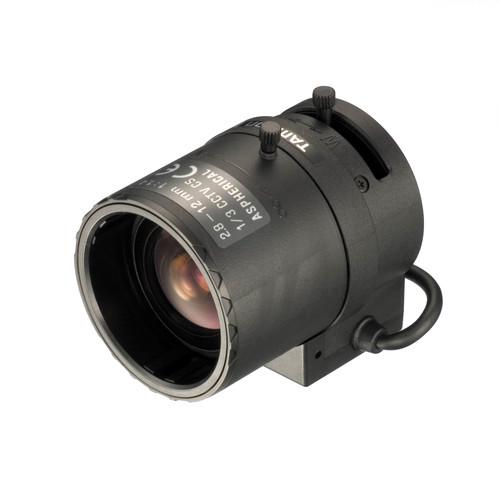

User Manual for Tamron 1 3" 2.8-12mm f 1.4 Vari-Focal Lens with Connector Click to enlarge the picture
Contents of the user manual for the Tamron 1 3" 2.8-12mm f 1.4
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 1 3" 2.8-12mm f 1.4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The Tamron 1/3" 2.8-12mm f/1.4 Vari-Focal Lens with Connector is a high-resolution CCTV lens with a CS mount suitable for use with 1/3" image sensors with a resolution up to 720p. It features a 4.3x zoom range for short to medium-range surveillance applications, and a wide maximum aperture of f/1.4 for clearer images in low light conditions. Multi-layer coatings on the lens surface lessens ghosting and flare to produce sharper images with more contrast.
The lens is equipped with a slip-mount mechanism that allows rotational adjustment of the lens after it is mounted on the camera. This allows optimal positioning of the auto-iris actuator and cable during installation. With an independent lock for each control ring (zoom, focus, and manual iris), you can avoid setting changes after installation. -
- CS mount; ideal for mini domes
- Suitable for cameras having an image size of 1/3"
- Focal length: 2.8 to 12mm
- Aperture range: f/1.4 to 360 (closed)
- Manual zoom and focus with lock
- DC auto iris
- Back focus adjustment
- 11.8" minimum focusing distance
- Multi-layer coatings for less ghosting and flare
- Lock for each control ring (zoom, manual and iris-control) to avoid setting displacement after installation
- Slip-mount mechanism for fine-tuning the position after mounting the camera to set the auto-iris meter to a proper position around the lens
UPC: 725211931812 In the Box Tamron 1/3" 2.8-12mm f/1.4 Vari-Focal Lens with Connector Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 1 3" 2.8-12mm f 1.4 Vari-Focal Lens with Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 13VG2812ASII-SQ Specs | Lens Mount | CS | | Sensor Compatibility | 1/3" | | Focal Length | 2.8 to 12mm | | Back Focal Length | 8.61 to 19.9mm | | Aperture | f/1.4 to 360 | | Angle of View | 1/3" Sensor
Horizontal: 97.4 to 24.1°
Vertical: 72.5 to 18.1°
1/4" Sensor
Horizontal: 72.5 to 18.1°
Vertical: 54.1 to 13.6° | | Minimum Focus Distance | 11.8" / 30 cm | | Focus Type | Manual Focus | | Iris Type | DC Auto | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (D x L) | 1.6 x 2.5" / 41.0 x 63.5 mm | | Weight | 2.5 oz / 71 g | | | | Package Weight | 0.235 lb | | Box Dimensions (LxWxH) | 3.35 x 2.8 x 2.3" |
