User Manual for Tamron 12MP 50mm Fixed Focal Lens with f 1.8 Aperture Click to enlarge the picture
Contents of the user manual for the Tamron 12MP 50mm Fixed Focal Lens
- Product category: Industrial Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Industrial Lenses
|
User manual for the Tamron 12MP 50mm Fixed Focal Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|

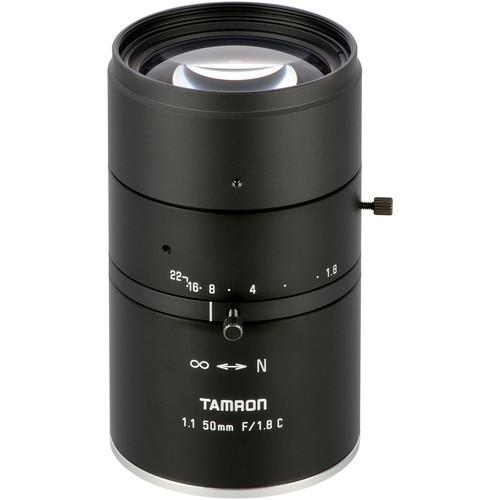

Product description The 12MP 50mm Fixed Focal Lens with f/1.8 Aperture from Tamron is a low-distortion aspherical megapixel lens compatible with C-Mount cameras that have sensors up to 1.1". It can support images up to 12 megapixels (when used with a 1.1" sensor capable of 12MP resolution). The 50mm Fixed Focal Lens is designed for industrial applications such as factory automation, machine vision, traffic monitoring, Intelligent Transport Systems (ITS), and surveillance. - Compatibility
- C-Mount cameras that use sensors up to 1.1" and image circle diameters up to 17.6mm (with effective image circle diameters up to 17.4mm)
- Supports images up to 12 megapixels on 1.1" sensors
- f/1.8 Aspherical megapixel lens
- Manual lockable focus and iris
- Smooth rotation torque of both focus and iris rings
- Broadband anti-reflection coating
UPC: 725211917335 In the Box Tamron 12MP 50mm Fixed Focal Lens with f/1.8 Aperture (C-Mount) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 12MP 50mm Fixed Focal Lens with f 1.8 Aperture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron M111FM50 Specs | Image Sensor Size Supported | Up to 1.1" | | Mount Type | C | | Focal Length | 50 mm | | Aperture Range | f/1.8 to 22 | | Field of View (H x V) | With 1.1" Image Sensor: 14.1 x 14.1° (1:1), 15.9 x 11.9° (4:3)
With 1" Image Sensor: 12.9 x 12.9° (1:1), 14.6 x 11.0° (4:3)
With 2/3" Image Sensor: 10.1 x 7.6° (4:3) | | Focusing Range | 40 cm to ∞ | | Focus Operation | Manual with lock | | Iris Operation | Manual with lock | | Filter Size | M49 P = 0.75 mm | | Back Focus (In Air) | 26.72 mm | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Weight (Approximate) | 14.6 oz / 415 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 5.6 x 2.9 x 2.9" |
