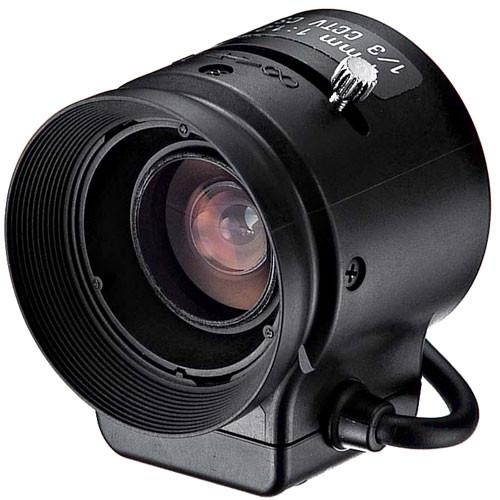

User Manual for Tamron 13FG06IRSQ 6mm F 1.2 CS-Mount Auto Iris DC Lens Click to enlarge the picture
Contents of the user manual for the Tamron 13FG06IRSQ 6mm F 1.2 CS-Mount
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 13FG06IRSQ 6mm F 1.2 CS-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description Designed for 24-hour operation, the Tamron 13FG06IRSQ CS-mount lens utilizes an advanced infrared optical system to enhance overall image brightness and sharpness in lighting conditions ranging from ambient to near infrared and can be used for both Day/Night and conventional B/W CCTV cameras. Additionally, the use of multi-coated glass elements eliminates ghosting and flare caused by adverse lighting conditions. - Infrared
- Specially designed infrared glass elements ensure brighter and sharper corner to corner images in all lighting conditions.
- Auto Iris DC
- Full iris control is possible via an auto iris Video connection.
- Lock Mechanism
- Employs a screw type mechanism to lock-in the focus ring, preventing ring shifting once lens is installed and set.
UPC: 725211939269 In the Box Tamron 13FG06IRSQ 6mm F/1.2 CS-Mount Auto Iris DC Lens 2 Years parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 13FG06IRSQ 6mm F 1.2 CS-Mount Auto Iris DC Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 13FG06IR-SQ Specs | Application | CCTV Camera | | Imager Size | 1/3" | | Focal Length | 6mm | | Mount Type | CS | | Iris Range | F/1.2 to 360 | | Iris Operation | Auto Iris (DC) | | Focus Operation | Manual | | Angle of View | 1/3": 46.5° x 34.6°
1/4": 34.6° x 25.9° | | Focusing Range | 0.2m ~ INF | | Effective Diameter | 14.7mm/9.6mm | | Back Focus | 8.92mm | | Filter Size | N/A | | Operating Voltage | Open 2.5V, Close 0.5V | | Operating Temperature | 4 - 140 F
-20 ~ +60 C | | Weight | 1.3 oz
38 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 3.0 x 2.8 x 1.6" |
