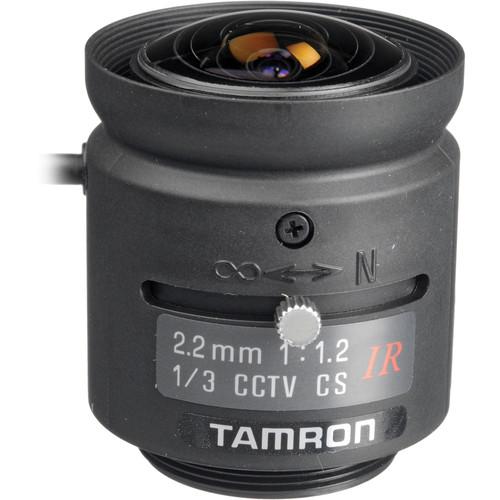

User Manual for Tamron 13FG22IRSQ 1 3" 2.2mm F 1.2 Compact CS-Mount Lens with Auto Iris DC, Focus Lock Click to enlarge the picture
Contents of the user manual for the Tamron 13FG22IRSQ 1 3" 2.2mm F
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 13FG22IRSQ 1 3" 2.2mm F contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description Using advanced IR corrected optical elements, the Tamron 13FG22IRSQ CS-mount lens provides brighter images in lighting conditions ranging from ambient to the near infrared spectrum and is optimized for 24-hour surveillance applications. Incorporating a compact design for various installation requirements, this lens features a wide dynamic range of F/1.2-360 and offers full iris control via an auto iris DC connection. - IR
- Employs special infrared corrected optical elements for overall image brightness in all lighting conditions and can be used with Day/Night as well as conventional CCTV cameras.
- DC Iris
- Iris is fully automated when used with an auto iris DC equipped camera.
- Compact
- Uses a compact design to meet a variety of installation requirements including its use with camera housings.
- Locking Mechanism
- A ring lock prevents focus shifting after initial camera setup.
- Wide Dynamic Range
- Offers a wide dynamic range of F/1.2-360
UPC: 725211939290 In the Box Tamron 13FG22IRSQ 1/3" 2.2mm F/1.2 Compact CS-Mount Lens with Auto Iris DC, Focus Lock 2 Year parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 13FG22IRSQ 1 3" 2.2mm F 1.2 Compact CS-Mount Lens with Auto Iris DC, Focus Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 13FG22IR-SQ Specs | Lens Mount | CS | | Sensor Compatibility | 1/3" | | Focal Length | 2.2mm | | Back Focal Length | 7.58mm | | Aperture | f/1.2 to 360 | | Angle of View | 1/3" Sensor
Horizontal: 118.6°
Vertical: 90°
1/4" Sensor
Horizontal: 90°
Vertical: 67.9° | | Minimum Focus Distance | 0.666666666666667' / 0.2 m | | Focus Type | Manual Focus | | Iris Type | DC Auto | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (D x L) | 1.4 x 0.8" / 36 x 22.5 mm | | Weight | 1.7 oz / 48.5 g | | | | Package Weight | 0.165 lb | | Box Dimensions (LxWxH) | 2.85 x 2.85 x 1.85" |
