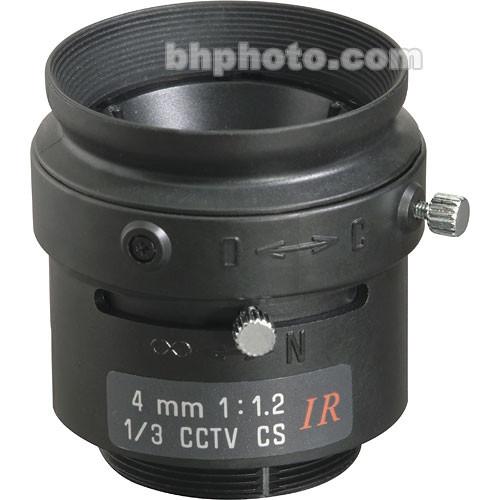

User Manual for Tamron 13FM04IR 1 3" 4mm F 1.2 CS-Mount Infrared Fixed Focal Lens Click to enlarge the picture
Contents of the user manual for the Tamron 13FM04IR 1 3" 4mm F
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 13FM04IR 1 3" 4mm F contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The Tamron 13FM04IR CS-mount lens employs specialized infrared optical elements to eliminate focus shift, resulting in overall brighter images in lighting conditions ranging from ambient to near total darkness and is ideal for use with both Day/Night and conventional B/W CCTV cameras. - IR
- Uses special infrared lens elements to enhance overall picture brightness, and is designed for 24-hour operation with both Day/Night and conventional B/W cameras.
- Multi Layer Coating
- A special multi layer coating prevents transmittance fall-off, resulting in sharp images free from ghosting and flare effects associated with back-lit situations.
- Lock Mechanism
- A ring lock mechanism prevents focus and iris shifting once lens is installed.
- Slip Mount
- The use of a built-in slip mount enables lens rotation for correct iris meter reading based on the camera's mounting position.
UPC: 725211939214 In the Box Tamron 13FM04IR 1/3" 4mm F/1.2 CS-Mount Infrared Fixed Focal Lens 2 Year parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 13FM04IR 1 3" 4mm F 1.2 CS-Mount Infrared Fixed Focal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 13FM04IR Specs | Lens Mount | CS | | Sensor Compatibility | 1/3" | | Focal Length | 4mm | | Back Focal Length | 8.57mm | | Aperture | f/1 to 2 | | Angle of View | 1/3" Sensor
Horizontal: 65.9°
Vertical: 49.7°
1/4" Sensor
Horizontal: 49.7°
Vertical: 37.4° | | Minimum Focus Distance | 0.666666666666667' / 0.2 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Effective Diameter | Front: 0.614173228346457" / 15.6 mm
Rear: 0.405511811023622" / 10.3 mm | | IR Corrected | Yes | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Weight | 1.1 oz / 33 g | | | | Package Weight | 0.14 lb | | Box Dimensions (LxWxH) | 3.3 x 2.75 x 2.3" |
