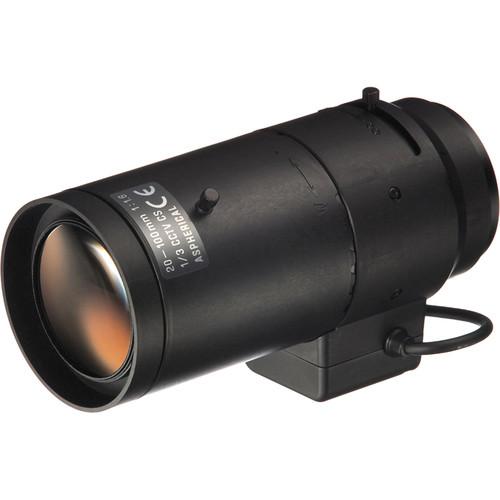

User Manual for Tamron 13VG20100AS-SQ 20-100mm f 1.6 Varifocal Industrial Lens with DC Auto Iris, Manual Focus and Zoom, for CS-Mount 1 3-Inch CCD Click to enlarge the picture
Contents of the user manual for the Tamron 13VG20100AS-SQ 20-100mm f 1.6 Varifocal
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 13VG20100AS-SQ 20-100mm f 1.6 Varifocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The Tamron 13VG20100AS-SQ is a 5x zoom lens with DC auto iris and manual zoom and focus. It is designed for security and robotics cameras with 1/3-inch CCD. It has a variable focal range from 20mm to 100mm with a maximum aperture of f/1.6. The manual setting rings for can be locked into place so industrial vibrations don't change your settings. - Wide Range of Views
- This is a 5x zoom lens designed for industrial cameras. At full wide 20 mm the lens shows 14° horizontal angle view. At full telephoto the lens will display 2.8° view.
- DC Auto Iris
- The lens features DC auto iris circuitry for automatic exposures. The iris control cable comes with a 4-pin square connector so the lens is ready for use right from the box.
- Locking Zoom and Focus
- The manual setting rings for zoom and focus can be locked in place. Industrial vibrations won't change your manually chosen settings when the rings are locked down.
UPC: 725211931775 In the Box Tamron 13VG20100AS-SQ 20-100mm f/1.6 Varifocal Industrial Lens with DC Auto Iris, Manual Focus and Zoom, for CS-Mount 1/3-Inch CCD Auto Iris Cable with 4-Pin Square Connector 2 Years Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 13VG20100AS-SQ 20-100mm f 1.6 Varifocal Industrial Lens with DC Auto Iris, Manual Focus and Zoom, for CS-Mount 1 3-Inch CCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 13VG20100AS-SQ Specs | Lens Mount | CS | | Sensor Compatibility | 1/3" CCD | | Focal Length | 20 to 100mm | | Aperture | f/1.6 to 360 | | Angle of View | 1/3" Sensor
Horizontal: 14 to 2.8° | | Minimum Object Distance | 3.3' / 1 m | | Focus Type | Manual Focus | | Iris Type | DC Auto | | Dimensions (DxL) | 1.9 x 4.3" / 49 x 110 mm | | Weight | 5.4 oz / 155 g | | | | Package Weight | 0.46 lb | | Box Dimensions (LxWxH) | 5.7 x 2.85 x 2.85" |
