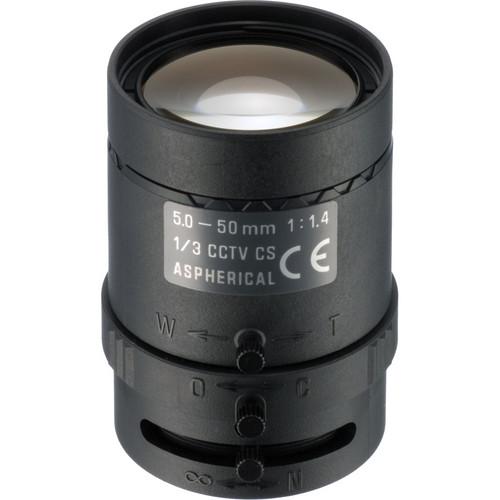

User Manual for Tamron 13VM550ASII CCTV Lens Click to enlarge the picture
Contents of the user manual for the Tamron 13VM550ASII CCTV Lens
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 13VM550ASII CCTV Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The Tamron 13VM550ASII CCTV Lens (5-50mm, f/1.4) is suitable for cameras having an imager size of 1/3". An aperture range of f/1.4-close allows for clear images in low light conditions. The CCTV lens has hybrid aspherical elements that reduce various optical aberrations, delivering high optical quality. When used with digital recording systems, the lens provides improved resolution at corners. It features manual iris, focus, and zoom with lock, a focus range of 0.3m and back focus in air of 10.5mm (wide) to 11.81mm (tele). Multi-coating on lens surface lessens ghosting and flare in backlit conditions. The 13VM550ASII CCTV lens, with enhanced proprietary ND filter, ensures high resolution from maximum aperture to minimum aperture.A slip-mount mechanism allows you to fine-tune the position after mounting the camera to set the auto-iris meter to a proper position around the lens. With the lock for each control ring (zoom, manual, and iris-control), you can avoid setting displacement after installation. The CS mount makes the 13VM550ASII CCTV lens suitable for mini domes. The CCTV lens operates in a temperature range of -20 to 60°C and is appropriate for security applications where high resolution and/or short-to-medium long-range focal points are required. - Focal length - 5-50mm and aperture range - f/1.4-close
- Suitable for cameras having an imager size of 1/3"
- Manual iris, zoom and focus with lock
- Back focus in air - 10.5mm (wide) to 11.81mm (tele)
- Hybrid aspherical elements for high optical quality
- Improved corner resolution with digital recording systems
- Reduces various optical aberrations
- Multi-coating for less ghosting and flare in backlit conditions
- Enhanced proprietary ND filter ensures high resolution from maximum aperture to minimum aperture
- Slip-mount mechanism for fine-tuning the position after mounting the camera to set the auto-iris meter to a proper position around the lens
- Lock for each control ring (zoom, manual and iris-control) to avoid setting displacement after installation
- CS mount - ideal for mini domes
- Temperature range of -20 to 60° C
- Appropriate for security applications where high resolution and/or short to medium long range focal points are required
- Environmentally-friendly design - does not use substances that impact the environment in optical glass materials, sealing, and packaging
UPC: 725211931829 In the Box Tamron 13VM550ASII CCTV Lens (5-50mm, f/1.4) 2 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 13VM550ASII CCTV Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 13VM550ASII Specs | Lens Mount | CS | | Sensor Compatibility | 1/3" | | Focal Length | 5 to 50mm | | Back Focal Length | 10.05 to 11.81mm | | Aperture | f/1 to 4 | | Angle of View | 1/3" Sensor
Horizontal: 53.6 to 5.6°
Vertical: 40.3 to 4.2°
1/4" Sensor
Horizontal: 40.3 to 4.2°
Vertical: 30.1 to 3.1° | | Minimum Focus Distance | 1' / 0.3 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (D x L) | 1.6 x 2.3" / 40 x 59 mm | | Weight | 2.6 oz / 75 g | | | | Package Weight | 0.23 lb | | Box Dimensions (LxWxH) | 3.35 x 2.75 x 2.3" |
