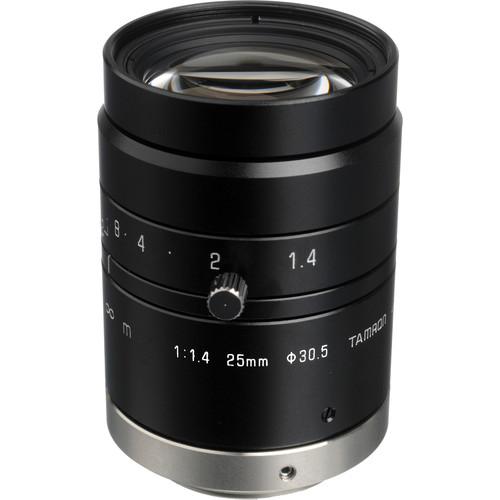

User Manual for Tamron 2 3" 25mm f 1.4 C-Mount Manual Iris Lens for Megapixel Cameras Click to enlarge the picture
Contents of the user manual for the Tamron 2 3" 25mm f 1.4
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 2 3" 25mm f 1.4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description Designed for use with 1.3 and higher megapixel cameras, Tamron's 2/3" 25mm f/1.4 C-Mount Manual Iris Lens for Megapixel Cameras lens employs superior optics to provide outstanding corner to corner performance with zero percent distortion. With a minimum focusing range of less than 015m, this lens is particularly suited for use with machine vision and pharmaceuticals or similar applications requiring highly detailed close-up image capture. - Zero Distortion
- Designed specifically for use with 1.3 megapixel cameras and up, this high resolution lens provides outstanding corner to corner optical performance with 0% distortion.
- Low MOD
- With a minimum object distance of only 0.15m, this lens is ideal for use in pharmaceutical, semiconductor, factory automation or any application requiring highly detailed close up image capturing.
- Compact
- A compact design ensures compatibility with various inspection and automation machinery.
- Lock Mechanism
- Features an iris and focus ring lock mechanism to prevent slippage when used on vibrating factory equipment.
UPC: 725211917144 In the Box Tamron 2/3" 25mm f/1.4 C-Mount Manual Iris Lens for Megapixel Cameras 2 Year parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 2 3" 25mm f 1.4 C-Mount Manual Iris Lens for Megapixel Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 23FM25SP Specs | Lens Mount | C | | Sensor Compatibility | 2/3" (1.5 MP) | | Focal Length | 25mm | | Back Focal Length | 17.17mm | | Aperture | f/1.4 to 22 | | Angle of View | 1/3" Sensor
Horizontal: 11°
Vertical: 8.2°
1/2" Sensor
Horizontal: 14.6°
Vertical: 11°
2/3" Sensor
Horizontal: 20°
Vertical: 15.1° | | Minimum Object Distance | 0.5' / 0.15 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Effective Diameter | Front: 0.925196850393701" / 23.5 mm
Rear: 0.649606299212598" / 16.5 mm | | Filter Thread | M30.5 x 0.5 mm | | Dimensions (D x L) | 0.94 x 2.0" / 34 x 52.2 mm | | Weight | 0.2 lb / 103 g | | | | Package Weight | 0.285 lb | | Box Dimensions (LxWxH) | 2.85 x 2.85 x 1.75" |
