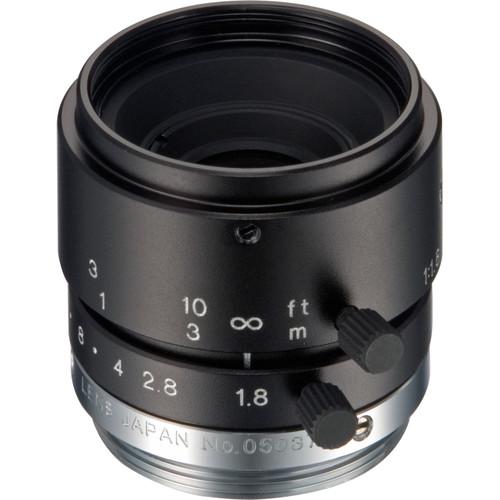

User Manual for Tamron 23FM12LL 2 3 12mm F 1.8 High Resolution C-Mount Lens with Lock Click to enlarge the picture
Contents of the user manual for the Tamron 23FM12LL 2 3 12mm F
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 23FM12LL 2 3 12mm F contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description Specifically designed for factory automation and machine vision applications Tamron's 23FM12LL 2/3 12mm F/1.8 lens features a screw mechanism to lock-in the iris and focus rings and is ideal for use in conditions prone to significant vibrations. Compact in size with a solid built mechanism, this high resolution lens achieves superior clarity even at minimum focusing distances and maintains maximum performance under long periods of use. - Lock Mechanism
- Uses a screw mechanism to lock-in the iris and focus rings and is ideal for use in conditions prone to significant vibrations.
- Solid Mechanism
- Designed to endure the rigors of factory automation apparatus, this solidly built lens maintains maximum performance even after long periods of use.
- Closer MOD
- Uses superior optics to achieve sharp clarity with Minimum Object Distance requirements less than 0.3m.
- Compact
- A compact size ensures compatibility with today's machinery dimensional requirements.
UPC: 725211917106 In the Box Tamron 23FM12LL 2/3 12mm F/1.8 High Resolution C-Mount Lens with Lock 2 Years parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 23FM12LL 2 3 12mm F 1.8 High Resolution C-Mount Lens with Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 23FM12L Specs Lens Mount | C | Sensor Compatibility | 2/3" | Focal Length | 12mm | Back Focal Length | 11.03mm | Aperture | f/1.8 to 16 | Angle of View | 1/3" Sensor Horizontal: 22.4° Vertical: 16.6° 1/2" Sensor Horizontal: 30° Vertical: 22.4° 2/3" Sensor Horizontal: 40.9° Vertical: 30.9° | Minimum Object Distance | 10.2" / 0.26 m | Focus Type | Manual Focus | Iris Type | Manual | Effective Diameter | Front: 0.460629921259842" / 11.7 mm Rear: 0.31496062992126" / 8 mm | Filter Thread | M25.5 x 0.5 mm | Dimensions (DxL) | 1.1 x 1.1" / 29 x 27 mm | Weight | 1.4 oz / 40 g | | Package Weight | 0.16 lb | Box Dimensions (LxWxH) | 2.9 x 2.85 x 1.75" |
