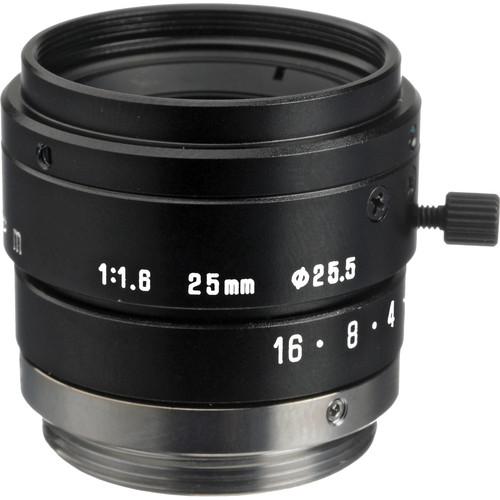

User Manual for Tamron 23FM25L 2 3" 25mm F 1.6 Standard High Resolution C-Mount Lens with Lock Click to enlarge the picture
Contents of the user manual for the Tamron 23FM25L 2 3" 25mm F
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 23FM25L 2 3" 25mm F contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description Designed for factory automation and machine vision applications Tamron's 23FM25L 2/3 25mm F/1.6 lens utilizes a screw mechanism to lock-in the focus and iris rings and is ideal for use in environments experiencing significant vibrations. Compact in size with a solid built mechanism, this high resolution lens needs only a distance of 0.3m to achieve sharp image clarity and maintains optimum performance under long periods of use. - Lock Mechanism
- Features a screw type mechanism to lock-in the iris and focus ring enabling installation in conditions with frequent vibrations.
- Solid Mechanism
- Specifically designed for use with factory automation and machine vision apparatus, this solid mechanism lens is built to endure long periods of factory operation.
- Compact
- Features a compact design to fit the dimensional requirements of today's machinery.
- Closer MOD
- Uses superior optics and an advanced mechanical construction to achieve a Minimum Object Distance of less than 0.3m.
- Uniform Filter Size
- With a uniform filter size of M25.5 PO.5, this lens readily accepts UV, polarizer, red, green and blue filters.
UPC: 725211917052 In the Box Tamron 23FM25L 2/3" 25mm F/1.6 Standard High Resolution C-Mount Lens with Lock 2 Years parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 23FM25L 2 3" 25mm F 1.6 Standard High Resolution C-Mount Lens with Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 23FM25L Specs | Lens Mount | C | | Sensor Compatibility | 2/3" | | Focal Length | 25mm | | Back Focal Length | 11.6mm | | Aperture | f/1.6 to 16 | | Angle of View | 1/3" Sensor
Horizontal: 11°
Vertical: 8.2°
1/2" Sensor
Horizontal: 14.6°
Vertical: 11°
2/3" Sensor
Horizontal: 20°
Vertical: 15° | | Minimum Object Distance | 8.3" / 0.21 mm | | Focus Type | Manual Focus | | Iris Type | Manual | | Effective Diameter | Front: 0.62992125984252" / 16 mm
Rear: 0.425196850393701" / 10.8 mm | | Filter Thread | M25.5 x 0.5 mm | | Dimensions (D x L) | 1.1 x 1.0" / 29 x 25.5 mm | | Weight | 1.4 oz / 40 g | | | | Package Weight | 0.145 lb | | Box Dimensions (LxWxH) | 2.8 x 2.8 x 1.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
