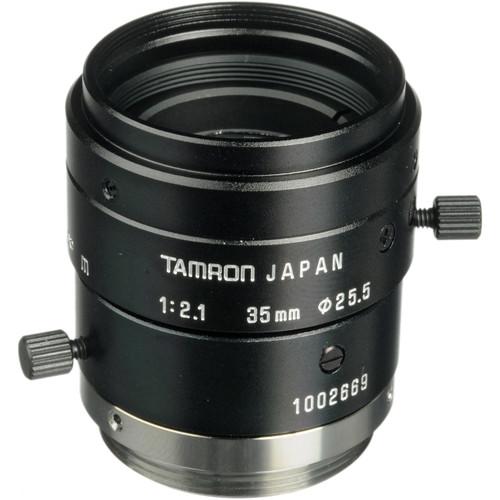

User Manual for Tamron 23FM35-L 2 3 35mm F 2.1 High Resolution C-Mount Lens with Lock Click to enlarge the picture
Contents of the user manual for the Tamron 23FM35-L 2 3 35mm F
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron 23FM35-L 2 3 35mm F contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description Built for factory automation and machine vision applications, Tamron's 23FM35-L features a screw mechanism to lock-in the focus and iris rings and is ideal for use in an environment experiencing long periods of frequent vibrations. Utilizing a compact body with superior optics, this high resolution lens is designed to fit today's machinery dimensions and needs only a minumum focusing range of 0.3m to achieve outstanding quality. - Lock Mechanism
- Features a screw type mechanism to lock-in the iris and focus ring enabling installation in conditions with frequent vibrations.
- Solid Mechanism
- Specifically designed for use with factory automation and machine vision apparatus, this solid mechanism lens is built to endure long periods of factory operation.
- Compact
- Features a compact design to fit the dimensional requirements of today's machinery.
- Closer MOD
- Uses superior optics and an advanced mechanical construction to achieve a Minimum Object Distance of less than 0.3m.
- Uniform Filter Size
- With a uniform filter size of M25.5 PO.5, this lens readily accepts UV, polarizer, red, green and blue filters.
UPC: 725211917137 In the Box Tamron 23FM35-L 2/3 35mm F/2.1 High Resolution C-Mount Lens with Lock 2 Years parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron 23FM35-L 2 3 35mm F 2.1 High Resolution C-Mount Lens with Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron 23FM35L Specs | Lens Mount | C | | Sensor Compatibility | 2/3" | | Focal Length | 35mm | | Back Focal Length | 15.53mm | | Aperture | f/2.1 to 22 | | Angle of View | 1/3" Sensor
Horizontal: 7.8°
Vertical: 5.9°
1/2" Sensor
Horizontal: 10.4°
Vertical: 7.8°
2/3" Sensor
Horizontal: 14.3°
Vertical: 10.8° | | Minimum Object Distance | 11.8" / 30 cm | | Focus Type | Manual Focus | | Iris Type | Manual | | Effective Diameter | Front: 0.62992125984252" / 16 mm
Rear: 0.405511811023622" / 10.3 mm | | Filter Thread | M25.5 x 0.5 mm | | Dimensions (DxL) | 1.2 x 1.25" / 30.5 x 32 mm | | Weight | 1.6 oz / 44 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 2.913 x 2.913 x 1.811" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
