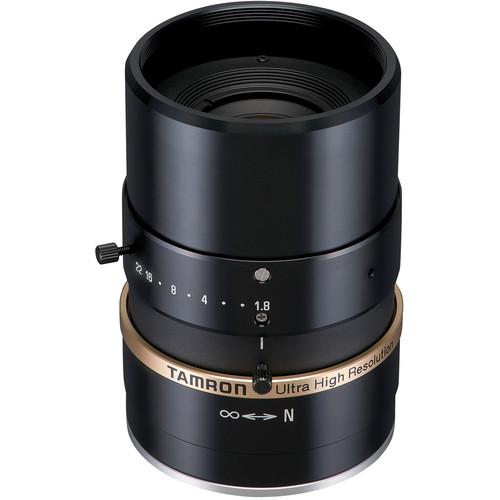

User Manual for Tamron C-Mount 35mm f 1.8-22 2 3" Machine Vision Fixed-Focal Lens Click to enlarge the picture
Contents of the user manual for the Tamron C-Mount 35mm f 1.8-22 2
- Product category: Industrial Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Industrial Lenses
|
User manual for the Tamron C-Mount 35mm f 1.8-22 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The C-Mount 35mm f/1.8-22 2/3" Machine Vision Fixed-Focal Lens from Tamron is specifically designed for use with 2/3" sensor cameras. The optimized focus lock screws ensure that the object being captured is not distorted. The vibration- and shock-resistant design maintains the initial optical parameters. Designed to match the performance of pixel pitch 2.5µm sensors, the lens allows the camera to deliver high resolution from center to periphery (image height 90%). - Designed to match pixel pitch 2.5 µm sensors, the lens realizes high resolution from the center to the periphery (image height 90%)
- Minimum object distance (MOD) of 5.9"
- 6 iris blades maintain the same performance as 8 blades through a unique iris blade design
- Optimized focus lock screws
- Metal mount and components for high durability
- Vibration and shock-resistant design maintains the optical performance
- Innovative mechanics enable the focus rotation to be larger and reduces troublesome focus adjustment
- Compact size suitable for versatile applications
UPC: 725211917298 In the Box Tamron C-Mount 35mm f/1.8-22 2/3" Machine Vision Fixed-Focal Lens Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron C-Mount 35mm f 1.8-22 2 3" Machine Vision Fixed-Focal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron M23FM35 Specs | Imager Size | 2/3" | | Mount | C | | Focal Length | 35 mm | | Aperture Range | f/1.8-22 | | Field of View | H x V: 14.4 x 10.8° | | Minimum Object Distance (M.O.D.) | 5.90" (15.00 cm) | | Focusing Range | 0.49' (0.15 m) to infinity | | Operation | Focus: Manual with Lock Screw
Iris: Manual with Lock Screw | | Filter Size | M49 P=0.75 | | Wavelength | Visible Light | | Back Focus (in air) | 14.494 mm | | Operating Temperature | 14 to 158°F (-10 to +70°C) | | Dimensions (Ø x L) | 2.24 x 3.43" (57.00 x 87.20 mm) | | Weight | 13.68 oz (388.00 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 5.6 x 2.9 x 2.8" |
