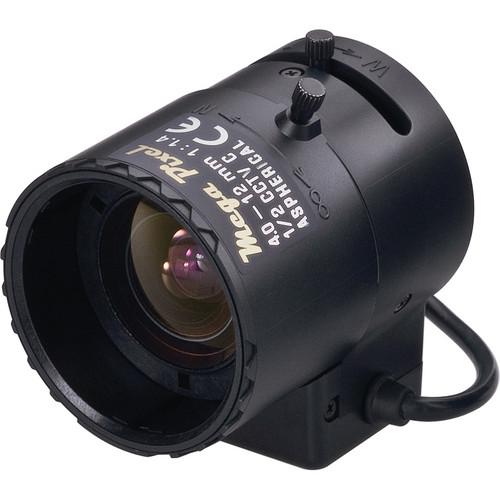

Product description The Tamron C-Mount 4 to 12mm Varifocal DC Auto Iris Lens is a varifocal lens which features a 4 to 12mm adjustable focal length. Compatible with cameras using a 1/2" imager size and C-mount, the lens is designed to deliver high-quality imagery. With an aperture range of f/1.4 to 360, the lens allows for clear images even in low light conditions. The lens surface is multi-coated for lessening ghosting and flare in backlit conditions and eliminates constructional problems such as lopsided blur and focal point image degradation. The integrated slip-mount mechanism allows you to fine-tune the position after mounting the camera to set the auto-iris meter to a proper position around the lens. With the lock for each control ring (zoom and focus), you can avoid setting displacement after installation. - Suitable for cameras having an imager size of 1/2"
- Manual zoom & focus with lock
- Multi-coating for less ghosting and flare in backlit conditions
- Eliminates constructional problems such as lopsided blur and focal point image degradation
- Slip-mount mechanism for fine-tuning the position after mounting the camera to set the auto-iris meter to a proper position around the lens
- Lock for each control ring (zoom and focus) to avoid setting displacement after installation
- Appropriate for security applications where high resolution and/or short-to-medium long-range focal points are required
- Environmentally-friendly design - does not use substances that impact the environment in optical glass materials, sealing, and packaging
UPC: 725211922025 In the Box Tamron C-Mount 4 to 12mm Varifocal DC Auto Iris Lens Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron C-Mount 4 to 12mm Varifocal DC Auto Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron M12VG412 Specs | Imager Size | 1/2" | | Mount Type | C | | Focal Length | 4 to 12mm | | Aperture Range | 1.4 to 360 | | Angle of View |
Imager Size 6.8 x 5.1mm
1/2" Wide: 100.5 x 73.4°
1/2" Tele: 33.4 x 25.1°
Imager Size 6.4 x 4.8mm
1/2" Wide: 93.9 x 68.8°
1/2" Tele: 31.4° x 23.6°
| | Focusing Range | 1.0' / 0.3 m to ∞ | | Operation | Focus: Manual with Lock
Zoom: Manual with Lock
Iris: DC Auto | | Back Focus | (in air)
Wide 9.05 to 18.90mm | | Operating Voltage | Open 3.0V
Close 5V | | Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) | | Dimensions (Diam. x L) | 1.6 x 2" (40 x 50mm) | | Weight | 2.4 oz / 69.0 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.25 x 2.75 x 2.25" |
