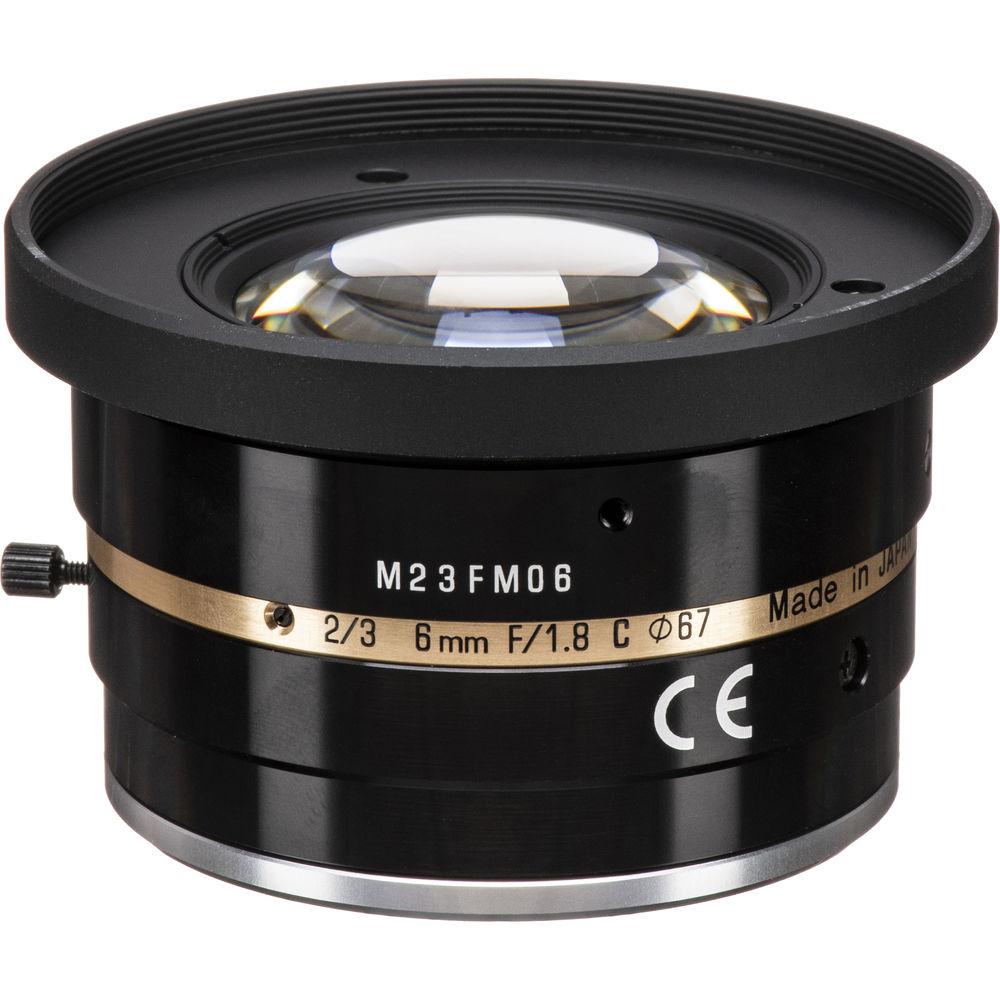

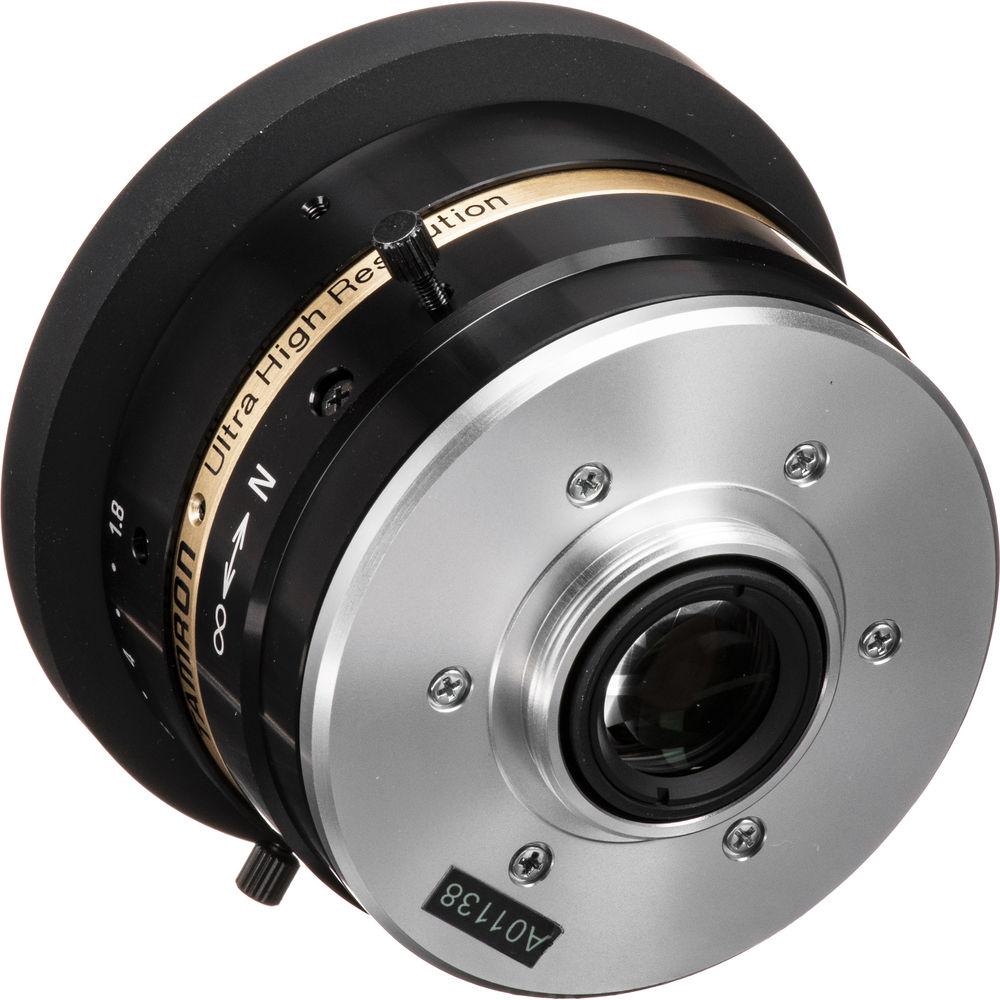

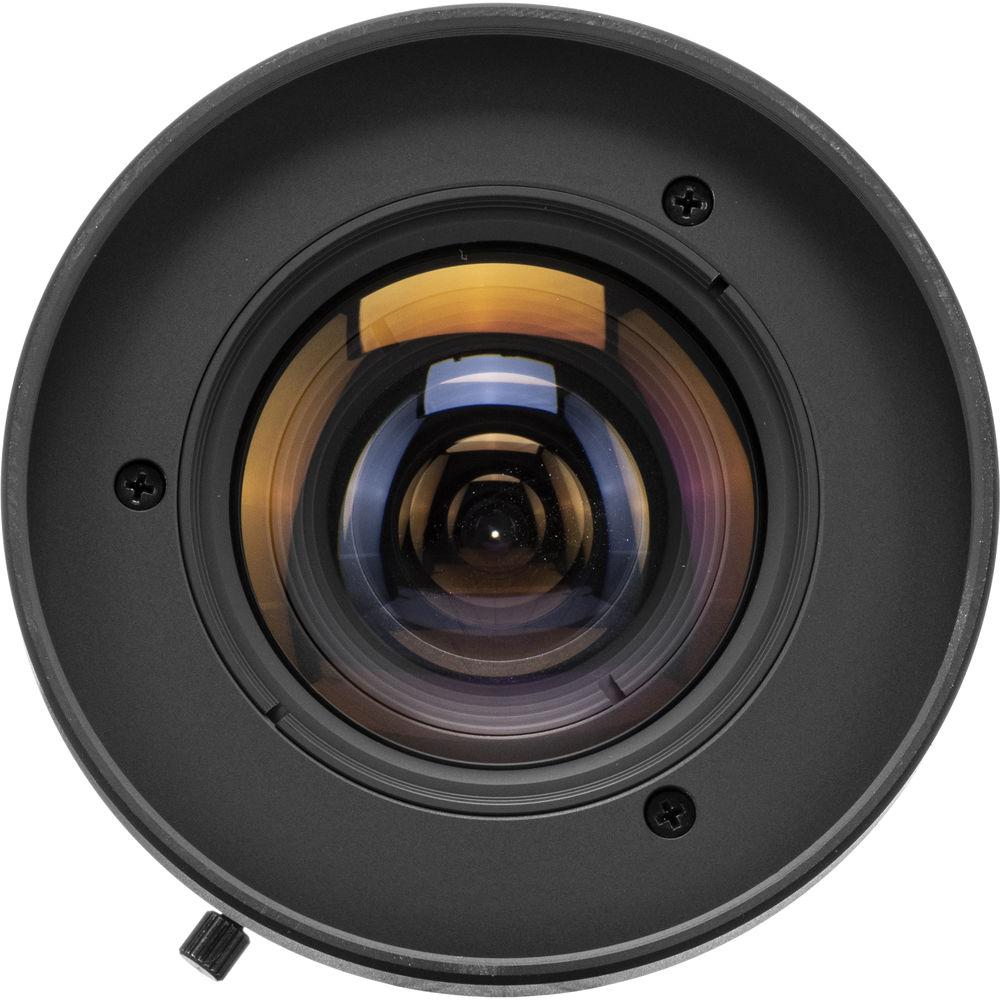

User Manual for Tamron C-Mount 6mm f 1.8-22 2 3" Machine Vision Fixed-Focal Lens Click to enlarge the picture
Contents of the user manual for the Tamron C-Mount 6mm f 1.8-22 2
- Product category: Industrial Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Industrial Lenses
 |
User manual for the Tamron C-Mount 6mm f 1.8-22 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description This Tamron C-Mount 6mm f/1.8-22 2/3" Fixed-Focal Lens is specifically designed for use with cameras utilizing 2/3" sensors. The aperture ranges from a bright f/1.8 and closes down to f/22. The focus and iris lock screws ensure that the object being captured is not out-of-focus or incorrectly exposed due to vibration or environmental factors. - Designed to match pixel pitch 2.5 µm sensors, the lens realizes high-resolution from the center to the periphery (image height 90%)
- Minimum object distance (MOD) of 3.93"
- Six iris blades maintain the same performance as eight blades through a unique iris blade design
- Optimized focus lock screws
- Metal mount and components for high durability
- Vibration and shock-resistant design maintains the optical performance
- Innovative mechanics enable the focus rotation to be larger, reducing troublesome focus adjustment
- Compact size suitable for versatile applications
UPC: 725211917243 In the Box Tamron C-Mount 6mm f/1.8-22 2/3" Machine Vision Fixed-Focal Lens Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron C-Mount 6mm f 1.8-22 2 3" Machine Vision Fixed-Focal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron M23FM06 Specs | Lens Mount | C | | Sensor Compatibility | 2/3" | | Focal Length | 6mm | | Back Focal Length | 12.03mm | | Aperture | f/1.8 to 22 | | Angle of View | 2/3" Sensor
Horizontal: 74.3°
Vertical: 58.4° | | Minimum Focus Distance | 0.32' / 0.10 m | | Minimum Object Distance | 3.9" / 10 cm | | Focus Type | Manual Focus | | Iris Type | Manual | | Operating Temperature | 14 to 158°F / -10 to 70°C | | Filter Thread | M67 x 0.75 mm | | Dimensions (D x L) | 2.8 x 1.7" / 69.9 x 42.0 mm | | Weight | 8.5 oz / 240 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.7 x 3.0 x 3.0" |
