User Manual for Tamron CS-Mount 8-50mm Varifocal DC Auto Iris Lens Click to enlarge the picture
Contents of the user manual for the Tamron CS-Mount 8-50mm Varifocal DC Auto
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron CS-Mount 8-50mm Varifocal DC Auto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|

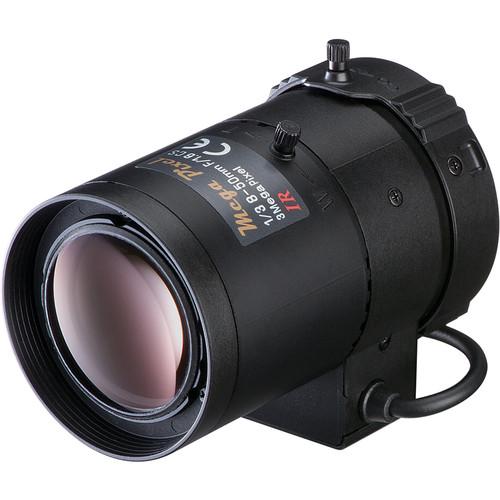

Product description Compatible with cameras featuring 1/3" image sensors and a CS mount, the CS-Mount 8-50mm Varifocal DC Auto Iris Lens from Tamron incorporates an aspherical, XLD (Extra Low Dispersion) lens element and advanced optical design technology that delivers high-quality images. The optimized focus lock screws ensure that the object being captured is not distorted. With a focal length of 8 to 50mm, the lens covers standard telescopic ranges. - High level of optical performance that offers 3MP compatibility
- Use of an aspherical element, XLD (Extra Low Dispersion) lens, and advanced optical design technology delivers high-quality images
- 3MP / Full HD 1080p resolution for visible light range
- Delivers f/1.6 (wide) and f/2.0 (tele) levels of brightness
- XLD lens (Extra Low Dispersion) lens element delivers even lower dispersion than existing LD (Low Dispersion) lenses using a special glass material with a low dispersion close to that of fluorite lenses
- Delivers megapixel image quality from the near visible to IR spectrums
- 8 to 50mm focal length covers standard telescopic ranges
- Reduction in chromatic aberration for images with almost no color smear
- Advanced design analysis techniques have been used to prevent reflections occurring on the lens surface, which affects image quality, while multiple-layer coating helps to produce clear images with minimal lens flare and ghosting
- High-precision, high-quality structure designed to eliminate image degradation such as image displacement and one-sided blur
UPC: 725211932093 In the Box Tamron CS-Mount 8-50mm Varifocal DC Auto Iris Lens Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron CS-Mount 8-50mm Varifocal DC Auto Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron M13VG850IR Specs | Lens Mount | CS | | Sensor Compatibility | 1/2.7", 1/3" (3 MP) | | Focal Length | 8 to 50mm | | Back Focal Length | 8.08mm | | Aperture | f/1.6 to 360 | | Angle of View | 1/3" Sensor
Horizontal: 33.5 to 5.6°
Vertical: 25.1 to 4.2° | | Minimum Focus Distance | 0.98' / 0.30 m | | Focus Type | Manual Focus | | Iris Type | DC Auto | | IR Corrected | Yes | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (D x L) | 1.73 x 2.89" / 44.00 x 73.50 mm | | Weight | 3.7 oz / 106 g | | | | Package Weight | 0.335 lb | | Box Dimensions (LxWxH) | 5.65 x 3.05 x 2.85" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
