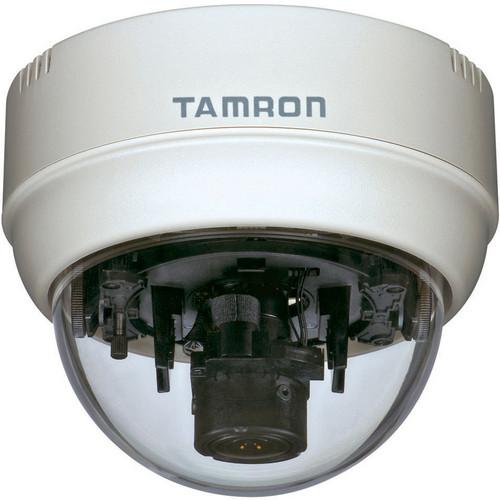

User Manual for Tamron Indoor Fixed Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the Tamron Indoor Fixed Mini Dome Camera
- Product category: Wired Analog & HD Cameras Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Wired Analog & HD Cameras
|
User manual for the Tamron Indoor Fixed Mini Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The Tamron Indoor Fixed Mini Dome Camera is a small dome surveillance camera built around an original Tamron 2.8-10.5mm varifocal lens. At its widest, the lens offers a 100° angle of view, providing broad coverage of an area. The lens also boasts an exceptionally large aperture of F1.2, which together with its aspherical design promotes superior image brightness and sharpness.
The camera uses a 1/3" CCD with 540 TV lines of resolution to deliver clear and bright images of the surveillance scene. A number of picture controls are in place, including auto BLC, AGC, and AWB, to help the camera adjust to extreme or changing lighting conditions.
A hinged mounting mechanism allows the camera inside the dome to be adjusted on a 3-axis plane and accurately pointed in the direction you need it to see. A pan & tilt locking feature prevents the camera from shifting once the desired angle has been set. The dome cover is easy to install and is specially designed so that it doesn't interfere with the camera's view. The camera's low profile design will help it blend in with a residential or commercial interior decor. Key Features - Integrated high-quality design from lens to camera.
- Uses an aspherical lens for optical design capable of high resolution.
- Covers a wide angle of view of 2.8-10.5mm, to achieve a horizontal angle of view at the widest angle of just under 100 degrees.
- Boasts a large-aperture F/1.2 brightness, highest in its class.
- Uses Tamron Multi-coating to reduce ghosting and flare.
- Employs a 1/3" CCD to achieve a horizontal resolution of 540 TV lines.
- Utilizes a design that takes dome cover characteristics into consideration to minimize degradation of image quality after cover installation.
Improved Operability - Pan and tilt adjustment includes a lock mechanism to protect against drift due to vibration, etc., after the angle of view is set.
- A grip has been installed for easier pan adjustment, greatly improving operability during installation.
- Offers one-touch installation for the dome cover.
Other Special Characteristics - Simple design blends in optimally for indoor installation in offices, retail stores, etc.
- Installation components are compatible with general standard electrical boxes.
- Designed with environmental concern.
In the Box Tamron Indoor Fixed Mini Dome Camera 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron Indoor Fixed Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron DC28105N-12 Specs | Signal System | NTSC | | Image Sensor | 1/3" color CCD | | Number of Pixels | 768 x 494 | | Resolution | 540 TVL | | Lens | Focal Length: 2.8-10.5mm
Manual Zoom: 3.75x
Aperture: F1.2
Horizontal Angle of View: 99.5 x 27.4° (W/T)
Vertical Angle of View: 73.2 x 20.6° (W/T) | | Minimum Illumination | 0.1 lux at F1.2 (50 IRE) | | Pan & Tilt | (manual)
Pan: 90°
Tilt: 180°
Rotation: 76° x2 | | Signal-to-Noise Ratio | 50dB and more (AGC Off) | | Controls | Electronic Shutter: Auto (1/60 sec to 1/100,000 sec)
Auto Gain Control: AGC on (30dB)
Backlight Compensation: BLC on (center region)
White Balance: AWB | | Microphone | None | | IR Illumination | None | | Video Output | BNC | | Audio Output | N/A | | Motion Detection | None | | Sync System | Internal | | Control Port | N/A | | Power Requirements | DC12V±10% | | Power Consumption | Max 2.0W | | Operating Temperature | For indoor use | | Dimensions (WxH) | 4.7 x 3.9" (120 x 99mm) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.0 x 6.5 x 5.5" |
