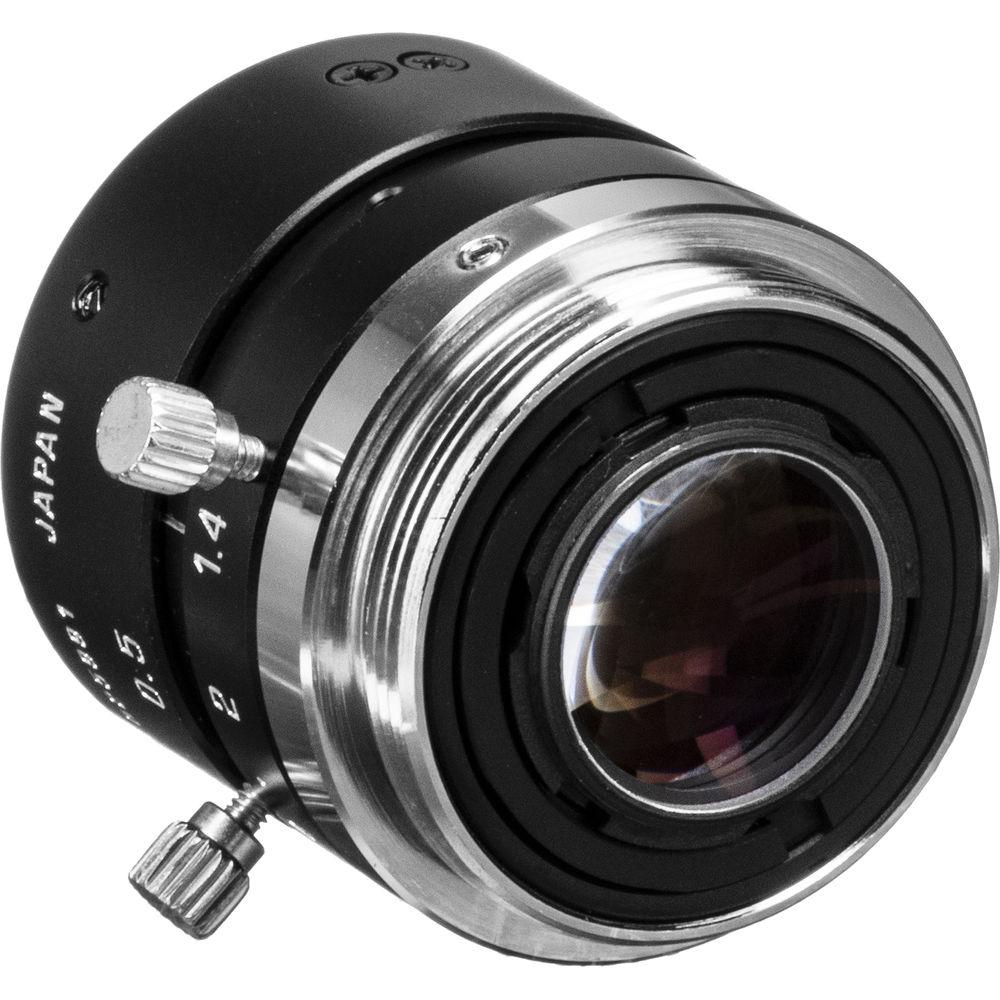

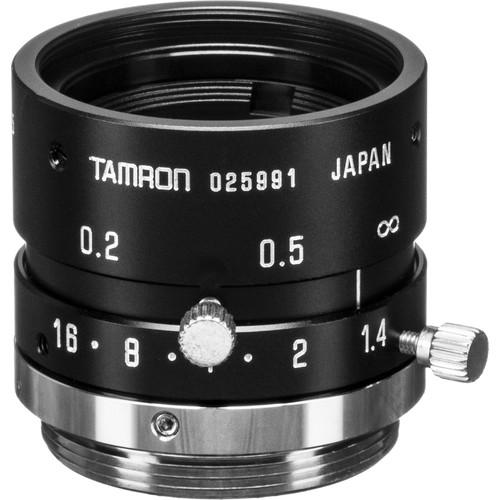

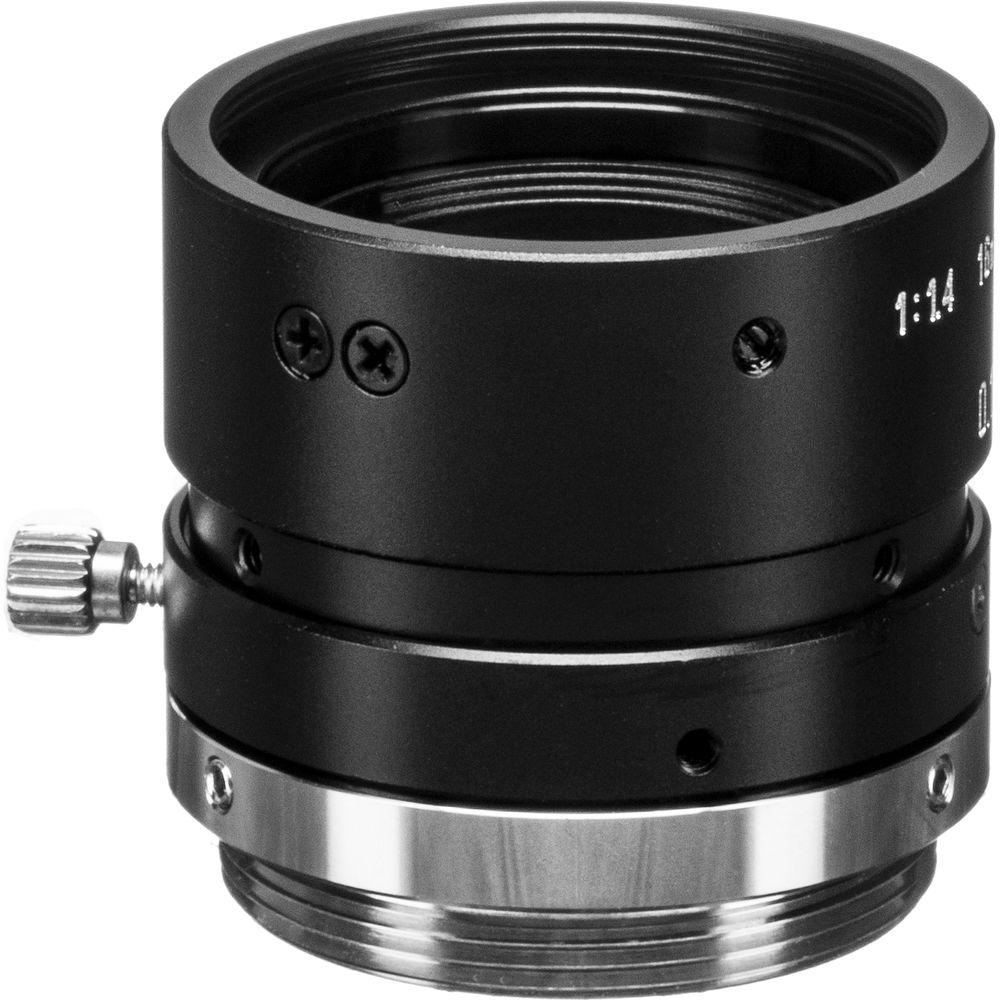

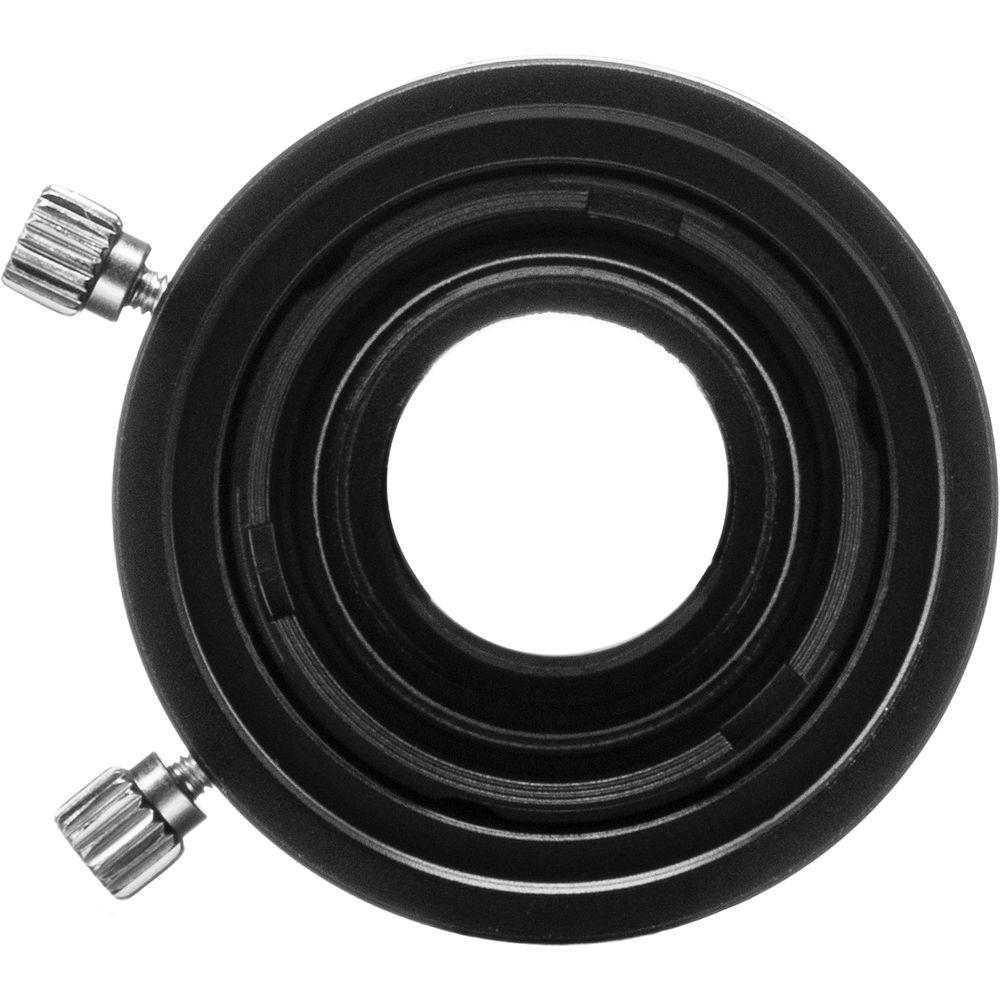

User Manual for Tamron M118FM16 Megapixel Fixed-focal Industrial Lens Click to enlarge the picture
Contents of the user manual for the Tamron M118FM16 Megapixel Fixed-focal Industrial Lens
- Product category: Industrial Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Industrial Lenses
 |
User manual for the Tamron M118FM16 Megapixel Fixed-focal Industrial Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The Tamron M118FM16 Megapixel Fixed-focal Industrial Lens (16mm) supports 1/1.8"; , 1/2"; and 1/3"; image processing cameras, and is suitable for FA (Factory Automation) and Machine Vision applications. It offers a wide viewing angle of 25.9 x 19.5° for 1/1.8" megapixel cameras and 22.8 x 17.1° for 1/2" cameras. Featuring improved close focusing to shorten the object distance from 0.3 to 0.1 m, the M118FM16 Mega-Pixel Fixed-Focal Industrial Lens (16mm) has an aperture of f/1.4-16 and minimized distortion of less than -0.7%. Manual iris and focus with lock make for correct exposures. The 16mm lens delivers optimum performance in the center as well as in the edges, hence is compatible with megapixel cameras. Equipped with a C-type lens mount, the megapixel lens has a compact design and an anti-vibration construction that maintains the initial performance level for a long period of time. - Compatible with 1/1.8" ,1/2" and 1/3" image formats
- For use with Factory Automation and Machine Vision applications
- Wide viewing angle of 25.9 x 19.5° for 1/1.8" megapixel cameras
- Features improved close focusing to shorten the object distance from 0.3 to 0.1 m
- Aperture range - f/1.4-16
- Minimized distortion of less than -0.7%
- Manual iris and focus with lock for correct exposures
- Delivers optimum performance in the center and in the edges
- Equipped with a C-type lens mount
- Anti-vibration construction
UPC: 725211917205 In the Box Tamron M118FM16 Megapixel Fixed-focal Industrial Lens (16mm) 2 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron M118FM16 Megapixel Fixed-focal Industrial Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron M118FM16 Specs | Lens Mount | C | | Sensor Compatibility | 1/1.8", 1/2" (1.5 MP) | | Focal Length | 16mm | | Back Focal Length | 12.17mm | | Aperture | f/1.4 to 16 | | Angle of View | 1/1.8" Sensor
Horizontal: 25.9°
Vertical: 19.5°
1/2" Sensor
Horizontal: 22.8°
Vertical: 17.1°
1/3" Sensor
Horizontal: 17.1°
Vertical: 12.9° | | Minimum Object Distance | 3.93" / 0.1 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Distortion | -0.7% | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Filter Thread | M25.5 x 0.5 mm | | Dimensions (D x L) | 1.1 x 0.9" / 29 x 24 mm | | Weight | 1.4 oz / 39 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 2.7 x 2.6 x 1.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
