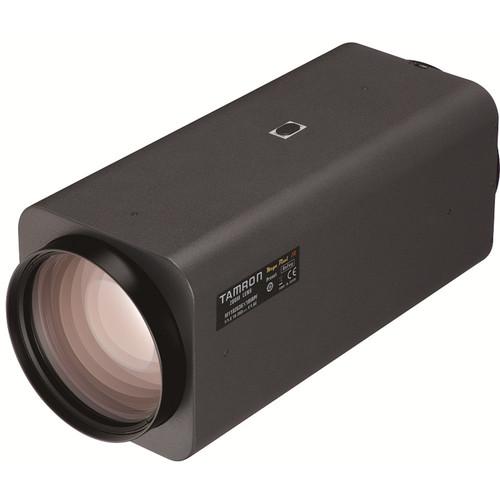

User Manual for Tamron M118ZG36X10IRP C-Mount 10-360mm 1 1.8" F1.6 36x High-Power Varifocal Zoom Lens Click to enlarge the picture
Contents of the user manual for the Tamron M118ZG36X10IRP C-Mount 10-360mm 1 1.8"
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron M118ZG36X10IRP C-Mount 10-360mm 1 1.8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The M118ZG36X10IRP C-Mount 10-360mm 1/1.8" F1.6 36x High-Power Zoom Lens from Tamron is used with C-mount box cameras for day and night remote surveillance applications such as border protection, and safety / protection at facilities like airports and electric power plants. A wide f/1.6 aperture enables image capture at large zoom ratios, assuring surveillance under dim low-light illumination. - Motorized lens with high image quality and 36x optical zoom
- Motorized 2MP (Full HD) zoom lens with a long focal length of 10-360mm for use in a wide range of applications that mandate day-and-night surveillance over a wide area
- f/1.6 aperture enables high-sensitivity image capture at large zoom ratios, assuring surveillance under dim low-light illumination
- Lens accommodates 1/1.8" imagers commonly used for surveillance at major outdoor facilities
- Equipped with presetting function for focusing and zoom
In the Box Tamron M118ZG36X10IRP C-Mount 10-360mm 1/1.8" F1.6 36x High-Power Varifocal Zoom Lens Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron M118ZG36X10IRP C-Mount 10-360mm 1 1.8" F1.6 36x High-Power Varifocal Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron M118ZG36X10IRP Specs | Imager Size | 1/1.8" | | Mount Type | C | | Focal Length | 10-360mm | | Aperture Range | 1.6 - 16 | | F-Number (f) | f/1.6 (wide) - f/3.6 (tele) | | Zoom Ratio | 36x | | Angle of View (HxV) | 1/1.8
Wide: 39.6° x 29.7°, Tele: 1.15° x 0.84°
1/2
Wide: 35.5° x 27.0°, Tele: 1.02° x 0.76°
1/3
Wide: 27.0° x 20.4°, Tele: 0.76° x 0.57° | | Focusing Range | 6 m - ∞ | | Operation | Focus: Motorized (preset potentiometer)
Zoom: Motorized (preset potentiometer)
Iris: DC auto iris | | Filter Size | M110 P = 1 mm | | Wavelength | Visible light - near infrared | | Input Voltage | Focus: 8 to 12 VDC
Zoom: 8 to 12 VDC | | Operating Voltage | Open: 4 V, Close: 0 V | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Dimensions (W x H x D) | 4.92 x 4.92 x 12.48" (125 x 125 x 317 mm) | | Weight | 11.02 lb (5 kg) |
