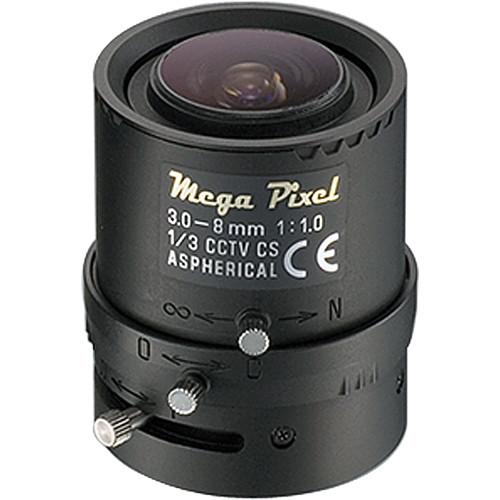

User Manual for Tamron M13VM308 CCTV Lens Click to enlarge the picture
Contents of the user manual for the Tamron M13VM308 CCTV Lens
- Product category: Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Lenses
|
User manual for the Tamron M13VM308 CCTV Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description The Tamron M13VM308 CCTV Lens (3-8mm, f/1), with a focal length of 3-8mm, delivers high-quality imagery and is suitable for cameras having an imager size of 1/3". A maximum aperture range of f/1-close enhances the sensitivity of surveillance cameras, enabling it to obtain vivid color images even in low light conditions. As the lens enhances light intensity, it is suitable for cameras equipped with a low sensitivity image sensor.The CCTV lens has hybrid aspherical elements that reduce various optical aberrations, delivering high optical quality. It features manual iris, manual zoom, and focus with locks, and back focus in air of 8.31mm (wide) to 14.92mm (tele). Multi-coating on the lens surface lessens ghosting and flare in backlit conditions. The M13VM308 CCTV lens, with highly accurate and advanced mechanical construction, eliminates constructional problems such as lopsided blur and focal point image degradation. A slip-mount mechanism allows you to fine-tune the position after mounting the camera to set the auto-iris meter to a proper position around the lens. With the lock for each control ring (zoom, manual, and iris-control), you can avoid setting displacement after installation. The CS mount makes the M13VM308 CCTV lens suitable for mini domes. The M13VM308 CCTV lens operates in a temperature range of 20-60° C and is appropriate for security applications where high resolution and/or short-to-medium long-range focal points are required. - Suitable for cameras having an imager size of 1/3"
- Suitable for cameras with low sensitivity image sensor as the lens increases the light intensity
- Manual iris, zoom, and focus with lock
- Back focus in air - 8.31mm (wide) to 14.92mm (tele)
- Hybrid aspherical elements for high optical quality
- Reduces various optical aberrations
- Multi-coating for less ghosting and flare in backlit conditions
- Eliminates constructional problems such as lopsided blur and focal point image degradation
- Slip-mount mechanism for fine-tuning the position after mounting the camera to set the auto-iris meter to a proper position around the lens
- Lock for each control ring (zoom, manual and iris-control) to avoid setting displacement after installation
- CS mount - ideal for mini domes
- Temperature range of 20-60° C
- Appropriate for security applications where high resolution and/or short to medium long range focal points are required
- Environmentally-friendly design - does not use substances that impact the environment in optical glass materials, sealing, and packaging
UPC: 725211932017 In the Box Tamron M13VM308 CCTV Lens (3-8mm, f/1) 2 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron M13VM308 CCTV Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron M13VM308 Specs | Lens Mount | CS | | Sensor Compatibility | 1/3" (1.5 MP) | | Focal Length | 3 to 8mm | | Back Focal Length | 8.31 to 14.92mm | | Aperture | f/1 to 0 | | Angle of View | 1/3" Sensor
Horizontal: 92.5 to 35.4°
Vertical: 68.2 to 26.5°
1/4" Sensor
Horizontal: 68.2 to 26.5°
Vertical: 50.6 to 19.9° | | Minimum Focus Distance | 1' / 0.3 m | | Focus Type | Manual Focus | | Iris Type | Manual | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions (D x L) | 1.7 x 2" / 43 x 51 mm | | Weight | 2.3 oz / 65 g | | | | Package Weight | 0.215 lb | | Box Dimensions (LxWxH) | 3.35 x 2.75 x 2.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
