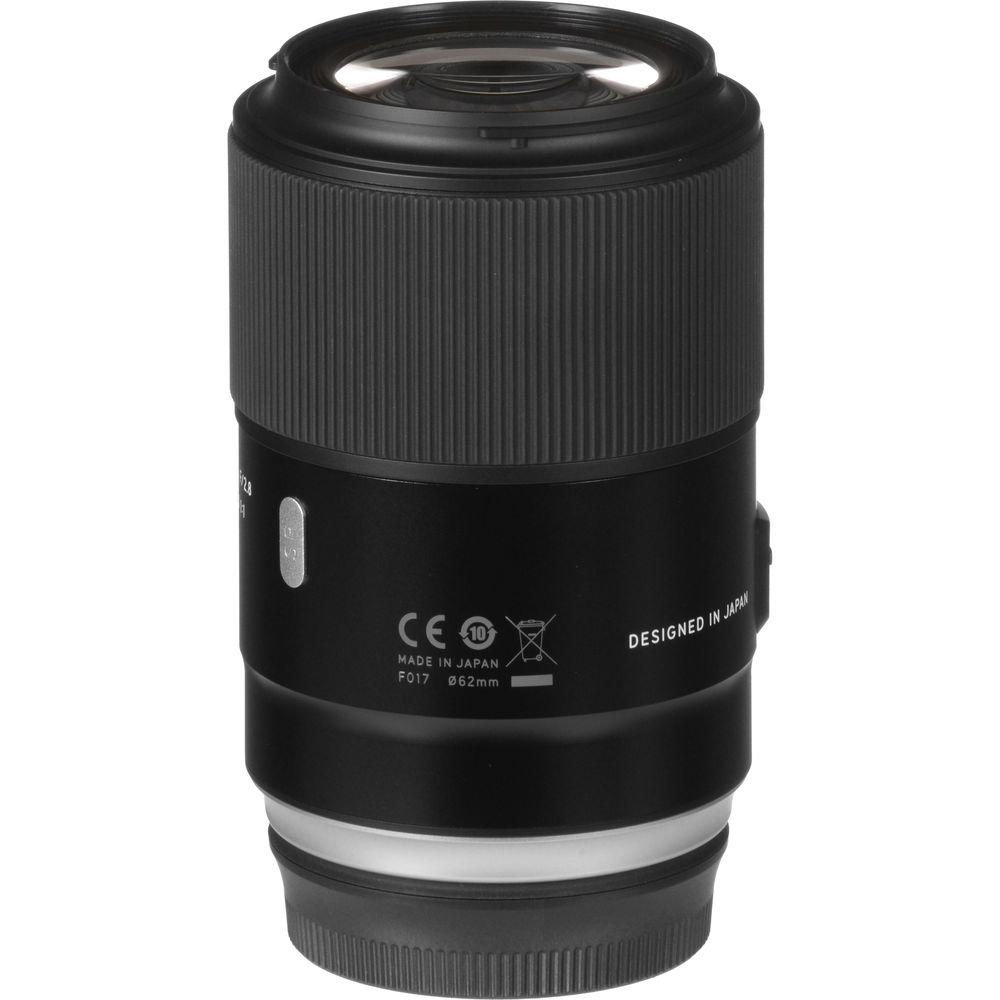

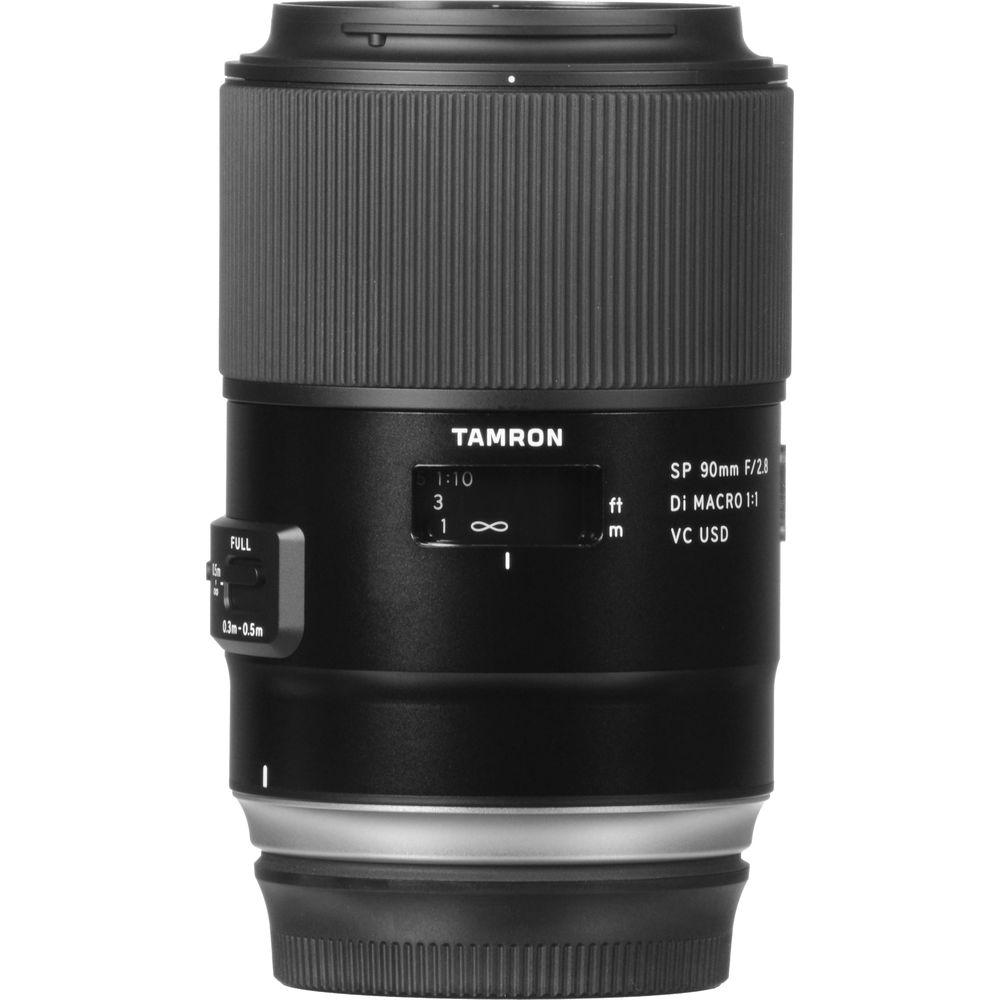

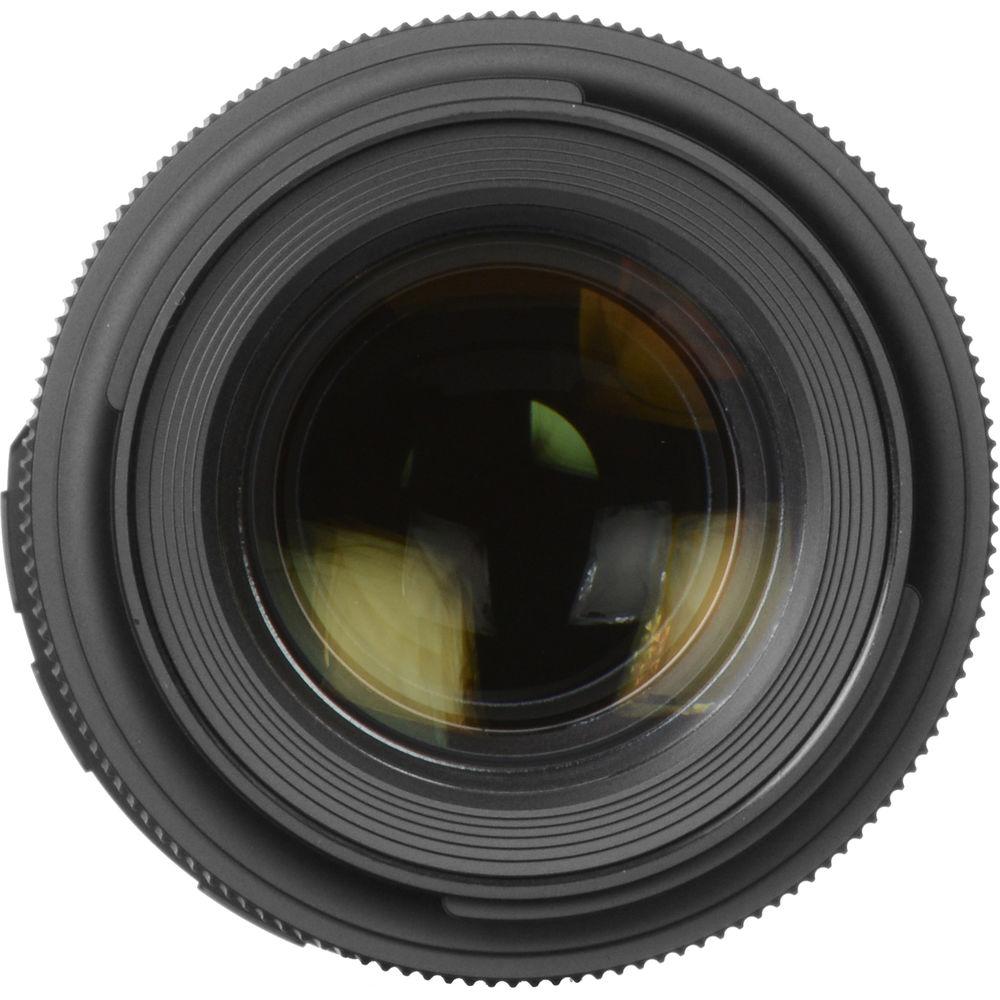

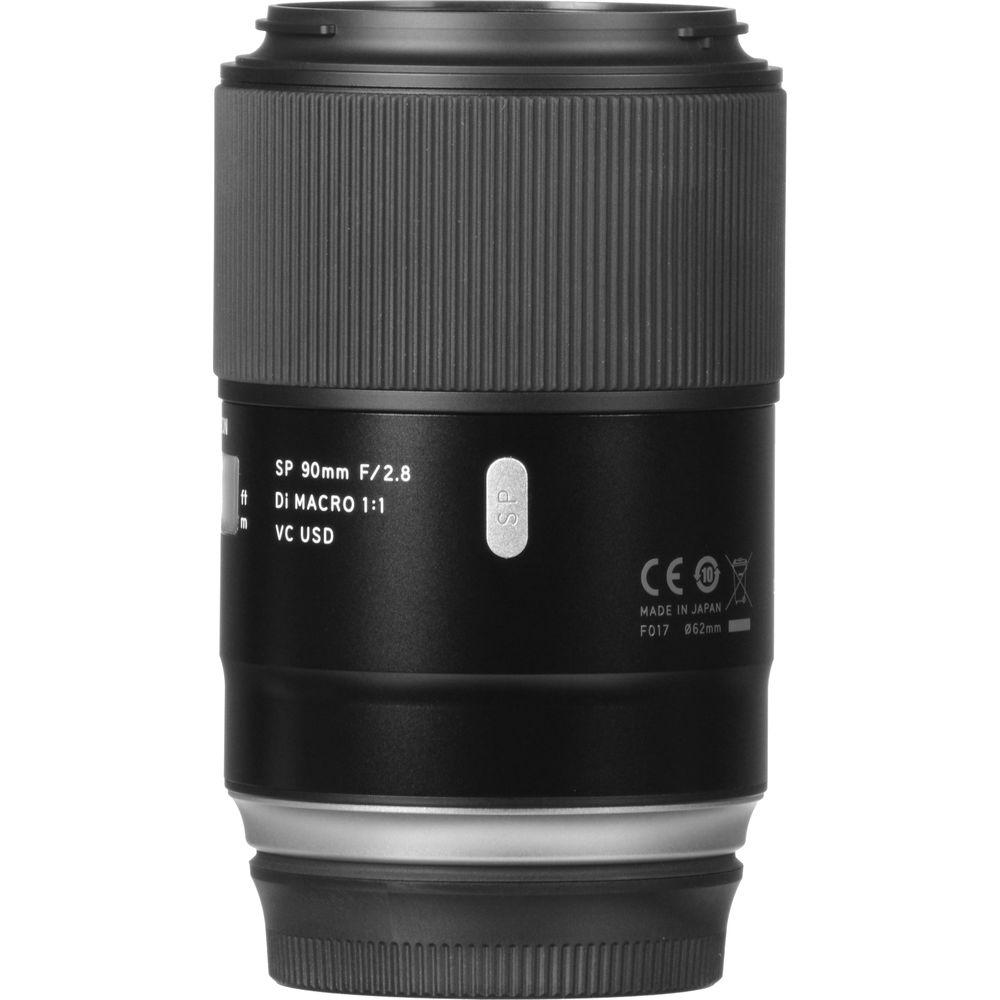

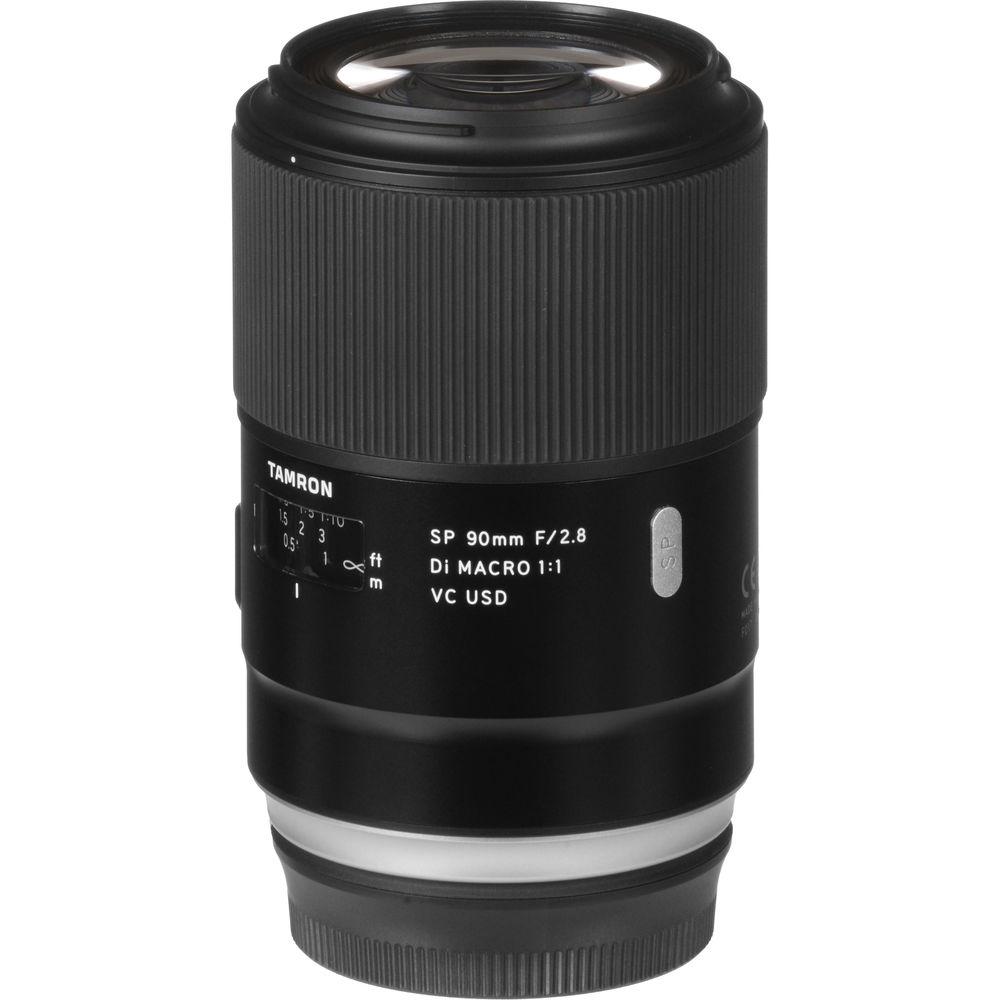

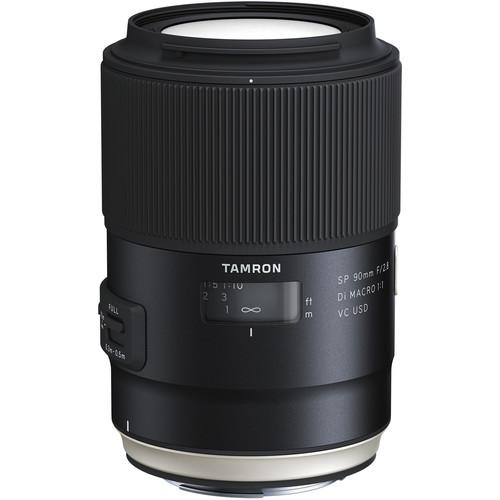

User Manual for Tamron SP 90mm f 2.8 Di Macro 1:1 VC USD Lens for Canon EF Click to enlarge the picture
Contents of the user manual for the Tamron SP 90mm f 2.8 Di
- Product category: SLR Lenses Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron SLR Lenses
 |
User manual for the Tamron SP 90mm f 2.8 Di contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description Unveiled: Tamron Expands SP Line with 85mm f/1.8, 90mm Macro, & TAP-in Console Read More Optimized for close-up shooting, the SP 90mm f/2.8 Di Macro 1:1 VC USD Lens from Tamron is a short telephoto prime designed for full-frame Canon EF-mount DSLRs. Offering a life-size maximum magnification ratio of 1:1, this lens benefits working with small and nearby subjects and employs a Floating System for maintained image quality throughout the 11.8" to infinity focusing range. One Low Dispersion and two Extra Low Dispersion glass elements are incorporated into the optical design to minimize chromatic aberrations and color fringing for clean, consistent sharpness and clarity throughout the magnification range. BBAR and eBAND coatings have also been applied to minimize flare and ghosting for increased contrast when working in strong lighting conditions, and a rounded nine-blade diaphragm contributes to a pleasing bokeh quality to benefit shallow depth of field imagery. As an update to the classic 90mm macro, this enhanced version is well-suited to the high-resolution crop of DSLRs and blends timeless appeal and functionality with current imaging performance.
Supporting the imaging attributes is Vibration Compensation image stabilization, which minimizes the appearance of camera shake by up to 3.5 stops for sharper handheld shooting. Also aiding in creating sharp imagery, a precise, macro-optimized ring-type USD autofocus motor provides fast and well-controlled focusing performance. A dedicated USD actuator is used to refine focusing precision at close distances and also compensates for small amounts of camera shake common to working at higher magnifications. Additionally, the focus motor affords full-time manual focus control for a greater range of adjustment capabilities. A moisture-resistant physical construction enables its use in trying environments and the front element has also received a fluorine coating to guard against smudges and moisture from affecting image quality. Additionally, this lens is compatible with the optional TAP-in Console for fine-tuning focusing performance and updating the lens' firmware. - A short-telephoto focal length optimized for macro shooting, this 90mm lens is designed for full-frame Canon EF-mount DSLRs, and is also compatible with APS-C models where it will provide a 144mm equivalent focal length.
- Bright f/2.8 maximum aperture offers a clean viewfinder image and is also beneficial for working in low-light conditions and for isolating focus.
- One LD (Low Dispersion) and two XLD (Extra Low Dispersion) glass elements are incorporated in the 14 elements, 11 groups optical design, and contribute to a marked reduction in chromatic aberrations and color fringing throughout the aperture and focusing ranges.
- Designed as a true macro lens, this optic affords a life-size 1:1 maximum magnification ratio along with an 11.8" minimum focusing distance to suit working with close-up subjects, and a Floating System is employed for consistent image quality and sharpness throughout the focusing range.
- eBAND (Extended Bandwidth & Angular-Dependency) and BBAR (Broad-Band Anti-Reflection) coatings have been applied to lens elements to reduce surface reflections and prevent lens flare and ghosting for increased contrast and color accuracy.

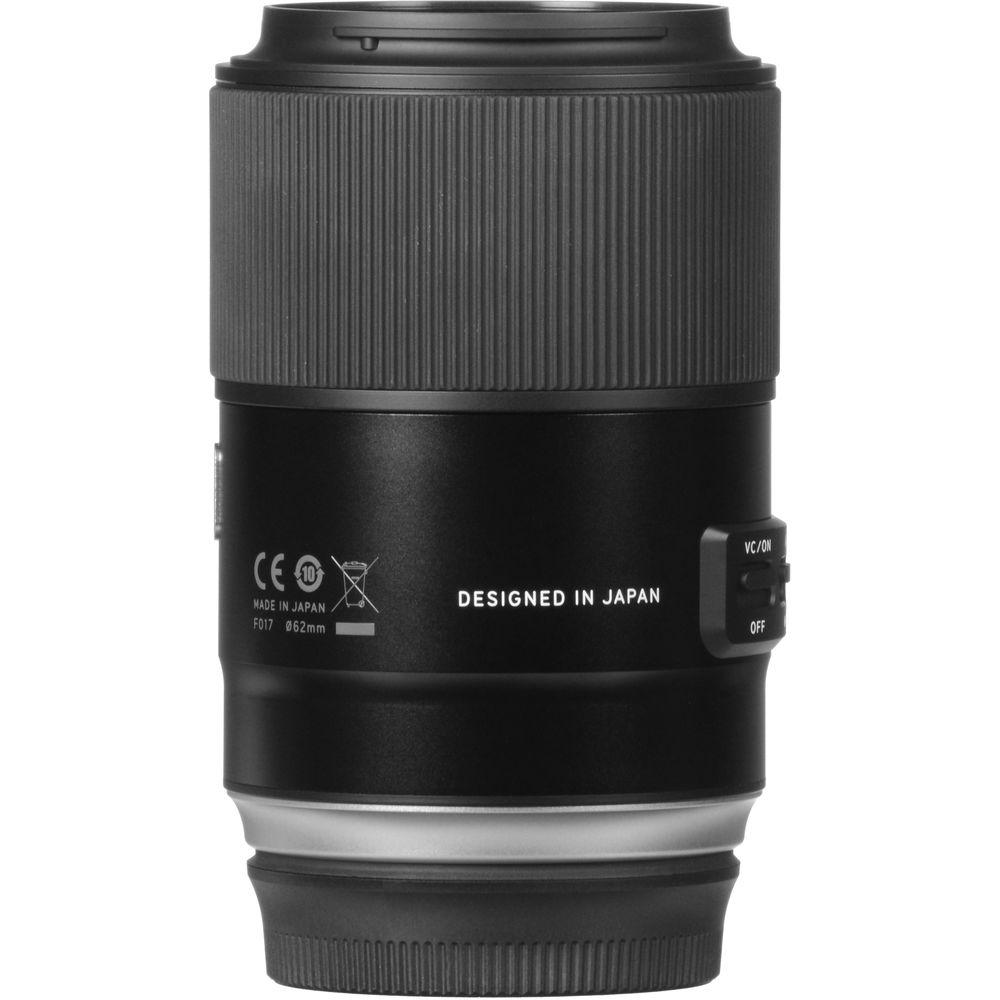

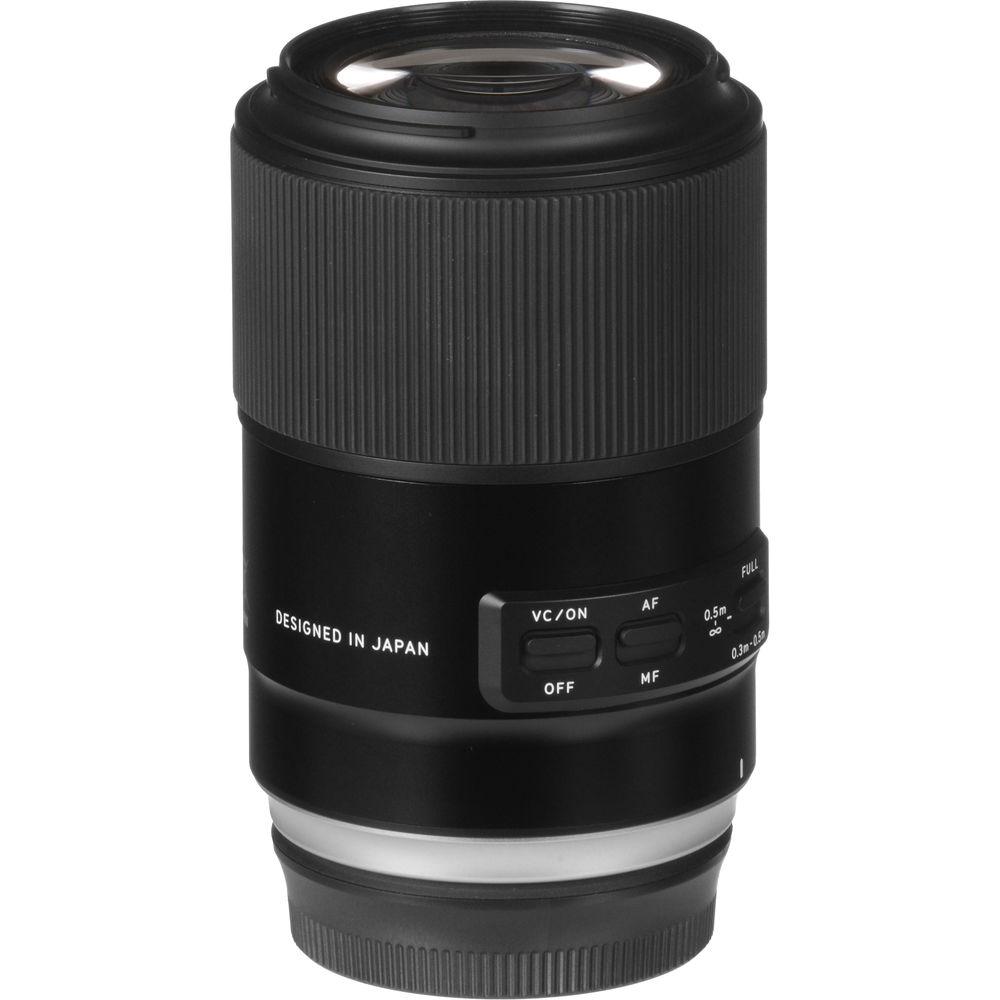

- VC (Vibration Compensation) image stabilization is incorporated into the lens' design to minimize the appearance of camera shake by up to 3.5 stops for sharper handheld shooting in low-light conditions. An accelerometer has also been added to the VC system to compensate for shift-type camera shakes along the X/Y plane, and a gyro sensor is used to accurately detect and enable motion compensation throughout the focusing range.
- Ring-type USD (Ultrasonic Silent Drive) motor and an optimized USD actuator are employed for fast, precise, and quiet autofocus performance that benefits both stills and video recording. This motor also enables full-time manual focus control without having to shift into a dedicated MF mode.
- An internal focusing mechanism is also used to maintain the overall lens length during use, along with a comfortable working distance of approximately 5.5".

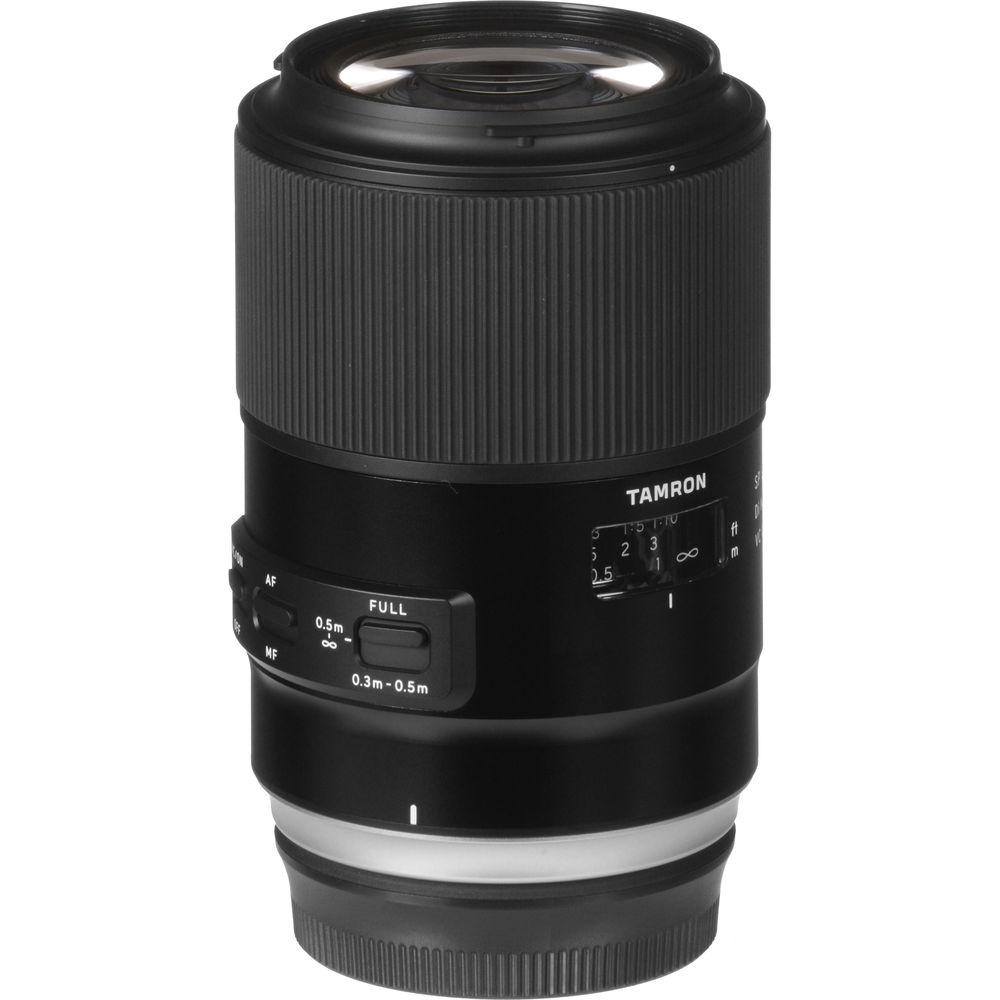

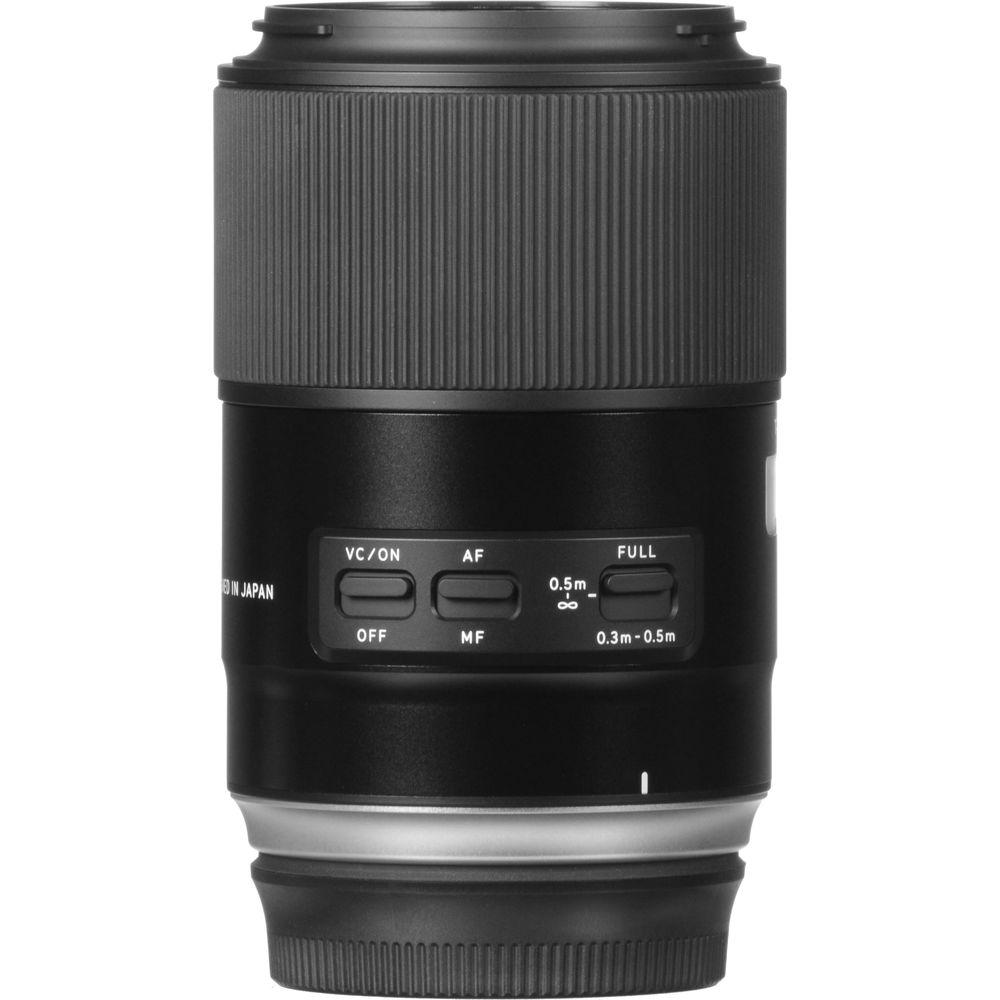

- A Focus Limiter Switch is used to constrain the lens' focusing range for faster performance. A choice of 1.6'-infinity, 11.8"-1.6', and 11.8"-infinity ranges are available.
- Moisture-resistant construction incorporates seals around the lens mount and other areas to benefit working in inclement conditions. Additionally, a fluorine coating has been applied to the front lens element to repel water, fingerprints, and smudges for easier cleaning of the lens surface.
- Rounded nine-blade diaphragm produces a pleasing out-of-focus quality when working with shallow depth of field techniques.
- Compatible with the optional TAP-in Console for updating the lens' firmware as well as adjusting focus settings via the TAP-in Utility software.
UPC: 725211090014 In the Box Tamron SP 90mm f/2.8 Di Macro 1:1 VC USD Lens for Canon EF Front and Rear Lens Caps Lens Hood Limited 6-Year Warranty Best SLR Lenses of 2017 Bjorn Petersen 12/04/2017 fyxefbscsdxfwraffw Macro Lens Buying Guide Todd Vorenkamp 11/27/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron SP 90mm f 2.8 Di Macro 1:1 VC USD Lens for Canon EF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron SP 90mm f/2.8 Di Macro VC USD Specs | Focal Length | 90mm | | Maximum Aperture | f/2.8 | | Minimum Aperture | f/32 | | Lens Mount | Canon EF | | Format Compatibility | Full-Frame | | Angle of View | 27
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
