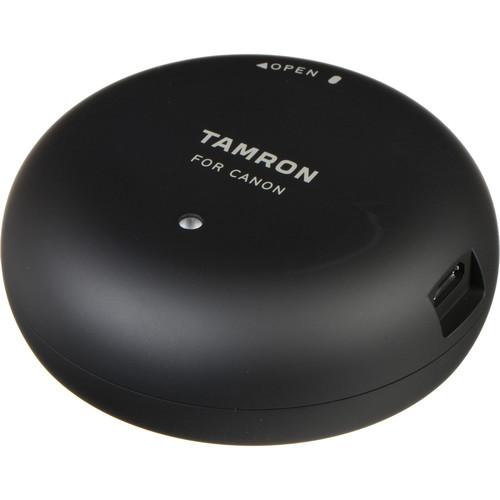

User Manual for Tamron TAP-in Console for Canon EF Lenses Click to enlarge the picture
Contents of the user manual for the Tamron TAP-in Console for Canon EF
- Product category: Other System Accessories Tamron
- Brand: Tamron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tamron Other System Accessories
|
User manual for the Tamron TAP-in Console for Canon EF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tamron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tamron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tamron product will considerably shorten its lifespan!
|
Product description Allowing users to fine-tune the performance and update the firmware of select Canon EF-mount Tamron lenses, the TAP-in Console is a simple attachment that gives more control over how SP-series lenses respond during operation. Used in conjunction with the TAP-in Utility software for Mac and Windows, this console connects to Canon EF lenses at the bayonet mount and permits customization over focus adjustment, focus distance limiter, VC adjustment, and full-time manual focus override settings. Additionally, lens firmware can also be updated by accessing a dedicated website while the lens is attached to the console. Offering enhanced and personalized control over a range of lens settings, the TAP-in Console ensures lens' firmware is kept up-to-date and permits configuring settings to suit specific shooting tasks. - Lens Compatibility
- This console is compatible with Canon EF-mount versions of the following lenses:
- 10-24mm f/3.5-4.5 Di II VC HLD
- SP 15-30mm f/2.8 Di VC USD G2
- 17-35mm f/2.8-4 Di OSD
- 18-400mm f/3.5-6.3 Di II VC HLD
- SP 24-70mm f/2.89 Di VC USD G2
- SP 35mm f/1.8 Di VC USD*
- SP 45mm f/1.8 Di VC USD*
- SP 70-200mm f/2.8 Di VC USD G2
- 70-210mm f/4 Di VC USD
- SP 85mm f/1.8 Di VC USD
- SP 90mm f/2.8 Di Macro 1:1 VC USD
- 100-400mm f/4.5-6.3 Di VC USD
- SP 150-600mm f/5-6.3 Di VC USD G2
*An initial firmware update performed by a Tamron service facility on these lenses is required to enable compatibility with Tamron's TAP-in Console. - Customization Options
-
- Focus Adjustment: Focus can be adjusted in three distance ranges-close, intermediate, and far-and for zoom lenses, an additional eight segments are available for a combined total of 24 adjustable regions. This lets you make micro adjustments to how a lens focuses, as well as compensate for any unwanted front- or back-focusing issues.
- Focus Distance Limiter Customization: For lenses featuring a Focus Limiter switch, this setting lets you configure the specific distance ranges, using near and far distances, the lens-based switch will constrain focus to.
- VC Adjustment: For lenses featuring Vibration Compensation, a choice of three different VC modes can be selected for use, including an option to prioritize the viewfinder image stabilization, an option to prioritize stabilization during shooting, and an option to balance stabilization between the viewfinder and captured images.
- Full-Time Manual Focus Override Customization: For lenses with full-time MF override, this setting lets you set the mode to ON or OFF as well as fine-tune the sensitivity of the focusing ring between High and Low ranges.
- Firmware Updating
- In addition to customizing lens attributes, the console can also be used for updating lens firmware, and the console's firmware can also be updated using an Internet connection and by accessing a dedicated website.
- TAP-in Utility Software
- Used to control the customization options, this free software is an intuitive means for adjusting the range of customizable options available for each lens. The software is compatible with Mac OS X 10.10-11 or Windows 10/8.1/8/7 operating systems with an Intel or Core2 Duo or faster processor, respectively. Additionally, 1GB of RAM and disk space is required for the free application, as well as a USB 2.0 port for connecting the console to the computer.
UPC: 725211997016 In the Box Tamron TAP-in Console for Canon EF Lenses USB Cable Cap Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tamron TAP-in Console for Canon EF Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTamron TIC-CAN Specs | Lens Mount | Canon EF | | Computer Interface | USB 2.0 | | Power Supply | USB bus-powered | | Power Source | 500 mA (maximum) | | Operating Environment | 32-104°F / 0-40°C
85% or less humidity | | Dimensions | 2.8 x 1" / 72 x 26 mm | | Weight | 2.5 oz / 70 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.433 x 3.78 x 2.913" |
