User Manual for Tannoy 4" Full-Range Directional Ceiling Loudspeaker with Dual Concentric Driver Click to enlarge the picture
Contents of the user manual for the Tannoy 4" Full-Range Directional Ceiling Loudspeaker
- Product category: Installed Speakers Tannoy
- Brand: Tannoy
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tannoy Installed Speakers
 |
User manual for the Tannoy 4" Full-Range Directional Ceiling Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tannoy product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tannoy user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tannoy product will considerably shorten its lifespan!
|

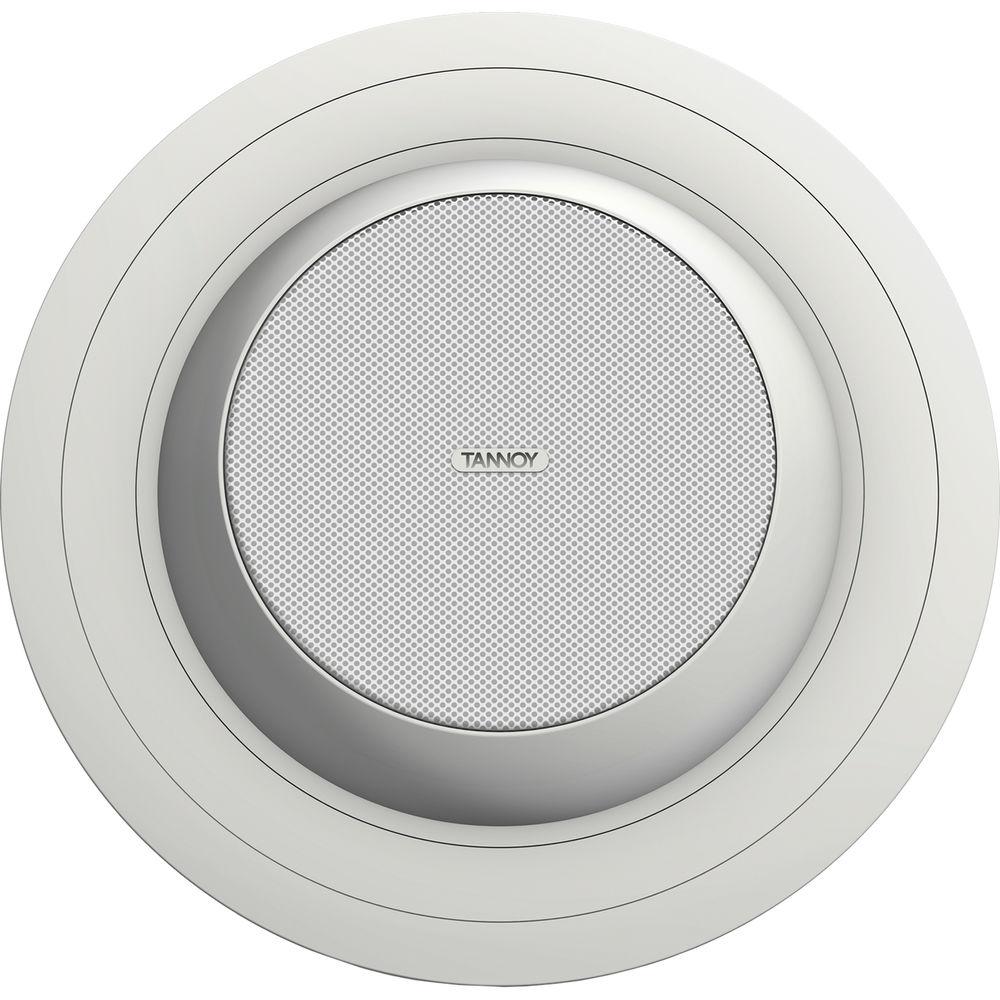

Product description This pair of 4" Full-Range Directional Ceiling Loudspeakers from Tannoy includes two full-bandwidth, high-power handling, and high-sensitivity loudspeakers built around Tannoy's CMS 3.0 Ceiling Monitor System technology. Based on a Dual Concentric point-source driver, the speaker delivers wide and consistent broadband directivity, intelligibility, and an accurate and linear response.
The Dual Concentric driver design features Omnimagnet technology and the Torus Ogive Waveguide device, together providing consistent and controlled directivity along with improved high-frequency response. Time alignment and coherence between low and high frequencies enhances performance both on- and off-axis. The baffle provides a subtle extension to the wave-guide effect for additional sonic benefits.
The loudspeaker can be entirely angled towards the listener within the fixed ceiling-mounting ring by pivoting it towards the desired area of coverage. It utilizes a 16-Ohm driver, making it ideal for use in high-performance, low-impedance systems. A low insertion-loss 30W transformer is included, with convenient front switching for taps at 30W, 15W, and 7.5W, with an additional 3.75W tap for traditional constant voltage systems.

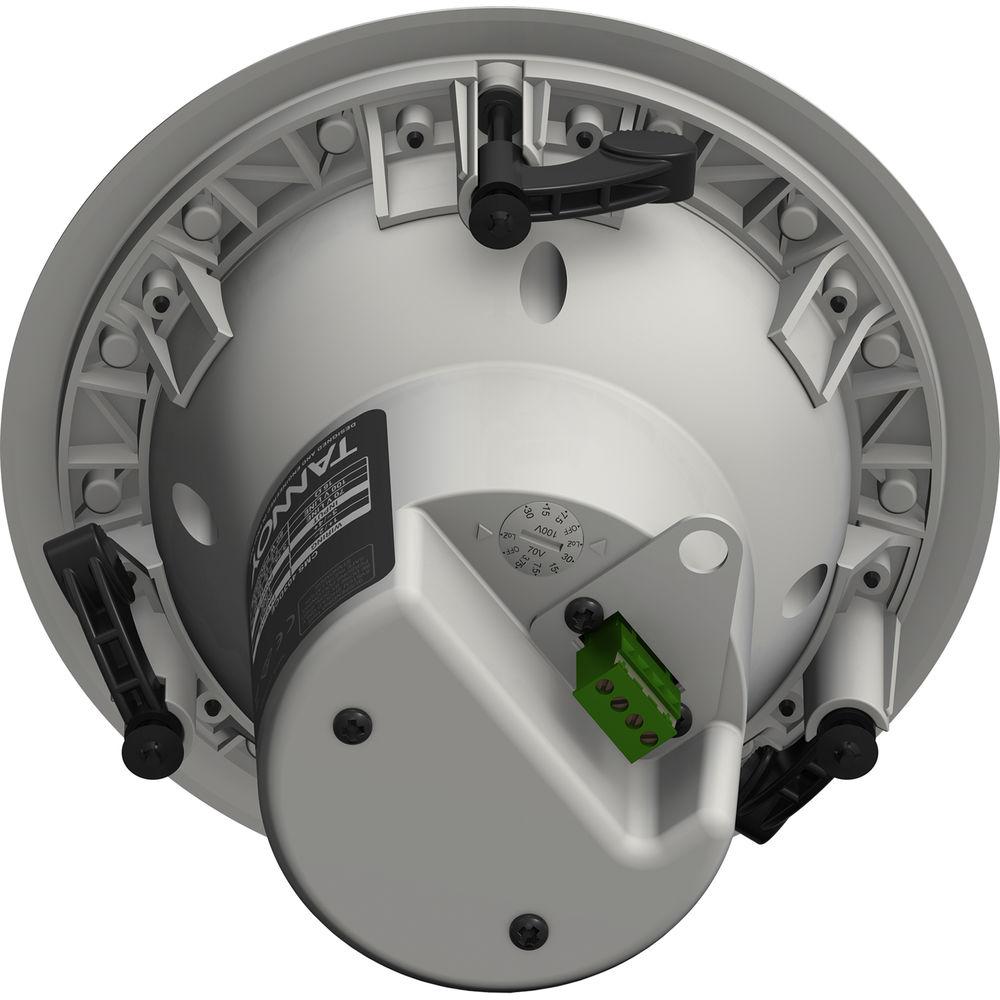

Each speaker is supplied with an integral back can, ready to install as a single unit. The removable locking connector has screw terminals for secure wire termination and loop-thru facility. Strain relief is provided by a clamping mechanism for use with a plenum-rated cable or conduit, while the spring-loaded and self-aligning clamps make for quick and easy installation. Each loudspeaker is supplied with a grille, two tile support rails, and a C-ring. - Dual Concentric driver design utilizing Omnimagnet technology
- Torus Ogive Waveguide device for broadband directivity
- High power and high sensitivity with extended frequency response and very low distortion
- Improved LF performance for applications where genuine bottom end is a must
- Convenient front tapping switch for settings
- Adjustable tilt angle with 360° rotation to accommodate difficult loudspeaker placements
- Three-clamp, self-aligning mounting system
- UV resistant baffle and grille
- Suitable for voice alarm systems, multi-zone foreground music & paging systems, boardrooms & offices, business music systems, airports, convention centers, hotels, reception/waiting rooms, houses of worship, retail outlets, shopping malls, lounges, bars, cruise ships, and courtrooms
UPC: 748252163844 In the Box Tannoy 4" Full-Range Directional Ceiling Loudspeaker with Dual Concentric Driver (Blind Mount, Pair) 2 x C-Rings 2 x Tile-Bridge Kits 2 x Paint Masks 2 x Cut-Out Templates 2 x Grilles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy 4" Full-Range Directional Ceiling Loudspeaker with Dual Concentric Driver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy CMS403DCE Specs | Driver | 4" / 100 mm Dual Concentric Omnimagnet driver | | Low Frequency Driver | 1.38" / 35 mm voice coil, treated multi-fiber paper pulp cone | | High Frequency Driver | 0.79" / 20 mm PEI dome | | Frequency Response | 110 Hz to 50 kHz at -3 dB | | Frequency Range | 80 Hz to 54 kHz at -10 dB | | System Sensitivity | 88 dB (1 W = 4 V for 16 Ohms) | | Nominal Coverage Angle | 90° | | Power Handling | Average: 60 W
Program: 120 W
Peak: 240 W | | Recommended Amplifier Power | 120 W @ 16 Ohms | | Nominal Impedance | 16 Ohms | | Maximum SPL | Average: 106 dB
Peak: 112 dB | | Transformer Taps | 70 V: 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / 3.75 W (1320 Ohms) / OFF & low impedance operation
100 V: 30 W (330 Ohms) / 15 W (660 Ohms) / 7.5 W (1320 Ohms) / OFF & low impedance operation | | Enclosure | Back Can: Reflex loaded UL 94V-0 rated ABS
Baffle: Reflex loaded UL 94V-0 rated ABS
Grille: Steel, with weather resistant coating | | Safety Features | Safety ring located at rear of enclosure for load bearing safety bond | | Clamping Characteristics | Clamping Range: 0 - 0.79" / 0 - 2 cm
Recommended Clamp Torque: 1.5 Nm | | Mount | Blind mount complete with fixed back-can | | Connectors | Removable locking screw terminals with "loop thru" | | Compliance | UL-1480, UL-2043, CE | | Dimensions | Bezel Diameter: 8.1" / 20.1 cm
Front of Ceiling to Rear of Pod: 5.81" / 14.8 cm
Hole Cutout Diameter: 7.36" / 18.7 cm | | Weight | 6.06 lb / 2.75 kg |
