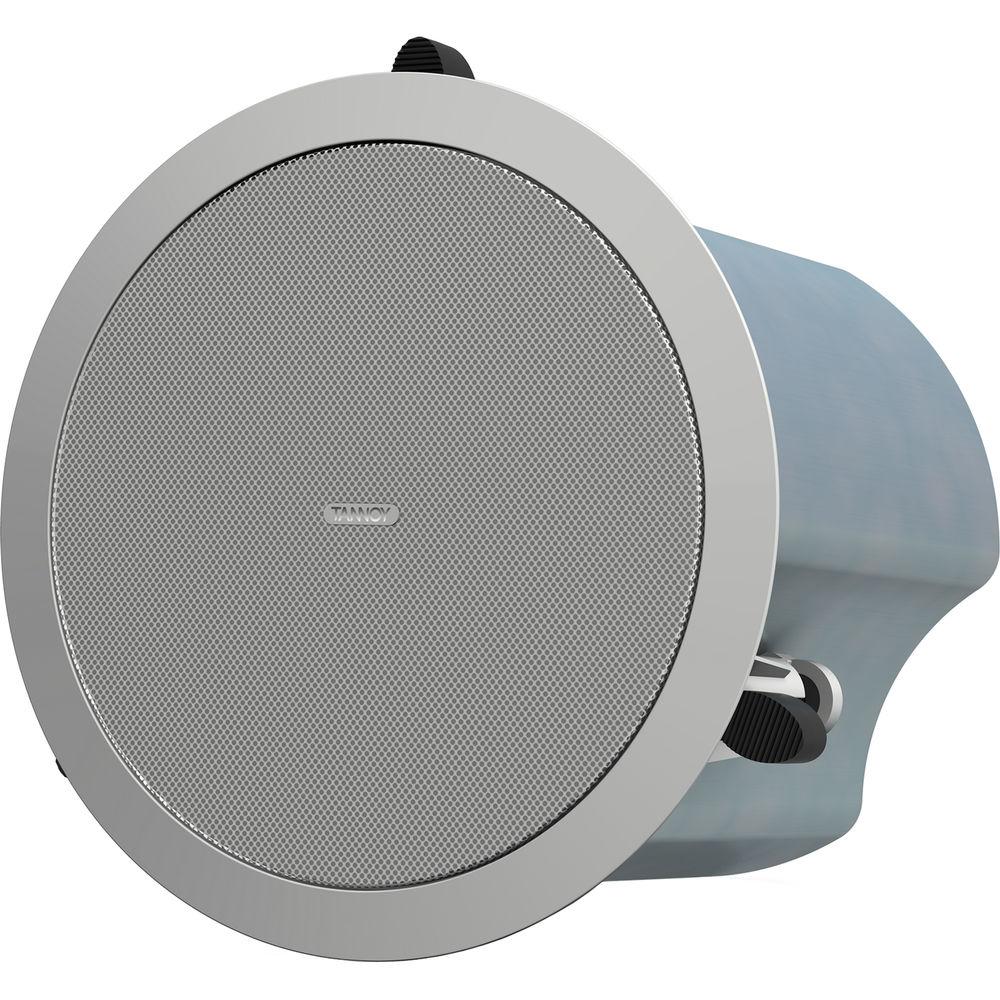

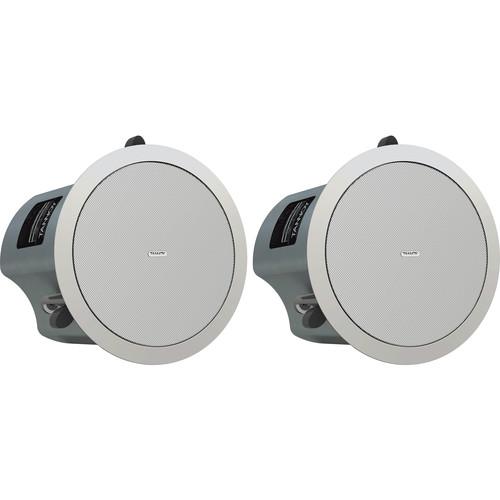

Product description This pair of 5" Full-Range Ceiling Loudspeakers from Tannoy includes two full-bandwidth, high-power handling, and high-sensitivity loudspeakers built around Tannoy's CMS 3.0 Ceiling Monitor System technology. Based on a Dual Concentric point-source driver, the speaker delivers wide and consistent broadband directivity, intelligibility, and an accurate and linear response.
The Dual Concentric driver design features Omnimagnet technology and the Torus Ogive Waveguide device, together providing consistent and controlled directivity along with improved high frequency response. Time alignment and coherence between low and high frequencies enhances performance both on- and off-axis. The baffle provides a subtle extension to the wave-guide effect for additional sonic benefits.
The loudspeaker also features extra clamp extension to accommodate thicker ceiling panels, and a locking design that prevents inadvertent over-screwing. Magnetic grille attachment enables easy removal and fitting for custom painting. It utilizes a 16-Ohm driver, making it ideal for use in high-performance, low-impedance systems. A low insertion-loss 30W transformer is included, with convenient front switching for taps at 30W, 15W, and 7.5W, with an additional 3.75W tap for traditional constant voltage systems.

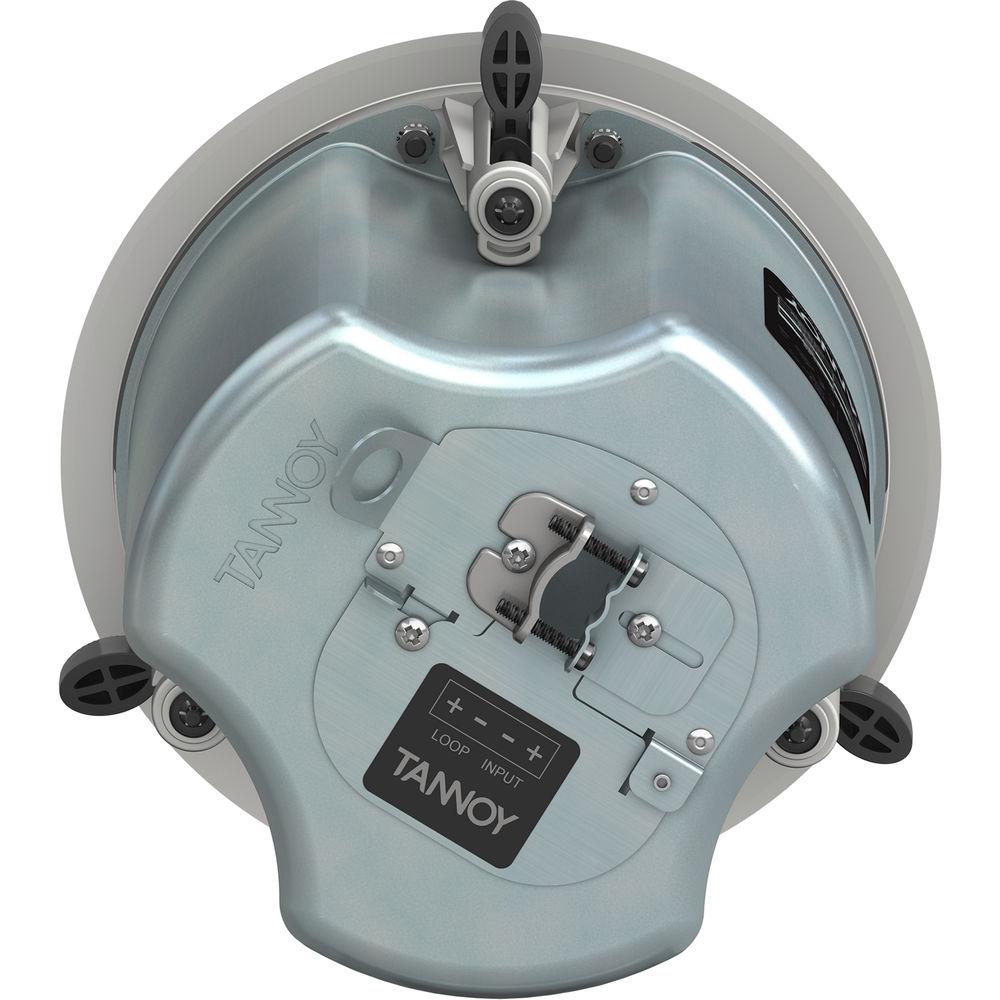

Each speaker is supplied with an integral back can, ready to install as a single unit. The removable locking connector has screw terminals for secure wire termination and loop-thru facility. Strain relief is provided by a clamping mechanism for use with a plenum-rated cable or conduit, while the spring-loaded and self-aligning clamps make for quick and easy installation. Each loudspeaker is supplied with a grille, two tile support rails, and a C-ring. - Dual Concentric driver design utilizing Omnimagnet technology
- Torus Ogive Waveguide device for broadband directivity
- High power and high sensitivity with extended frequency response and very low distortion
- Improved LF performance for applications where genuine bottom end is a must

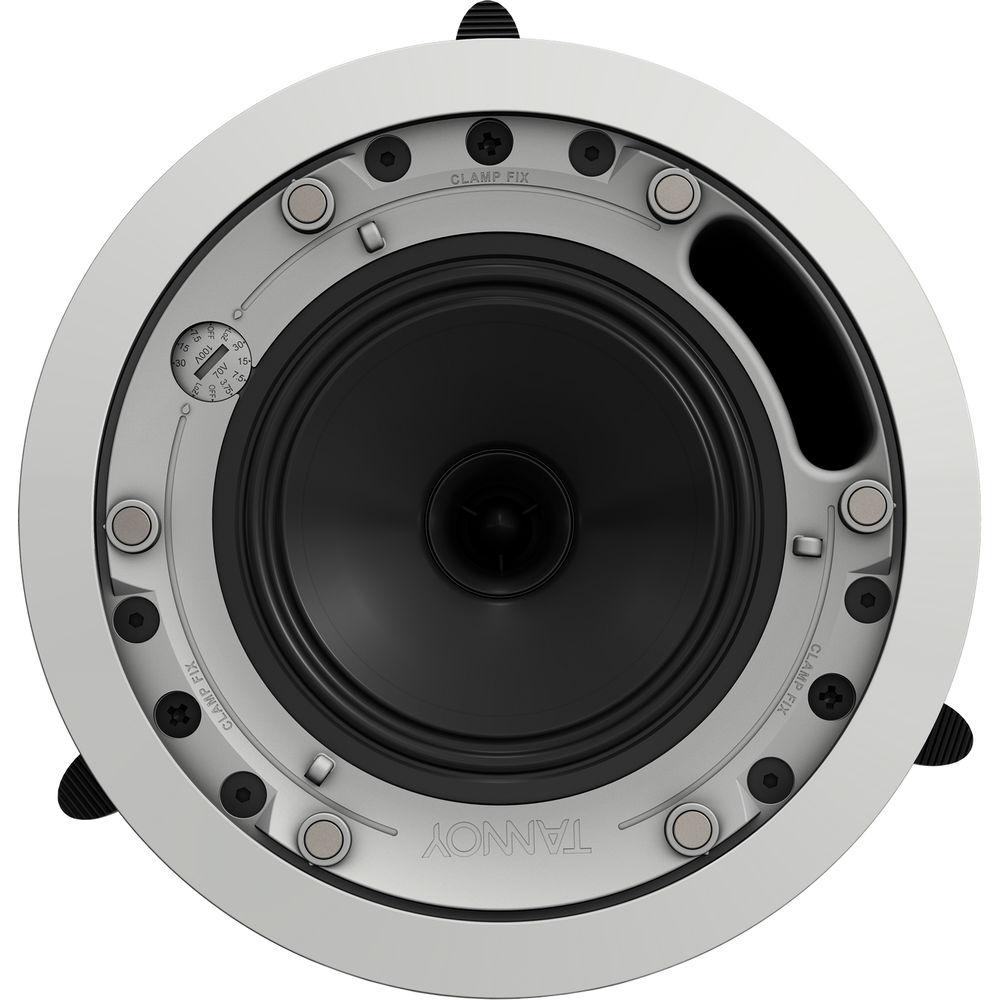

- Convenient front tapping switch for settings

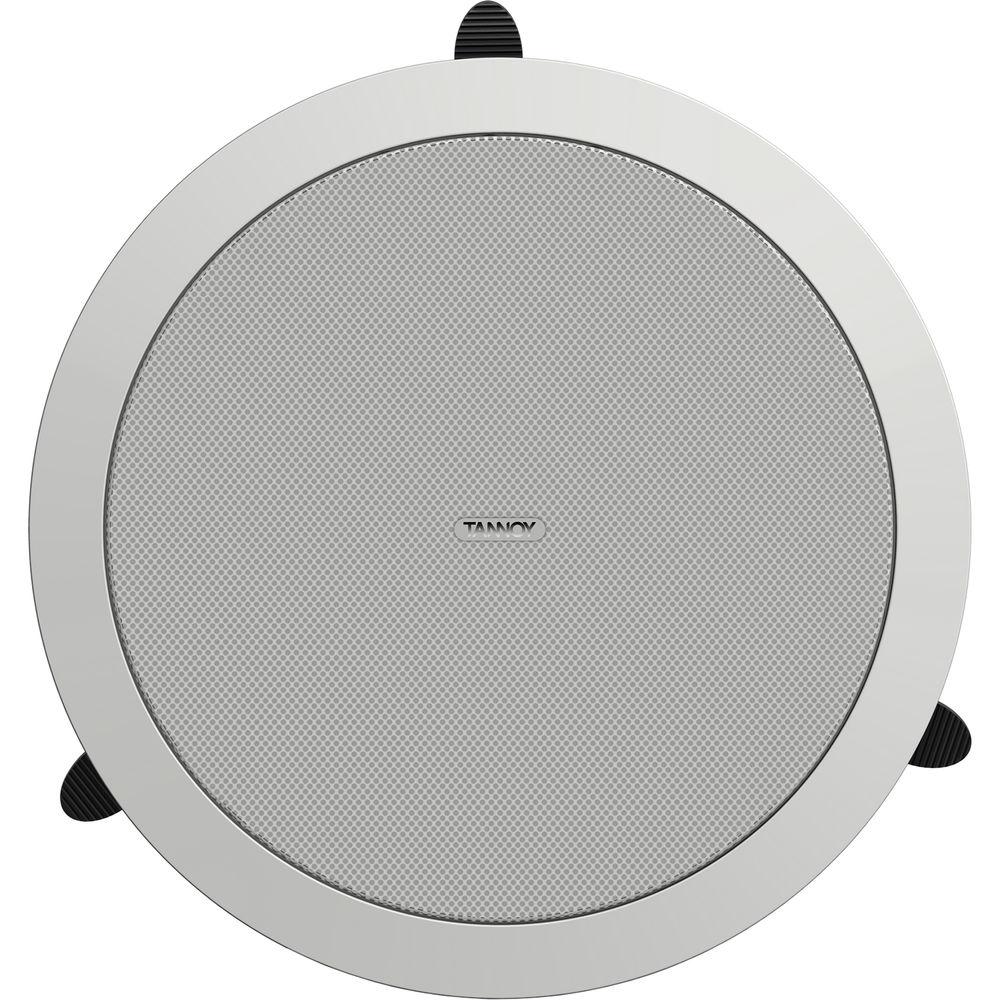

- Magnetically adhering grille system for easy custom painting
- Three-clamp, self-aligning mounting system
- UV resistant baffle and grille
- Suitable for: Voice alarm systems, multi-zone foreground music & paging systems, offices, business music systems, airports, convention centers, hotels, waiting rooms, houses of worship, retail outlets, shopping malls, lounges, bars, cruise ships, and courtrooms
UPC: 748252162441 In the Box Tannoy 5" Full-Range Ceiling Loudspeaker with Dual Concentric Driver (Blind Mount, Pair) 2 x C-Rings 2 x Tile-Bridge Kits 2 x Paint Masks 2 x Cut-Out Templates 2 x Grilles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy 5" Full-Range Ceiling Loudspeaker with Dual Concentric Driver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy CMS503DCBM Specs | Driver | 5" / 130 mm Dual Concentric Omnimagnet driver | | Low Frequency Driver | 1.38" / 35 mm voice coil, treated multi-fiber paper pulp cone | | High Frequency Driver | 0.79" / 20 mm PEI dome | | Frequency Response | 85 Hz to 50 kHz at -3 dB | | Frequency Range | 74 Hz to 54 kHz at -10 dB | | System Sensitivity | 89 dB (1 W = 4 V for 16 Ohms) | | Nominal Coverage Angle | 90° | | Power Handling | Average: 60 W
Program: 120 W
Peak: 240 W | | Recommended Amplifier Power | 120 W @ 16 Ohms | | Nominal Impedance | 16 Ohms | | Maximum SPL | Average: 107 dB
Peak: 113 dB | | Transformer Taps | 70 V: 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / 3.75 W (1320 Ohms) / OFF & low impedance operation
100 V: 30 W (330 Ohms) / 15 W (660 Ohms) / 7.5 W (1320 Ohms) / OFF & low impedance operation | | Enclosure | Back Can: Zinc plated steel
Baffle: Reflex loaded UL 94V-0 rated ABS
Grille: Steel, with weather resistant coating | | Safety Features | Safety ring located at rear of enclosure for load bearing safety bond | | Clamping Characteristics | Security toggle clamp
Clamping Range: 0.4-2.4" / 1-6 cm
Recommended Clamp Torque: 1.5 Nm | | Mount | Blind mount complete with fixed back can | | Cable Entry | Cable clamp & squeeze connector for conduit up to 0.9" / 22 mm | | Connectors | Removable locking screw terminals with "loop thru" | | Compliance | UL-1480, UL-2043, CE | | Dimensions | Bezel Diameter: 8.1" / 20.1 cm
Front of Ceiling to Rear of Back Can: 7.4" / 18.8 cm
Hole Cutout Diameter: 7.5" / 19.0 cm | | Weight | 9.04 lb / 4.1 kg | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 26.9 x 14.7 x 12.2" |
