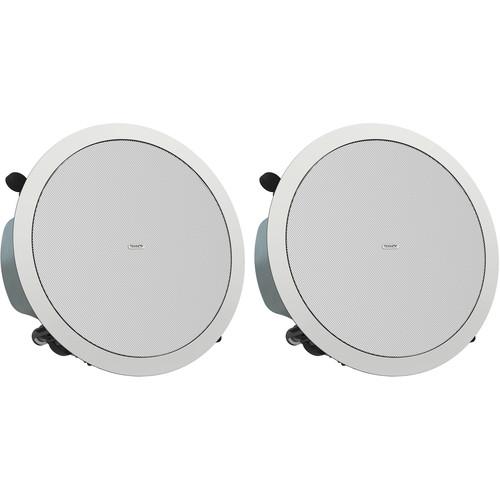

Product description This pair of 5" Full-Range Ceiling Loudspeakers from Tannoy includes two wide-bandwidth, high-power handling, and high-sensitivity loudspeakers built around Tannoy's CMS 3.0 Ceiling Monitor System technology. With a reduced backcan depth, the low-profile speaker has been engineered specifically for applications where ceiling cavity dimensions are a critical limiting factor. The point source configuration of the ICT driver's mid-bass and tweeter sections ensures a wide and controlled dispersion for optimum coverage, avoiding the significant energy losses in the vertical plane at the crossover frequency that are inherent in typical two-way designs.
The loudspeaker utilizes a 16-Ohm driver, making it ideal for use in high-performance, low-impedance systems. A low insertion-loss 30W transformer is included, with convenient front switching for taps at 30W, 15W, and 7.5W, with an additional 3.75W tap for traditional constant-voltage systems. An extra clamp extension accommodates thicker ceiling panels, and a locking design prevents inadvertent over-screwing. The magnetic grille attachment enables easy removal and fitting for custom painting and tapping changes.

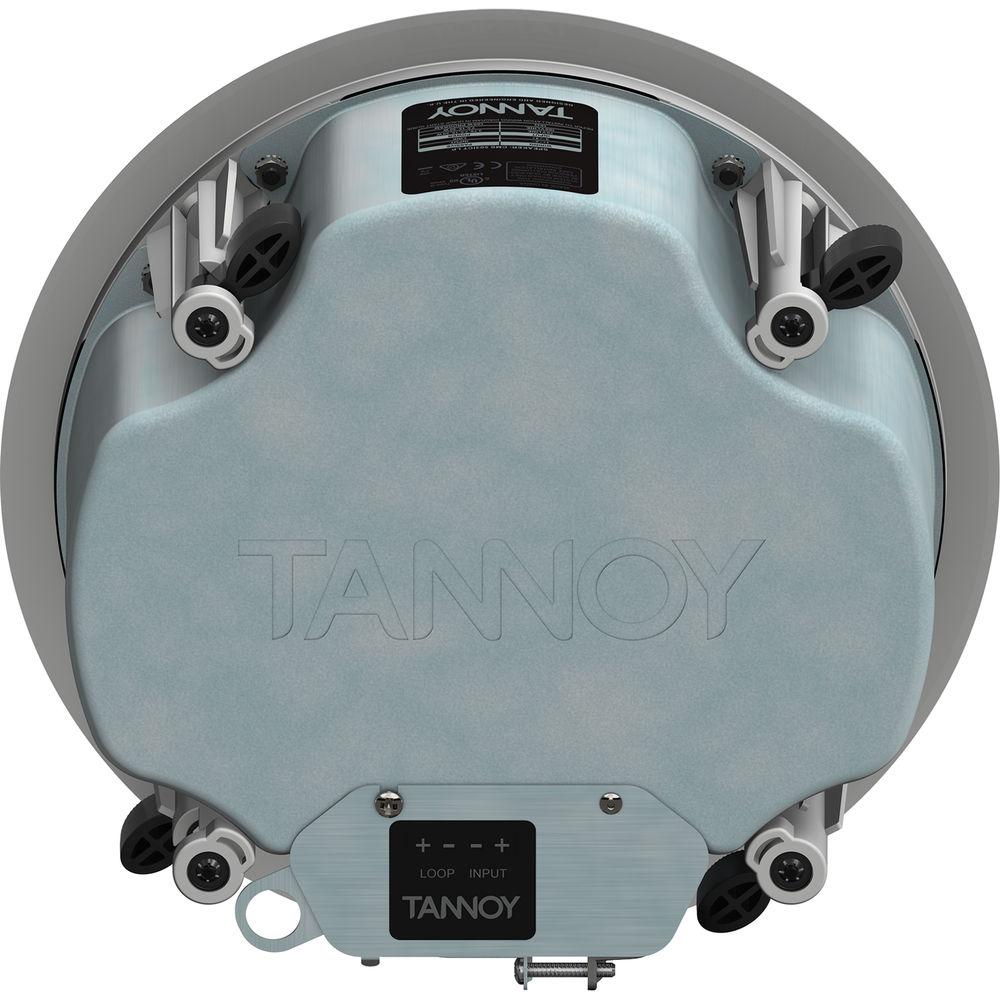

Each speaker is supplied with an integral backcan, ready to install as a single unit. The shallow-profile zinc-plated steel backcan has an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and loop-thru facility. Strain relief is provided by a clamping mechanism for use with aplenum-rated cable or conduit, while new spring-loaded and self-aligning clamps make for even quicker and easier installation. Each loudspeaker includes a grille, two tile support rails, and a C-ring. - 5" ICT transducer for durability and longevity
- High power and high sensitivity with extended frequency response
- Wide, controlled, constant directivity dispersion for optimum coverage
- Ultra-shallow depth profile for applications where cavity space is restricted

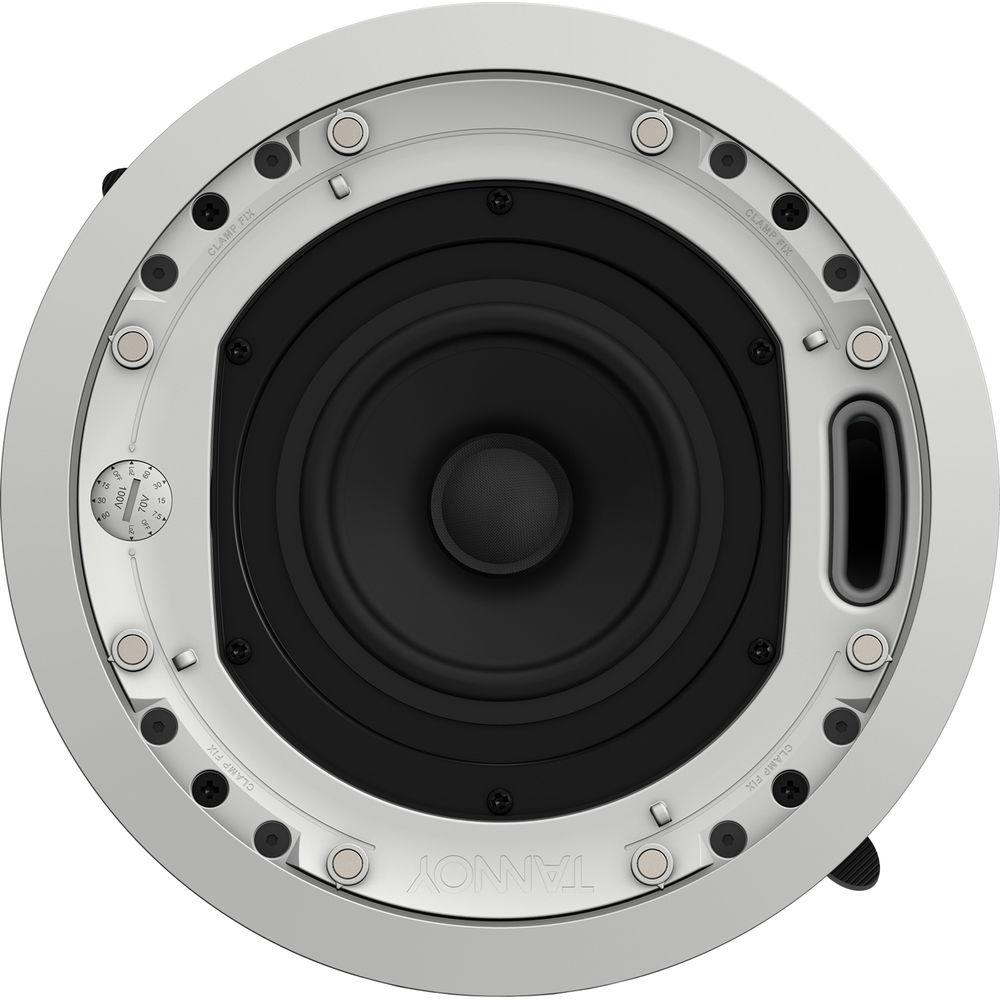

- Convenient front tapping switch for settings

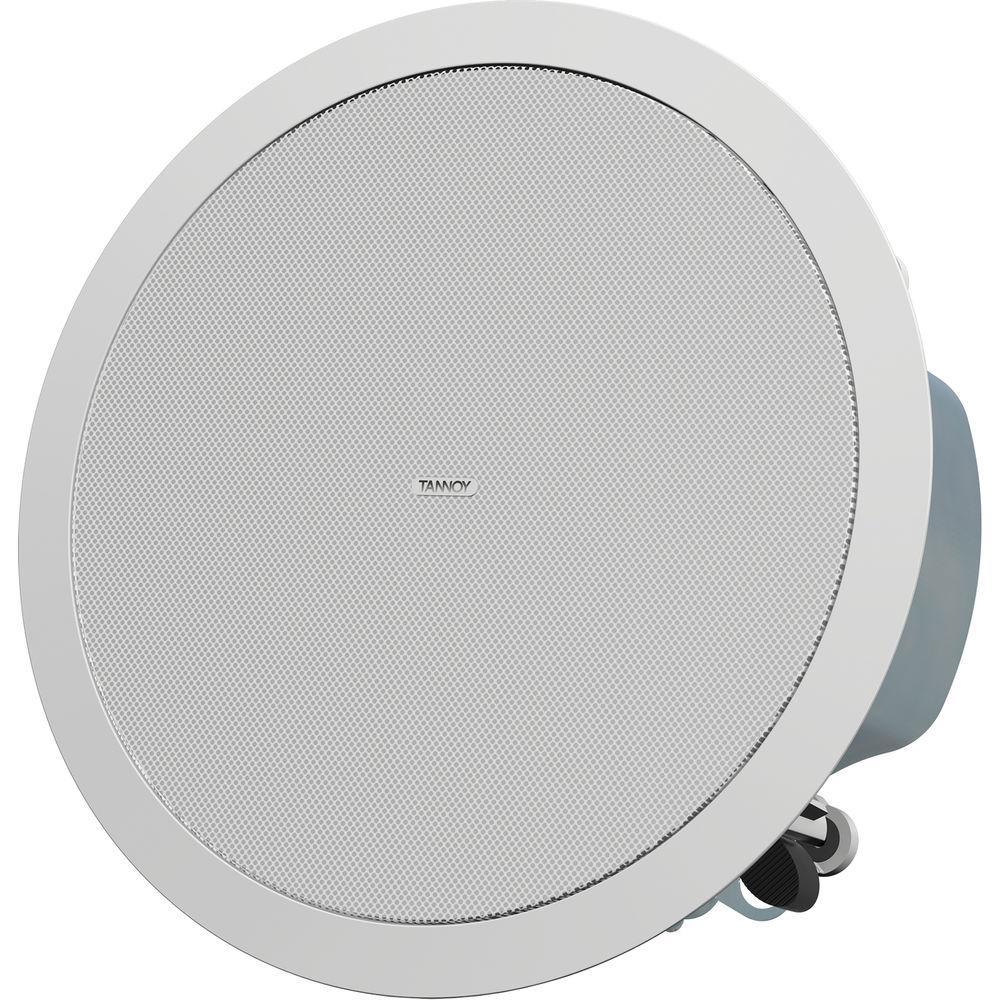

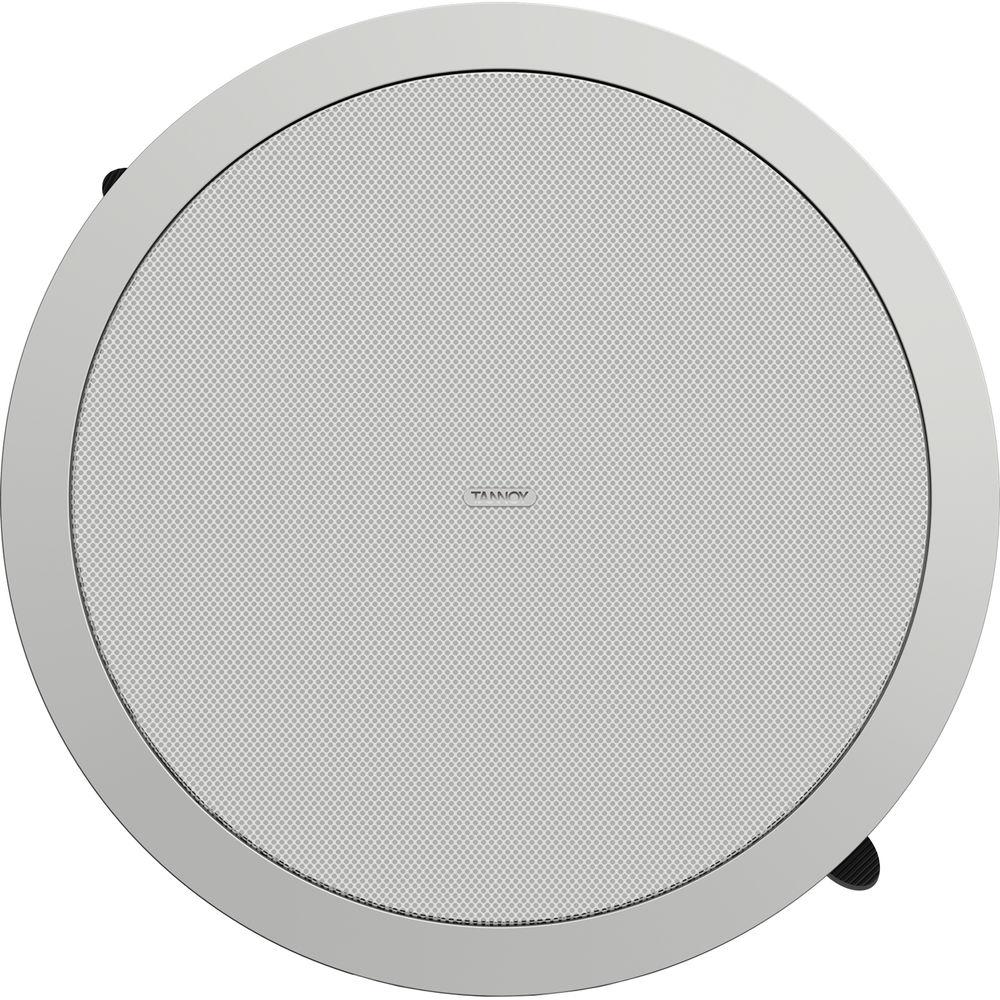

- Magnetically-adhering grille system for easy custom painting
- Four-clamp, self-aligning mounting system
- UV-resistant baffle and grille
- Suitable for: voice alarm systems, multi-zone foreground music & paging systems, boardrooms & offices, business music systems, airports, convention centers, hotels, waiting rooms, houses of worship, retail outlets, shopping malls, lounges, bars, cruise ships, and courtrooms
UPC: 748252162946 In the Box Tannoy 5" Full-Range Ceiling Loudspeaker with ICT Driver (Low Profile, Pair) 2 x C-Rings 2 x Tile-Bridge Kits 2 x Paint Masks 2 x Cut-Out Templates 2 x Grilles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy 5" Full-Range Ceiling Loudspeaker with ICT Driver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy CMS 503ICT LP Specs | Low Frequency Driver | 5" / 130 mm mineral-loaded polypropylene | | High Frequency Driver | ICT | | Frequency Response | 88 Hz to 50 kHz at -3 dB | | Frequency Range | 77 Hz to 24 kHz at -10 dB | | System Sensitivity | 89 dB (1 W = 4 V for 16 Ohms) | | Nominal Coverage Angle | 90° | | Power Handling | Average: 50 W
Program: 100 W
Peak: 200 W | | Recommended Amplifier Power | 100 W @ 16 Ohms | | Nominal Impedance | 16 Ohms | | Maximum SPL | Average: 106 dB
Peak: 112 dB | | Transformer Taps | 70 V: 30 W (165 Ohms), 15 W (330 Ohms), 7.5 W (660 Ohms), 3.75 W (1320 Ohms), OFF & low impedance operation
100 V: 30 W (330 Ohms), 15 W (660 Ohms), 7.5 W (1320 Ohms), OFF & low impedance operation | | Enclosure | Back Can: Zinc-plated steel
Baffle: Reflex-loaded UL 94V-0 rated ABS
Grille: Steel, with weather-resistant coating | | Safety Features | Safety ring located at rear of enclosure for load bearing safety bond | | Clamping Characteristics | Security toggle clamp
Clamping Range: 0.37 - 2.36" / 1 - 6 cm
Recommended Clamp Torque: 1.5 Nm | | Cable Entry | Cable clamp & squeeze connector for conduit up to 0.9" / 22 mm | | Mount | Low-profile | | Connectors | Removable locking screw terminals with "loop thru" | | Compliance | UL-1480, UL-2043, CE | | Dimensions | Bezel Diameter: 10.8" / 27.4 cm
Front of Ceiling to Rear of Back Can: 3.9" / 9.9 cm
Hole Cutout Diameter: 10.0" / 25.3 cm | | Weight | 6.8 lb / 3.1 kg |
