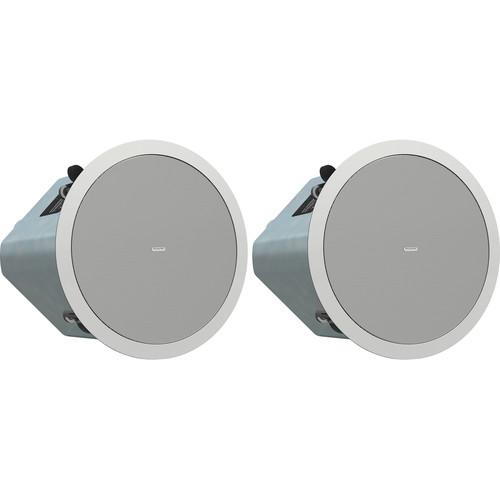

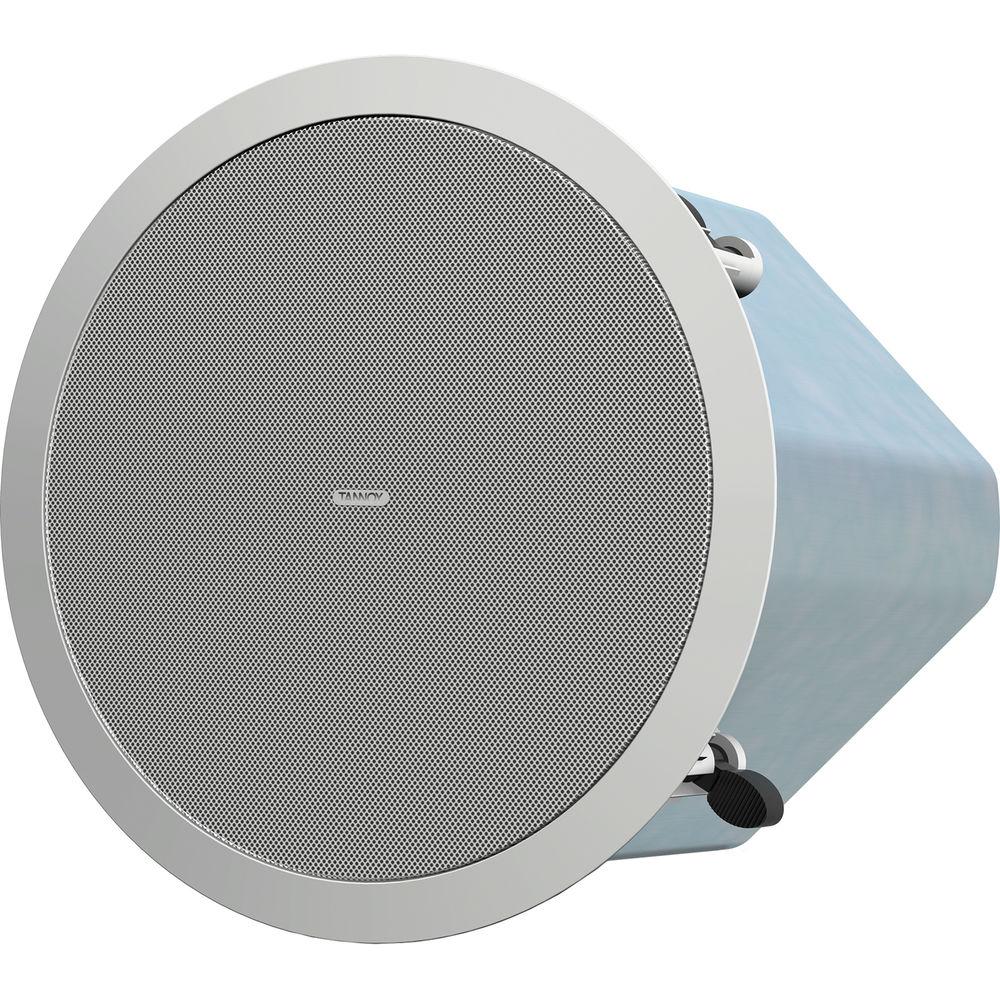

Product description This pair of 6" Full-Range Ceiling Loudspeakers from Tannoy includes two wide-bandwidth, high-power handling, and high-sensitivity loudspeakers built around Tannoy's CMS 3.0 Ceiling Monitor System technology. This speaker has been re-engineered for optimum compatibility with Lab.gruppen commercial amplifiers while also delivering consistent broadband directivity, precise articulation for voice and music, and long-term reliability.
The point source configuration of the ICT driver's mid-bass and tweeter sections ensures a wide and controlled dispersion for optimum coverage, avoiding the significant energy losses in the vertical plane at the crossover frequency that are inherent in typical two-way designs. The ICT (Inductive Coupling Technology) drive unit also addresses two common component failures in background music systems: the tweeter and the crossover. Use of wireless electromagnetic coupling to drive the tweeter means that no crossover is required, making the ICT drive unit exceptionally reliable and ideal for applications where constant heavy usage is the norm. The mineral-loaded polypropylene cone material and nitrile rubber surround further enhance durability and long-term reliability.

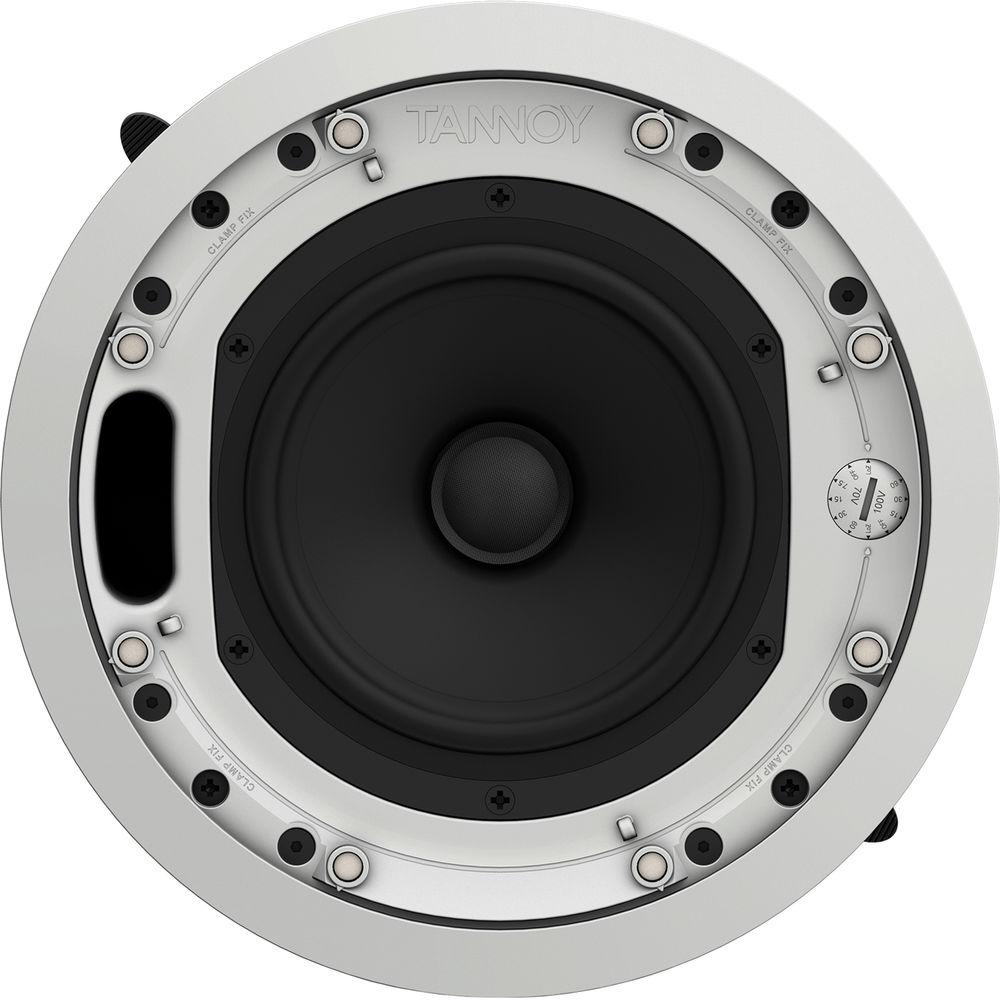

The loudspeaker utilizes a 16-Ohm driver, making it ideal for use in high-performance, low-impedance systems. A low insertion-loss 60W transformer is included, with convenient front switching for taps at 60W, 30W, and 15W, with an additional 7.5W tap for traditional constant voltage systems. An extra clamp extension accommodates thicker ceiling panels, and a locking design prevents inadvertent over-screwing. The magnetic grille attachment enables easy removal and fitting for custom painting and tapping changes.

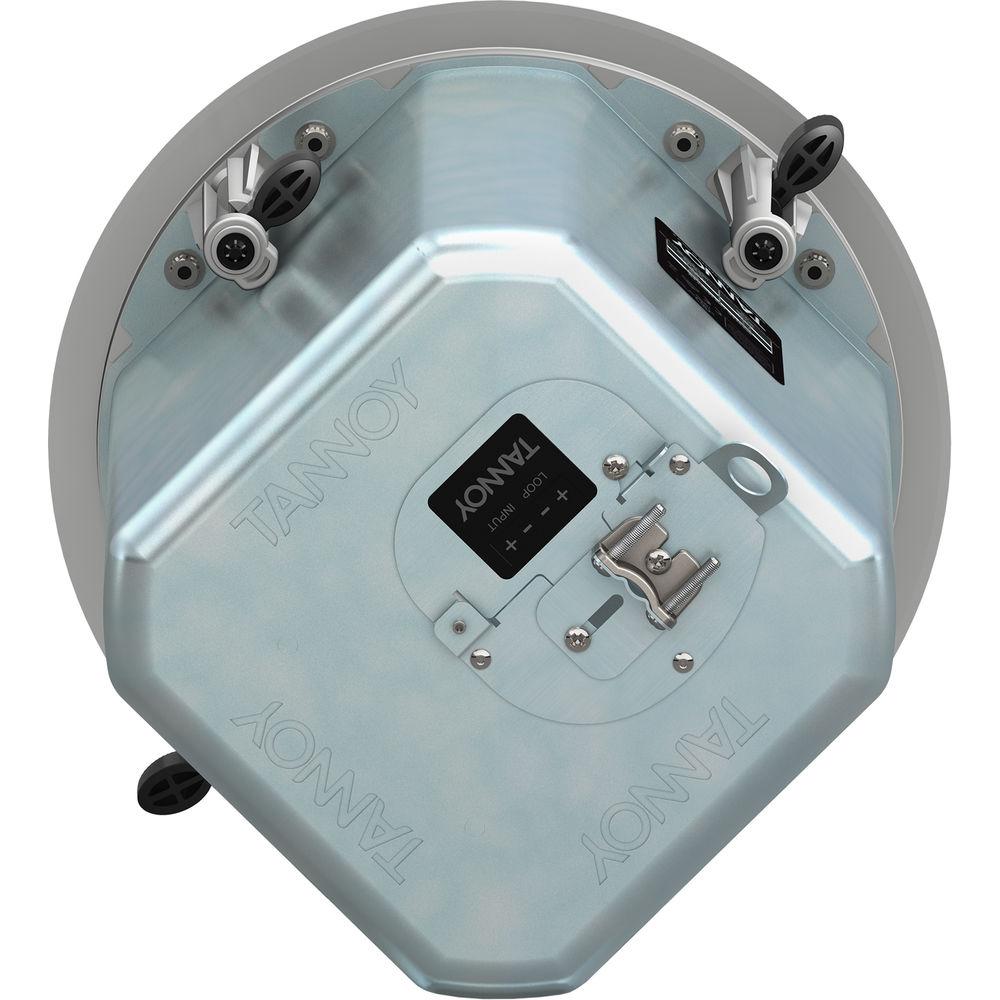

Each speaker is supplied with an integral backcan, ready to install as a single unit and features an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and loop-thru facility. Strain relief is provided by a clamping mechanism for use with plenum-rated cable or conduit, while new spring-loaded and self-aligning clamps make for even quicker and easier installation. Each loudspeaker is shipped with a grille, two tile support rails, and a C-ring. - 6.5" ICT transducer for durability and longevity
- High power and high sensitivity with extended frequency response
- Wide, controlled, constant directivity dispersion for optimum coverage
- Convenient front tapping switch for settings

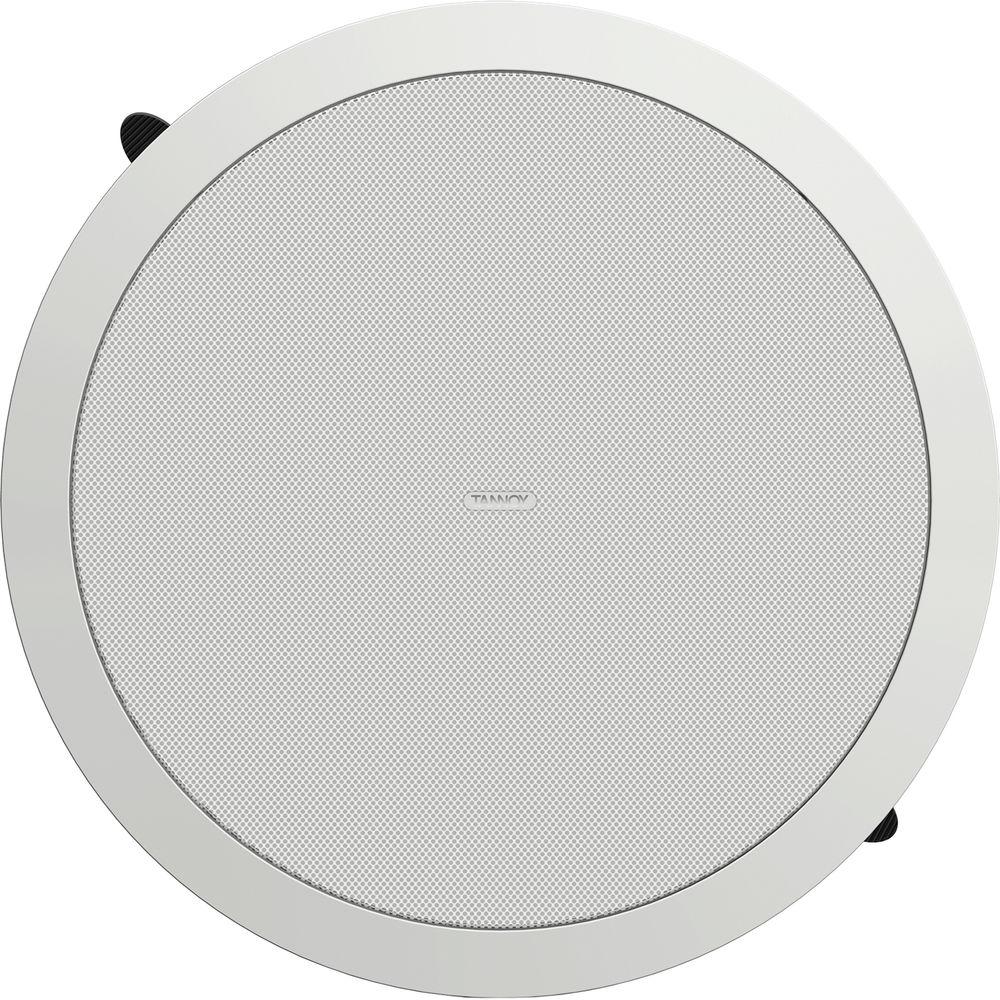

- Magnetically-adhering grille system for easy custom painting
- Four-clamp, self-aligning mounting system
- UV-resistant baffle and grille
- Suitable for: voice alarm systems, multi-zone foreground music & paging systems, boardrooms & offices, business music systems, airports, convention centers, hotels, waiting rooms, houses of worship, retail outlets, shopping malls, lounges, bars, cruise ships, and courtrooms
UPC: 748252163240 In the Box Tannoy 6" Full-Range Ceiling Loudspeaker with ICT Driver (Blind Mount, Pair) 2 x C-Rings 2 x Tile-Bridge Kits 2 x Paint Masks 2 x Cut-Out Templates 2 x Grilles Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy 6" Full-Range Ceiling Loudspeaker with ICT Driver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy CMS603ICTBM Specs | Low Frequency Driver | 6.5" / 165 mm mineral-loaded polypropylene | | High Frequency Driver | ICT aluminum dome | | Frequency Response | 78 Hz to 22 kHz at -3 dB | | Frequency Range | 51 Hz to 24 kHz at -10 dB | | System Sensitivity | 91 dB (1 W = 4 V for 16 Ohms) | | Nominal Coverage Angle | 90° conical | | Coverage Angle | 92°, 1 to 6 kHz | | Directivity Factor | 7.1 averaged, 1 to 6 kHz | | Directivity Index | 7.9 averaged, 1 to 6 kHz | | Power Handling | Average: 60 W
Program: 120 W
Peak: 240 W | | Recommended Amplifier Power | 120 W @ 16 Ohms | | Nominal Impedance | 16 Ohms | | Maximum SPL | Average: 109 dB
Peak: 115 dB | | Transformer Taps | 70 V: 60 W (83 Ohms) / 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / OFF & low impedance operation
100 V: 60 W (165 Ohms) / 30 W (330 Ohms) / 15 W (660 Ohms) / OFF & low impedance | | Enclosure | Backcan: Zinc plated steel
Baffle: Reflex-loaded UL 94V-0 rated ABS
Grille: Steel, with weather-resistant coating | | Safety Features | Safety ring located at rear of enclosure for load-bearing safety bond | | Clamping Characteristics | Security toggle clamp
Clamping Range: 0.37 - 2.36" / 1 - 6 cm
Recommended Clamp Torque: 1.5 Nm | | Cable Entry | Cable clamp & squeeze connector for conduit up to 0.9" / 22 mm | | Mount | Blind mount complete with fixed backcan | | Connectors | Removable locking screw terminals with "loop thru" | | Compliance | UL-1480, UL-2043, CE | | Dimensions | Bezel Diameter: 10.8" / 27.4 cm
Front of Ceiling to Rear of Back Can: 10.1" / 25.7 cm
Front of Ceiling to Top of Safety Loop: 10.8" / 27.4 cm
Hole Cutout Diameter: 10.0" / 25.3 cm | | Weight | 11.9 lb / 5.4 kg |
