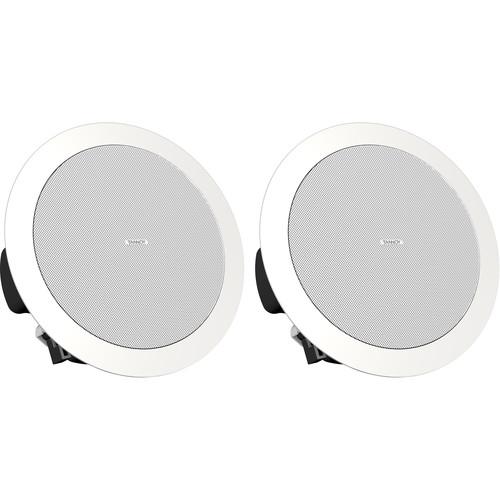

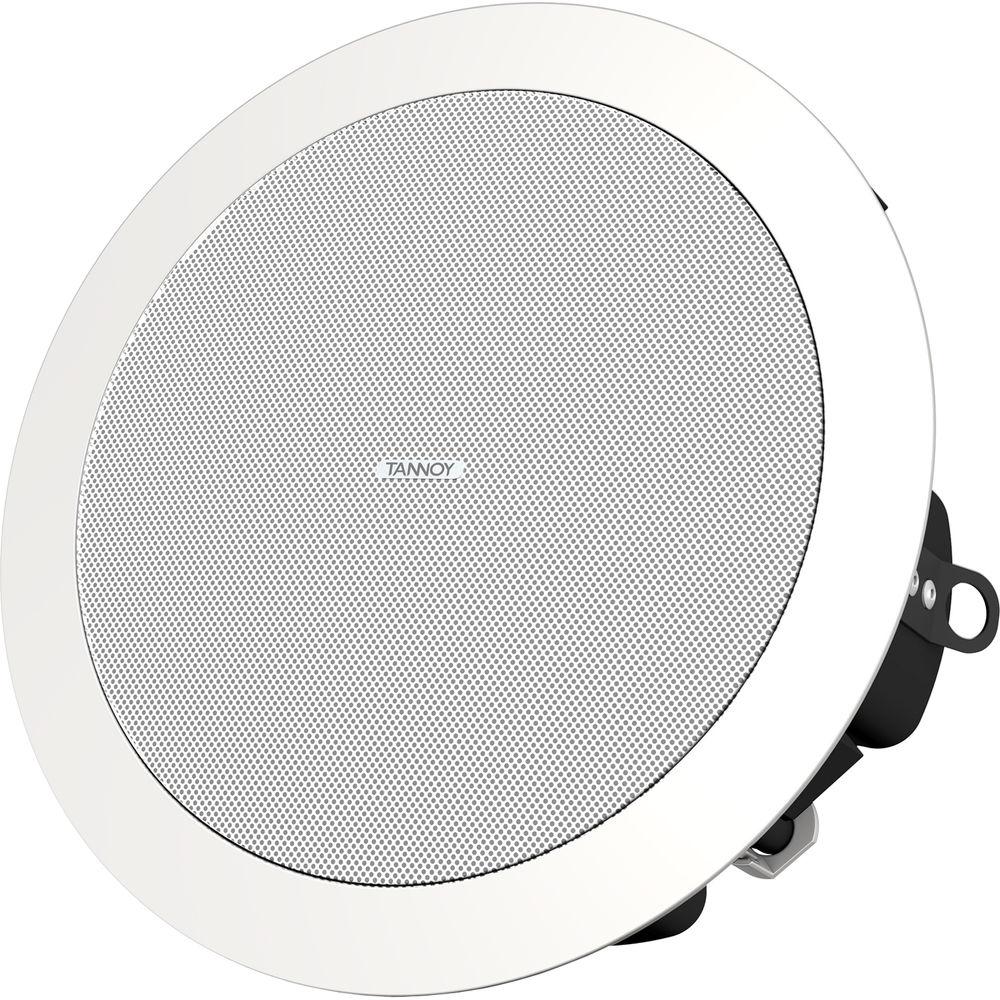

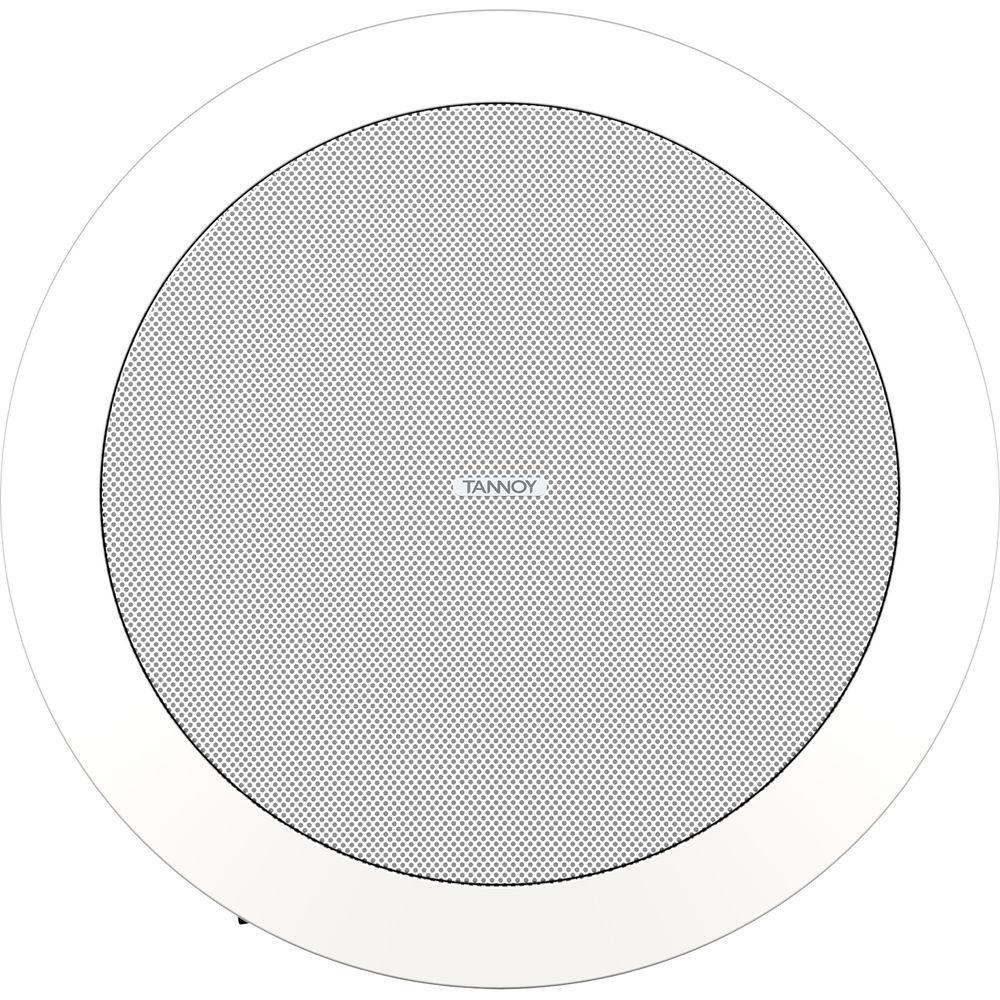

Product description Enjoy quality sound without cluttering your space with this EN54-24 certified pair of 4" 160W low-profile CVS 4 MICRO Coaxial In-Ceiling Loudspeakers with Shallow Backcan from Tannoy. Designed for use in background and foreground music sound systems, the CVS 4 MICRO speaker pair offers a wide frequency response of 90 Hz to 22 kHz at -10 dB, a peak power handling capacity of 160W, and a continuous capacity of 40W. It is suited for deployment in a wide variety of venues including restaurants, hotels, and businesses.

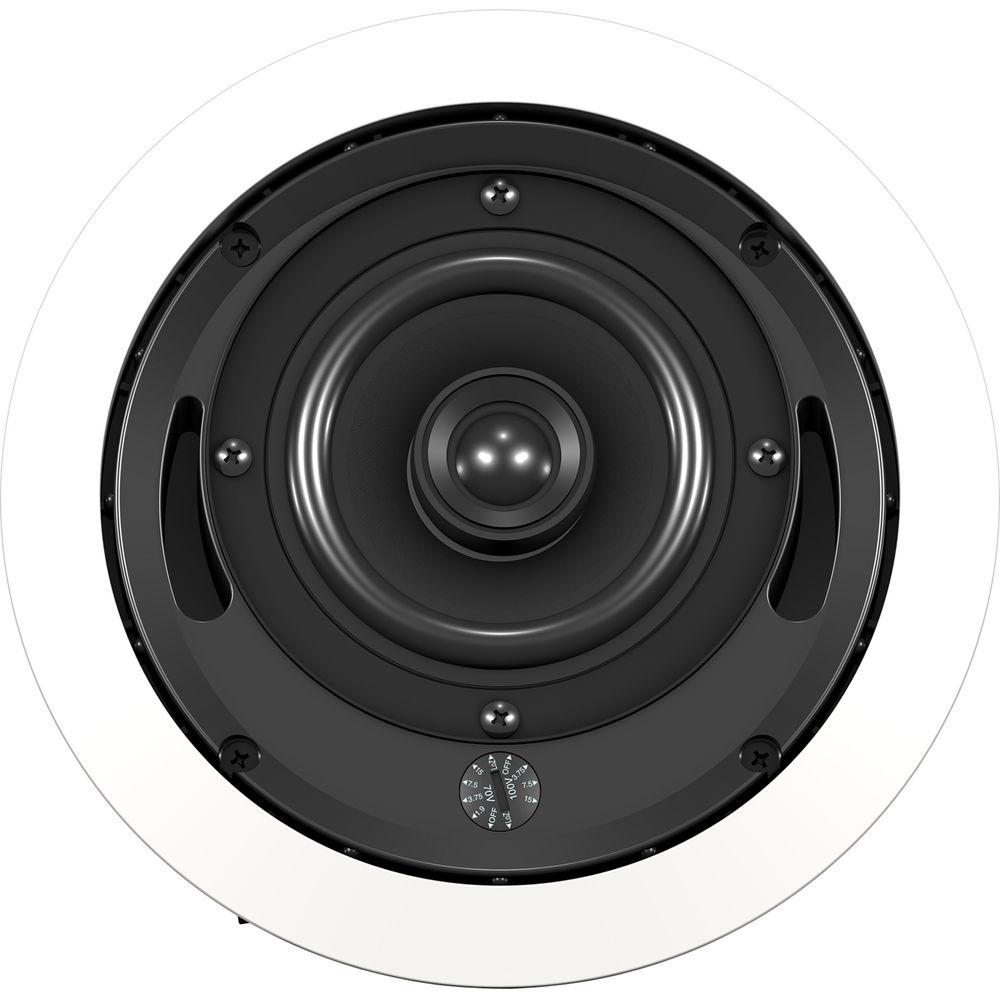

The speakers' design comprises a 4" mid/bass driver with a coaxially mounted 0.75" high-frequency section. An injection-molded semi-matt white front baffle made of UV/weather-resistant UL 94 V-0 ABS material holds the speaker components in place. The mineral-loaded polypropylene cone material and nitrile rubber surround enhance durability.

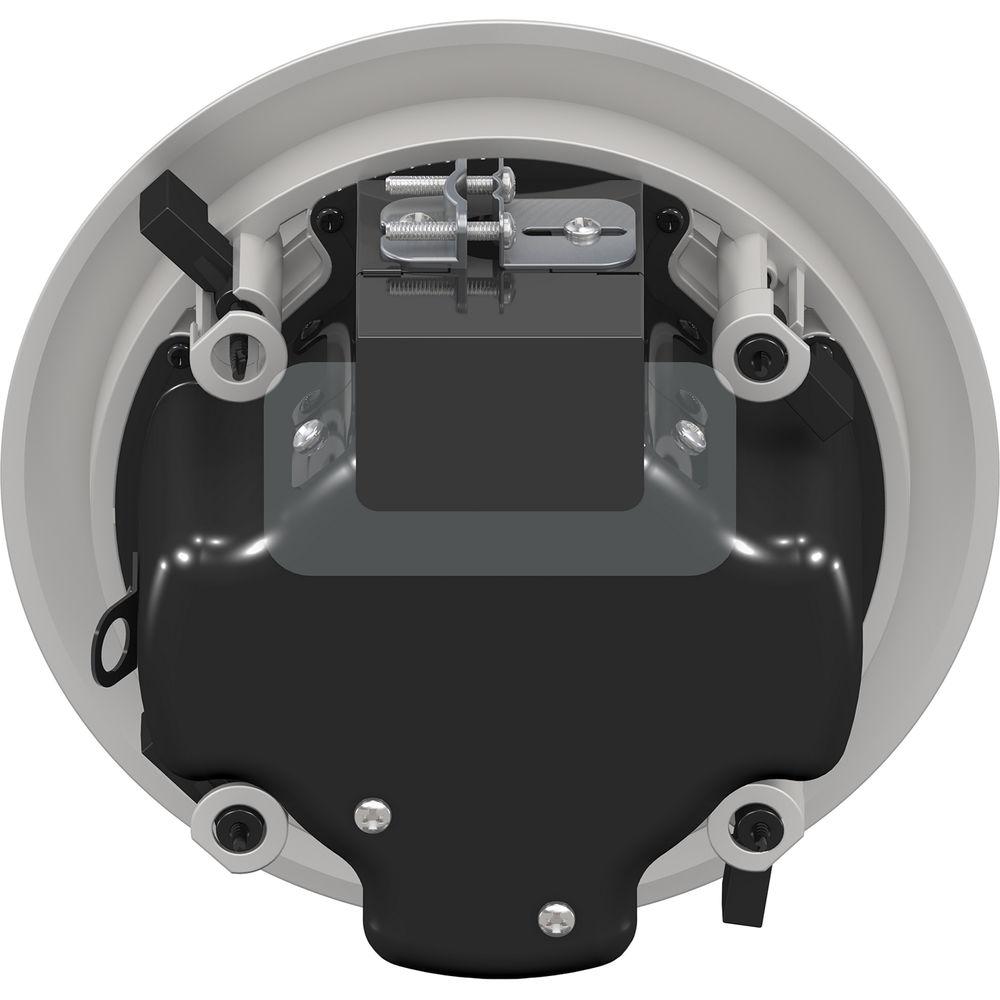

The CVS 4 MICRO speakers come with an integrated plated-steel enclosure, a Phoenix connector with steel cover, and an EN54-compliant strain-relief clamping mechanism for fire-rated cable. Input is via a low insertion-loss 15W line transformer with multiple taps for 70V and 100V line systems or 6 Ohm direct input. Included in the package are a tile bridge kit and a C-ring for each speaker. - Pair of coaxial full-range ceiling loudspeakers for installation applications
- EN54-24 certified for fire detection and fire alarm systems
- 40W continuous, 160W peak power
- 4" mineral-loaded polypropylene driver with nitrile rubber surround for long-term reliability
- 0.75" ferrofluid-cooled soft dome neodymium high-frequency driver
- Wide constant directivity dispersion for optimum coverage
- UV- and weather-resistant UL 94 V-0 ABS front with plated-steel fire can enclosure
- Multiple transformer taps for 70V and 100V line systems or 6-Ohm direct input
- Low insertion-loss 15W line transformer with easily accessible tapping switch
- Shallow backcan for applications where cavity space is limited
- Semi-matt white finish fits unobtrusively in most environments
- Powder-coated perforated steel mesh grille with dust protection
- Phoenix connector with steel cover and EN54-compliant strain-relief clamping mechanism for fire-rated cable
- Mounting C-rings and ceiling tile rails included
- Plaster (mud) rings available separately
- Designed and engineered in the U.K.
UPC: 748252186645 In the Box Tannoy CVS 4 MICRO EN54-Certified Coaxial In-Ceiling Loudspeaker with Shallow Backcan (Pair, 4", White) 2 x C-Ring 2 x Tile Bridge Kit 2 x Paint Mask 2 x Cutout Template Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy CVS 4 MICRO EN54-Certified Coaxial In-Ceiling Loudspeaker with Shallow Backcan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy CVS4MICROEN54 Specs | | | Frequency Response (-3 dB) | 110 Hz - 19 kHz | | Frequency Response (-10 dB) | 90 Hz - 22 kHz | | System Sensitivity | Rated Sensitivity: 87 dB
Sensitivity as per EN54-24: 74.1 dB | | Directivity Factor | Q: 5.6 averaged 1-6 kHz
DI: 7.1 averaged 1-6 kHz | | Power Handling | Average: 40 W
Program: 80 W
Peak: 160 W | | Recommended Amplifier Power | 80 W at 6 Ohms | | Nominal Impedance | 6 Ohms | | Maximum SPL | As per EN54-24: 85 dB, 13.1' / 4 m, through transducer
Average: 103 dB (3.3' / 1 m, Lo Z)
Peak: 109 dB (3.3' / 1 m, Lo Z) | | Transformer Taps | 70 V: 15 W (330 Ohms) / 7.5 W (660 Ohms) / 3.75 W (1280 Ohms) / 1.9 W (2470 Ohms) / off & low-impedance operation
100 V: 15 W (660 Ohms) / 7.5 W (1280 Ohms) / 3.75 W (2470 Ohms) / off & low-impedance operation
Crossover Point: 2.5 kHz | | Coverage Angle | 500 Hz: 179° horizontal, 178° vertical
1 kHz: 175° horizontal, 175° vertical
2 kHz: 155° horizontal, 155° vertical
4 kHz: 86° horizontal, 88° vertical | | Transducers | Low Frequency: 4" / 10 cm mineral-loaded cone material
High Frequency: 0.75" / 1.9 cm, coaxially-mounted | | | | Enclosure | Blind mount (BM) | | Backcan Material | Painted steel | | Baffle Material | Reflex-loaded UL 94 V-0 rated ABS | | Grille Material | Steel with weather-resistant coating | | Safety Features | Safety ring at rear of enclosure for load-bearing safety bond | | Clamping | Security toggle clamp | | Connectors | Euroblock-style connector with screw terminals (with input cover and cable gland) | | Safety Agency Approval | EN54-24 | | Dimensions | Hole Cutout Diameter: 7.1" / 18.0 cm
Bezel Diameter: 8.4" / 21.3 cm
Front of Ceiling to Rear of Back Can: 3.9" / 9.8 cm | | Weight | 6.2 lb / 2.8 kg |
