User Manual for Tannoy CVS 6 Coaxial EN54-Certified In-Ceiling Loudspeaker Click to enlarge the picture
Contents of the user manual for the Tannoy CVS 6 Coaxial EN54-Certified In-Ceiling
- Product category: Installed Speakers Tannoy
- Brand: Tannoy
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tannoy Installed Speakers
 |
User manual for the Tannoy CVS 6 Coaxial EN54-Certified In-Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tannoy product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tannoy user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tannoy product will considerably shorten its lifespan!
|

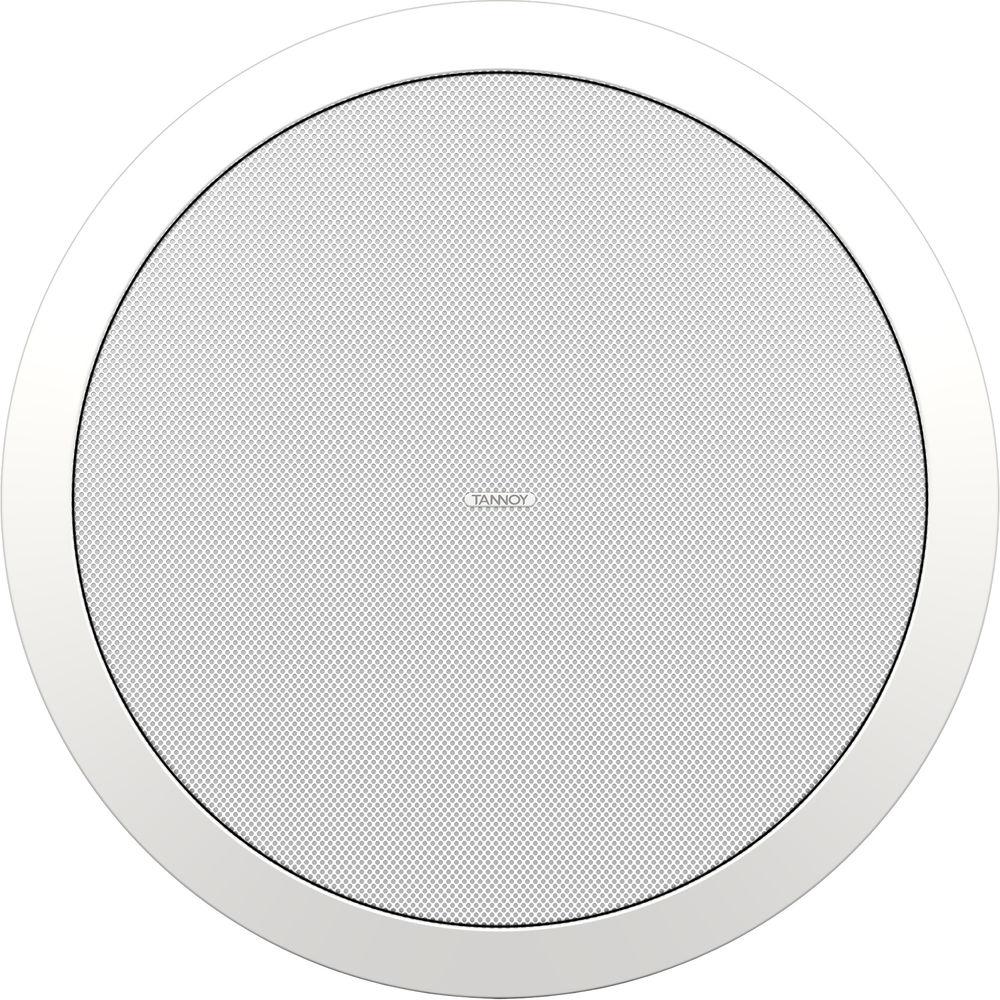

Product description Enjoy quality sound without cluttering your space with this EN54-24 certified pair of 6" 240W CVS 6 Coaxial In-Ceiling Loudspeakers from Tannoy. Designed for use in background and foreground music sound systems, the CVS 6 speaker pair offers a wide frequency response of 60 Hz to 24 kHz at -10 dB, a peak power handling capacity of 240W, and a continuous capacity of 60W. It is suited for deployment in a wide variety of venues including restaurants, hotels, and businesses.

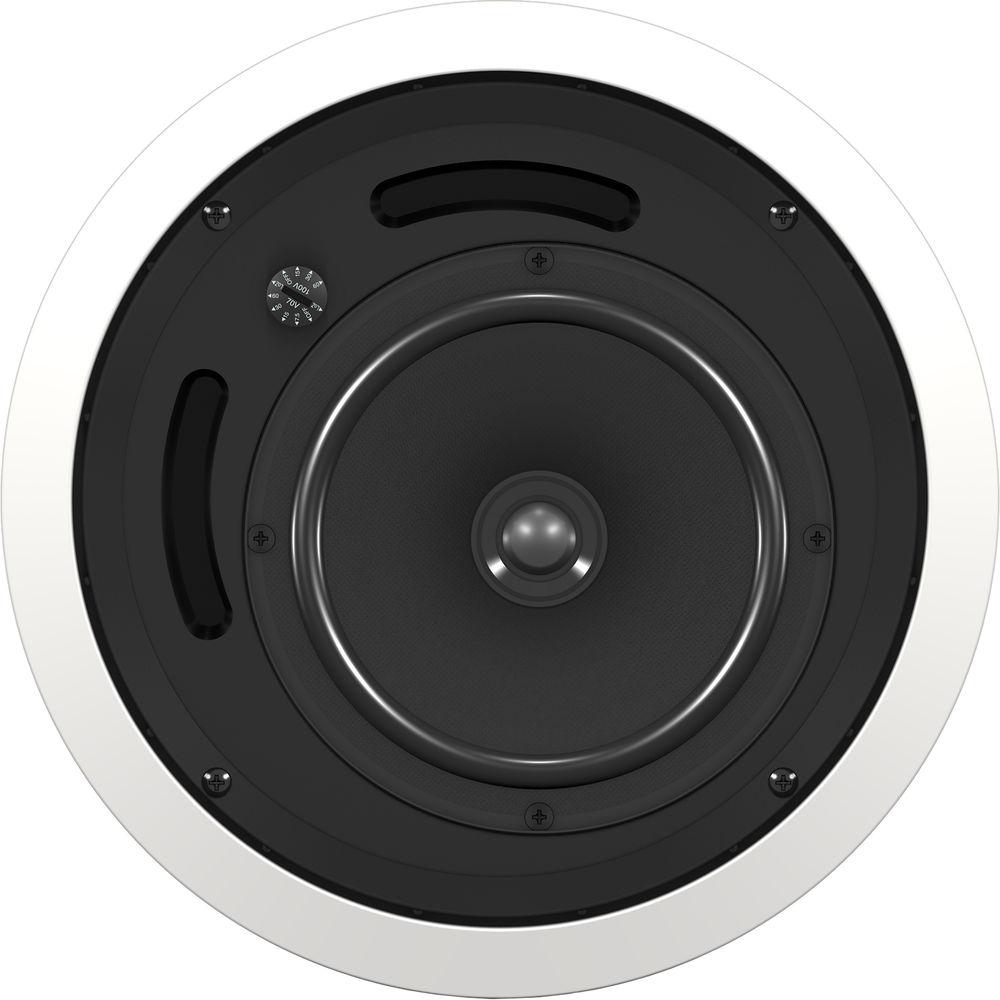

The speakers' design comprises a 6" mid/bass driver with a coaxially mounted 0.75" high-frequency driver. An injection-molded semi-matt white front baffle made of UV/weather-resistant UL 94 V-0 ABS material holds the speaker components in place. The mineral-loaded polypropylene cone material and nitrile rubber surround enhance durability.

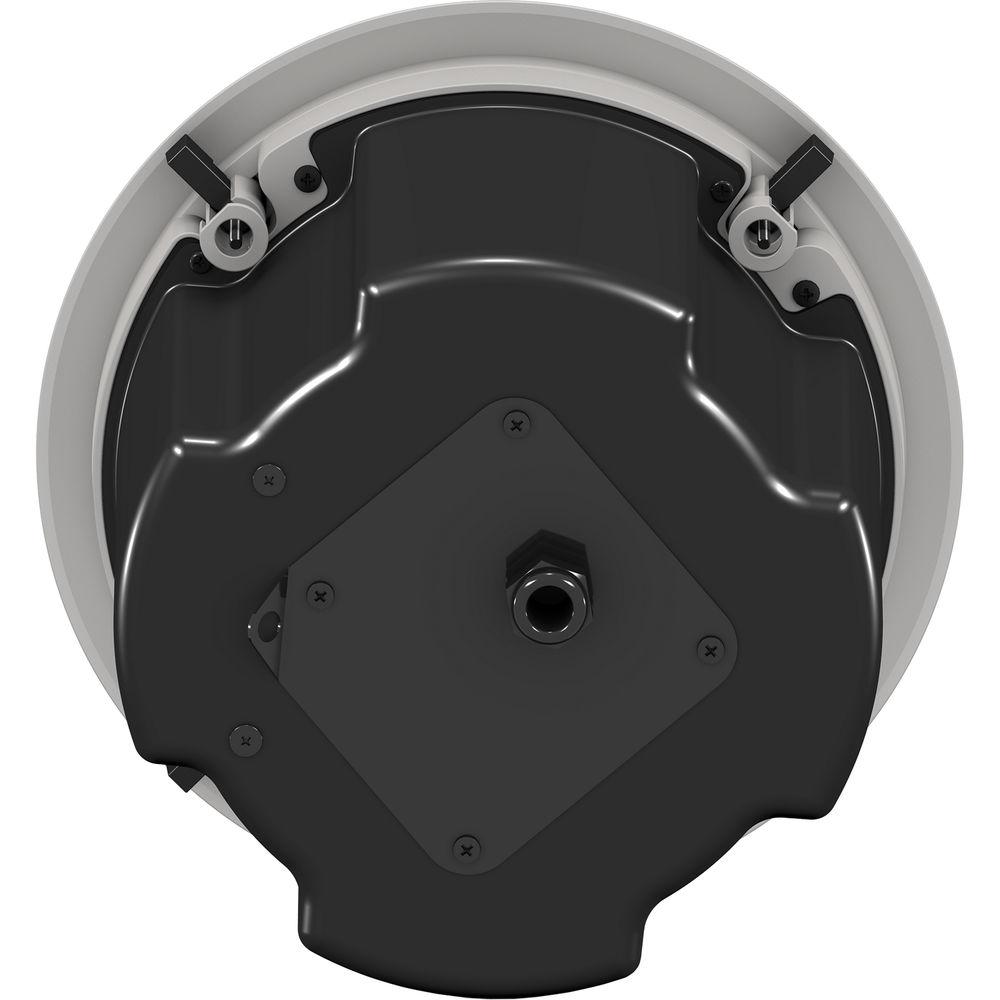

The CVS 6 speakers come with an integrated plated-steel enclosure, a Phoenix connector with steel cover, and an EN54-compliant mechanism for fire-rated cable. Input is via a low insertion-loss 60W line transformer with multiple taps for 70V and 100V line systems or 6 Ohm direct input. Included in the package are a tile bridge kit, paint mask, cutout template, and a C-ring for each speaker. - Pair of coaxial full-range ceiling loudspeakers for installation applications
- EN54-24 certified for fire detection and fire alarm systems
- 60W continuous, 240W peak power
- 6" mineral-loaded polypropylene driver with nitrile rubber surround for long-term reliability
- 0.75" ferrofluid-cooled soft dome neodymium high-frequency driver
- Wide constant directivity dispersion for optimum coverage
- UV- and weather-resistant UL 94 V-0 ABS front with plated-steel fire can enclosure
- Multiple transformer taps for 70V and 100V line systems or 6-Ohm direct input
- Low insertion-loss 60W line transformer with easily accessible tapping switch
- Semi-matt white finish fits unobtrusively in most environments
- Powder-coated perforated steel mesh grille with dust protection
- Phoenix connector with steel cover and EN54-compliant strain-relief clamping mechanism for fire-rated cable
- Mounting C-rings and ceiling tile rails included
- Plaster (mud) rings available separately
- Designed and engineered in the U.K.

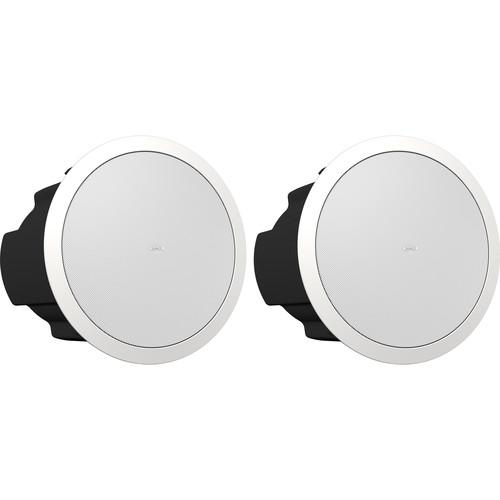

UPC: 748252186744 In the Box Tannoy CVS 6 Coaxial EN54-Certified In-Ceiling Loudspeaker (Blind-Mount, 6", White, Pair) 2 x C-Ring 2 x Tile Bridge Kit 2 x Paint Mask 2 x Cutout Template Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy CVS 6 Coaxial EN54-Certified In-Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy CVS6EN54 Specs | | | Frequency Response (-3 dB) | 79 Hz - 21 kHz | | Frequency Response (-10 dB) | 60 Hz - 24 kHz | | System Sensitivity | Rated Sensitivity: 91 dB (1 W, Lo Z)
Sensitivity as per EN54: 77.1 dB (13.1' / 4 m, through transformer) | | Directivity Factor | Q: 7.7 averaged 1 - 6 kHz
DI: 8.0 averaged 1 - 6 kHz | | Power Handling | Average: 60 W
Program: 120 W
Peak: 240 W | | Recommended Amplifier Power | 120 W at 6 Ohms | | Nominal Impedance | 6 Ohms | | Maximum SPL | As per EN54: 95 dB, 13.1' / 4 m, through transducer
Average: 109 dB (3.3' / 1 m, Lo Z)
Peak: 115 dB (3.3' / 1 m, Lo Z) | | Transformer Taps | 70 V: 60 W (83 Ohms) / 30 W (165 Ohms) / 15 W (270 Ohms) / 7.5 (528 Ohms) / off & low-impedance operation
100 V: 60 W (165 Ohms) / 30 W (270 Ohms) / 15 W (528 Ohms) / off & low-impedance operation
Crossover Point: 2.5 kHz | | Coverage Angle | 500 Hz: 175° horizontal, 175° vertical
1 kHz: 175° horizontal, 165° vertical
2 kHz: 140° horizontal, 125° vertical
4 kHz: 70° horizontal, 66° vertical | | Transducers | Low Frequency: 6" / 15 cm mineral-loaded cone material
High Frequency: 0.75" / 1.9 cm, coaxially-mounted | | | | Enclosure | Blind mount (BM) | | Back Can Material | Painted steel | | Baffle Material | Reflex-loaded UL 94 V-0 rated ABS | | Grille Material | Steel with weather-resistant coating | | Safety Features | Safety ring at rear of enclosure for load-bearing bond | | Clamping | Security toggle clamp | | Connectors | Euroblock-style connector with screw terminals (with input cover and cable gland) | | Safety Agency Approval | EN54-24 | | Cutout Size | 9.8" / 25 cm | | Dimensions | Bezel Diameter: 11" / 28 cm
Front of Ceiling to Rear of Backcan: 9.3" / 23.6 cm
Front of Ceiling to Top of Cable Clamp: 10.35" / 26.2 cm | | Weight | 12.8 lb / 5.8 kg |
