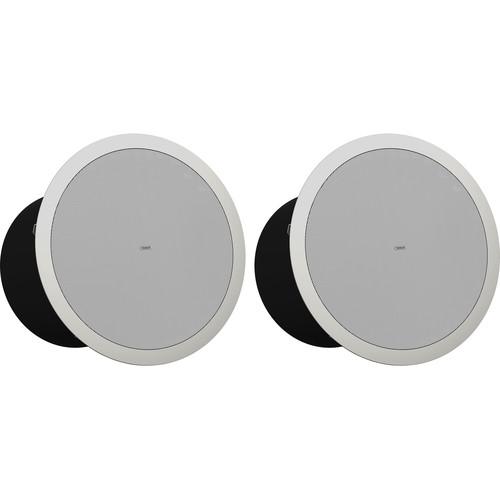

Product description Enjoy quality sound without cluttering your space with this pair of 8" 240W CVS 8 Coaxial In-Ceiling Loudspeakers from Tannoy. Designed for use in background and foreground music sound systems, the CVS 8 speaker pair offers a wide frequency response of 60 Hz to 24 kHz at -10 dB, and 240W peak with 60W continuous power. It is suited for deployment in a wide variety of venues including restaurants, hotels, and businesses.

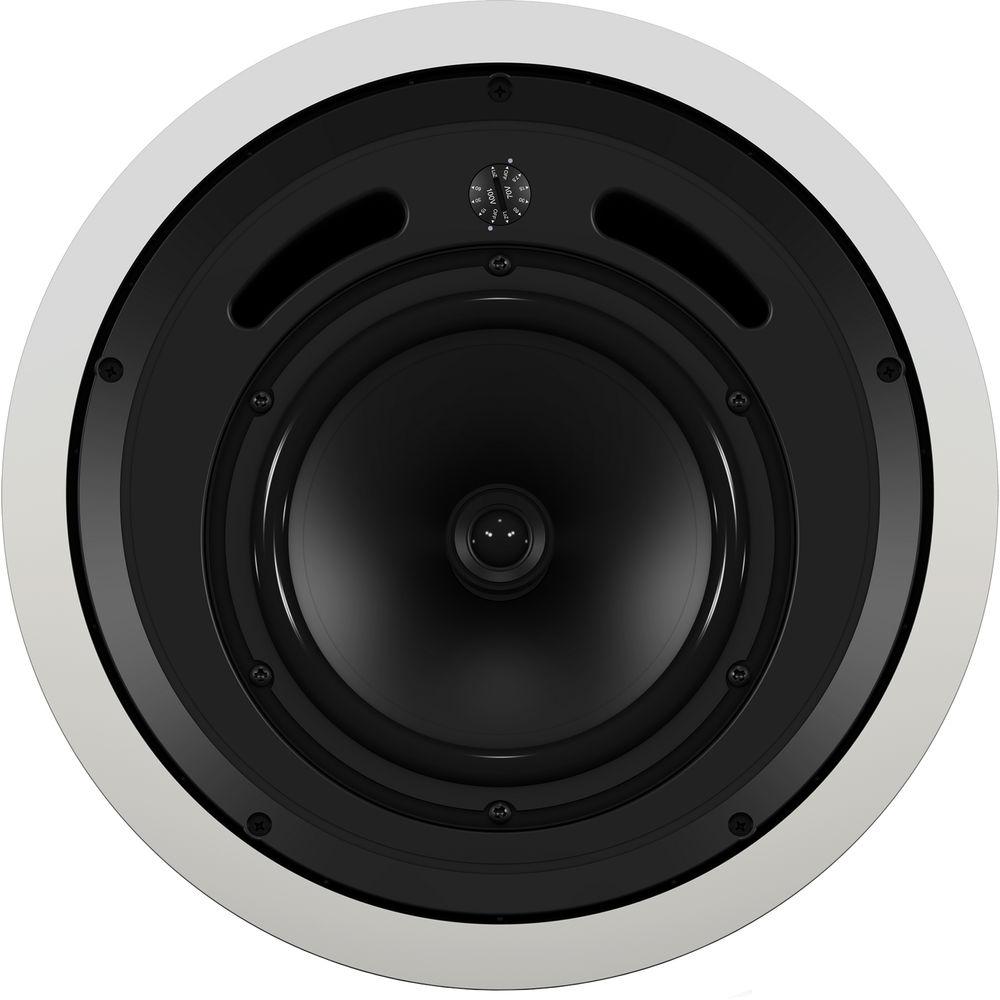

The speakers' design comprises a 8" mid/bass transducer with a coaxial 0.75" high-frequency driver. A vented, injection-molded, paintable front baffle manufactured from UV- and weather-resistant UL94V-0 ABS material holds the speaker components in place. The mineral-loaded polypropylene cone material and nitrile rubber surround enhance durability.

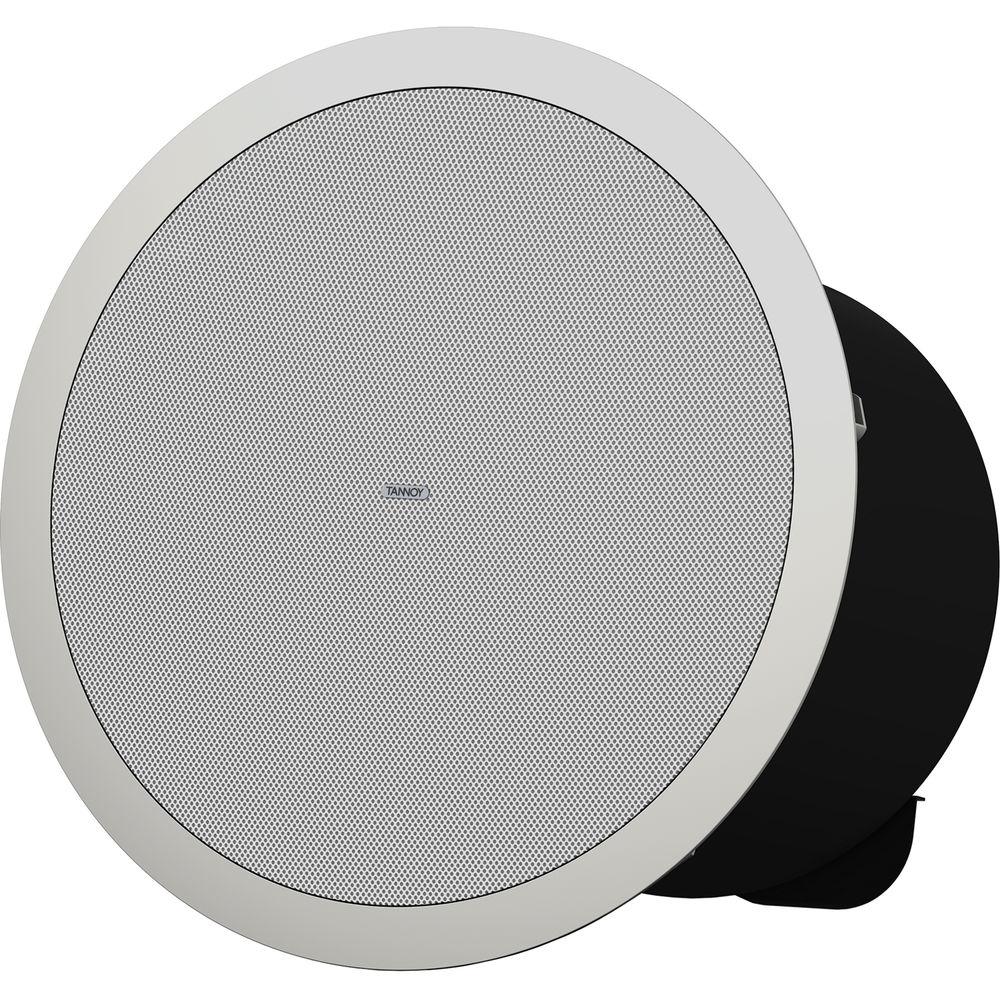

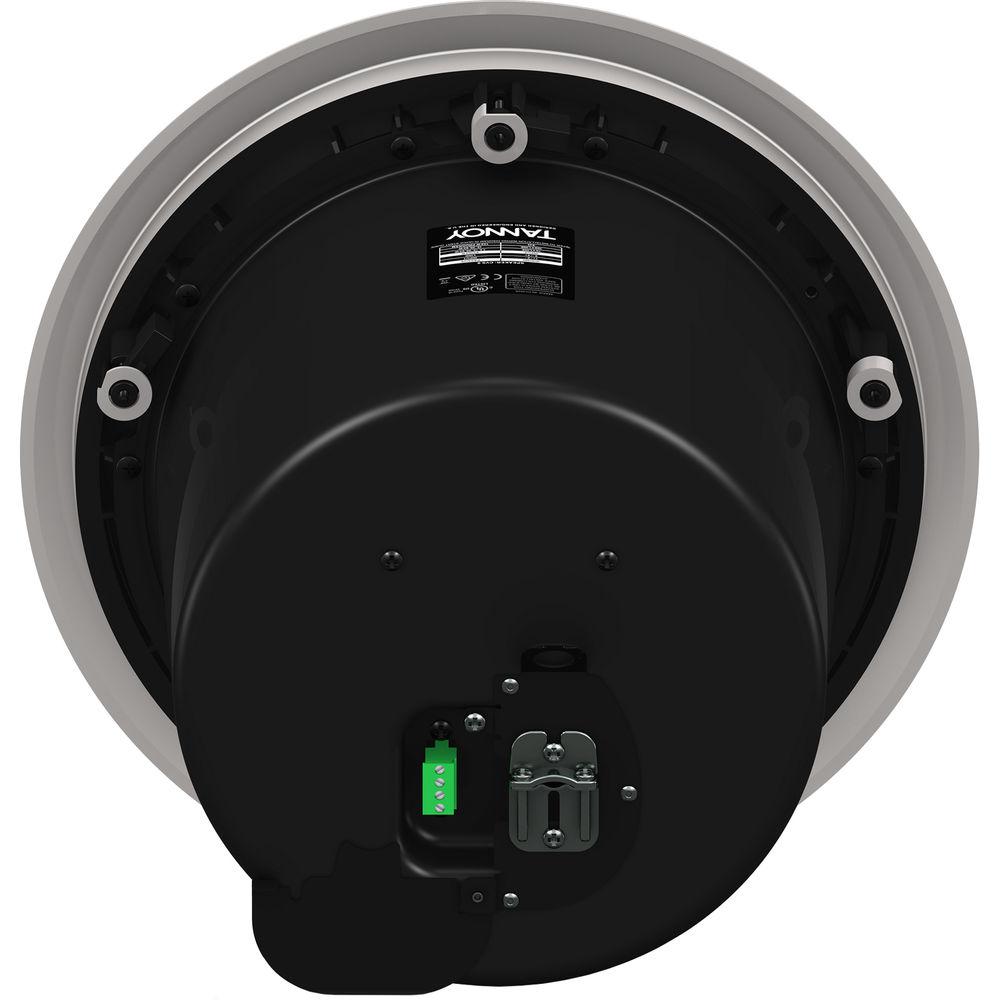

The CVS 8 speakers come with an integrated zinc-plated steel back can and a recessed termination box. The removable locking connector has screw terminals for secure wire termination and loop-through. A clamping mechanism for use with plenum-rated cable or conduit provides strain relief, while security toggle clamps make for quick and easy installation. Also included in the package are a tile bridge kit and a C-ring for each speaker. - Pair of coaxial full-range ceiling loudspeakers for installation applications
- 60W continuous, 240W peak power
- 8" mineral-loaded polypropylene driver with nitrile rubber surround for long-term reliability
- 0.75" ferrofluid cooled soft dome neodymium high-frequency driver
- Wide constant directivity dispersion for optimum coverage
- UL 1480 certified for fire-protected signaling systems
- UL 2043 certified for air-handling spaces
- UV- and weather-resistant UL 94 V-0 ABS front with plated steel fire can enclosure
- Multiple transformer taps for 70V and 100V line systems or 6-Ohm direct input
- Low insertion loss 60W line transformer with easily accessible tapping switch
- Semi-matt white finish fits unobtrusively in most environments

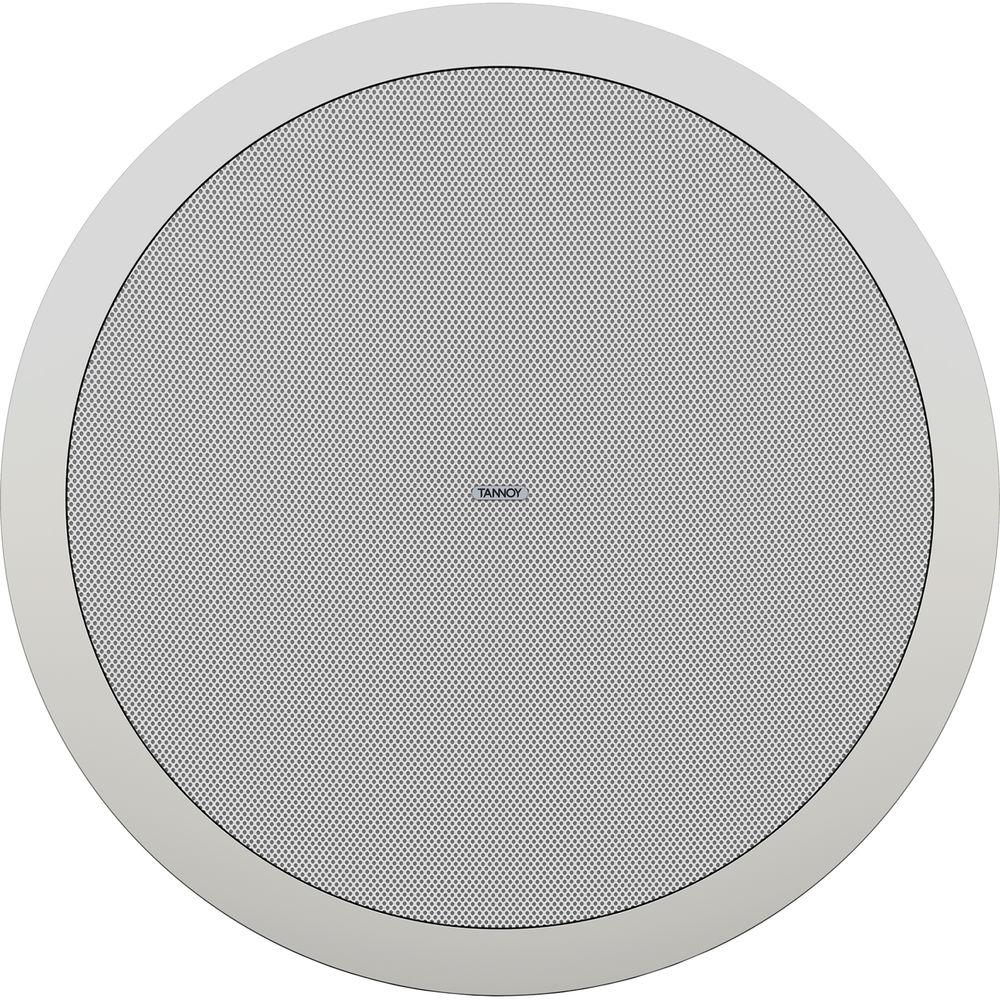

- Powder coated perforated steel mesh grille with dust protection
- Mounting C-rings and ceiling tile rails included
- Phoenix connector with steel cover and strain-relief clamping mechanism for fire-rated cable
- Plaster (mud) rings available separately
- Designed and engineered in the U.K.
UPC: 748252162342 In the Box Tannoy CVS 8 Coaxial In-Ceiling Loudspeaker (Pair, 8", White) 2 x C-Rings 2 x Tile Bridge Kits 2 x Paint Masks 2 x Cutout Templates 2 x Grilles Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy CVS 8 Coaxial In-Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy CVS8 Specs | | | Frequency Response (-3 dB) | 79 Hz - 21 kHz | | Frequency Response (-10 dB) | 60 Hz - 24 kHz | | System Sensitivity | 93 dB (1 W at 3.3' / 1 m; 1 W = 2.45 V for 6 Ohms) | | Nominal Coverage Angle | 90° conical | | Coverage Angle | 84° conical (1 to 6 kHz) | | Directivity Factor | 14.7 averaged 1 - 6 kHz | | Directivity Index | 11.7 averaged 1 - 6 kHz | | Maximum SPL | Average: 111 dB
Peak: 117 dB | | Power Handling | Average: 60 W
Program: 120 W
Peak: 240 W | | Recommended Amplifier Power | 120 W at 6 Ohms | | Nominal Impedance | 6 Ohms | | Transformer Taps | Via front rotary switch
70 V: 60/30/15/7.5 W / off & low-impedance operation
100 V: 60/30/15 W / off & low-impedance operation | | Crossover | 6 kHz | | Transducers | Low Frequency: 8" / 20 cm cm mineral-loaded cone
High Frequency: 0.75" / 1.9 cm, coaxially-mounted | | | | Back Can Material | Zinc-plated steel | | Baffle Material | Reflex-loaded UL 94 V-0 rated ABS | | Grille Material | Steel with weather-resistant coating | | Safety Features | Safety ring at rear of enclosure for load bearing safety bond | | Clamping | Security toggle clamp
Recommended Clamp Torque: 1.5 Nm | | Cable Entry | Cable clamp & squeeze connector for conduit up to 0.87" / 2.2 cm | | Connectors | Removable locking connector with screw terminals with loop-through facility | | Safety Agency Approval | UL-1480, UL-2043, and CE | | Cutout Diameter | 12.6" / 32 cm | | Dimensions | Bezel Diameter: 14" / 35.56 cm
Front of Ceiling to Rear of Back Can: 9.88" / 25.1 cm
Front of Ceiling to Top of Safety Loop: 10.39" / 26.4 cm | | Weight | 14.6 lb / 6.6 kg |
