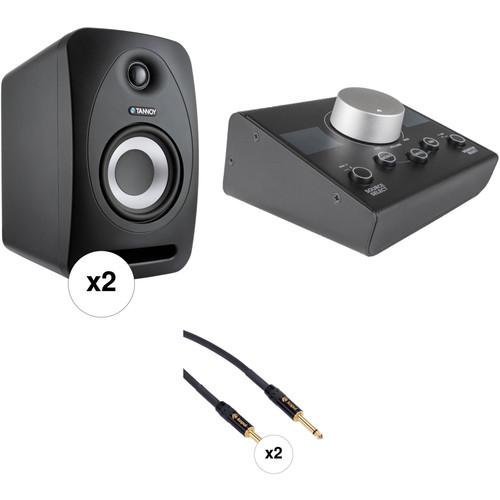

User Manual for Tannoy Reveal 402 Monitor Kit with Controller and Cables

• Product category: Studio Monitors Tannoy
• Brand: Tannoy
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Tannoy Studio Monitors

Product description

• 2 x Tannoy Reveal 402 4" 50W Active Studio Monitor (Single) The Reveal 402 from Tannoy is a 4" powered 2-way reference speaker that is designed for mixing and monitoring in the home, or the studio. It features an active crossover filter that aims to improve timing for a wider sweet spot, plus an accurately-tuned, front-firing bass port to help ensure optimal low frequency performance.

  Equipped with a bi-amped, 50W amplifier that powers a 4" woofer and a 0.75" soft-dome tweeter, the Reveal 402 is designed to ensure maximum power and tonal clarity. It also features adjustable volume and EQ settings to customize the tuning of the speaker to compensate for acoustical deficiencies that may be present in your monitoring environment.

  Included in the box of each monitor, is a 5 meter 1/8" (3.5mm) jack cable. Combined with the AUX Link feature, this allows you to plug into your laptop or portable music player's headphone output and link two Reveal 402 monitors for an instant stereo setup with no need for external interfaces. This is convenient for mixing on-the-go or for times when you just want to listen to some of your favorite music from your mobile device.
  Additional Features:
  • •Balanced XLR and unbalanced 1/4" inputs for maximum flexibility
    •Rubber padded base for acoustical isolation
• Mackie Big Knob Passive Studio Monitor Controller The Big Knob Passive Studio Monitor Controller from Mackie is a monitor-control solution that allows you to choose between two audio sources and two monitor pairs. It can be used for project and professional studios and is designed to increase your workflow for recording and mixing applications. It features mono, mute and dim functions and delivers pristine audio quality. Built with the classic Big Knob volume control, it is designed with a passive audio path, which requires no power supply. The Big Knob Passive Studio Monitor Controller is sturdy and has a "built-like-a-tank" design. UPC: 663961050462
• 2 x Kopul Studio Elite 4000 Series 1/4" Male to 1/4" Male Studio Instrument Cable (10') The 10' Studio Elite 4000 Series 1/4" Male to 1/4" Male Studio Instrument Cable from Kopul is designed for connecting guitars to amplifiers or any other application where a 1/4" instrument or unbalanced line-level connection is required. It can be used in several studio environments for applications such as recordings, broadcast TV, post production houses, and more. Kopul's 4000 series instrument cables are engineered for protection against electromagnetic interference (EMI), radio frequency interference (RFI), and the significant reduction of static noise. This cable features gold-plated 1/4" connectors that have a metal shell, and shrink-wrap strain relief. The 22-gauge annealed-copper conductors with dense braided spiral copper shielding, as well as a conductive PVC, and PE insulation make the Studio Elite 4000 Series instrument cable a flexible, quiet cable that ensures excellent transfer of the audio signal.
  Protection Against Interference
  • Densely braided copper shielding with 98% coverage provides protection against electromagnetic and radio frequency interference as well as static noise
  22-AWG Copper Conductor
  • The 22-gauge annealed copper provides excellent signal conductivity
  PVC Shield and PE Insulation
  • The conductive PVC shield and PE insulation deliver additional protection against EM and RF interference and ensure that noise does not compromise your signal
  Heavy-Duty Gold-Plated Connectors
  • Gold-plated 1/4ʺ male connectors ensure reliable signal transfer
  Flexible
  • A PVC jacket offers protection for the cable while maintaining its flexibility
  Shrink-Wrap Strain Relief
  • The shrink-wrap strain relief offers better protection from twisting and tension during the most demanding studio or performance applications
  UPC: 847628590403

• 2 x Reveal 402 4" 50W Active Studio Monitor (Single) faastaww
• 5m 1/8" (3.5mm) Jack Cable
• Limited 1-Year Warranty

• Mackie - Big Knob Passive Studio Monitor Controller

• 2 x Kopul - Studio Elite 4000 Series 1/4" Male to 1/4" Male Studio Instrument Cable (10')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Tannoy Reveal 402 4" 50W Active Studio Monitor (Single)

  Frequency Response	56 Hz - 48 kHz
  Maximum SPL	101 dB
  Equalization	Neutral HF setting, +/-1.5 dB HF boost/cut
  Crossover Frequency	2.8 kHz
  Low Frequency Alignment	Optimized front port
  Fuse Data	100 - 120 V: T800 mAL / 250 V 200 - 240 V: T800 mAL / 250 V
  Max Power Consumption	96 W
  Power Supply Compatibility	100-120 V or 200-240 V (50 - 60 Hz)
  Inputs	Balanced: XLR, 20 kOhm Unbalanced: 1/4" jack, 10 kOhm AUX Link: 1/8" jack, 10 kOhm
  Output	AUX Link: 1/8" jack
  THD	< 0.9 %
  Amplified Output	LF/mid range: 25 W (RMS) HF: 25 W (RMS)
  Drivers	LF/mid range: 4" (100 mm) HF: 3/4" (19 mm), soft dome
  Dimensions	9.45 x 5.79 x 8.35" (240 x 147 x 212 mm)
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	11.8 x 10.1 x 9.6"

• Mackie Big Knob Passive Studio Monitor Controller

  Input/Output Signal Sources	2 x 2
  USB I/O	N/A
  Resolution	N/A
  Mono/Mute/Dim	Yes
  Output	Dedicated Studio Out: No
  Headphone Outputs	None
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	8.3 x 7.8 x 4.9"

• 2 x Kopul Studio Elite 4000 Series 1/4" Male to 1/4" Male Studio Instrument Cable (10')

  Connector 1	1 x 1/4" TS Male Straight
  Connector 2	1 x 1/4" TS Male Straight
  Cable Length	10' / 3.05 m
  Shielding	98% Copper Braid
  Wire Gauge	22 AWG
  Contact Plating	Gold
  Jacket Type	Polyvinyl Chloride (PVC)
  Conductor Material	Bare Annealed Copper (BAC)
  Insulation Type	Polyethylene
  Certifications	CE, RoHS, as per Manufacturer

  Box Dimensions (LxWxH)	9.3 x 5.9 x 0.7"
