User Manual for Tannoy Reveal 502 5" 75W Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the Tannoy Reveal 502 5" 75W Active
- Product category: Studio Monitors Tannoy
- Brand: Tannoy
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tannoy Studio Monitors
 |
User manual for the Tannoy Reveal 502 5" 75W Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tannoy product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tannoy user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tannoy product will considerably shorten its lifespan!
|

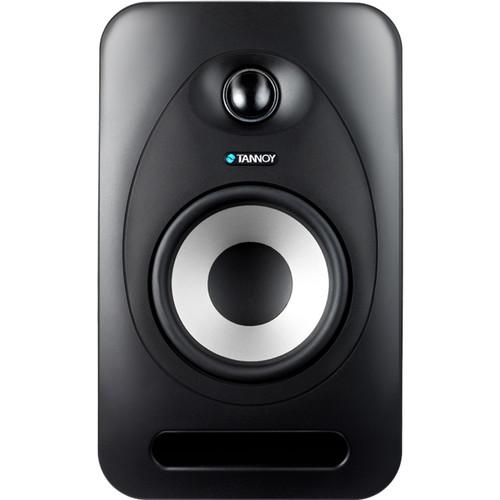

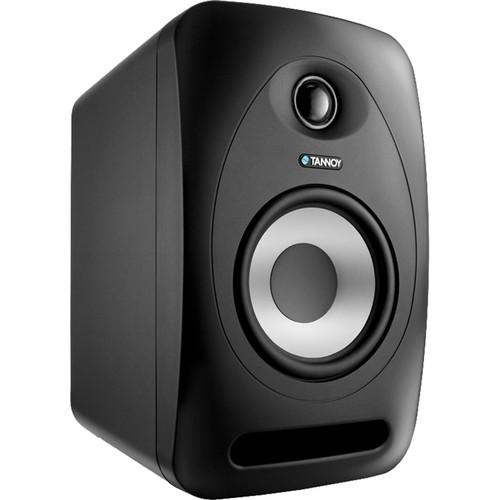

Product description The Reveal 502 from Tannoy is a 5" powered 2-way reference speaker that is designed for mixing and monitoring in the home or the studio. It features an active crossover filter that aims to improve timing for a wider sweet spot, plus an accurately tuned, front-firing bass port to help ensure optimal low-frequency performance.
Equipped with a bi-amped, 75W amplifier that powers a 5" woofer and a 1" soft-dome tweeter, the Reveal 502 is designed to ensure maximum power and tonal clarity. It also features adjustable volume and EQ settings to customize the tuning of the speaker to compensate for acoustical deficiencies that may be present in your monitoring environment.
Included in the box of each monitor, is a 16-foot 1/8" (3.5mm) jack cable. Combined with the AUX Link feature, this allows you to plug into your laptop or portable music player's headphone output and link two Reveal 502 monitors for an instant stereo setup with no need for external interfaces. This is convenient for mixing on the go or for times when you just want to listen to some of your favorite music from your mobile device. - Additional Features:

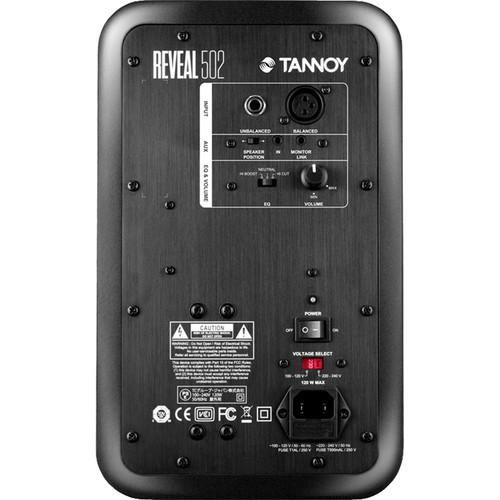

- •Balanced XLR and unbalanced 1/4" inputs for maximum flexibility
•Rubber-padded base for acoustical isolation
•1/8" (3.5mm) AUX Link jack for direct connection to devices In the Box Tannoy Reveal 502 5" 75W Active Studio Monitor (Single) 1/8" (3.5 mm) Jack Cable (16') Power Cable Limited 2-Year Warranty User Manual PDF 142.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy Reveal 502 5" 75W Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy 502 Specs | Frequency Response | 49 Hz - 43 kHz | | Maximum SPL | 108 dB | | Total Harmonic Distortion (THD) | < 0.7 % | | Dispersion | 90° (-6 dB) | | Drivers | LF/Midrange: 5" (130 mm)
HF: 1" (25 mm), soft dome | | Amplified Output | LF/Midrange: 50 W (RMS)
HF: 25 W (RMS) | | Crossover Frequency | 2.3 kHz | | High Frequency EQ | Neutral; +/-1.5 dB boost/cut | | Low Frequency Alignment | Optimized front port | | Inputs | Balanced: XLR, 20 kOhms
Unbalanced: 1/4" (6.35 mm) jack, 10 kOhms
AUX Link: 1/8" (3.5 mm) jack, 10 kOhms | | Output | Monitor Link: 1/8" (3.5 mm) jack | | Power Supply Compatibility | 100-120 V or 200-240 V (switchable), 50-60 Hz | | Max Power Consumption | 120 W | | Fuse Data | 100-120 V: T1AL / 250 V
200-240 V: T500 mAL / 250 V | | Dimensions | 11.81 x 7.24 x 9.37" (300 x 184 x 238 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 16.7 x 13.0 x 10.9" |
