User Manual for Tannoy Reveal 802 8" 140W Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the Tannoy Reveal 802 8" 140W Active
- Product category: Studio Monitors Tannoy
- Brand: Tannoy
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tannoy Studio Monitors
 |
User manual for the Tannoy Reveal 802 8" 140W Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tannoy product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tannoy user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tannoy product will considerably shorten its lifespan!
|
Product description The Reveal 802 from Tannoy is an 8" powered 2-way reference speaker that is designed for mixing and monitoring at home or in the studio. It features an active crossover filter that aims to improve timing for a wider sweet spot, plus an accurately-tuned, front-firing bass port to help ensure optimal low-frequency performance.
Equipped with a bi-amped, 140W amplifier that powers an 8" woofer and a 1" soft-dome tweeter, the Reveal 802 is designed to ensure maximum power, tonal clarity, and low-frequency response. It also features adjustable volume and EQ settings to customize the tuning of the speaker to compensate for acoustical deficiencies that may be present in your monitoring environment.
Included in the box of each monitor, is a 5-meter 1/8" (3.5mm) jack cable. Combined with the AUX Link feature, this allows you to plug into your laptop or portable music player's headphone output and link two Reveal 802 monitors for an instant stereo setup with no need for external interfaces. This is convenient for mixing on-the-go or for times when you just want to listen to some of your favorite music from your mobile device. - Additional Features:
-

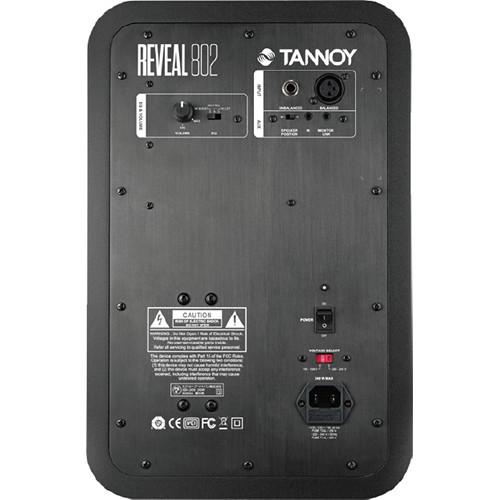

- Balanced XLR and unbalanced 1/4" inputs for maximum flexibility
- Rubber padded base for acoustical isolation
In the Box Tannoy Reveal 802 8" 140W Active Studio Monitor (Single) 5m 1/8" (3.5mm) Jack Cable Limited 1-Year Warranty User Manual PDF 142.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy Reveal 802 8" 140W Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy 802 Specs | Frequency Response | 42 Hz - 43 kHz | | Maximum SPL | 114 dB | | Equalization | Neutral HF setting, +/-1.5 dB HF boost/cut | | Crossover Frequency | 1.8 kHz | | Low Frequency Alignment | Optimized front port | | Fuse Data | 100 - 120 V: T2AL / 250 V
200 - 240 V: T1AL / 250 V | | Max Power Consumption | 240 W | | Power Supply Compatibility | 100-120 V or 200-240 V (50 - 60 Hz) | | Inputs | Balanced: XLR, 20 kOhm
Unbalanced: 1/4" jack, 10 kOhm
AUX Link: 1/8" jack, 10 kOhm | | Output | AUX Link: 1/8" jack | | THD | < 0.4% | | Amplified Output | LF/mid range: 100 W (RMS)
HF: 40 W (RMS) | | Drivers | LF/mid range: 8" (200 mm)
HF: 1" (25 mm), soft dome | | Dimensions | 15.35 x 10.00 x 11.81" (390 x 254 x 300 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 31.4 lb | | Box Dimensions (LxWxH) | 20.9 x 16.1 x 14.5" |
