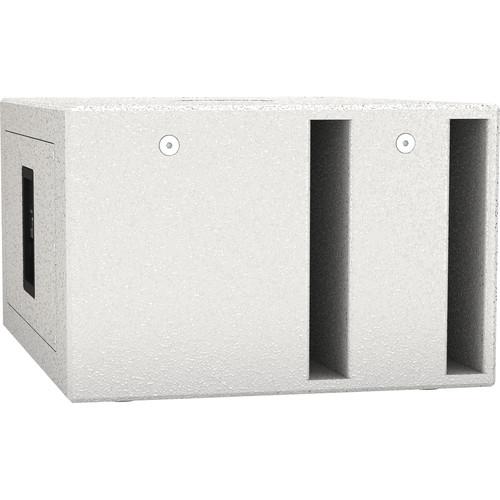

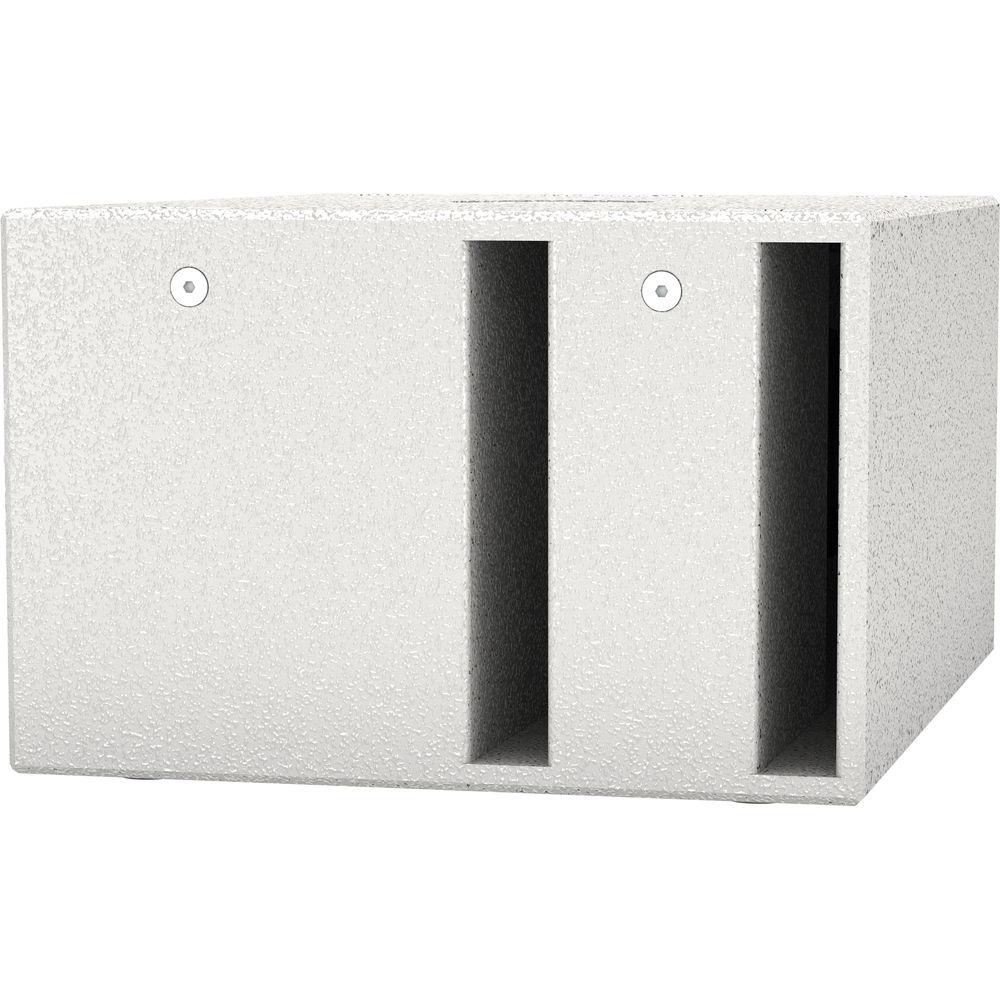

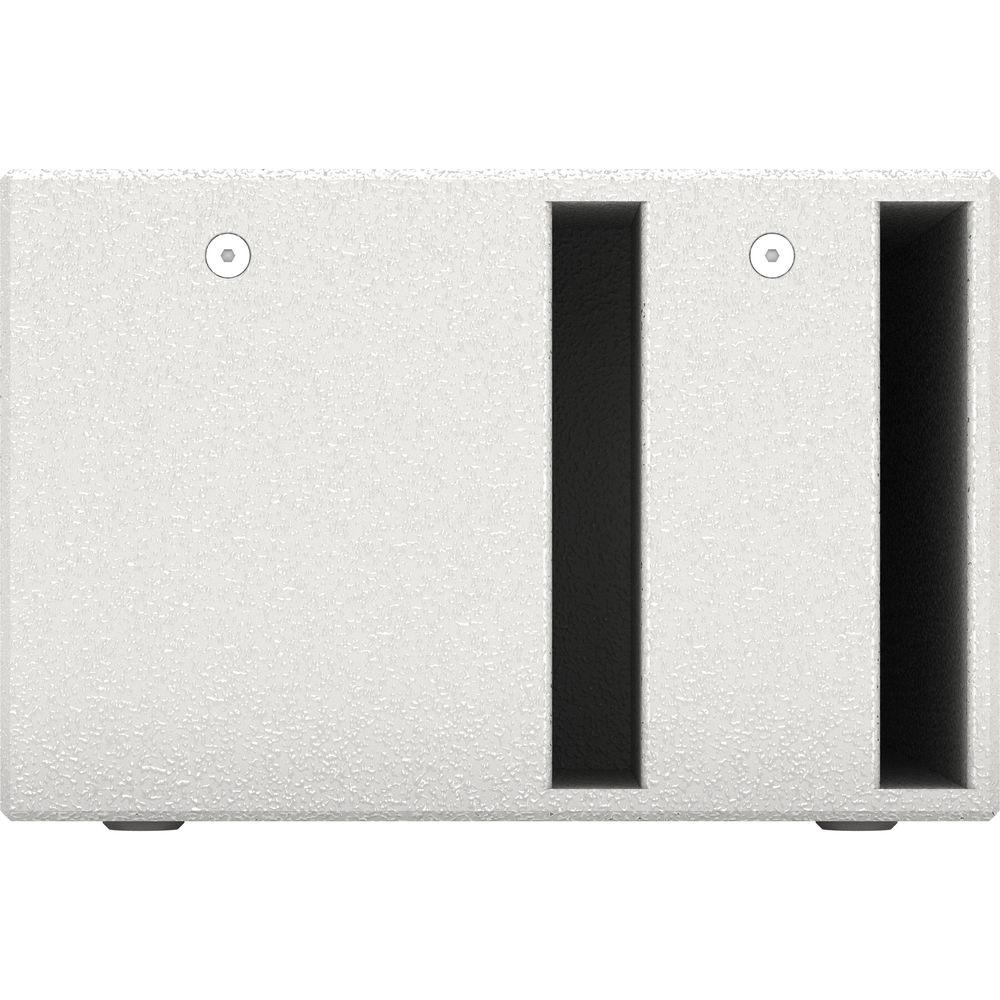

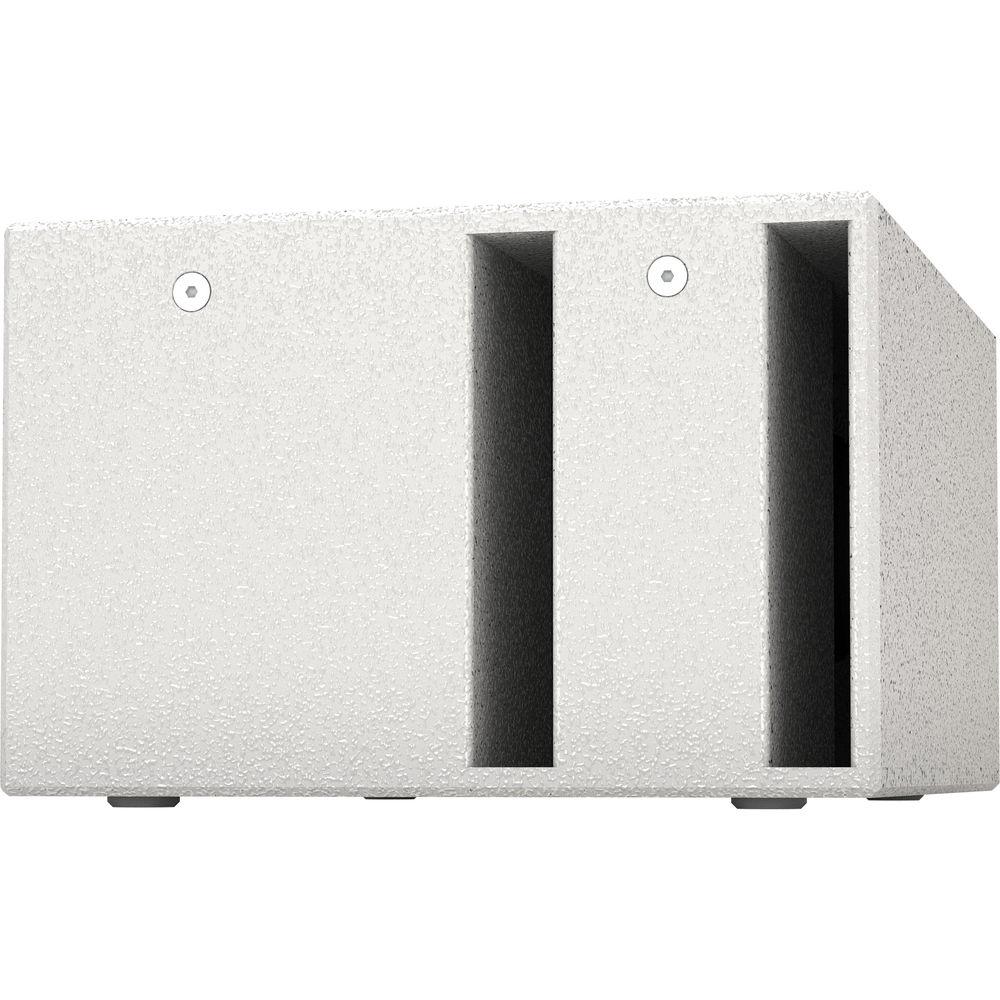

Product description The white Tannoy VSX 10BP-WH is a compact band-pass passive subwoofer well suited for a variety of sound reinforcement applications including fixed, portable, and touring audio systems. The subwoofer requires 800W (peak) to power the 10" low-frequency driver, which provides a frequency response of 42 to 110 Hz with a peak SPL of 122 dB. The dual-ported enclosure ensures a fast and accurate transient response for copious quantities of tight low-end output with low distortion.

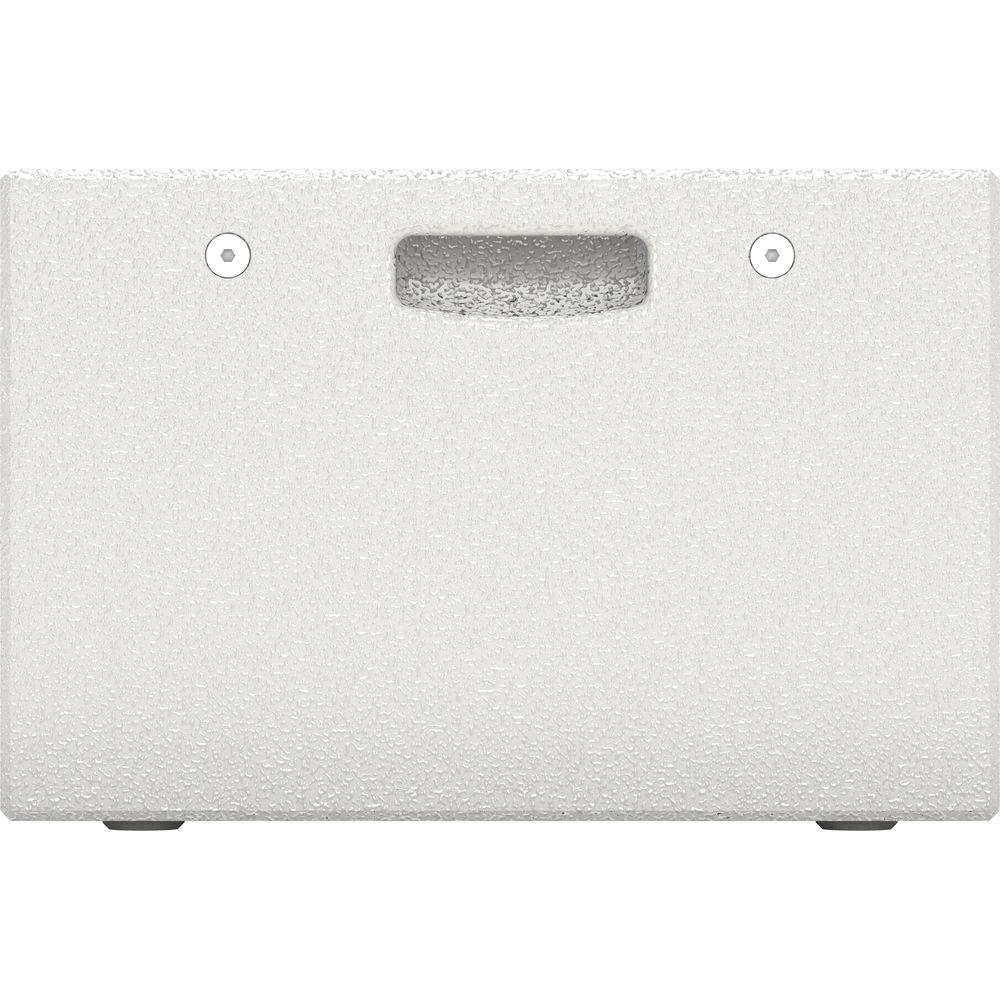

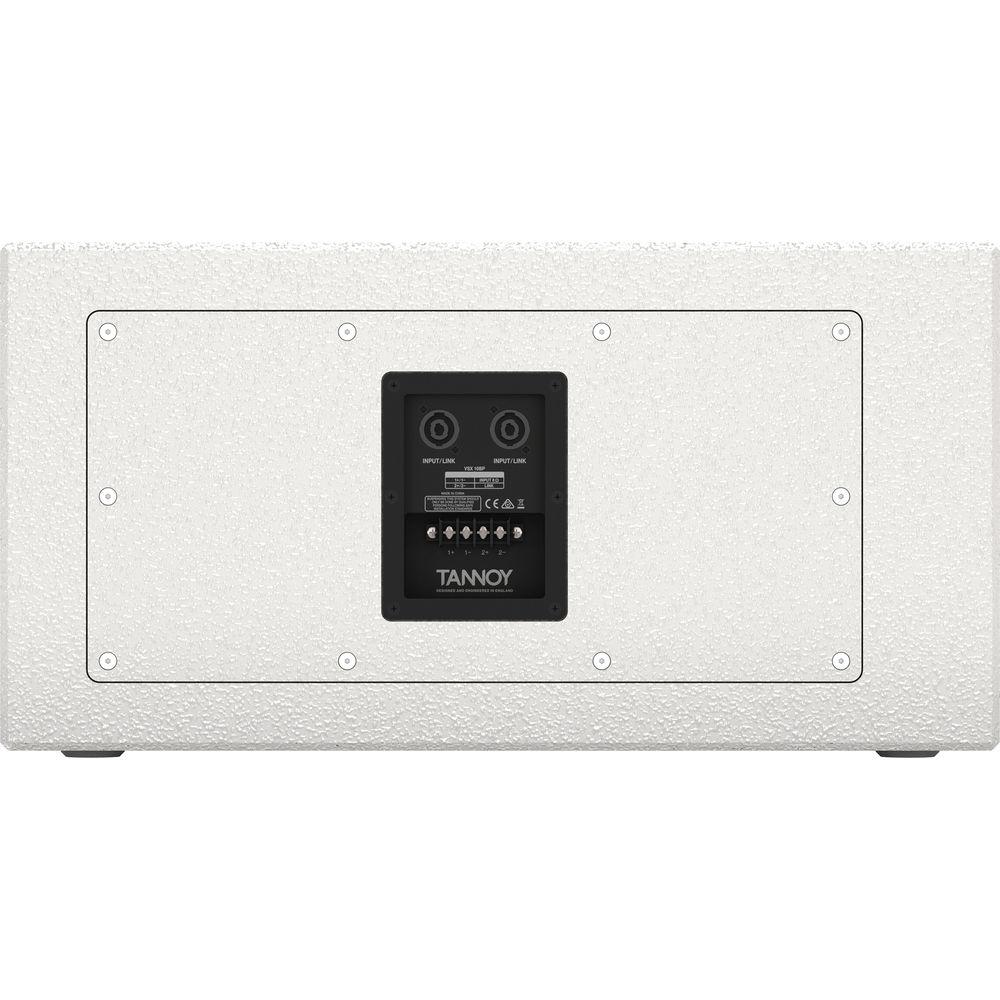

The VSX 10BP-WH can easily be deployed in a multitude of configurations thanks to the eight integrated M10 rigging points and the blanking plate for the optional VTH pole mount. The Integrip handles are ergonomically integrated in the rear of the cabinet to provide ease in transport. The internally braced cabinet is covered with hard-wearing semi-matt white paint, while the rugged powder coated perforated steel mesh grille is backed with reticulated foam. The rear panel provides two Neutrik speakON NL4 and barrier strip connectors for input and pass-through to additional subwoofers. -
- Compact band-pass subwoofer for portable and installation applications
- Power handling of 200W continuous, 800W peak
- 10" bass driver for extended low-frequency system response to below 40 Hz (-10 dB)
- Low distortion, dual-port design for maximum sound pressure levels
- Ideal for background music playback in clubs, bars, theatres, and AV applications
- Internally braced plywood enclosure
- Finished with a hard-wearing semi-matt white paint finish
- Blanking plate for optional VTH pole mount
- Integral M10 rigging points for ease of installation
- Integrip handle ergonomically integrated into back of cabinet
- Neutrik speakON NL4 and barrier strip connectors for input and link output
UPC: 748252177346 In the Box Tannoy VSX 10BP-WH 10" Compact Band-Pass Passive Subwoofer (White) Limited 10-Year Warranty Upon Online Registration Within 90 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Tannoy VSX 10BP-WH 10" Compact Band-Pass Passive Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTannoy VSX10BPWH Specs | | | System Type | Subwoofer, band-pass | | Frequency Response | 42 to 110 Hz (-3 dB)
36 to 130 Hz (-10 dB) | | System Sensitivity | System Sensitivity (1 W @ 1 m): 93 dB (1 W = 2.83 V for 8 Ohms) | | Power Handling | Average: 200 W
Program: 400 W
Peak (10 ms): 800 W | | Recommended Amplifier Power | 400 W @ 8 Ohms | | SPL | Average: 116 dB
Peak: 122 dB | | Nominal Impedance | 8 Ohms | | Driver | Bass Driver: 10" / 254 mm | | Crossover | 80 to 110 Hz, 24 dB/octave
Recommended high-pass filter 40 Hz, 24 dB/octave | | Distortion | 10% Full Power (28.3 V)
2nd Harmonic 50 Hz: 2.24%, 100 Hz: 0.17%
3rd Harmonic 50 Hz: 1.95%, 100 Hz: 0.47%
10% Full Power (28.3 V)
2nd Harmonic 50 Hz: 0.67%, 100 Hz: 0.42%
3rd Harmonic 50 Hz: 0.57%, 100 Hz: 0.49% | | | | Enclosure | 61 liters, 0.6" / 15 mm birch plywood, internally braced | | Connectors | 2 x speakON NL4MP and barrier strip | | Flypoints | 8 x M10 flying inserts (landscape mounting, portrait only if ground stacked) | | Carrying / Transport Options | 1 x Integrip carrying handle | | Dimensions (H x W x D) | 11.8 x 18.1 x 23.2" / 300 x 460 x 590 mm | | Weight | 40.8 lb / 18.5 kg |
