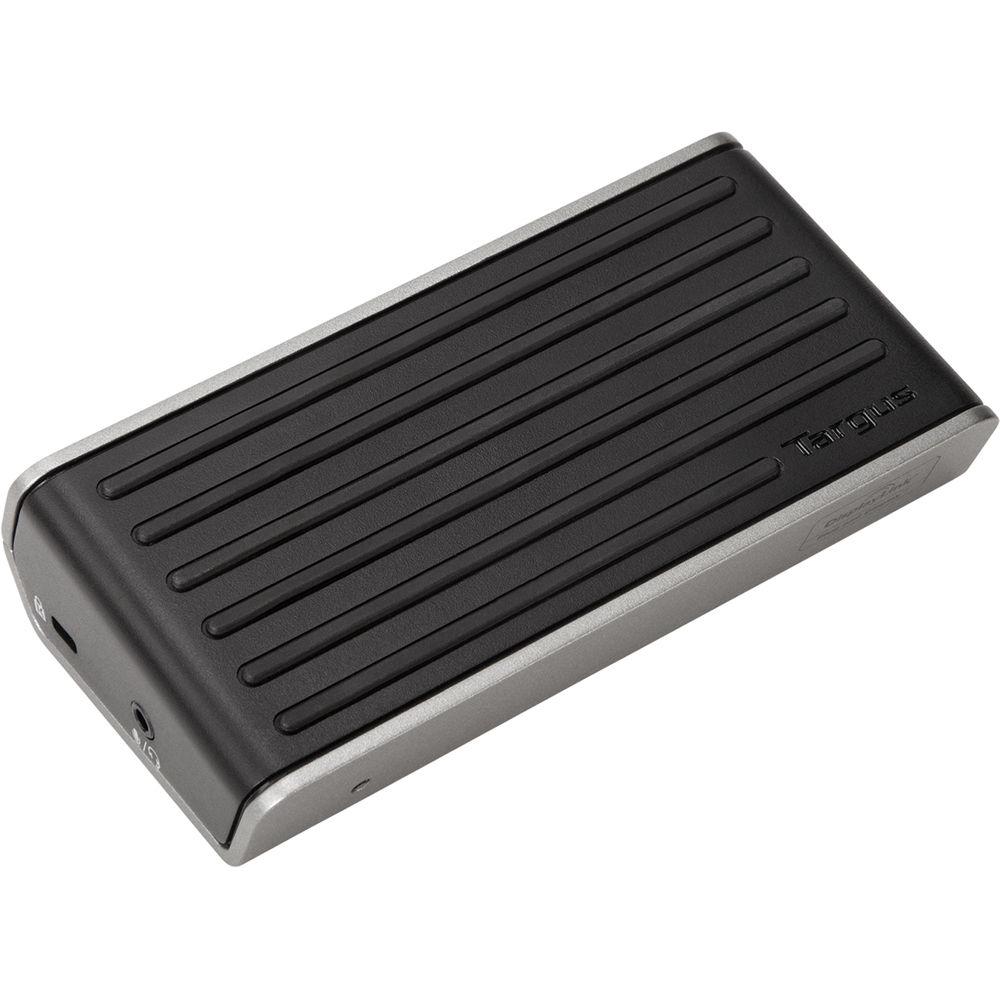

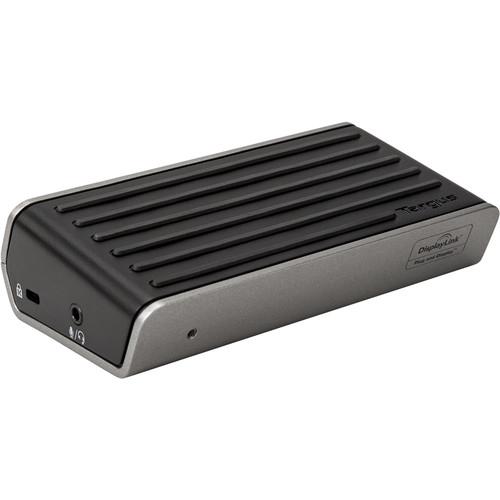

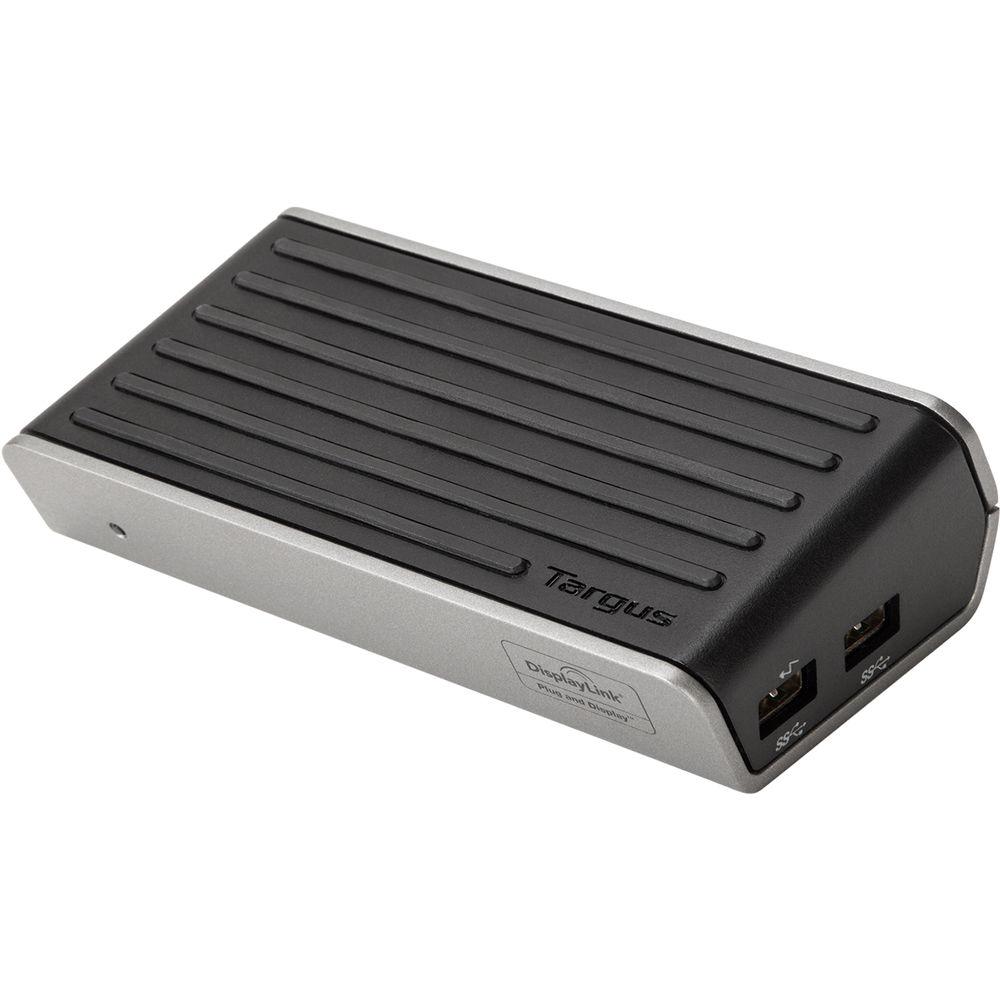

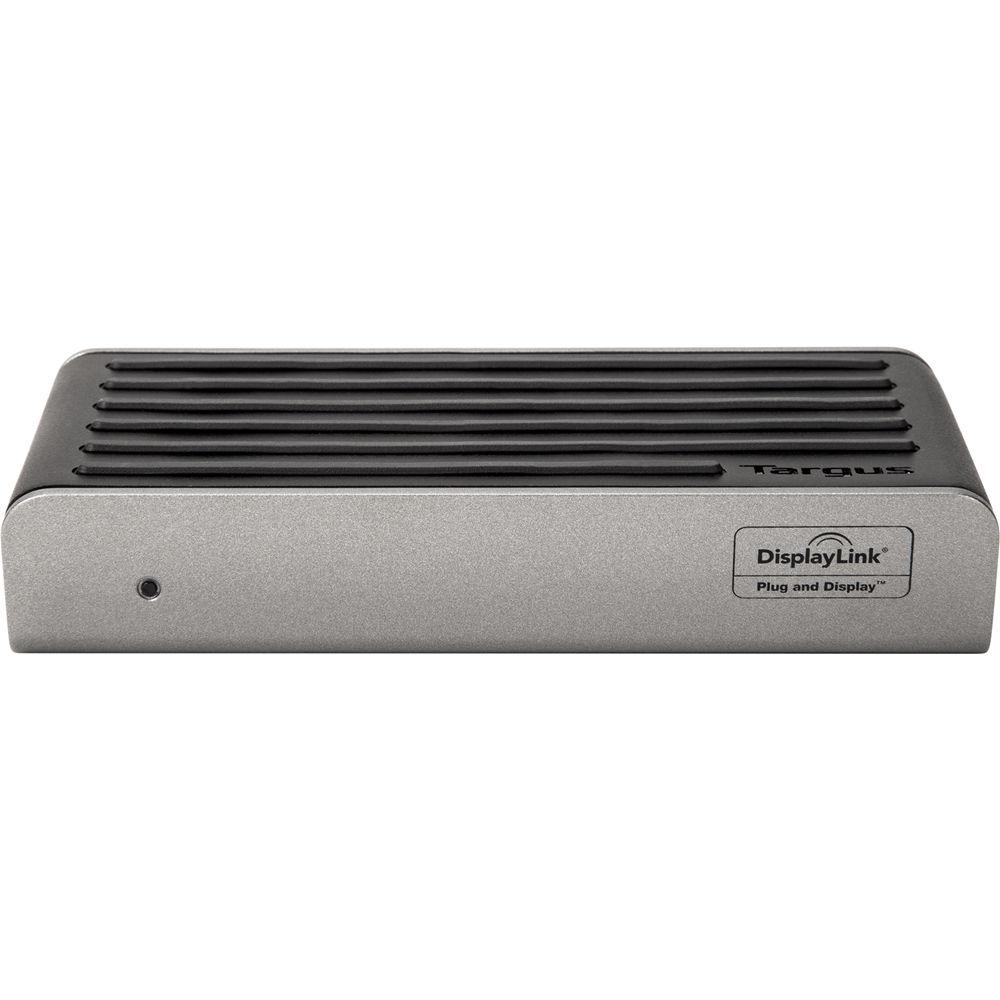

User Manual for Targus 2K Universal Docking Station Click to enlarge the picture
Contents of the user manual for the Targus 2K Universal Docking Station
- Product category: Docking Stations & Port Replicators Targus
- Brand: Targus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Targus Docking Stations & Port Replicators
 |
User manual for the Targus 2K Universal Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Targus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Targus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Targus product will considerably shorten its lifespan!
|
Product description Expand the connectivity options for your computer with the 2K Universal Docking Station from Targus. This docking station sports three video ports that support DVI-I, HDMI, and DisplayPort monitors. To complete the multimedia experience, an audio jack is included. For other peripherals, Targus has equipped this dock with four USB 3.0 ports and designed one of these ports to charge battery-powered devices. There's also a Gigabit Ethernet jack for a wired networking connection.

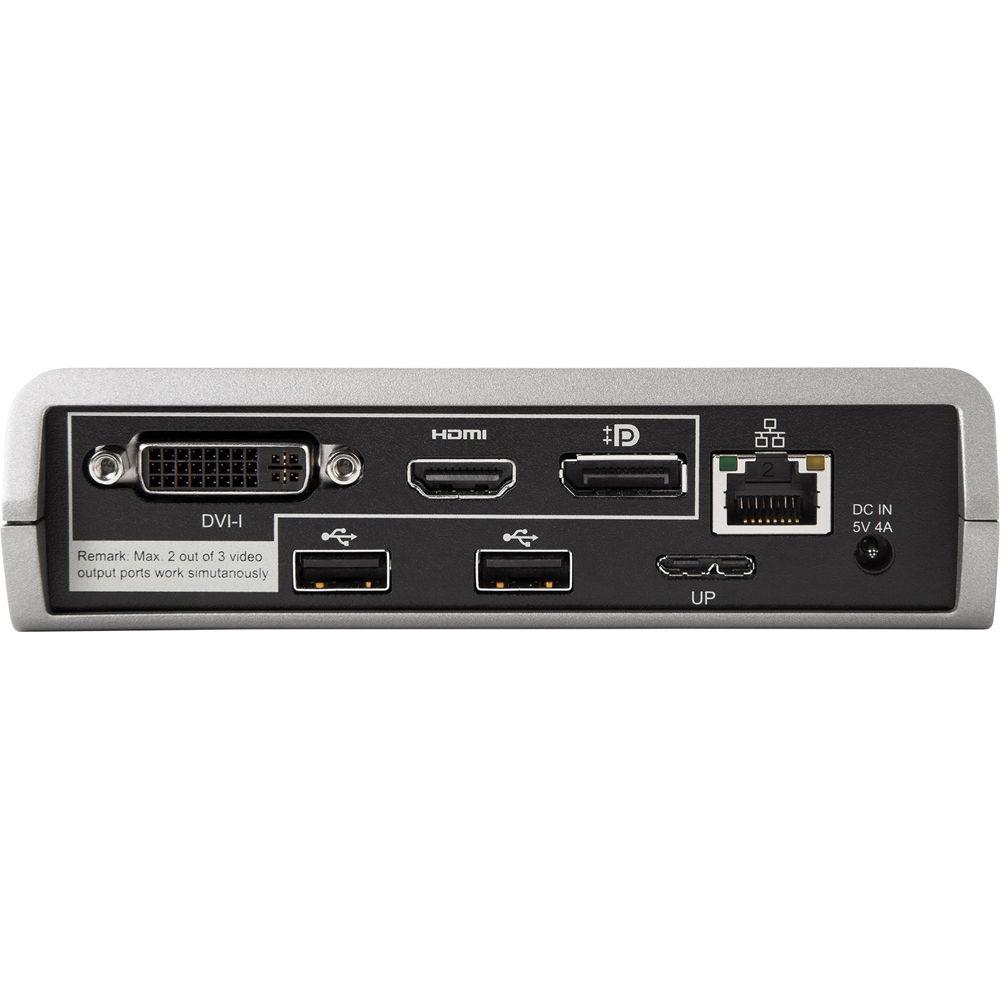

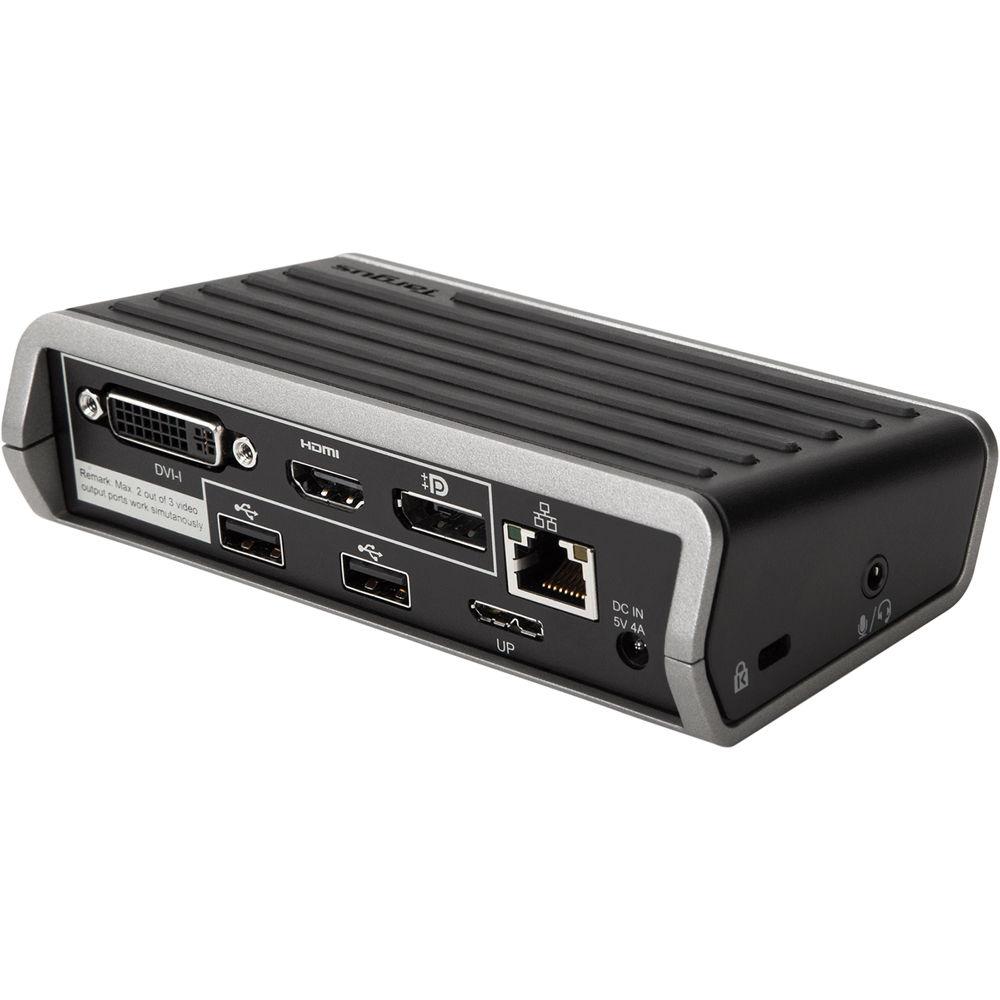

This 2K docking station supports a dual-monitor setup and delivers a resolution of 2048 x 1152 for each display. When connected to a single monitor, it provides a resolution of up to 2560 x 1600 via the DisplayPort. This dock comes with a USB 3.0 micro-B uplink port that connects to your computer system. In addition, a Kensington lock slot is available for security. - DisplayPort port supports a single 2K monitor (up to 2560 x 1600 @ 30 fps)
- DVI-I and HDMI ports to support dual-monitor setups (up to 2048 x 1152 @ 60 fps)
- Gigabit Ethernet port for wired access at 10/100/1000 speeds
- Three USB 3.0 SuperSpeed ports for printers, external storage drives, and other USB-enabled devices

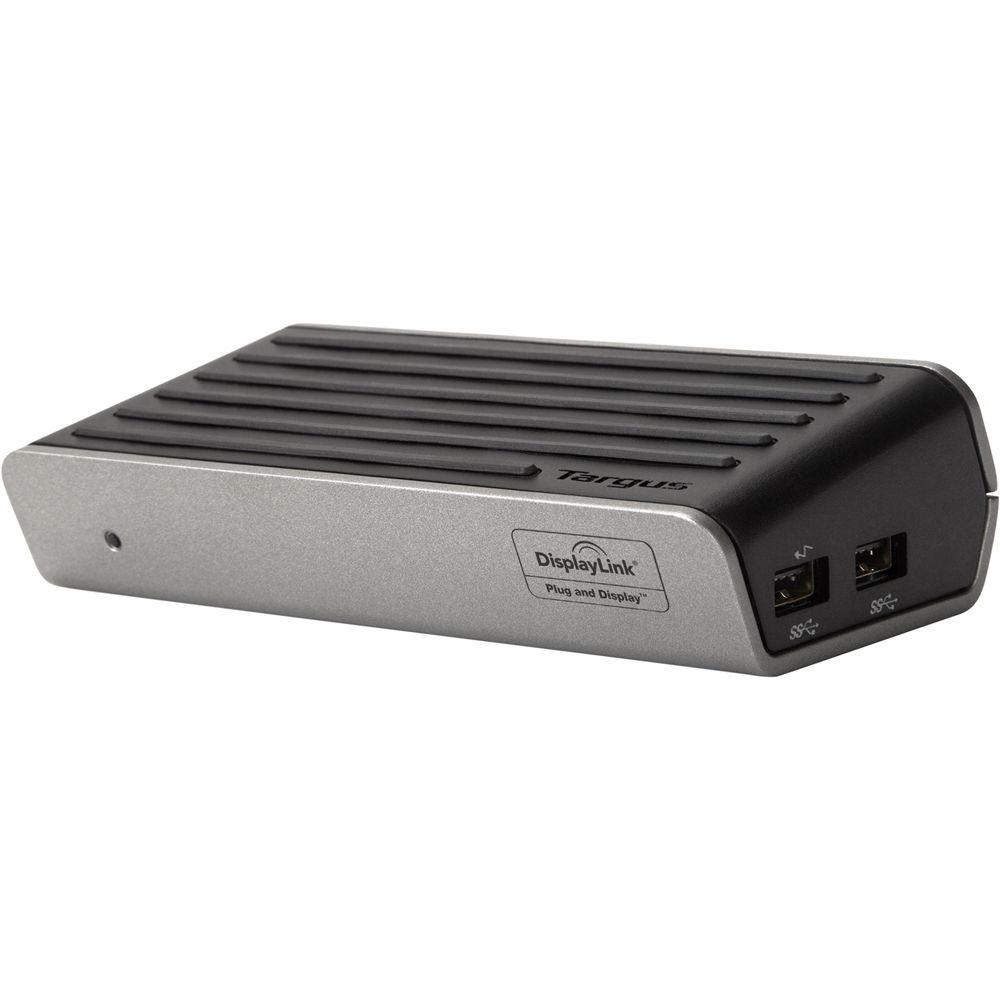

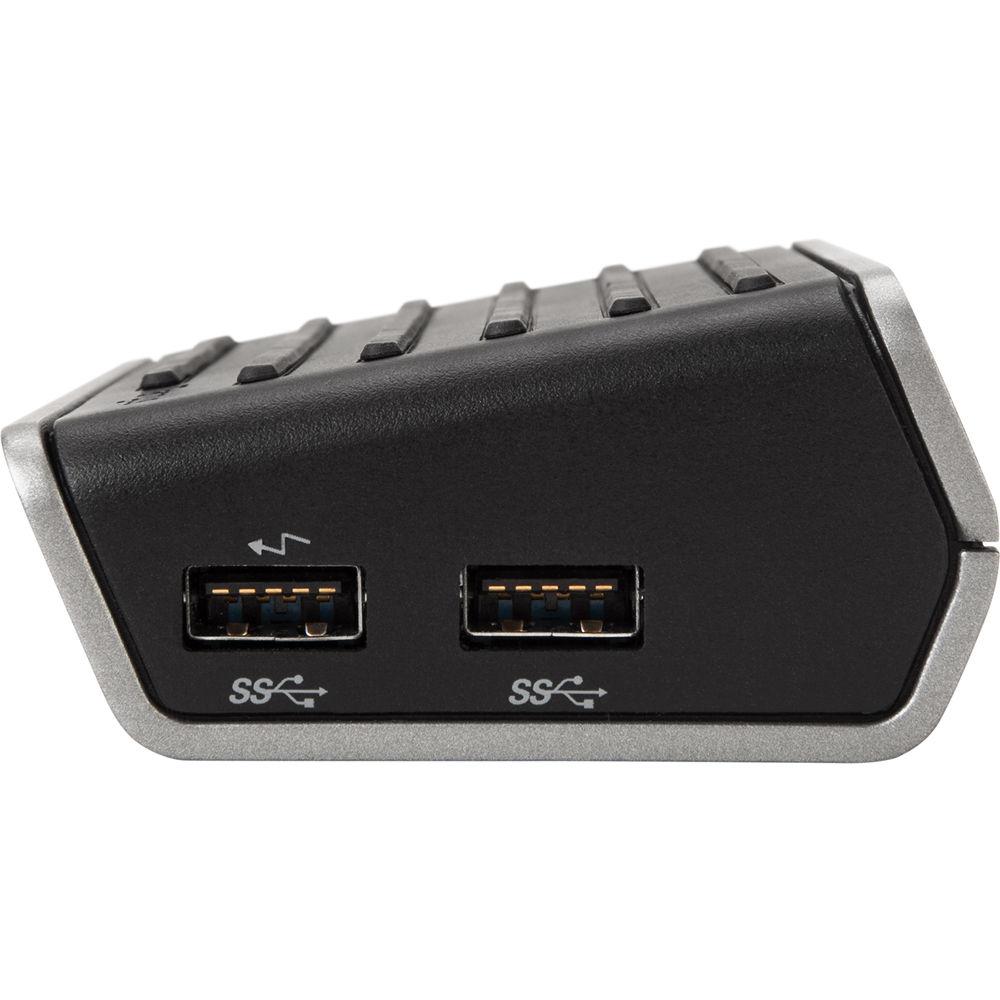

- One USB 3.0 powered port for device charging

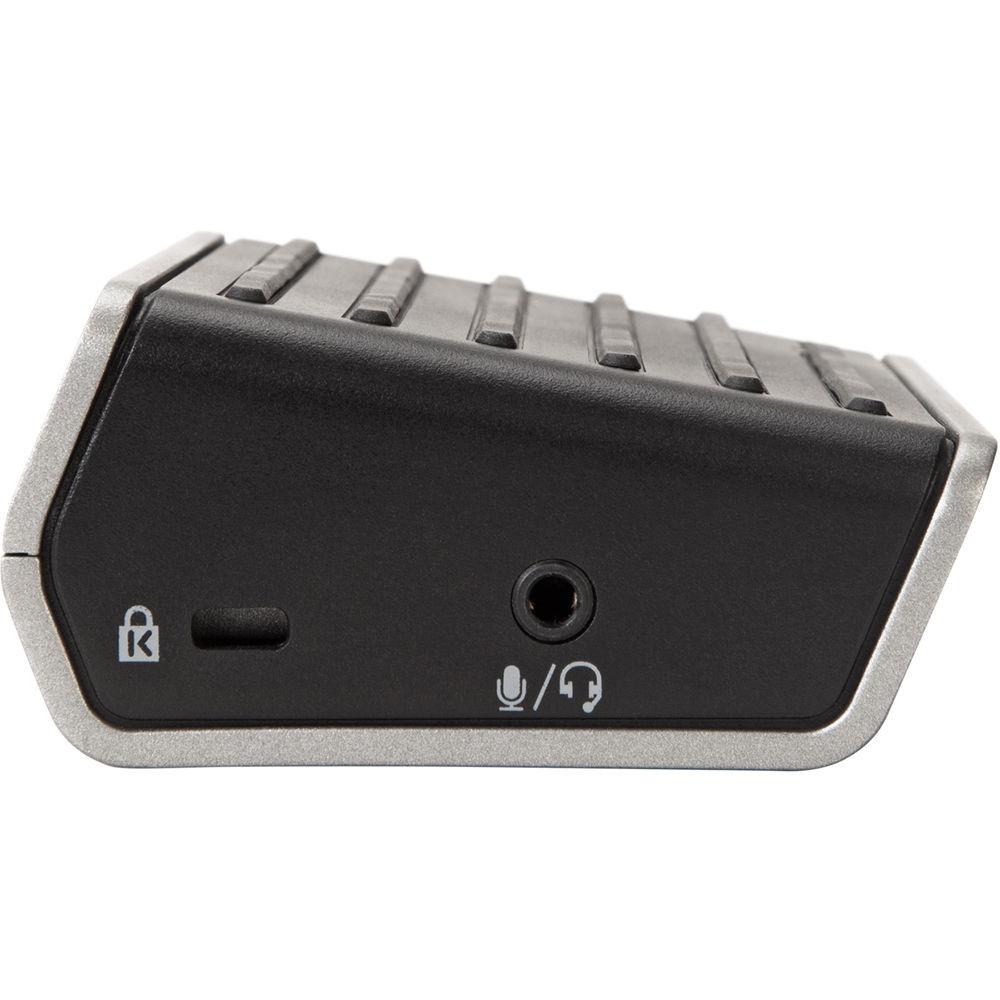

- Audio in/out port for microphones, speakers, and earphones

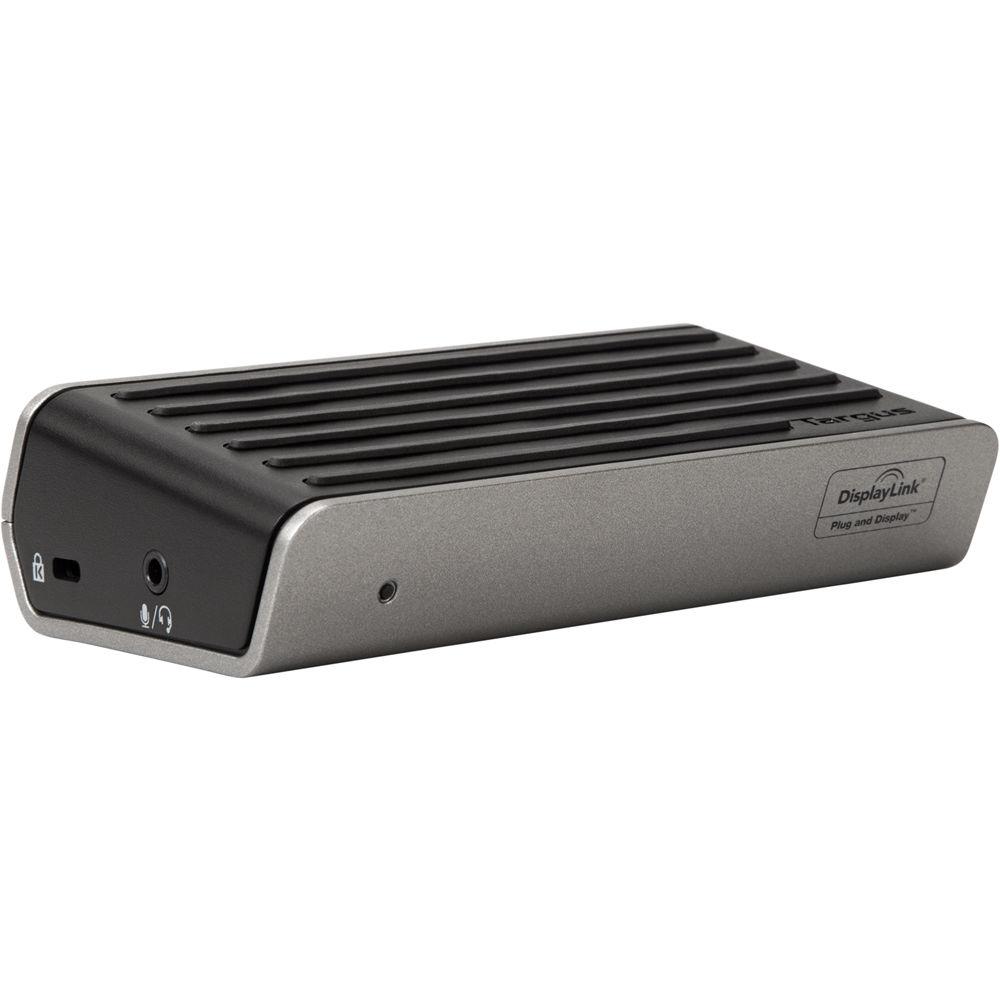

- Integrated lock slot accommodates security locks to safeguard the dock
UPC: 092636313715 In the Box Targus 2K Universal Docking Station USB 3.0 Cable AC Power Adapter Limited 3-Year Warranty Brochure PDF 52kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Targus 2K Universal Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTargus DOCK120USZ Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 | | FireWire | None | | Display | 1 x DVI-I
1 x HDMI
1 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Micro-B Female | | | | DC Input Power | 5 VDC at 4 A | | | | Lock Slot | Yes | | Dimensions | 5.5 x 7.2 x 3.3" / 14 x 18.2 x 8.4 cm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.3 x 5.5 x 3.1" |
